Ferrari F355 Challenge (twin/deluxe)
From Citylan
Jump to navigationJump to search
| dumper | "someone" |
| dump date | 15/10/2009 |
| emulator | MAME 0.134u4 |
| dev | ANY, The Dumping Union |
| name | f355twin on ProgettoEMMA f355twin on Arcade Database |
| description | Ferrari F355 Challenge (twin/deluxe) |
| year | 1999.09.27 - 11:12:36 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | 22848.ic22 | dumped |
| 21x | 27w064 | 22287.ic1 - 22847.ic21s | dumped |
| 1x | X76F100 | ic37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI multiboard cart.
Bios EPR-22849, EPR-22851
Cart type: 171-7919A
Cart N°: 834-13950
Protection IC: SEGA 315-5881 (317-0267-COM)
Key: 0x2806efd4
Files
-

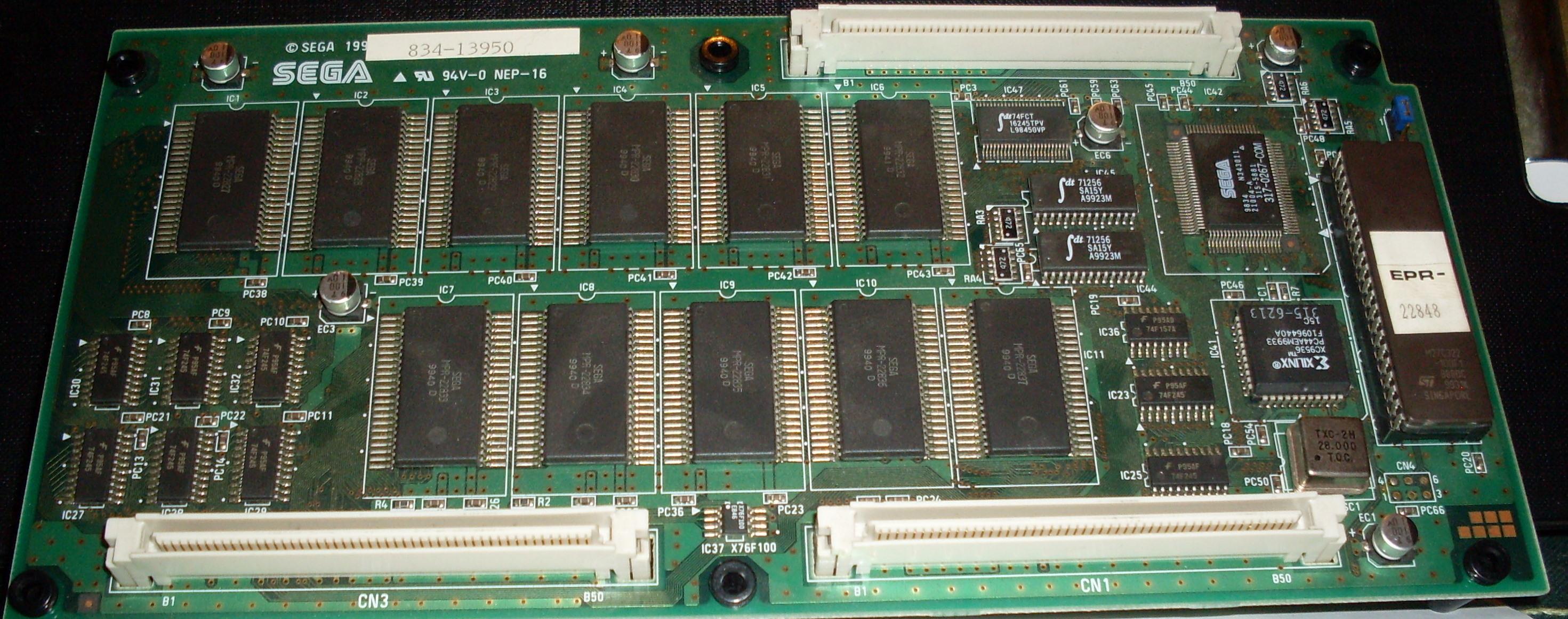

PCB component side 1
-

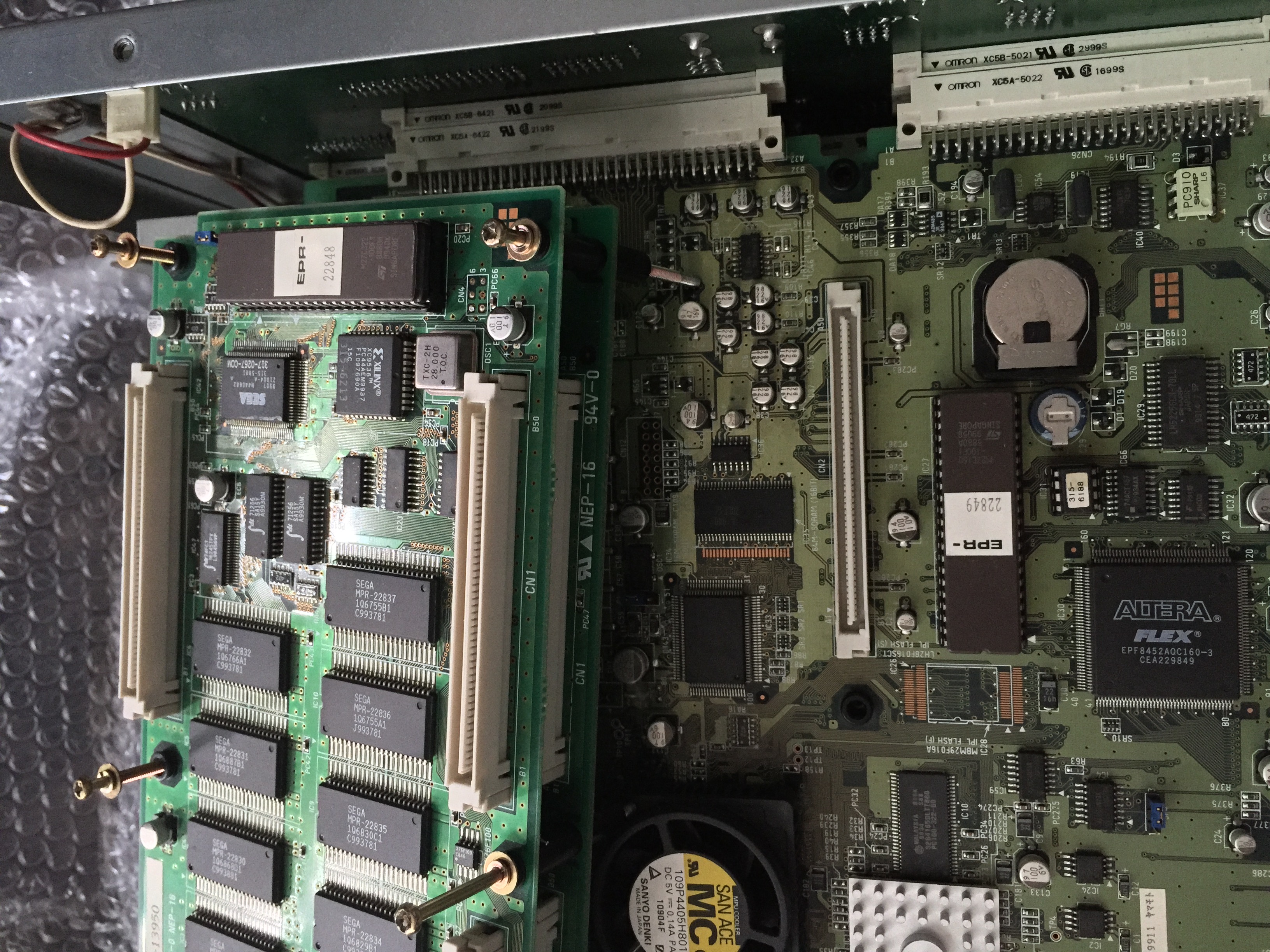

PCB component side 2
-

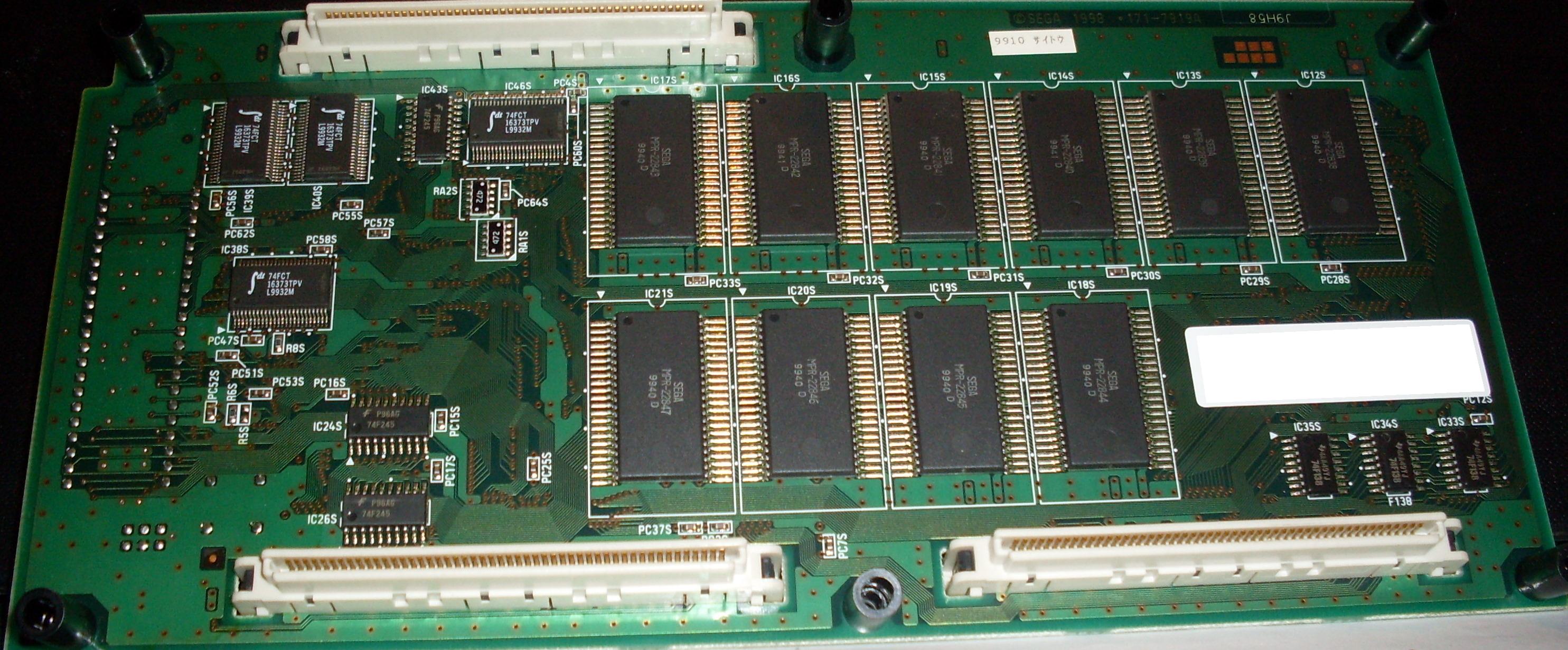

PCB solder side
-
Read me
850
