Ferrari F355 Challenge (private show version)
From Citylan
Jump to navigationJump to search
| dumper | Coolmod |
| date | 31/01/2020 |
| emulator | MAME 0.218 |
| dev | MetalliC |
| name | f355p on ProgettoEMMA f355p on Arcade Database |
| description | Ferrari F355 Challenge (private show version) |
| year | 1999.05.13 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 29F016 | small piggyback in ic22 | dumped |
| 21x | M27W064 | rom1.ic1s - rom21.ic21s | dumped |
| 1x | X76F100 | ic37 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a Naomi Multiboard cart.
Cart type: 171-7885A
Cart N°: no cart, only PCB
Protection IC: SEGA 315-5881 (317-0254-COM)
Key: 0x2806efd4
only first 19 flash roms contain game data
Files
-

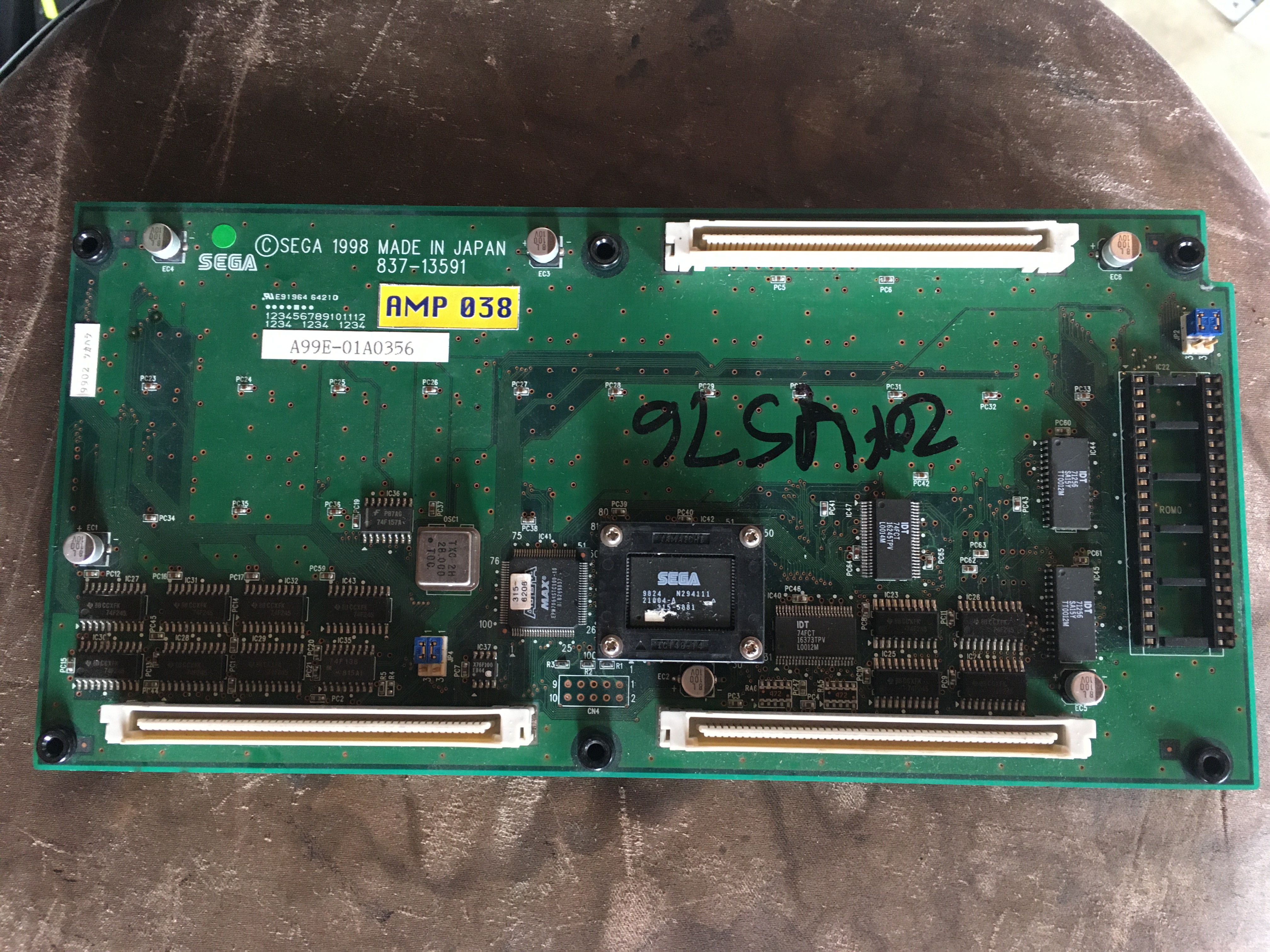

PCB component side
-

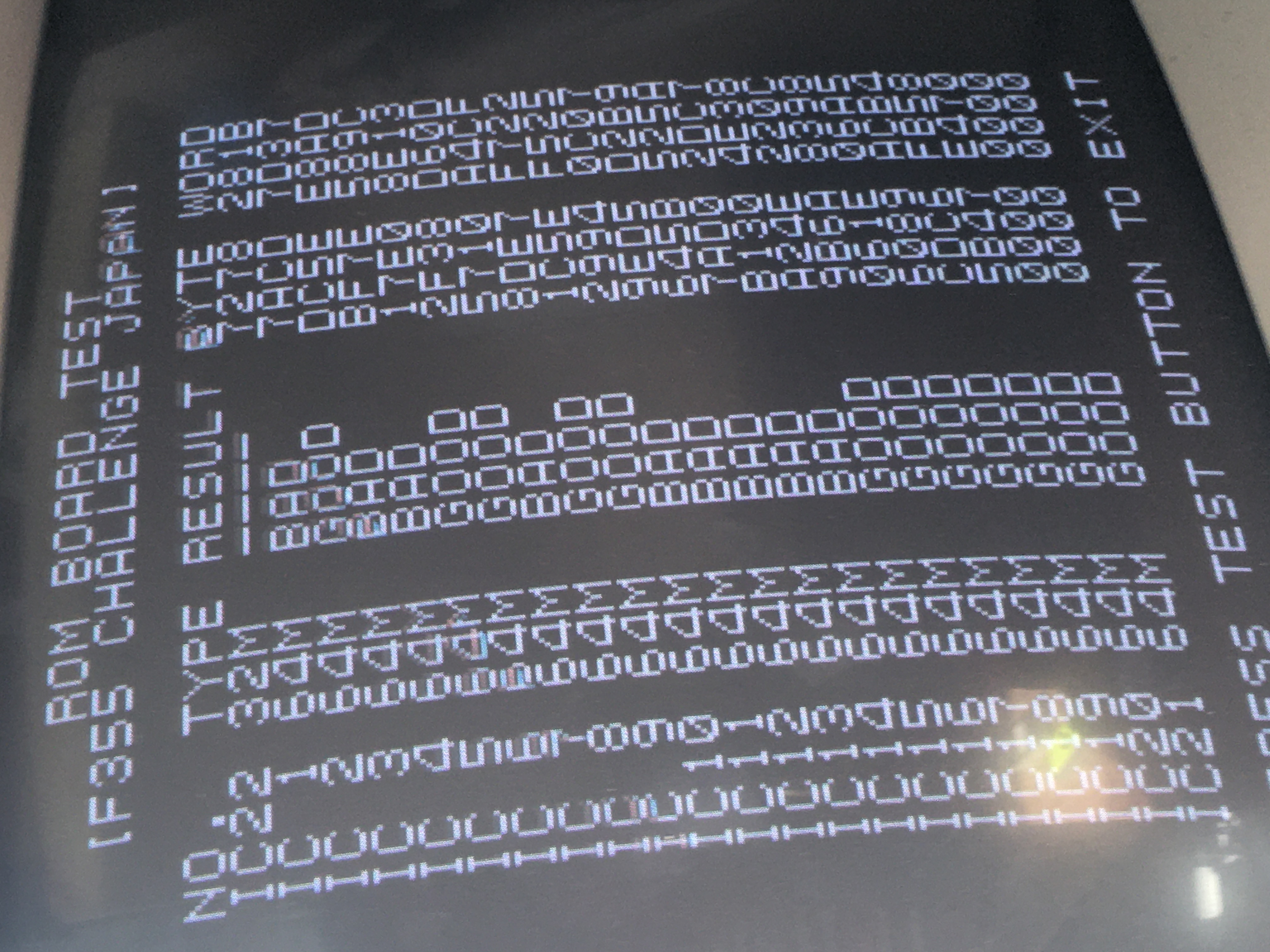

ROM board test
-

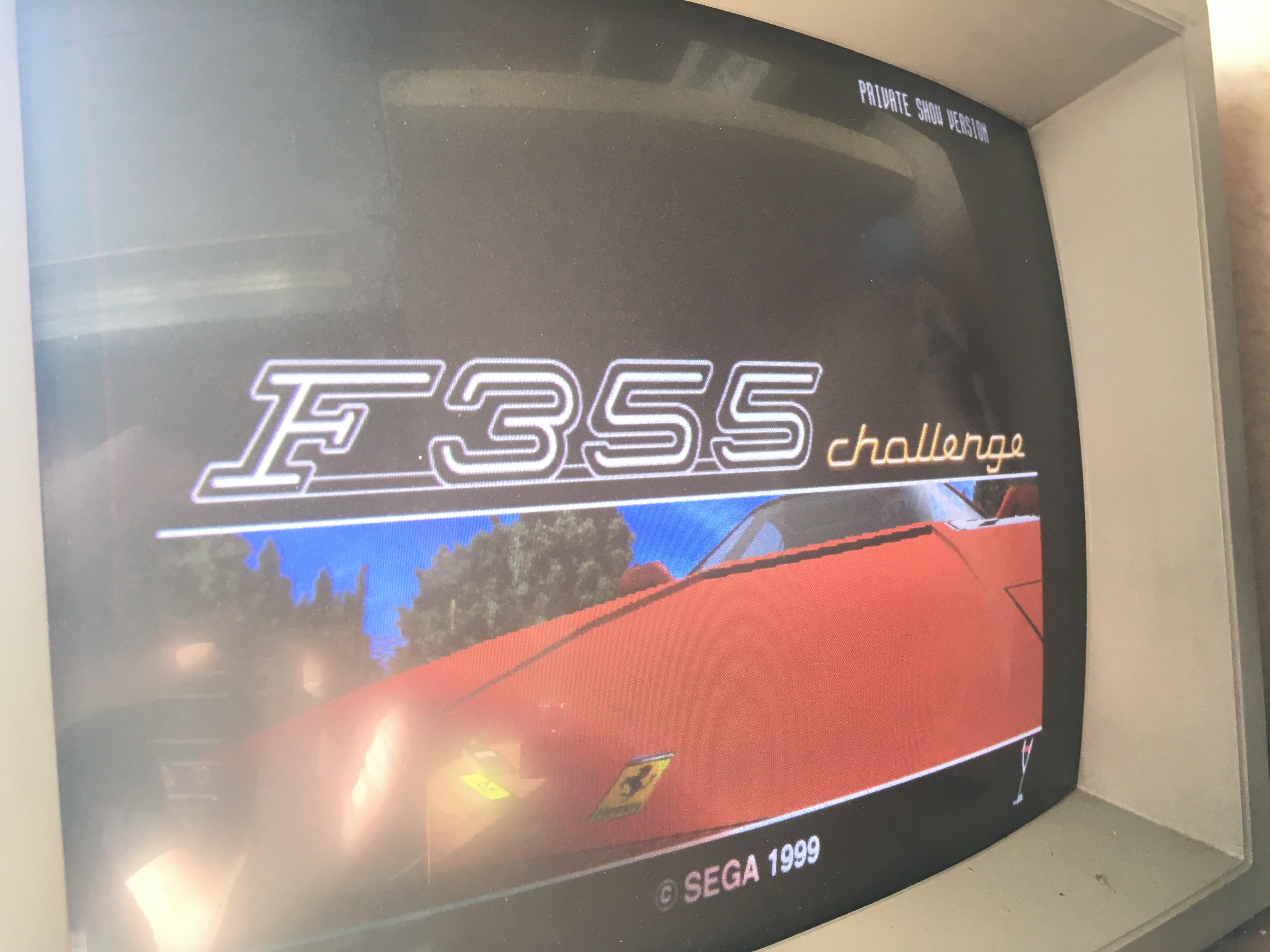

title
