Fashion (Version 2.14)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 12/01/2008 |
| emulator | MAME 0.128u5 |
| dev | David Haywood, Angelo Salese |
| name | fashion on ProgettoEMMA fashion on Arcade Database |
| description | Fashion (Version 2.14) |
| year | 2001.03 |
| manufacturer | High Video |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TN80C186XL20-L015VA17D | u1 | 16-bit Microprocessor - main | |
| 1x | M6376 | u17 | sound | |
| 1x | TDA1010A | u19 | Audio Amplifier - sound | |
| 1x | oscillator | 40.000MHz | xt1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C4001 | u16 | dumped |
| 2x | M27C801 | u7,u8 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | Cy7C1009-18VC | u20,u21 |
| 2x | CY62256L-70SNC | u11,12 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2032 | u13 | not dumped |
| 1x | ispLSI1032E | u18 | read protected |
Others
1x 28x2 edge connector (CNS1,CNC1)
1x 5x2 legs connector (CN2)
1x 8x2 legs connector CN3)
1x trimmer (volume) (P1)
1x pushbutton (K1)
1x 3 legs jumper (S3)
1x battery 3.6V (B1)
Notes
PCB is marked: "LAB C.RU" and "NEW HIGH VIDEO" on component side
PCB is marked: "NEW HIGH VIDEO" and "SOLD" on solder side
PCB is labeled: "HIGH-VIDEO R-8900 51000103" and "TV 10.1 High Video IT388 3/01" on component side
Files
-

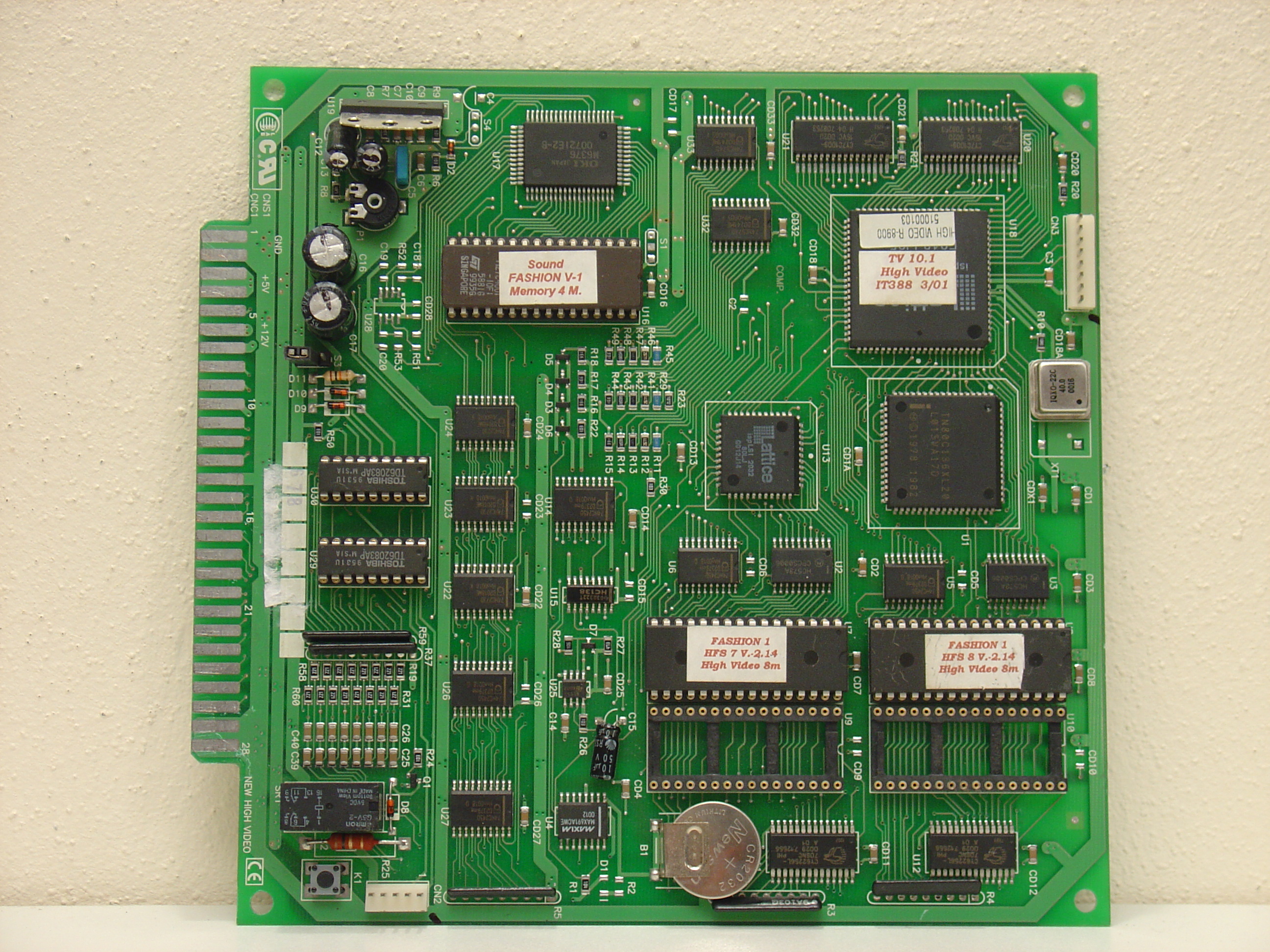

PCB component side
-

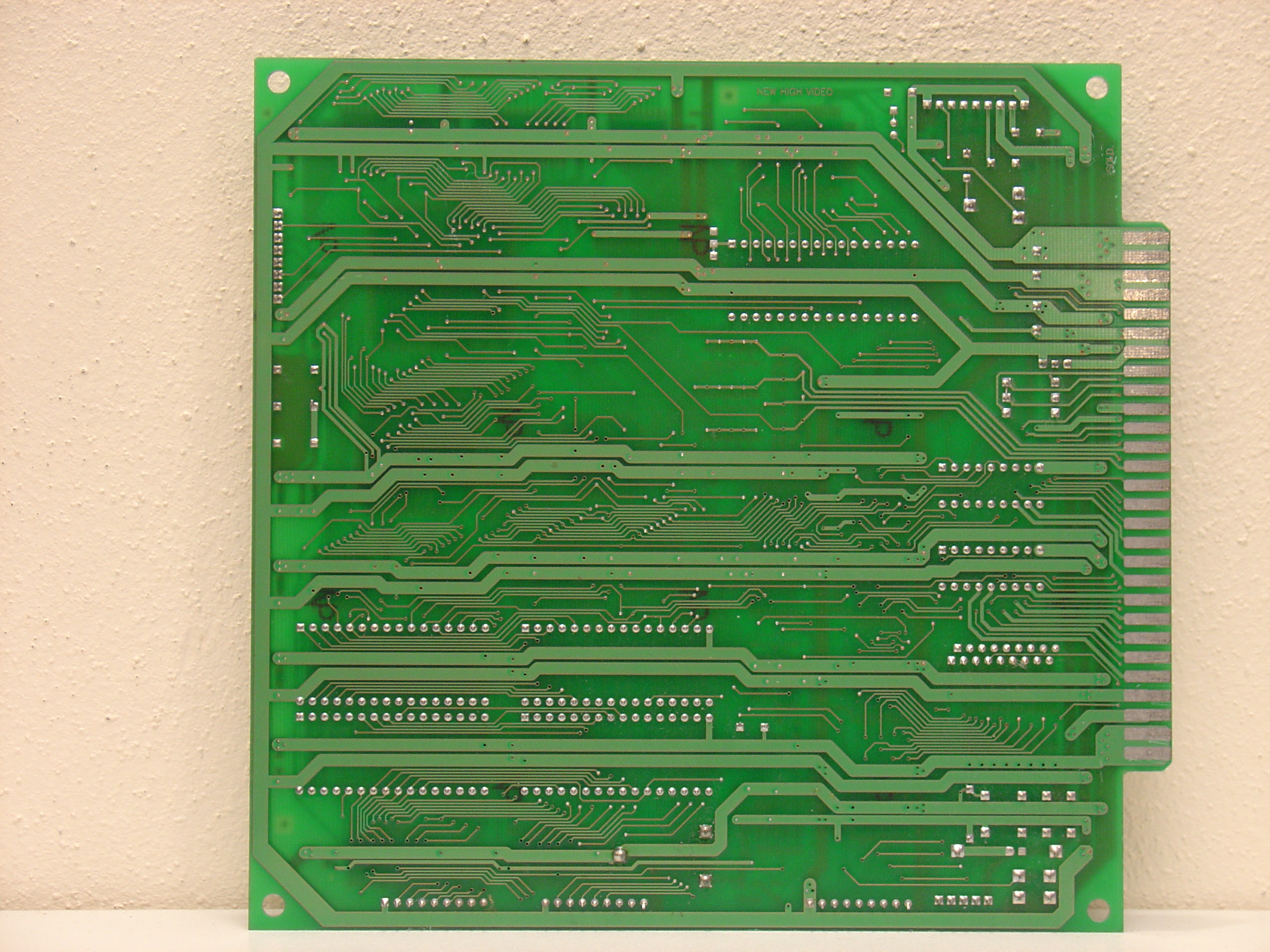

PCB solder side
-

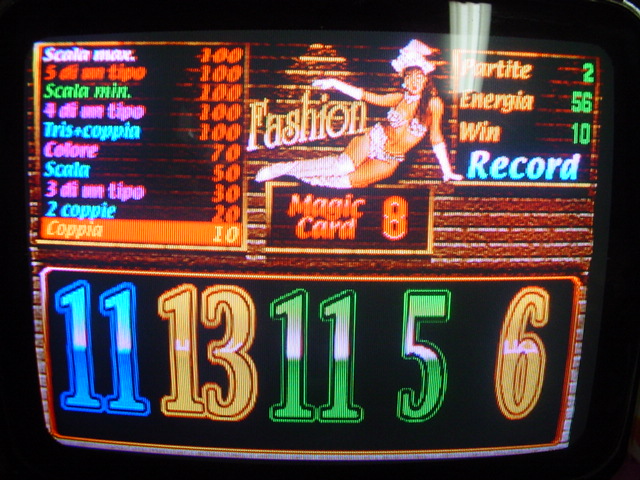

in game
