Exciting Soccer (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Corrado Tomaselli, Gnoppi |
| date | 28/12/2004 |
| emulator | MAME 0.34b7 |
| dev | Ernesto Corvi, Jarek Parchanski |
| name | exctsccrb on Arcade Database |
| description | Exciting Soccer (bootleg) |
| year | 1983 |
| manufacturer | Alpha Denshi - Kazutomi |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | ALPHA-8201 | 11a - CPU board | MCU - main | |
| 1x | LH0080A-Z80A-CPU-D | 11c - CPU board | 8-bit Microprocessor - main | |
| 1x | AY-3-8910 | 11b - CPU board | Programmable Sound Generator - sound | |
| 1x | LH0080A-Z80A-CPU-D | 14f - VOICE board | 8-bit Microprocessor - sound | |
| 1x | LA6324 | 14j - VOICE board | Quad Operational Amplifier - sound | |
| 1x | oscillator | X1 (1j) - DISPLAY board |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | M5L2764K | 1,2,3 - CPU board | dumped |
| 3x | M5L2764K | A,B,C - VOICE board | dumped |
| 1x | M5L2764K | 4 - DISPLAY board | dumped |
| 2x | M5L2764K | 5,6 - Kazutomi board | dumped |
| 2x | M5L2732K | 7,8 - Kazutomi board | dumped |
| 1x | MB7052 | 8r - Kazutomi board | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | TMM314APL-1 | 9a,9b - CPU board |
| 2x | MSM2114L-2RS | 14g,15g - VOICE board |
| 4x | D2125 | 1a,1b,2a,2b - DISPLAY board |
| 3x (or more) | MSM2114L-2RS | 4g,4h,4i,? - DISPLAY board |
| 4x | D2115 | 10a,10b,10c,10d - Kazutomi board |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 18x2 edge connector (CPU board)
2x trimmer VR1,VR2 (volume) (CPU board)
1x 8x2 DIP switches
Notes
Files
-

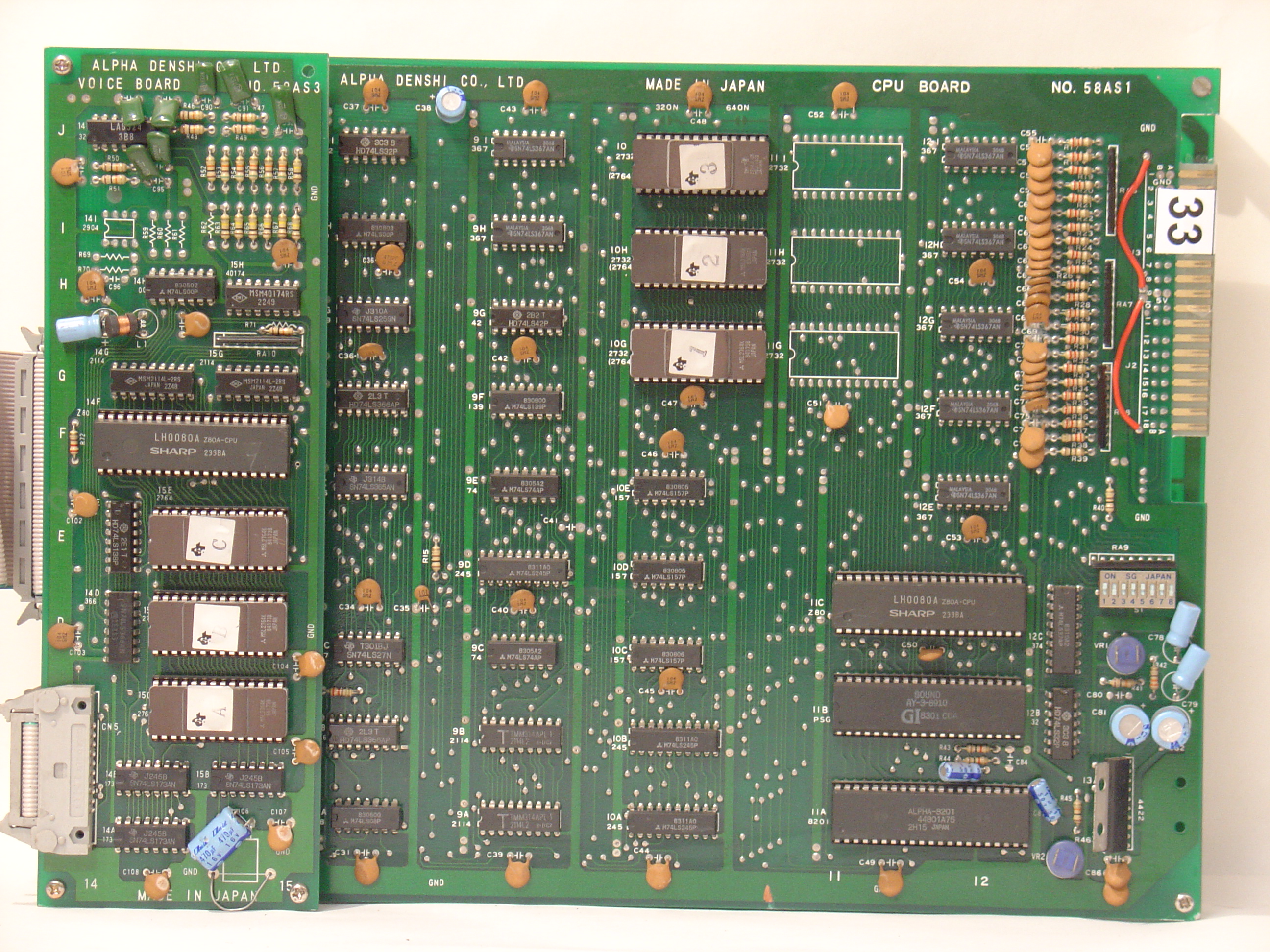

PCB component side
-

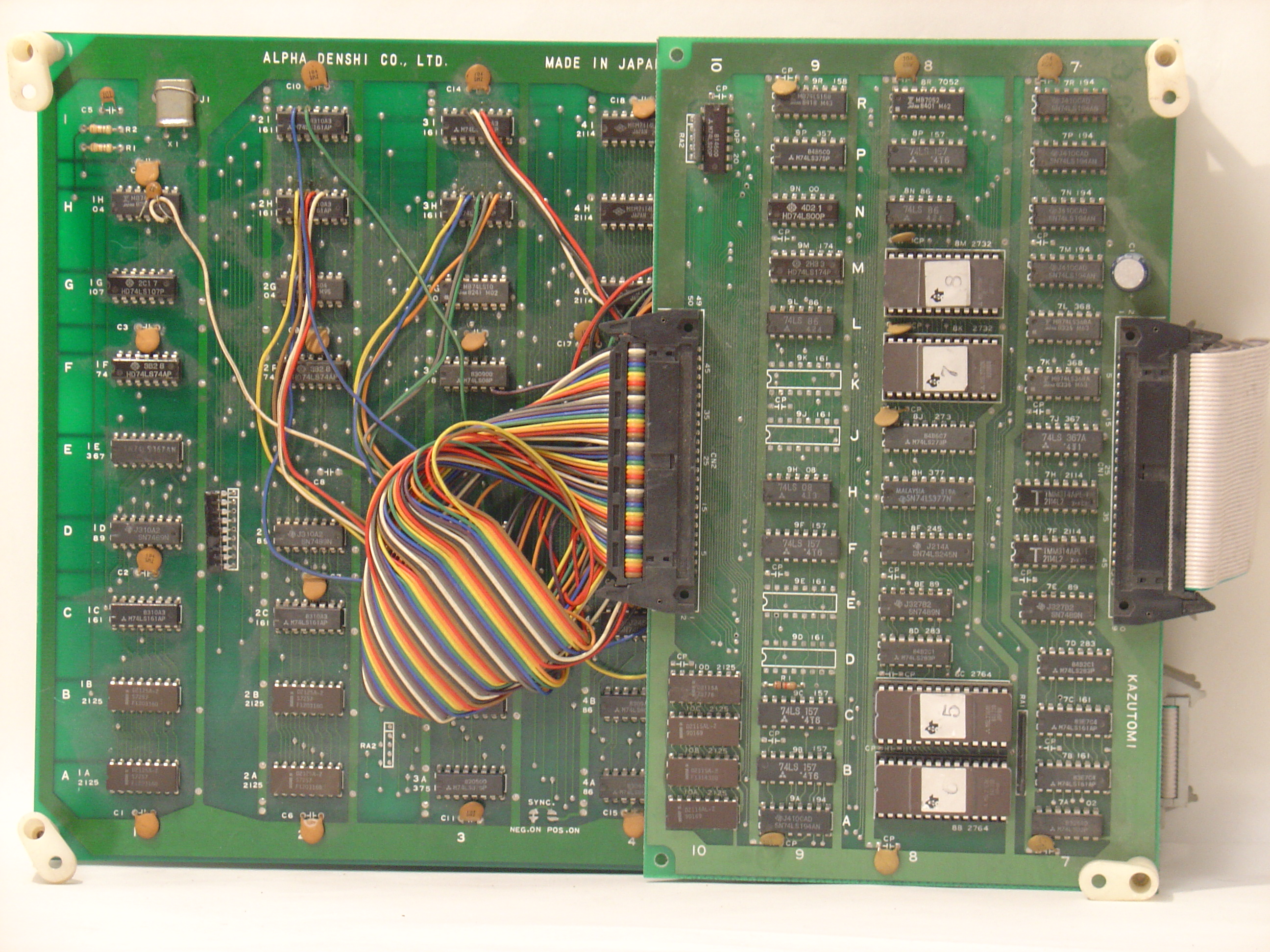

PCB solder side
68
