Exciting Soccer (alternate music)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 11/05/2013 |
| emulator | MAME 0.35b1 |
| dev | Thierry Lescot |
| name | exctsccra on ProgettoEMMA exctsccra on Arcade Database |
| description | Exciting Soccer (alternate music) |
| year | 1983 |
| manufacturer | Alpha Denshi |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | D8253C | 6n | Programmable Interval Timer | |
| 1x | LH0080A-Z80A-CPU-D | 4c | 8-bit Microprocessor - main | |
| 2x | AY-3-8910 | 3j,3l | Programmable Sound Generator - sound | |
| 2x | LA6324 | 1h,1p | Quad Operational Amplifier - sound | |
| 1x | oscillator | 14.xxxMHz | 3a |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M5L2732K | 6a | dumped |
| 4x | M5L2764K | 7,8,9,0 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MSM2128-20RS | 6l |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 20 pins flat cable connector from sound board to main board
1x trimmer (volume)
Notes
Only "Music & Voice Board".
Files
-

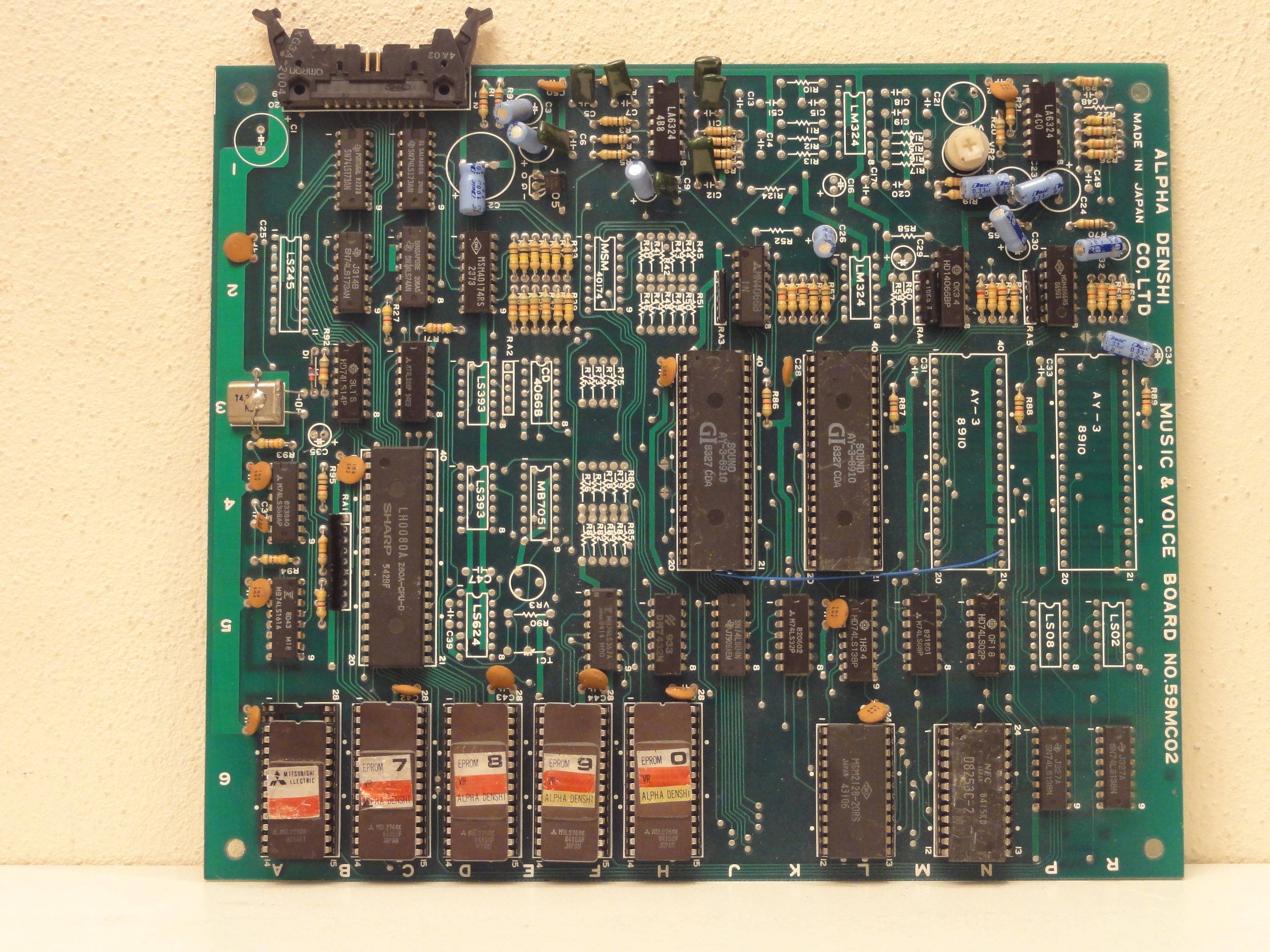

PCB component side
-

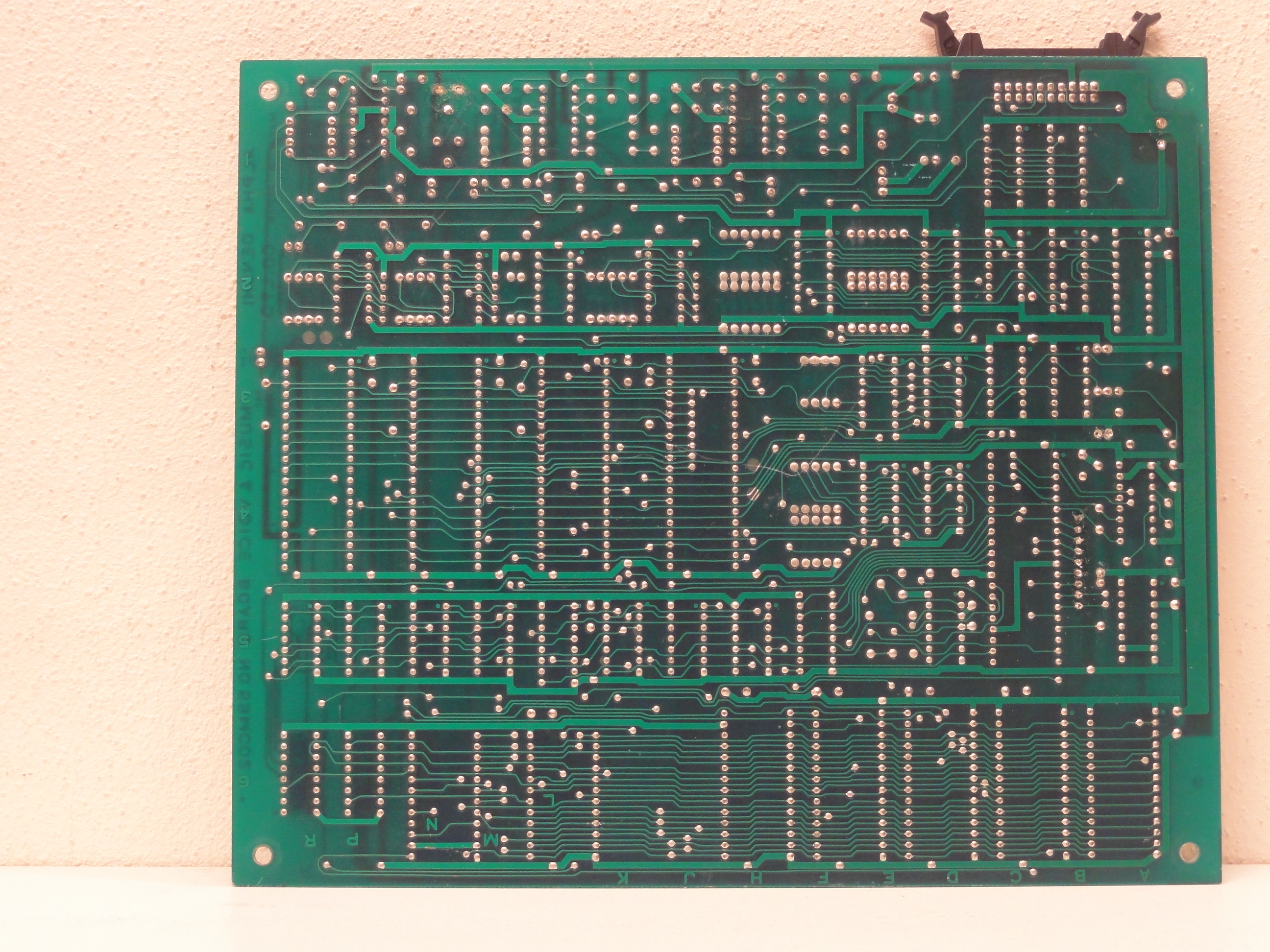

PCB solder side
