Europa 2002 Space (Ver 3.0)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 01/09/2008 |
| emulator | MAME 0.128u6 |
| dev | Roberto Fresca |
| name | euro2k2s on ProgettoEMMA euro2k2s on Arcade Database |
| description | Europa 2002 Space (Ver 3.0) |
| year | 2002 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3048 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | U6295 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | |
| 1x | oscillator | x1 (close to DS1302) | ||
| 1x | orange resonator | ZTB1000J | x1 (close to sound) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MX27C1000 | 1 | dumped |
| 2x | M27C2001 | 2,3 | dumped |
| 2x | M27C4001 | 4,5 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | U6264ADC | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | not dumped |
Others
1x 28x2 edge connector
1x 12 legs connector (CN1)
1x 12 DIP switches bank (CN2,CN3)
1x 50 pins flat cable connector
2x trimmer (volume,spark)
1x battery
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "bottom" and "H83048 Rev. 1.1" on solder side
PCB is labeled: "EUROPA 2002 SPACE Ver. 3.0" and "Non rimuovere PASSED 04/2002 Garanzia 6 MESI" on component side
Files
-

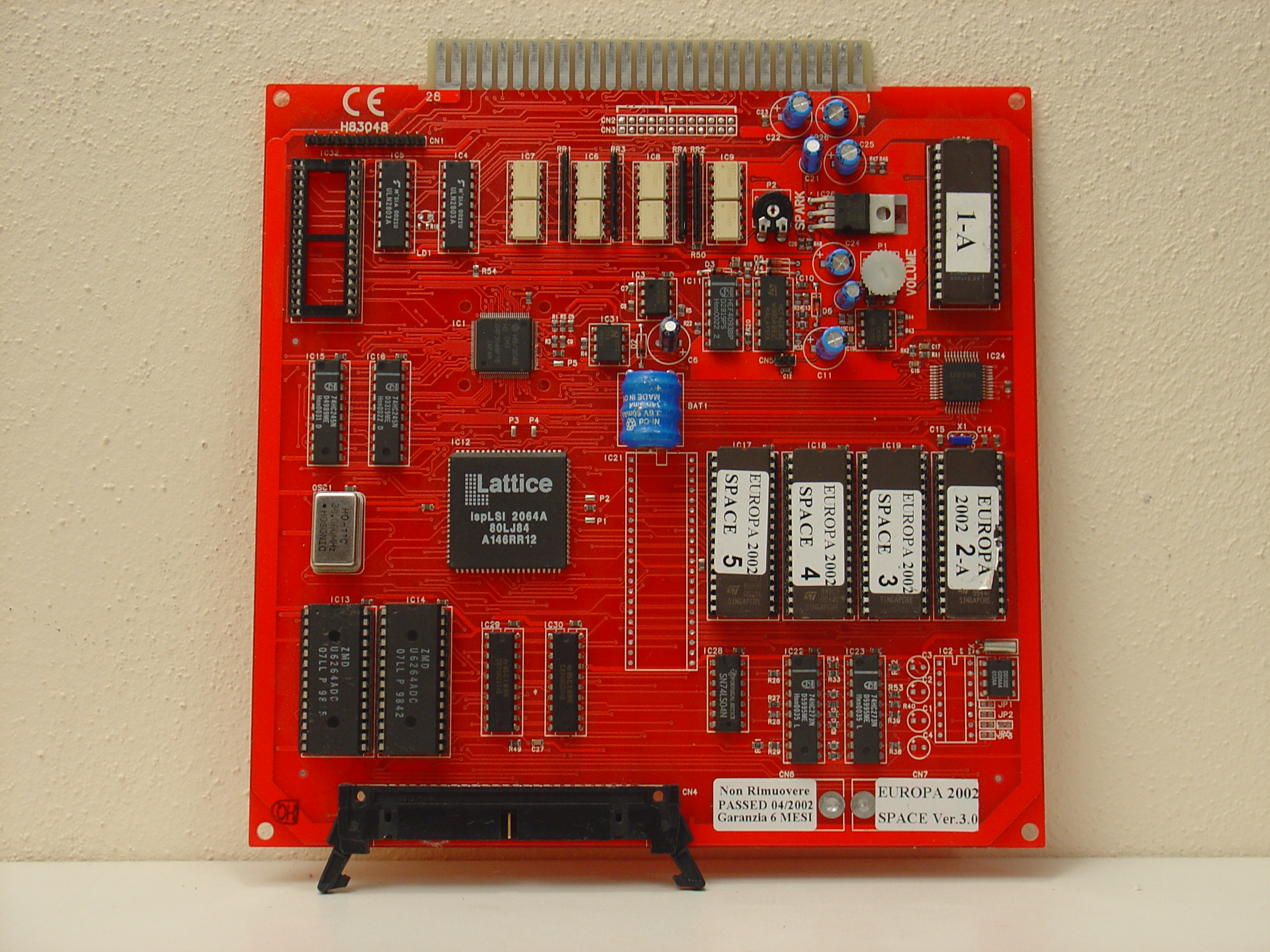

PCB component side
-

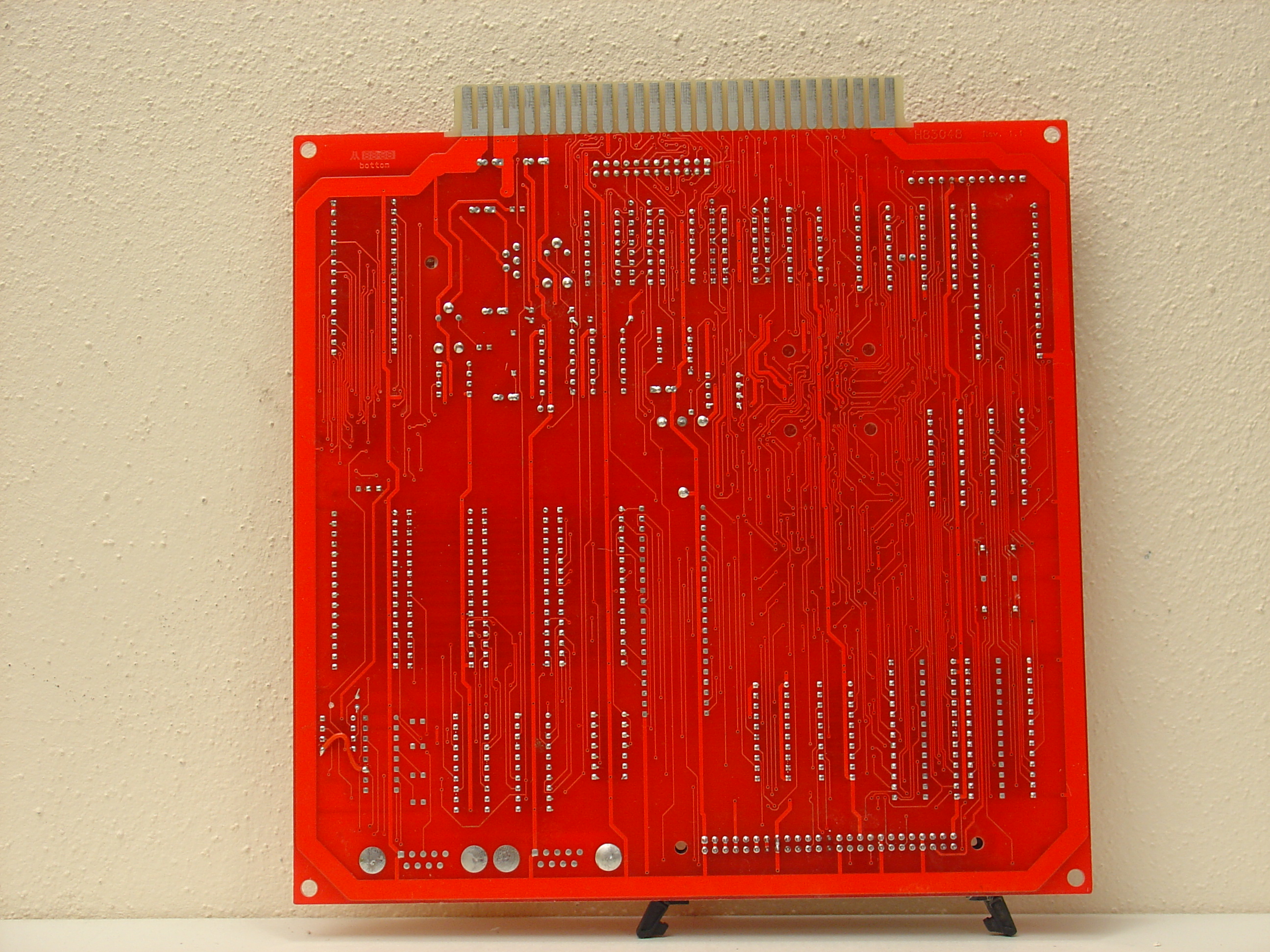

PCB solder side
-

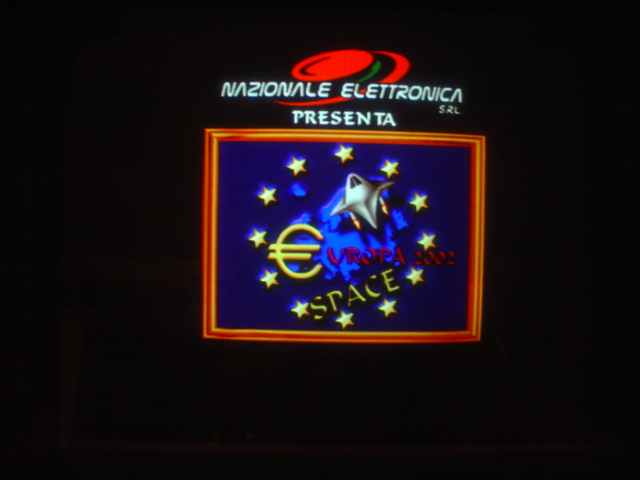

Title
-

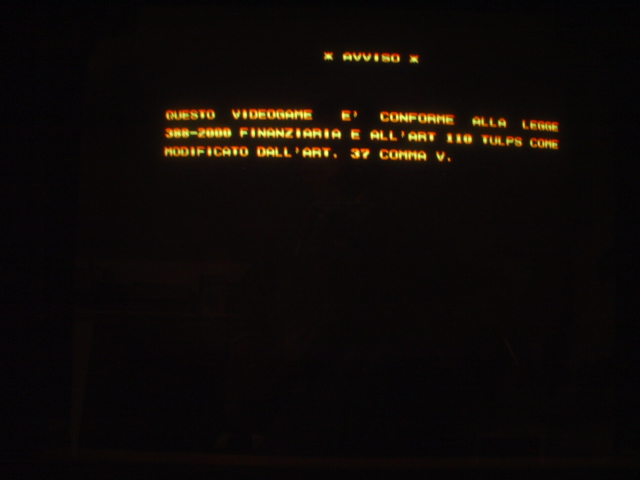

Disclaimer
-

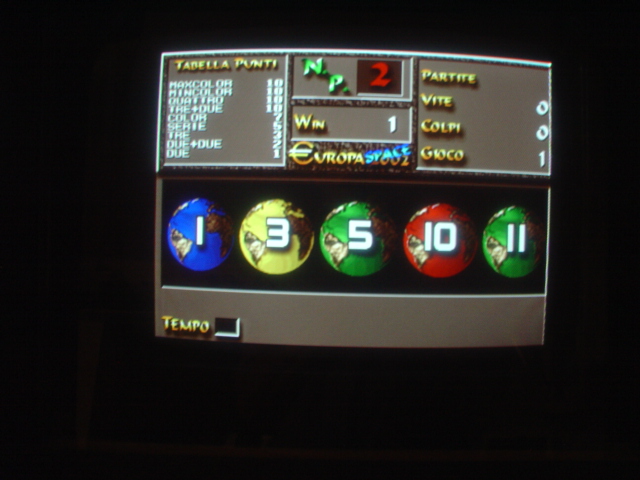

In game 1
-

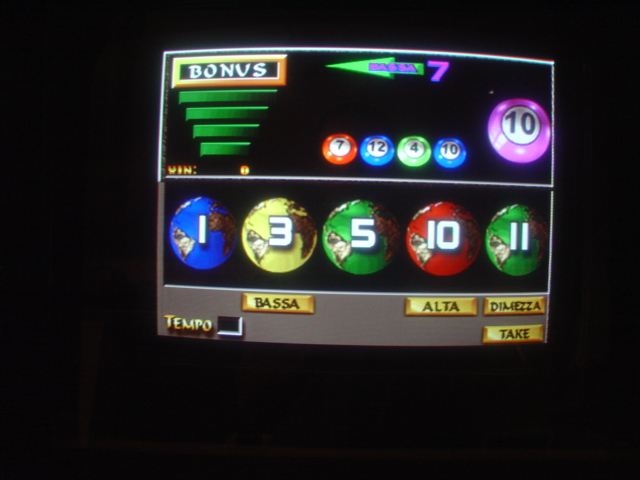

In game 2
-

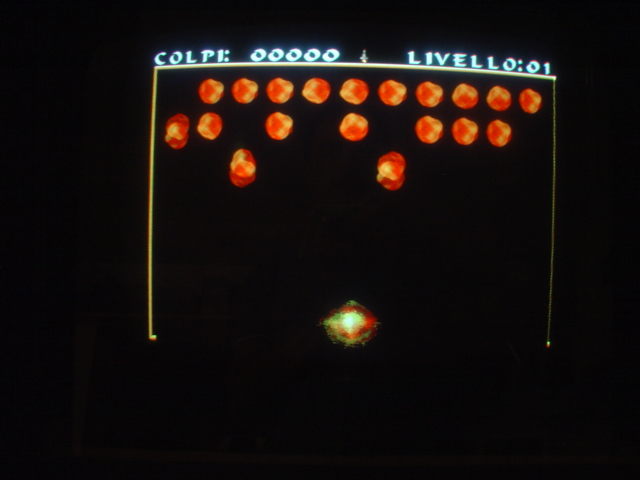

In game 3
