Europa 2002 (Ver 2.0, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/04/2008 |
| emulator | MAME 0.125u4 |
| dev | Roberto Fresca |
| name | euro2k2 on ProgettoEMMA euro2k2 on Arcade Database |
| description | Europa 2002 (Ver 2.0, set 1) |
| year | 2001 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3048 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | AD-65 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | |
| 1x | oscillator | x1 (close to DS1302) | ||
| 1x | blu resonator | 1000J | x1 (close to sound) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | M27C2001 | 1,2,3 | dumped |
| 2x | M27C4001 | 4,5 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MB84256C-10LL | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | not dumped |
Others
1x 28x2 edge connector
1x 12 legs connector (CN1)
1x 12 DIP switches bank (CN2,CN3)
1x 50 pins flat cable connector
2x trimmer (volume,spark)
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "H83048 bottom" on solder side
PCB is labeled: "EUROPA 2002 Versione 2_0" and "Non rimuovere PASSED 11/2001 Garanzia 6 MESI" on component side
Files
-

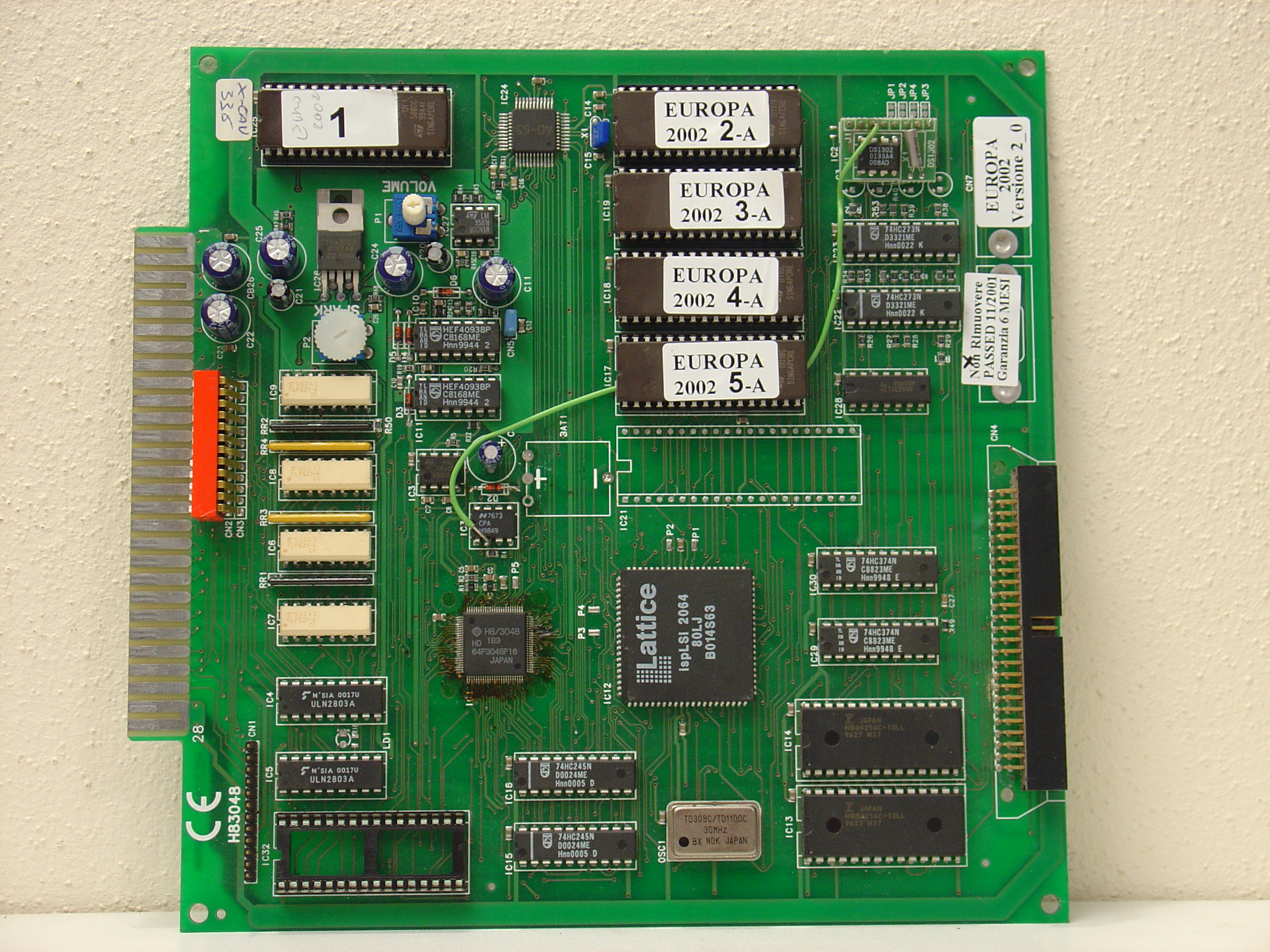

PCB component side
-

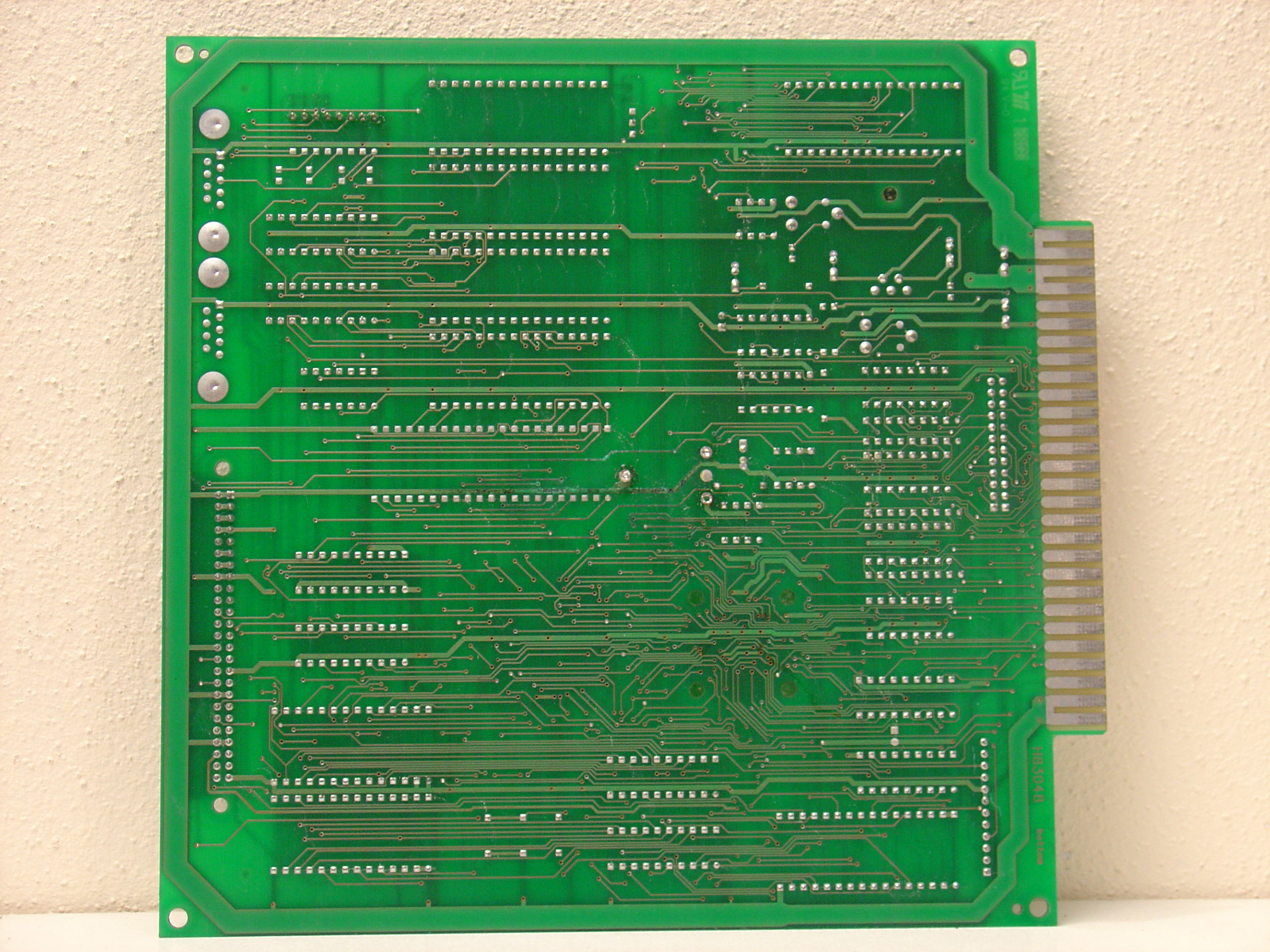

PCB solder side
-

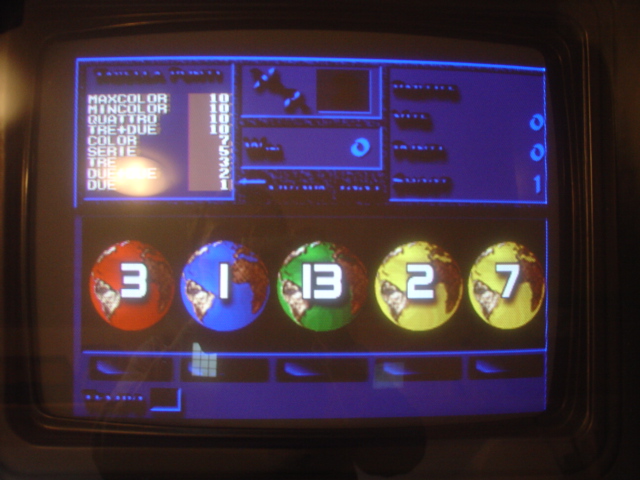

In game
