Euro Pass (Ver 1.1)
From Citylan
Jump to navigationJump to search
dumper | f205v |
date | 06/05/2010 |
emulator | MAME 0.138u1 |
dev | f205v |
name | europass on ProgettoEMMA europass on Arcade Database |
description | Euro Pass (Ver 1.1) |
year | 200x |
manufacturer |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | H8/3337 | 32-bit Single-Chip Microcomputer - main (internal ROM not dumped) | ||
1x | D7759 | ADPCM Speech Synthesizer LSIs - sound | ||
1x | TDA2003 | Audio Amplifier - sound | ||
1x | oscillator | 14.31818MHz | ||
1x | oscillator | 16.000 |
ROMs
QTY | Type | position | status |
---|---|---|---|
3x | M27C4001 | 1,2,3 | dumped |
1x | M27C1001 | SND | dumped |
RAMs
QTY | Type | position |
---|---|---|
3x | V62C5181024L-35W |
PLDs
QTY | Type | position | status |
---|---|---|---|
2x | ispLSI1032E-70LJ | not dumped |
Others
1x 28x2 edge connector
1x 7x2 legs ISP connector
1x RS232 connector
1x trimmer (unknown)
1x trimmer (volume)
2x 8x2 switches DIP
1x jumper
1x red LED
1x battery 3.6V
Notes
Files
-

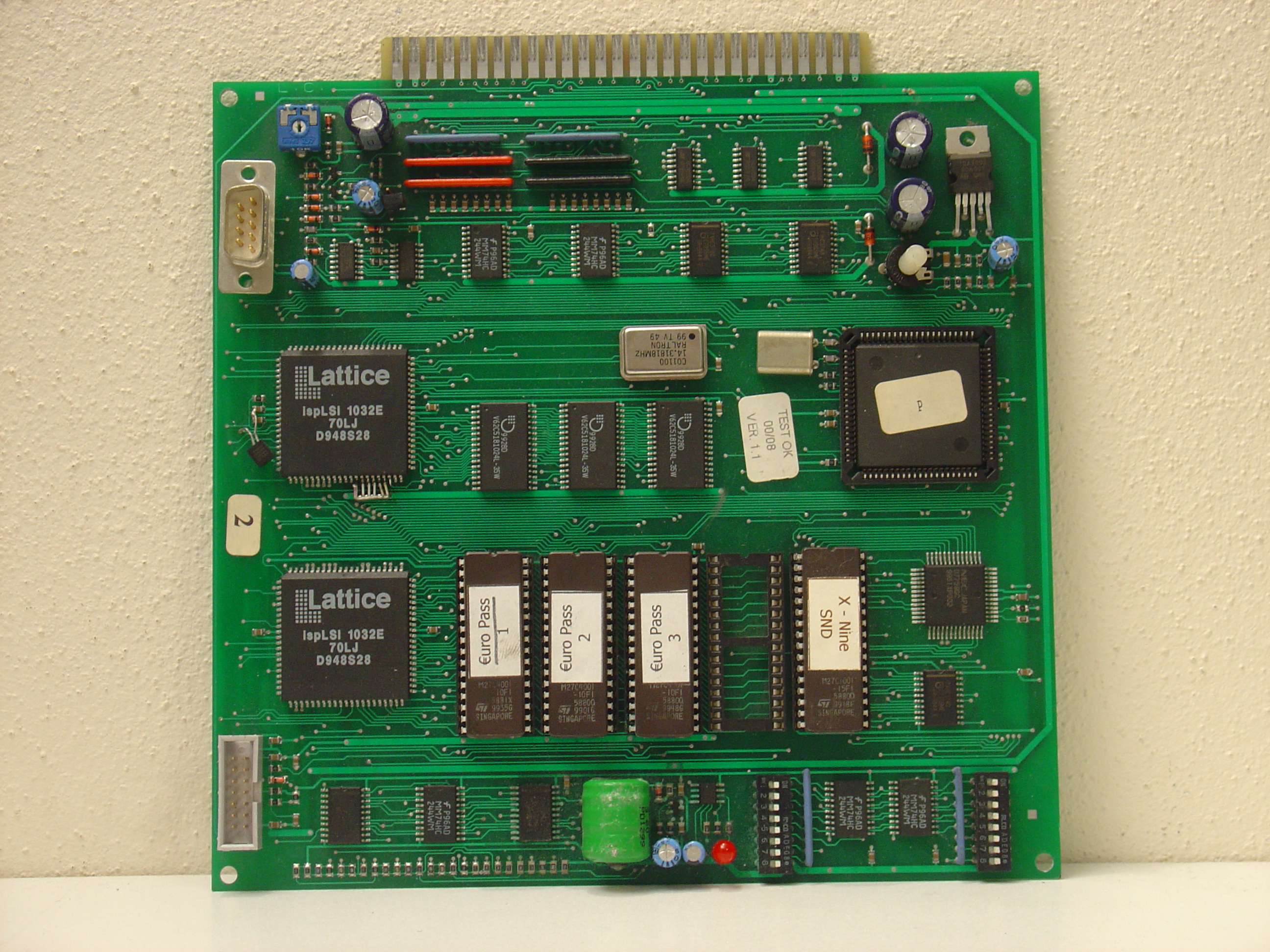

PCB component side 1
-

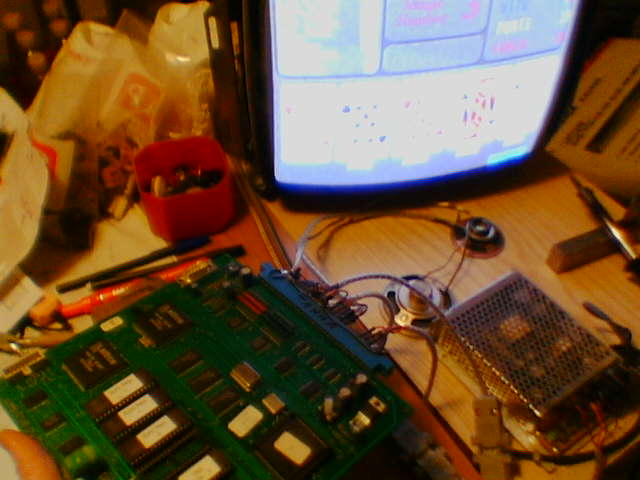

PCB component side 2
-

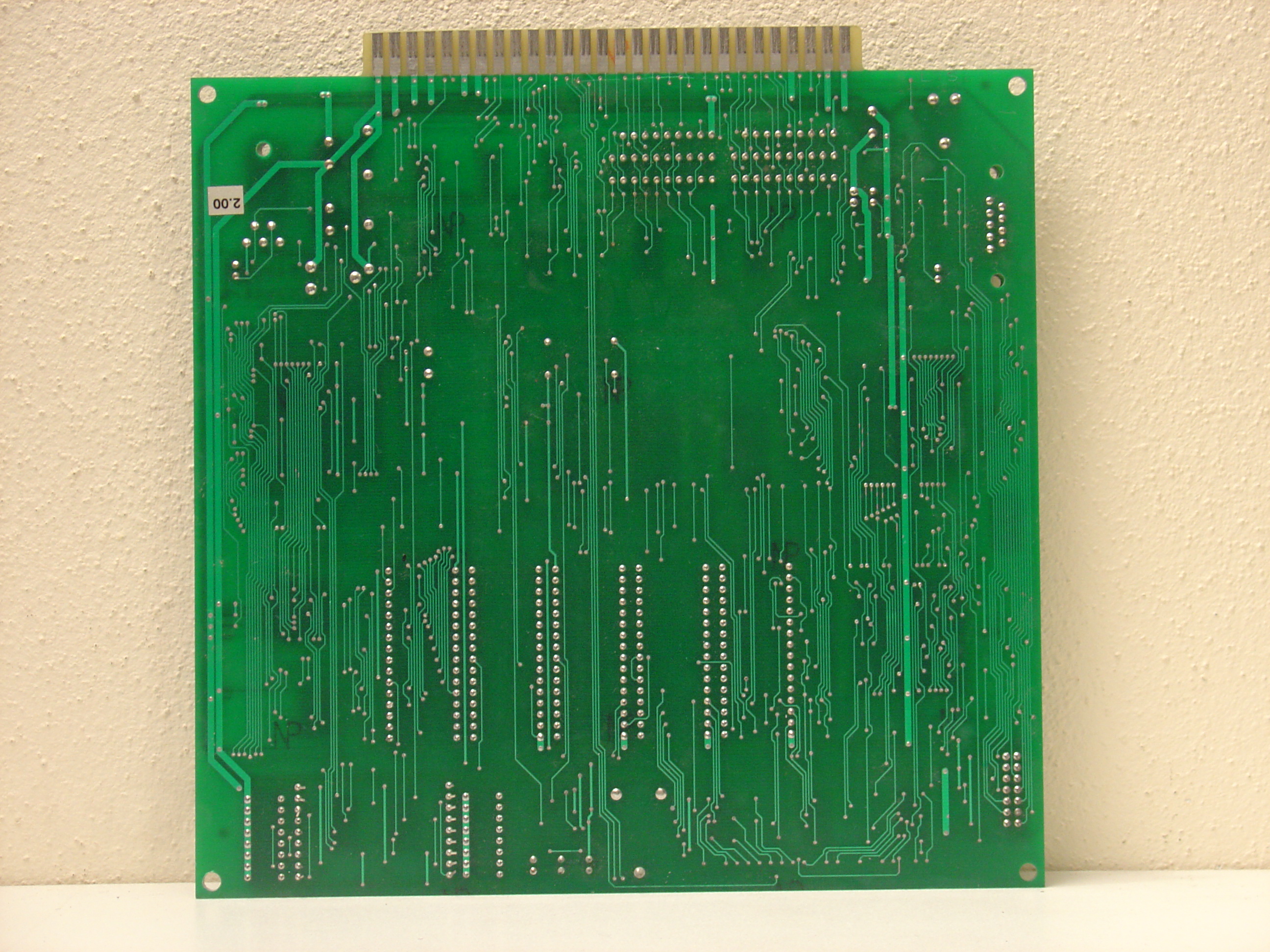

PCB solder side
-

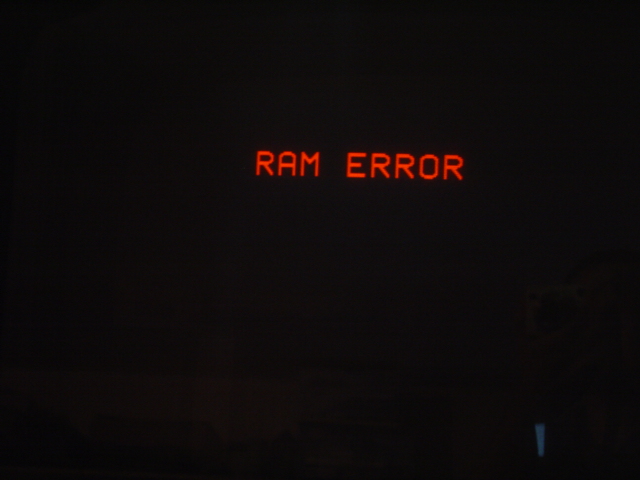

Boot error
