Euro League (Italian hack of Tecmo World Cup '90, set 3)
From Citylan
Jump to navigationJump to search
dumper | f205v |
date | 11/05/2019 |
emulator | |
dev |
name | 1668 |
description | Euro League (Italian hack of Tecmo World Cup '90, set 3) |
year | 1989-06 |
manufacturer | Playmark |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
2x | Z0840006PSC-Z80CPU | 7.154MHz(@6) | 1st PCB ic50,ic96 | 8-bit Microprocessor - main |
1x | Z0840006PSC-Z80CPU | 4.994MHz(@6) | 1st PCB ic27 | 8-bit Microprocessor - sound |
1x | TDA2003 | - | 1st PCB ic1 | Audio Amplifier - sound |
2x | Z8400BB1-Z80CPU | 7.154MHz(@6) | 2nd PCB ic50,ic96 | 8-bit Microprocessor - main |
1x | Z8400BB1-Z80CPU | 4.996MHz(@6) | 2nd PCB ic27 | 8-bit Microprocessor - sound |
1x | TDA2002 | - | 2nd PCB ic1 | Audio Amplifier - sound |
1x | YM2203C | 1.248MHz(@38) - 1.248MHz(@39) | both PCBs ic21 | FM Operator Type-N (OPM) - sound |
1x | YM3014B | 1.248MHz(@5) | both PCBs ic24 | D/A Converter (DAC) - sound |
1x | M5205 | 399.6kHz(@16) - 399.7kHz(@17) | both PCBs ic6 | ADPCM Speech Syntesis IC - sound |
2x | LM324 | - | both PCBs ic4,ic5 | Quad Operational Amplifier - sound |
1x | resonator | 400 | both PCBs XL1 | |
1x | oscillator | 20.000 | both PCBs XL2 | |
1x | oscillator | 14.31818 | both PCBs XL3 |
ROMs
QTY | Type | position | status |
---|---|---|---|
4x | S27C256 | 1st PCB 7,9,11,13 | dumped |
4x | S27C512 | 1st PCB 2,3,4,5 | dumped |
9x | AM27C512 | 1st PCB 1,14-21 | dumped |
4x | M27c1001 | 1st PCB 6,8,10,12 | dumped |
3x | S27C512 | 2nd PCB 2,3,4 | dumped |
14x | AM27C512 | 2nd PCB 1,5,7,9,11,13-21 | dumped |
4x | AM27C010 | 2nd PCB 6,8,10,12 | dumped |
RAMs
QTY | Type | position |
---|---|---|
1x | MBM2148L-55 | 1st PCB ic32 |
1x | KM6816AL-15 | 1st PCB ic25 |
5x | MCM2018AN45 | 1st PCB ic31,ic72,ic130,ic184,ic185 |
3x | HY6264LP-10 | 1st PCB ic53,ic94,ic99 |
1x | KM6264L-10 | 1st PCB ic95 |
1x | AM2148-70PC | 2nd PCB ic32 |
1x | MS6516-90 | 2nd PCB ic25 |
5x | MCM2018AN45 | 2nd PCB ic31,ic72,ic130,ic184,ic185 |
4x | MS6264L-10PC | 2nd PCB ic53,ic94,ic95,ic99 |
PLDs
QTY | Type | position | status |
---|---|---|---|
3x | GAL16V8-20HB1 | 1st PCB ic39,ic44,ic143 | read protected |
2x | PLHS18P8AN | 1st PCB ic54,ic100 | read protected |
2x | GAL16V8-25LP | 2nd PCB ic39,ic44 | dumped |
3x | PALCE16V8H-25PC | 2nd PCB ic54,ic100,ic143 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(P1)
2x 8 DIP switches banks (SW1,SW2)
Notes
both PCBs are marked: "FOOTBALL COMP" on component side
both PCBs are marked: "FOOTBALL SOLD" and "24-89" on solder side
It's the same game on both PCBs, the only real difference are EPROMs 7,9,11,13 that on 2nd PCB are double size compared to 1st PCB (both halves with same content).
Files
-

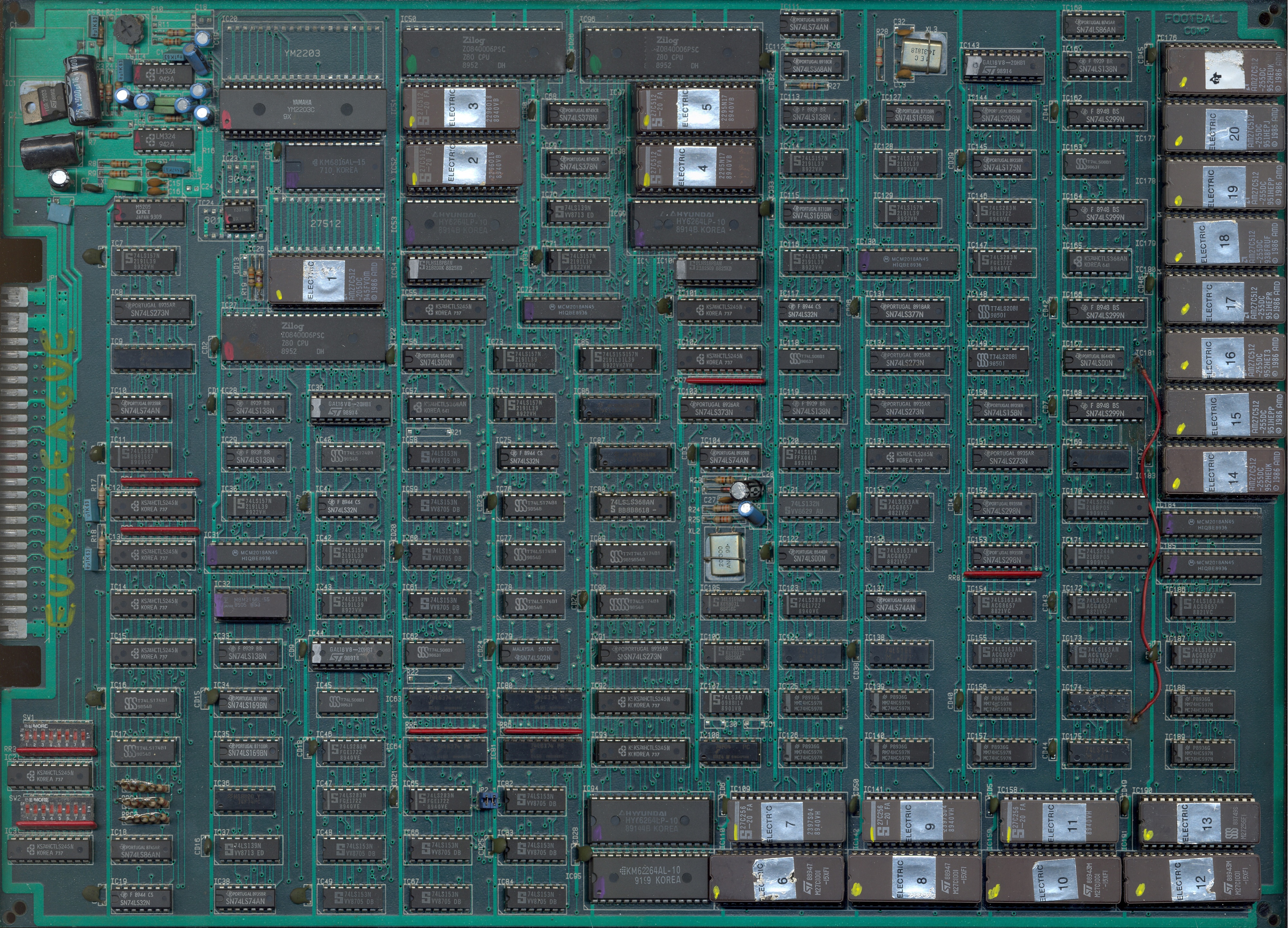

1st PCB component side
-

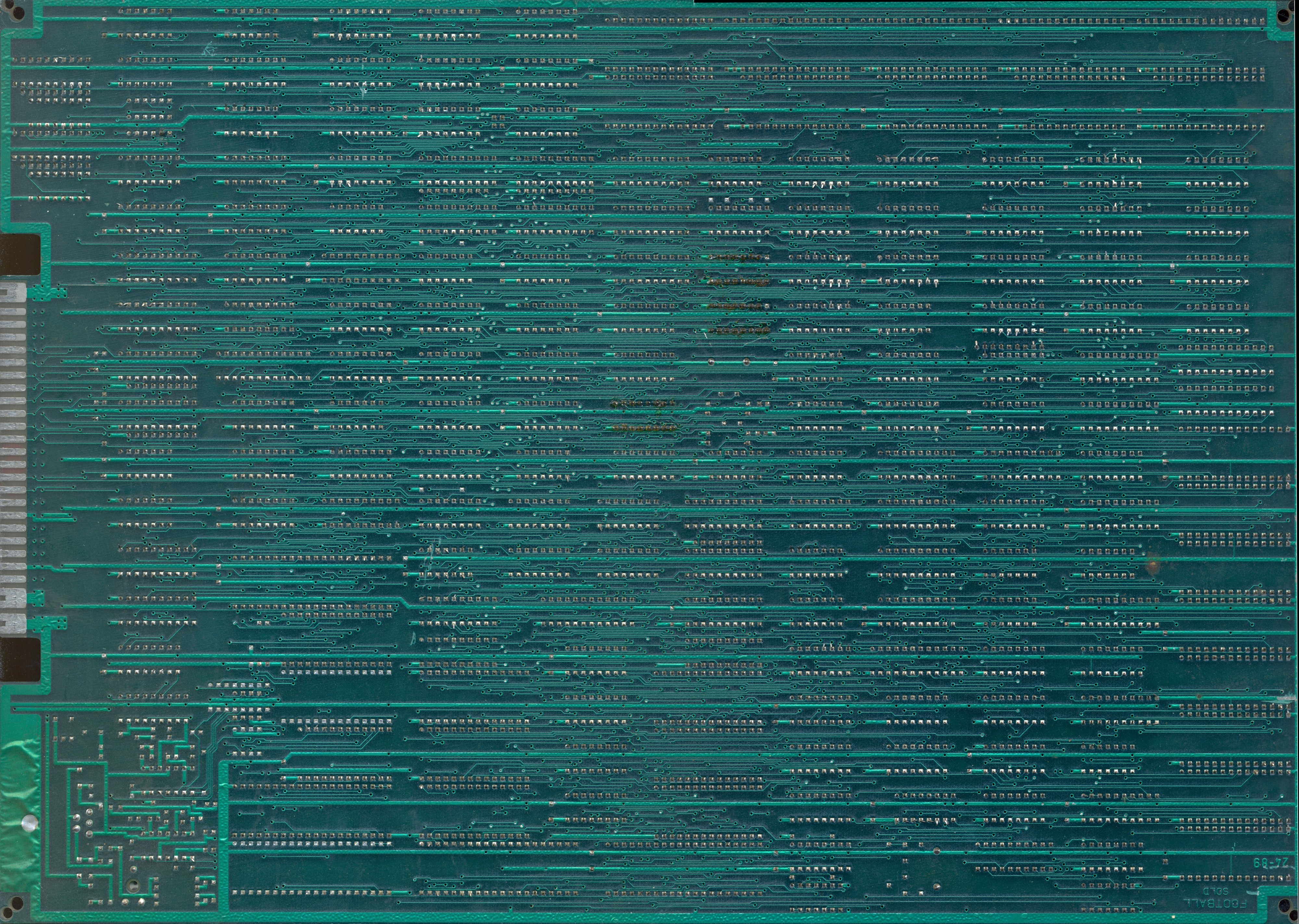

1st PCB solder side
-

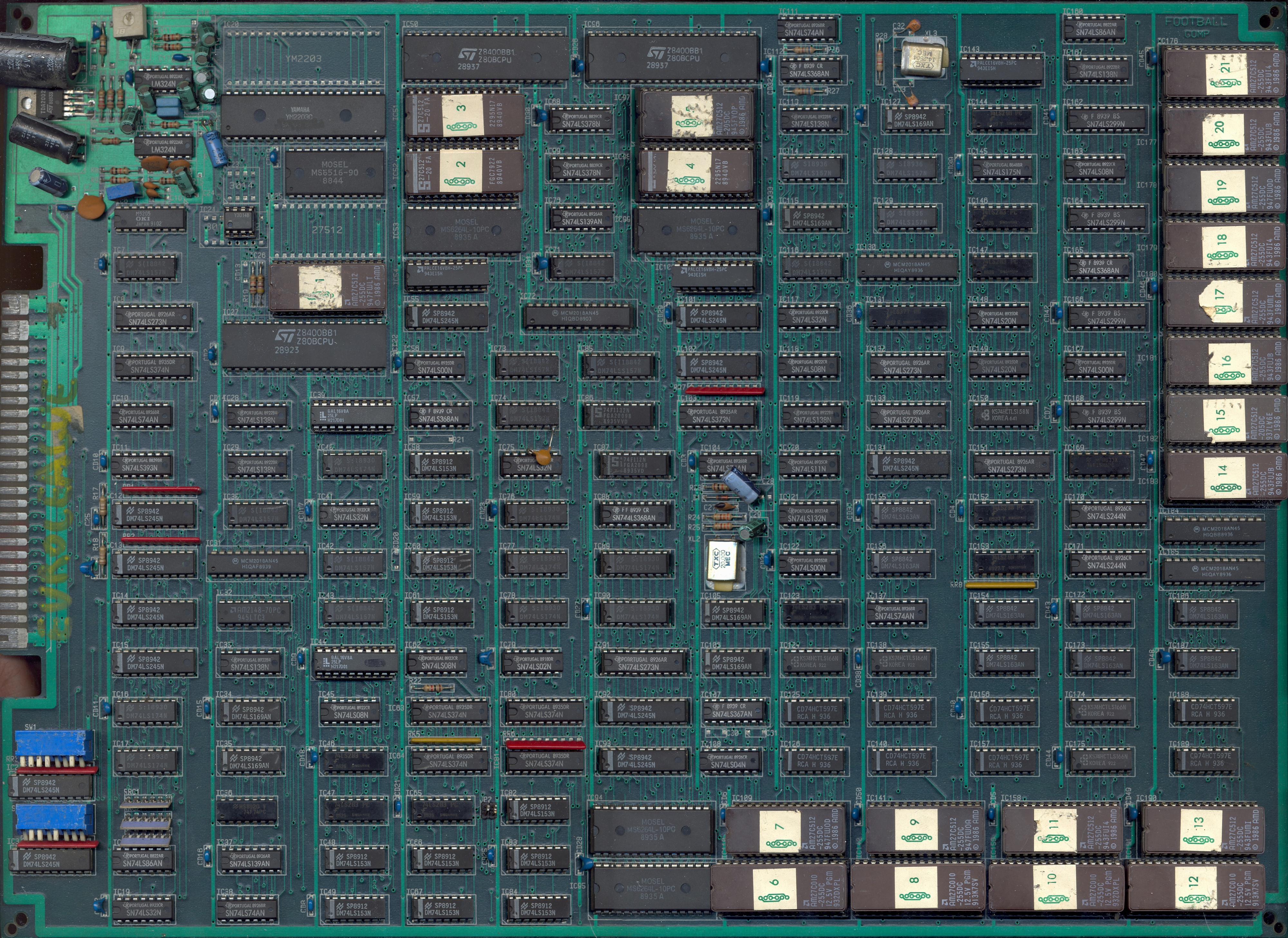

2nd PCB component side
-

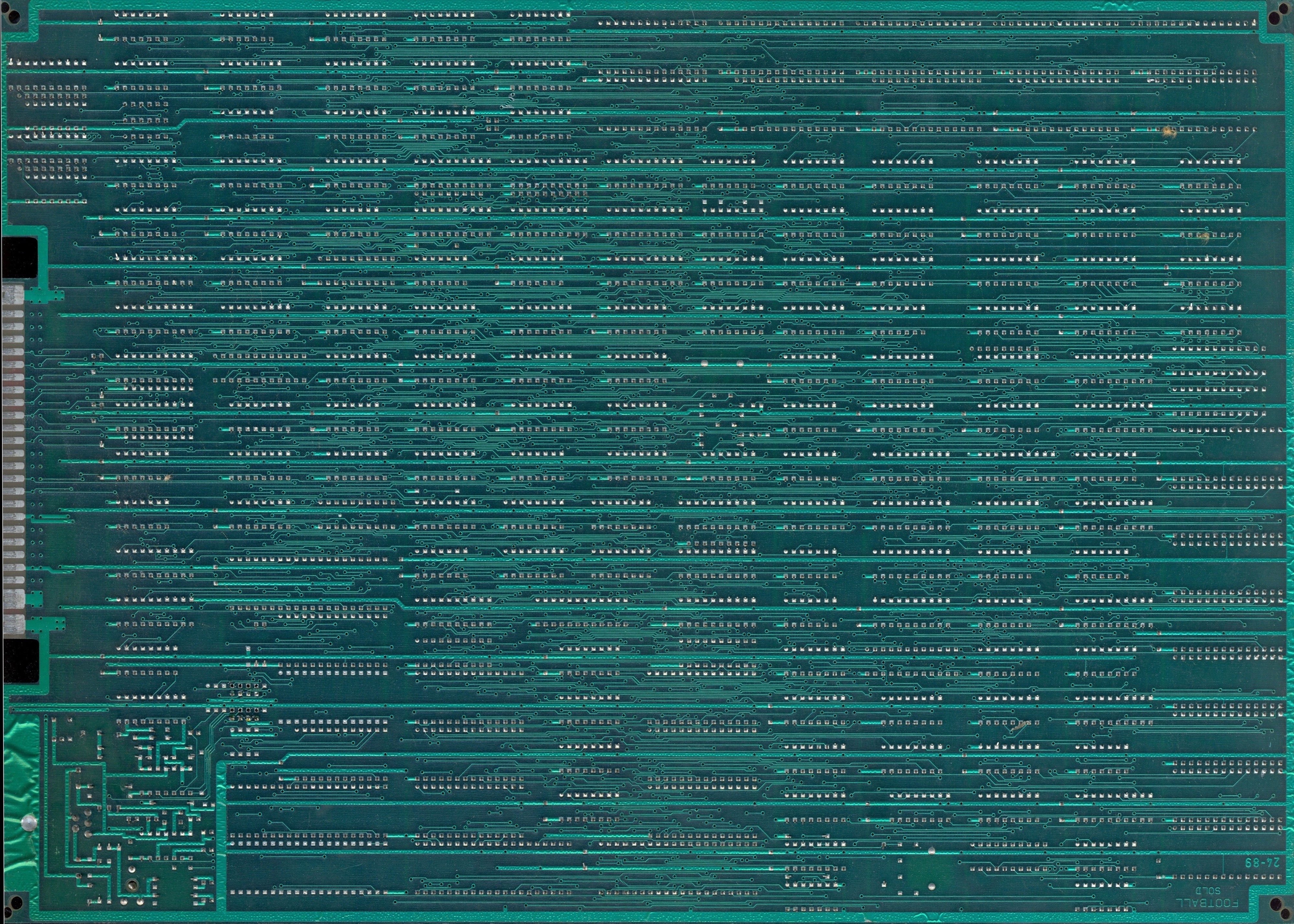

2nd PCB solder side
-

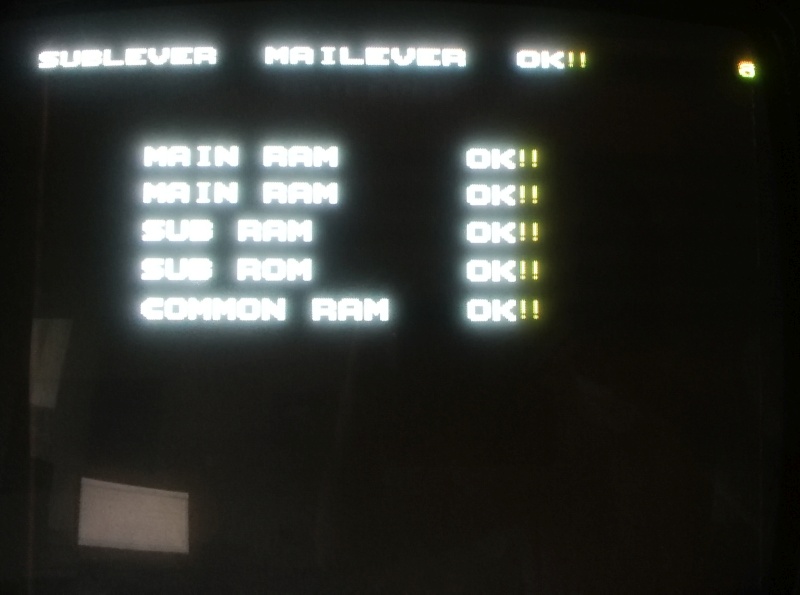

1st PCB Boot screen 1
-

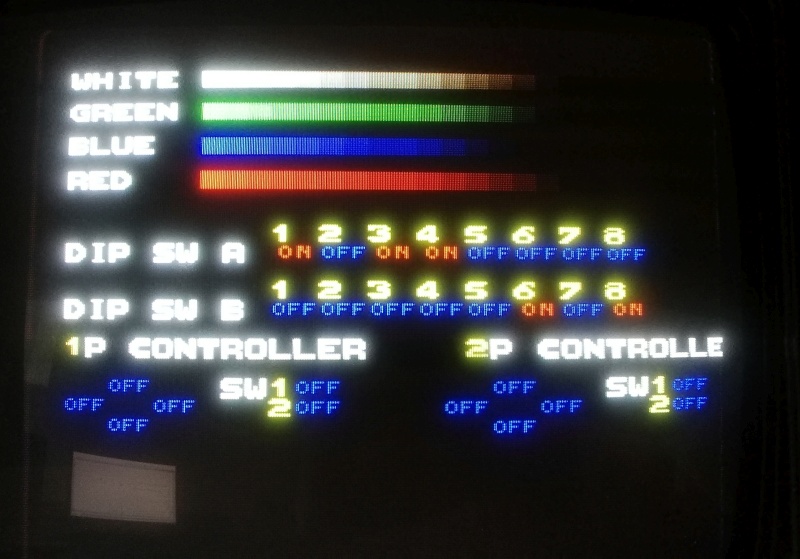

1st PCB Boot screen 2
-

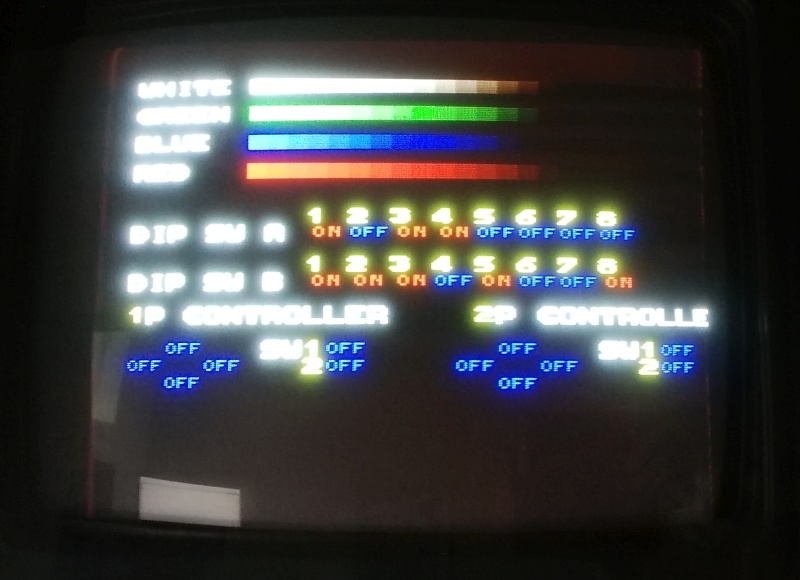

2nd PCB Boot screen
-

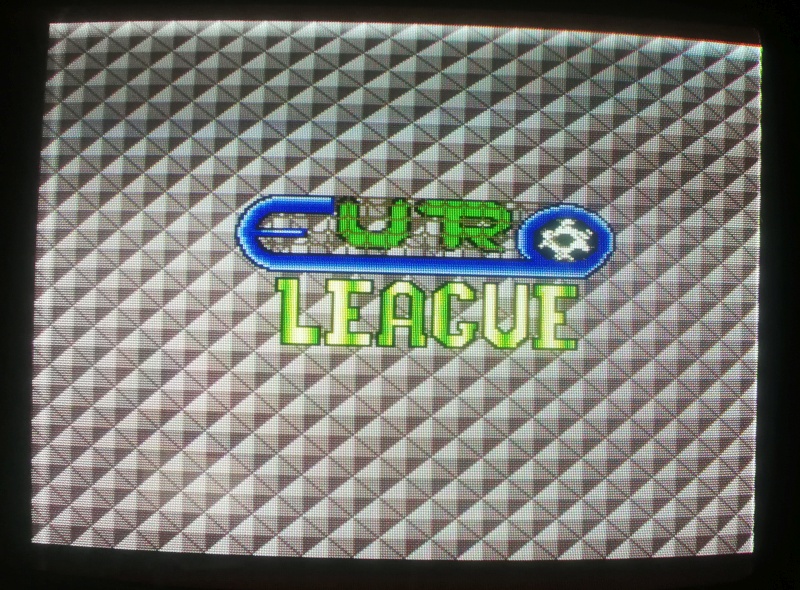

1st PCB Title
-

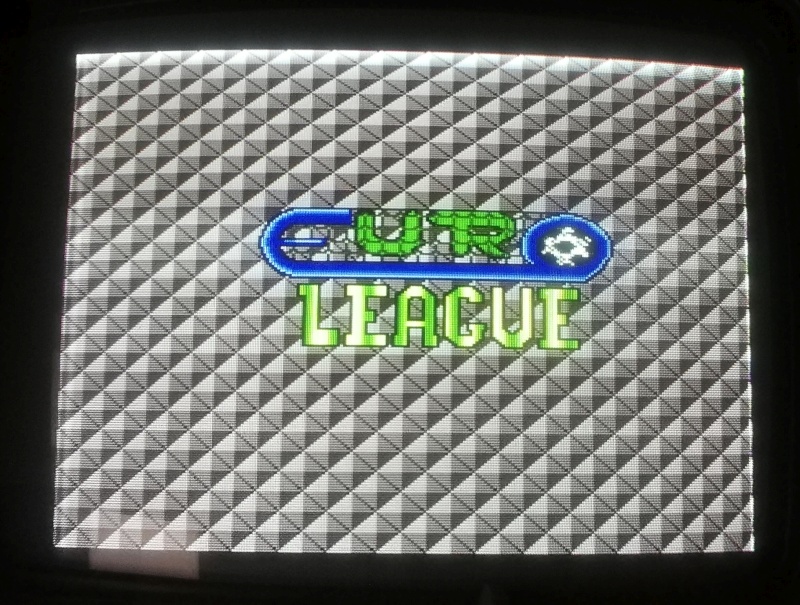

2nd PCB Title
-

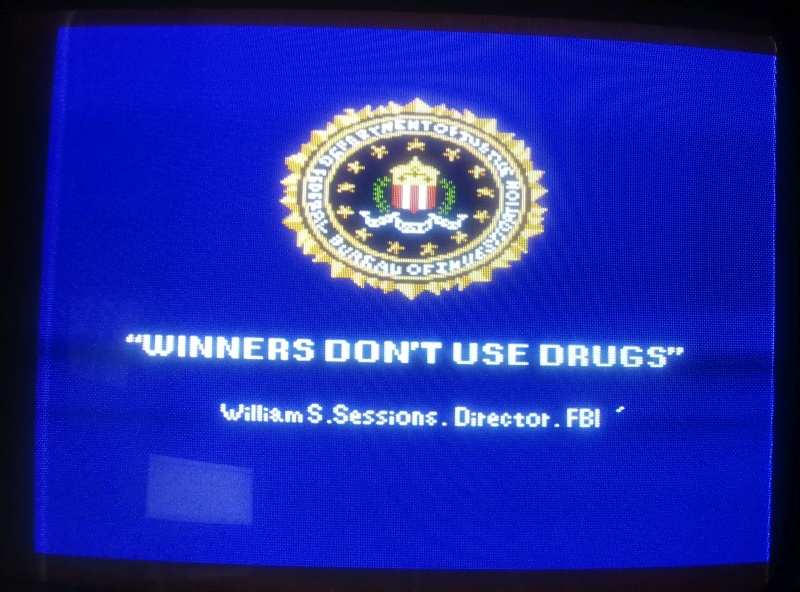

1st PCB Disclaimer
-

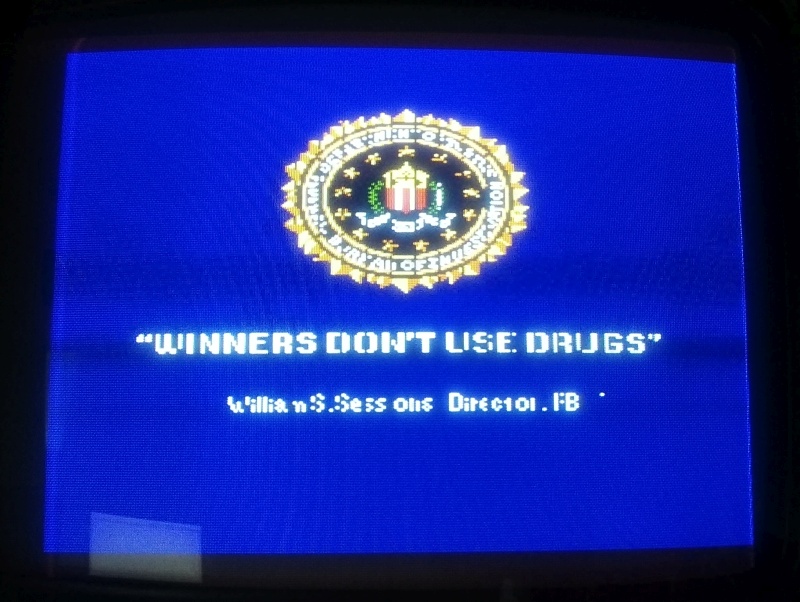

2nd PCB Disclaimer
-

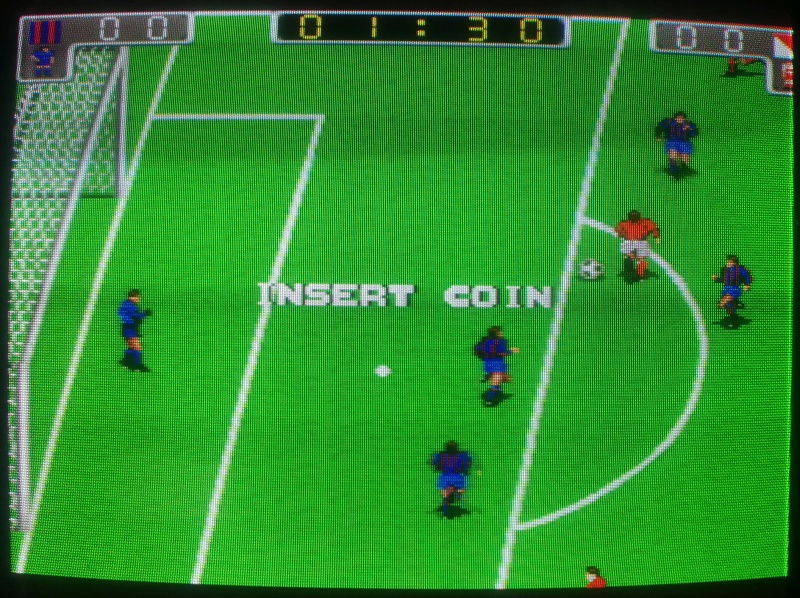

1st PCB Attract mode 1
-

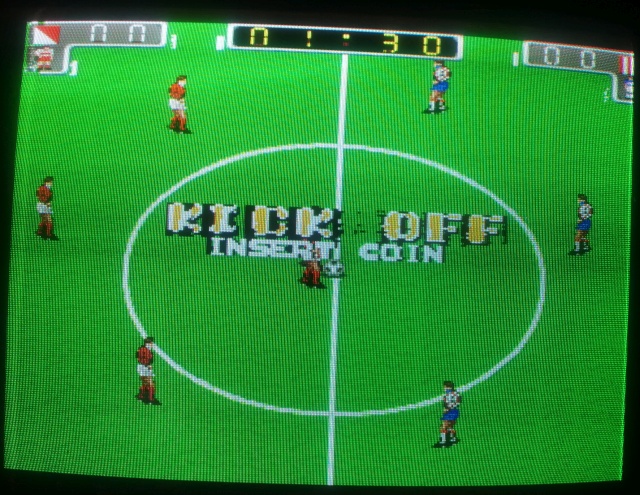

1st PCB Attract mode 2
-

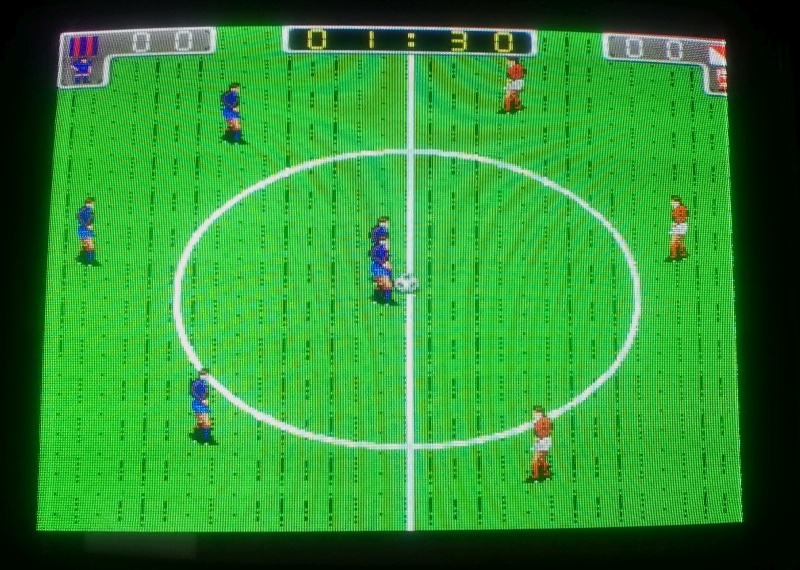

2nd PCB Attract mode
-

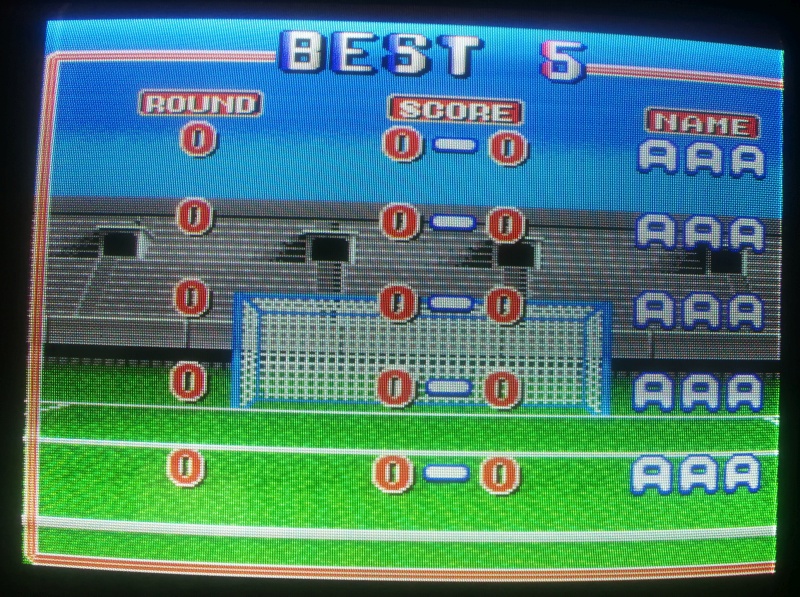

1st PCB Hiscore
-

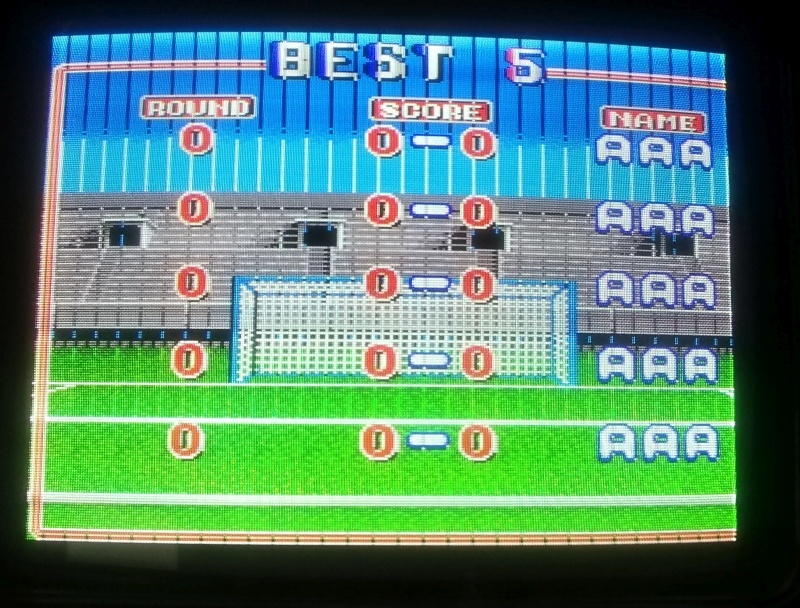

2nd PCB Hiscore
-
1st PCB ROMs
-
2nd PCB ROMs
