Euro Double Star Record (ver.1.2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 13/04/2016 |
| emulator | MAME 0.173 |
| dev | Roberto Fresca |
| name | eurodsr on ProgettoEMMA eurodsr on Arcade Database |
| description | Euro Double Star Record (ver.1.2) |
| year | 200x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64F3337YCP16 | 32-bit Single-Chip Microcomputer - main (not dumped) | ||
| 1x | NEC D7759GC | ADPCM Speech Synthesizer LSIs - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 16.000000 | ||
| 1x | oscillator | 14.318180 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27010 | yellow | dumped |
| 3x | 27040 | blue,red,green | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | MX6C1024MC-70 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI10032E-70LJ | not dumped |
Others
1x 28x2 edge connector
1x 14 legs connector
1x RS232 connector
1x trimmer (volume)
1x trimmer (unknown)
1x red LED
2x 8x2 switches DIP
1x battery 3.6V
Notes
Files
-

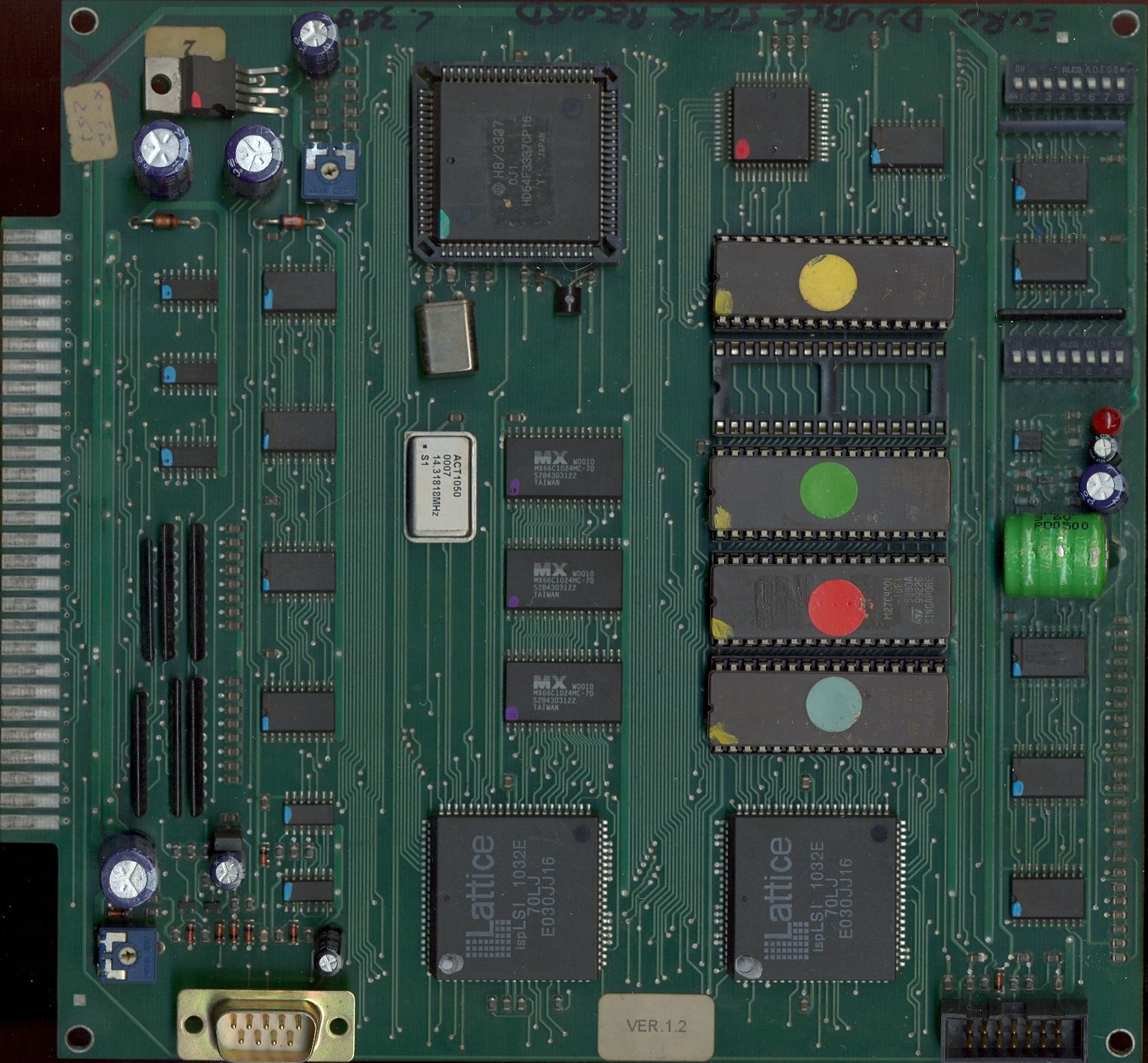

PCB component side
-

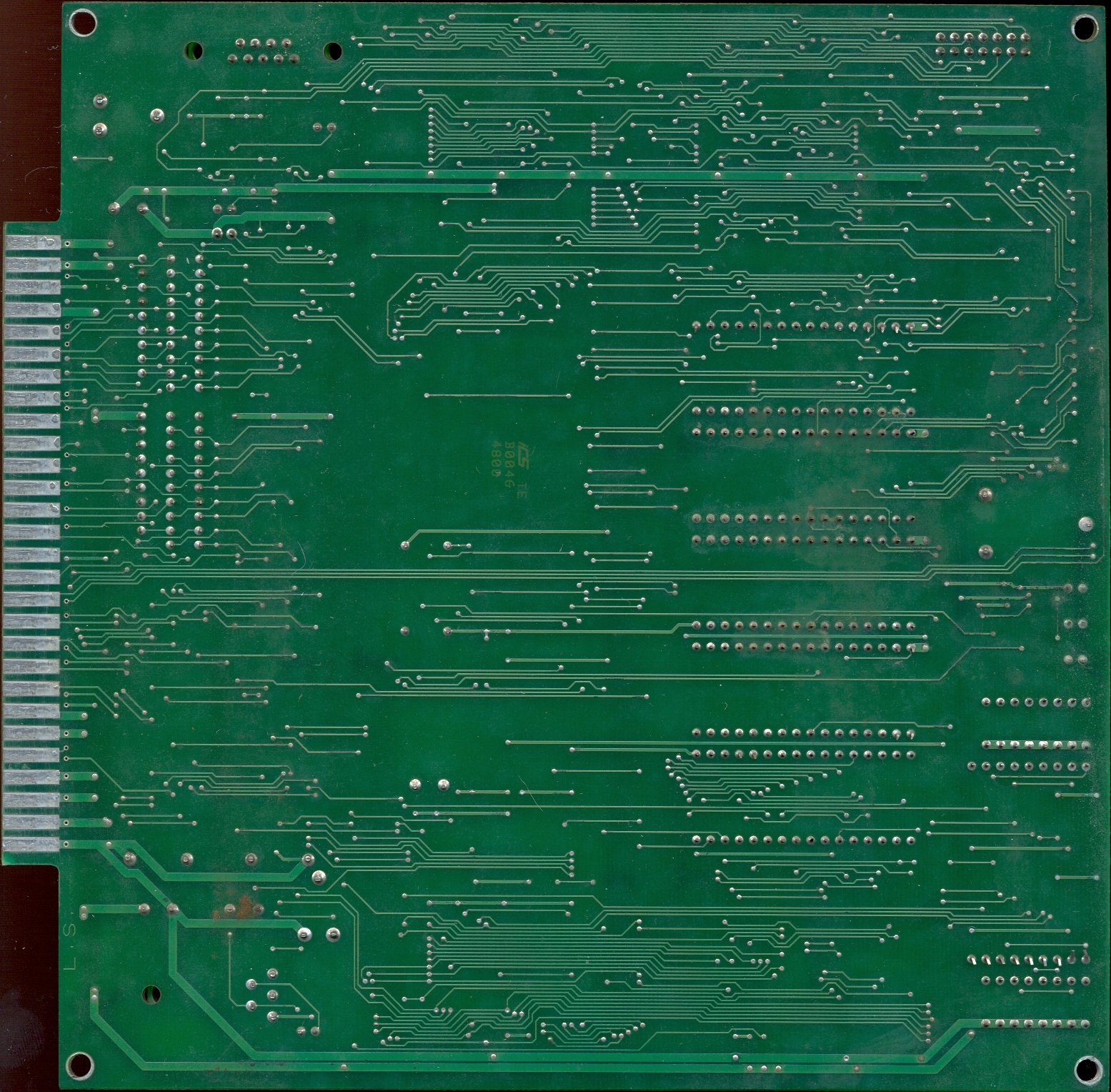

PCB solder side
