Elephant Family (Italian, new)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 03/09/2005 |
| emulator | MAME 0.99u8 |
| dev | Roberto Fresca |
| name | elephfam on ProgettoEMMA elephfam on Arcade Database |
| description | Elephant Family (Italian, new) |
| year | 1996 |
| manufacturer | C.M.C. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R65C02P2 | u1 | 8-bit Microprocessor - main | |
| 1x | MC68B45P | u8 | CRT Controller (CRTC) | |
| 2x | EF68B21P | u29,u30 | Peripheral Interface Adapter | |
| 1x | 95101 | u34 | Programmable Sound Generator - sound | |
| 1x | TDA2003 | u33 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | os1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27256 | u2,u20,u21 | dumped |
| 1x | AM27S29 | u25 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | SRAM 8k x 8 | u13 |
| 1x | CDM5116AE2 | u3 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE20V8H-25PC/4 | u22,u23 | read protected |
| 1x | PALCE16V8H-25 | u5 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)(TR1)
1x 8 DIP switches bank (SW1)
1x battery 3.6V
Notes
PCB is marked: "top" and "C.M.C. POOL 10" on component side
PCB is marked: "bottom" and "POOL 10 C.M.C" on solder side
PCB is labeled: "ELEPH.FAMILY" on component side
Files
-

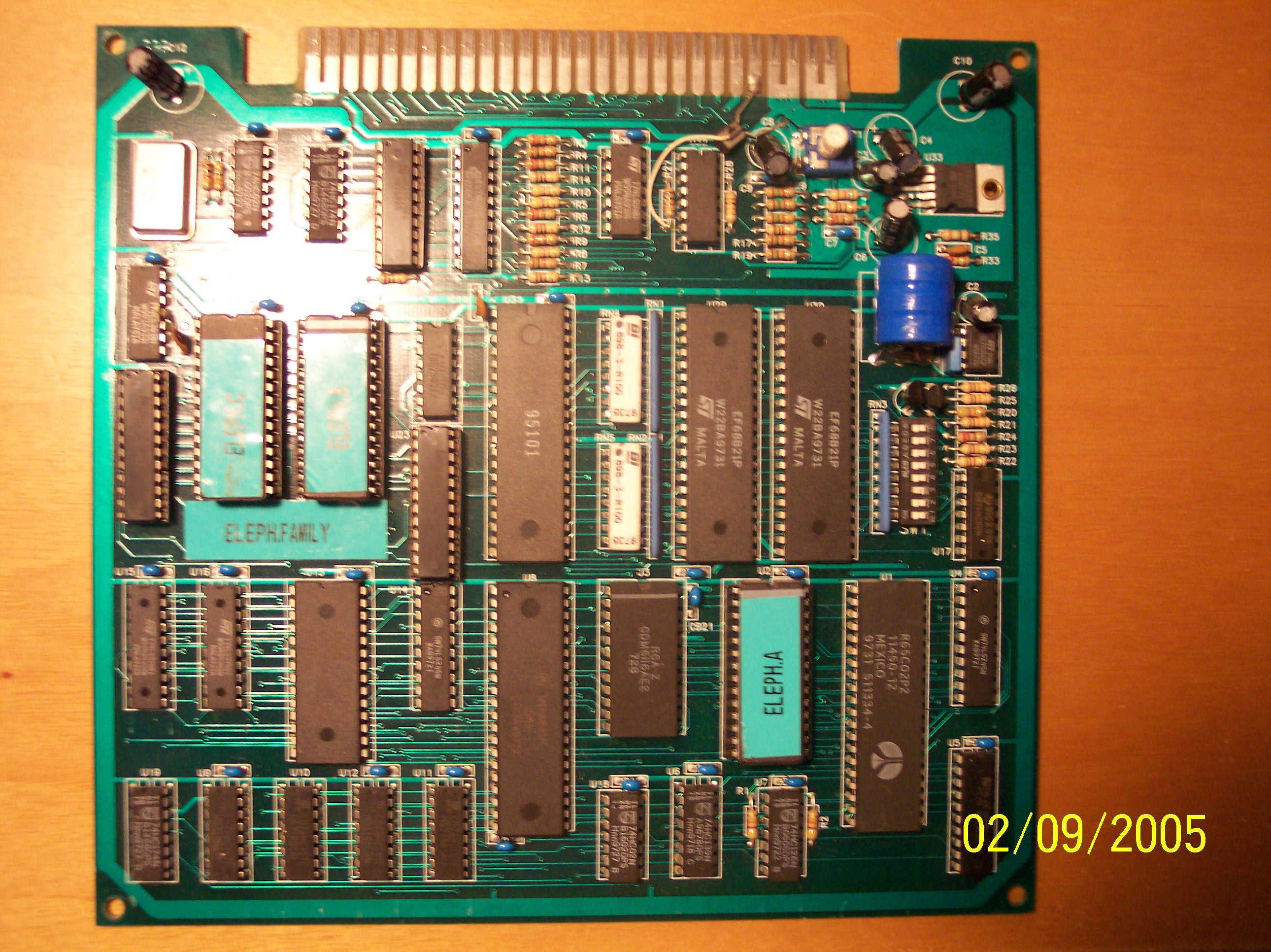

PCB component side
