Dribbling (set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v, Gnoppi |
| date | 27/06/2005 |
| emulator | MAME 0.61 |
| dev | Aaron Giles |
| name | dribling on ProgettoEMMA dribling on Arcade Database |
| description | Dribbling (set 1) |
| year | 1983 |
| manufacturer | Model racing |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MK3880N-IRL-Z80-CPU | 4b | 8-bit Microprocessor | |
| 2x | AMD255APC-P8255A-8115GP | 7f,8f | Programmable Peripheral Interface | |
| 1x | oscillator | 20MHz | 2q |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 7x | TMS2532 | 3n,3p,5h,5k,5l,5n,5p | dumped |
| 3x | PROM | 2d,3c,3e | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | AM9114BPC | 4h,4j |
| 8x | MCM4116 | 6h,6j,6k,6l,6m,6n,6p,6q |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x 4x2 switches DIP
3x trimmer (volume)
Notes
PCB is marked: "MEF00284"
Files
-

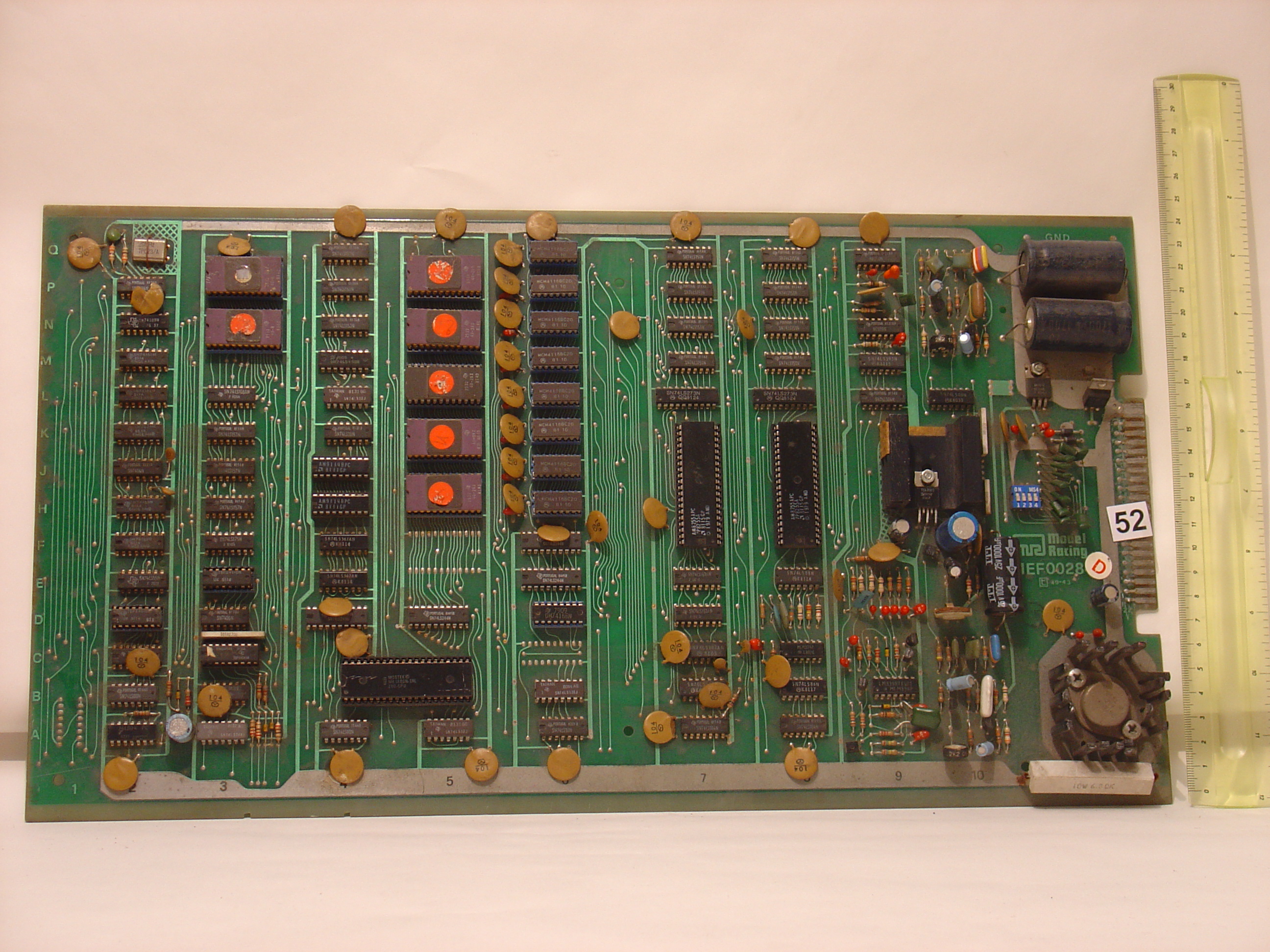

PCB component side
-

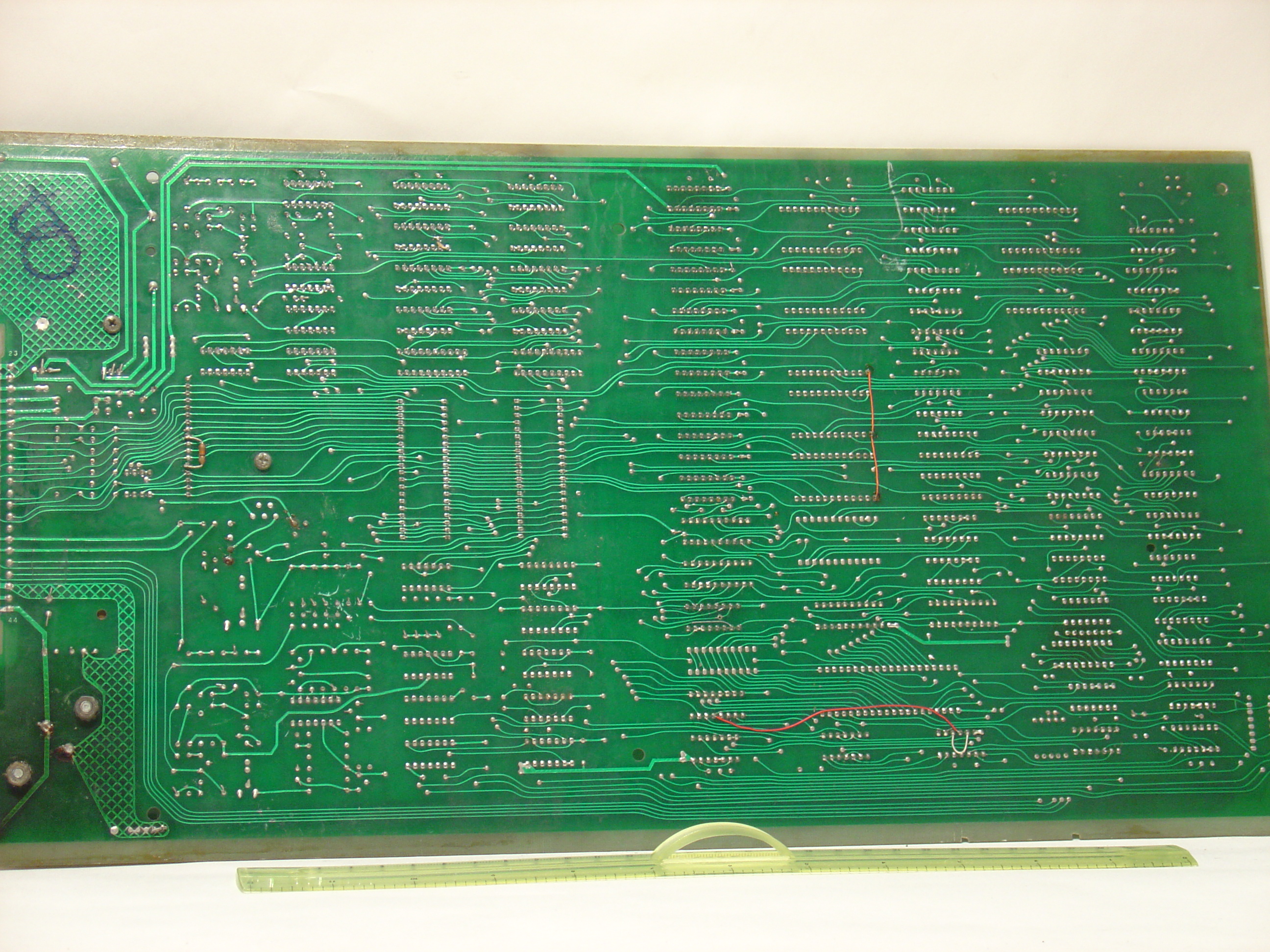

PCB solder side
-

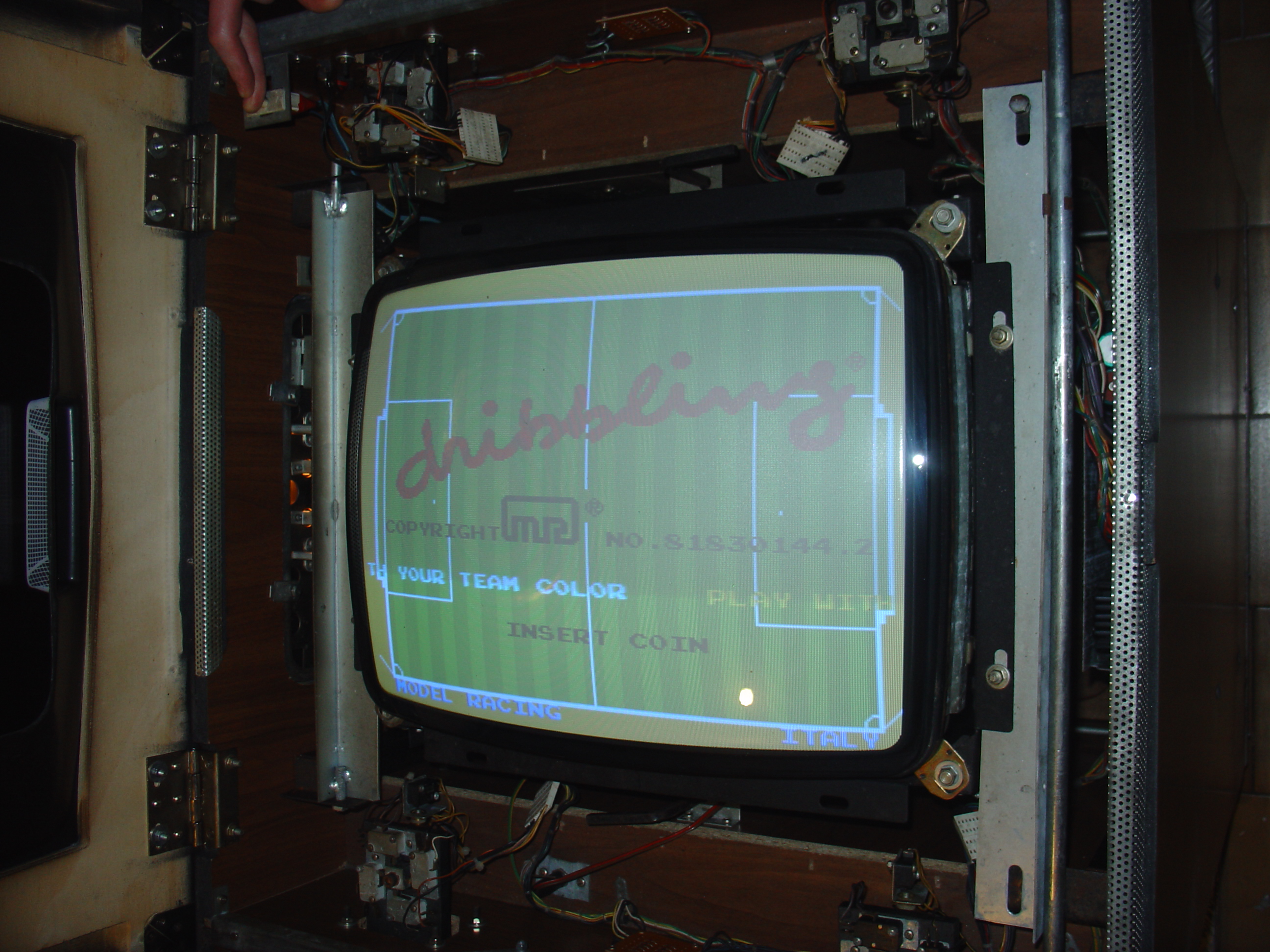

Open cabinet
-

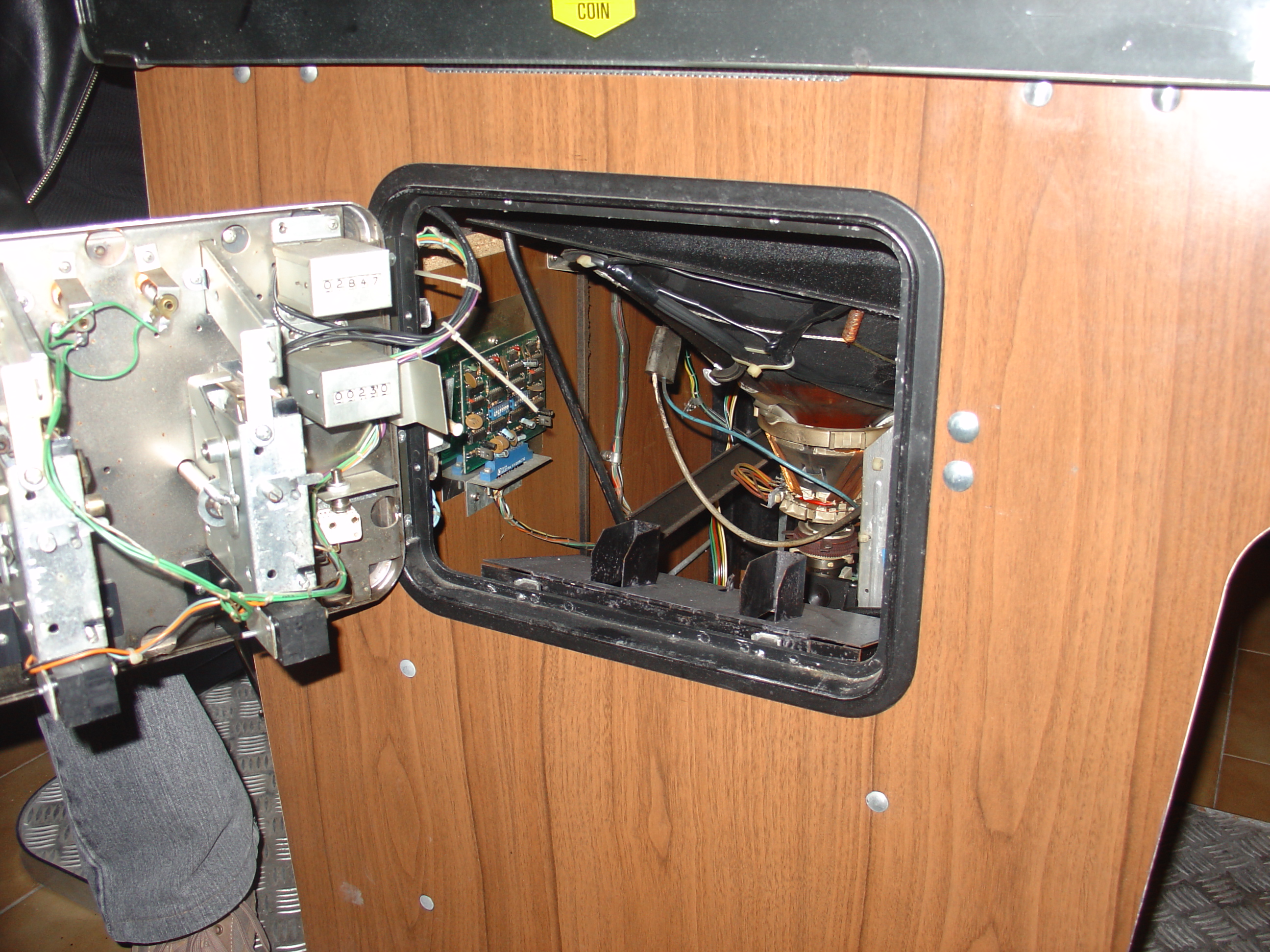

Coin door
-

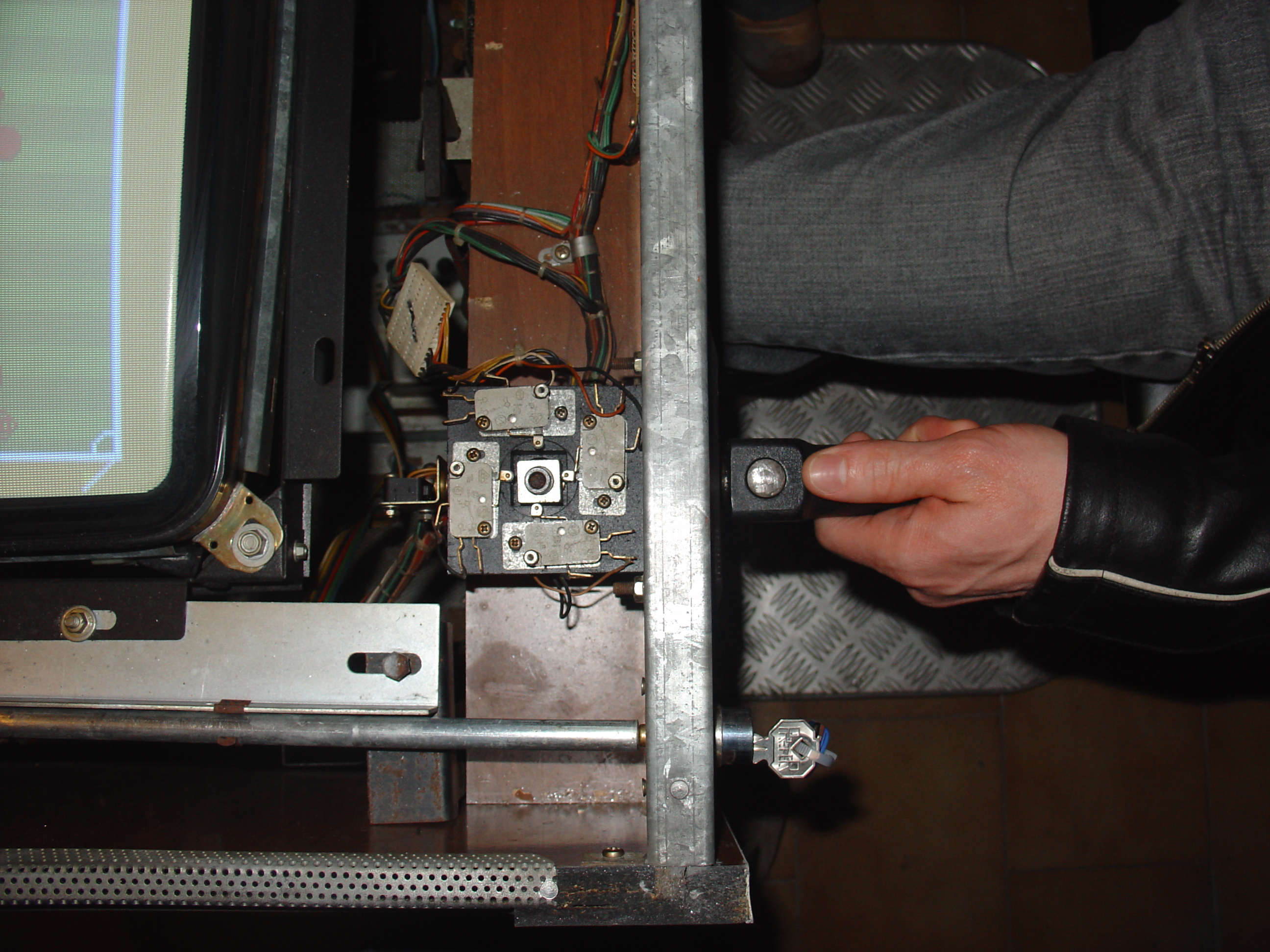

Joystick detail
