Dr. Tomy
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 30/03/2005 |
| emulator | MAME 0.95u2 |
| dev | Pierpaolo Prazzoli |
| name | drtomy on ProgettoEMMA drtomy on Arcade Database |
| description | Dr. Tomy |
| year | 1993.04.29 |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TS68000CP12 | 16/32-bit Microprocessor - main | ||
| 1x | M6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM358 | - | Dual Operational Amplifier - sound | |
| 1x | oscillator | 20.000000MHz | XL2 | |
| 1x | oscillator | 26.000000MHz | XL3 | |
| 1x | blu resonator | 1000J.A |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27C010 | 15-16 (main) | dumped |
| 1x | 27C020 | 17,18,19,20 (gfx) | dumped |
| 1x | 27C040 | 14 (sound) | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 6x | MCM2018An45 | |
| 3x | MS6264L-70PC |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | read protected | |
| 1x | GAL22V10B | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks
Notes
PCB is marked: "TOMY" and "LC" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "29-04-93", "TOMY" and "LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
update 20221124: better description
Files
-

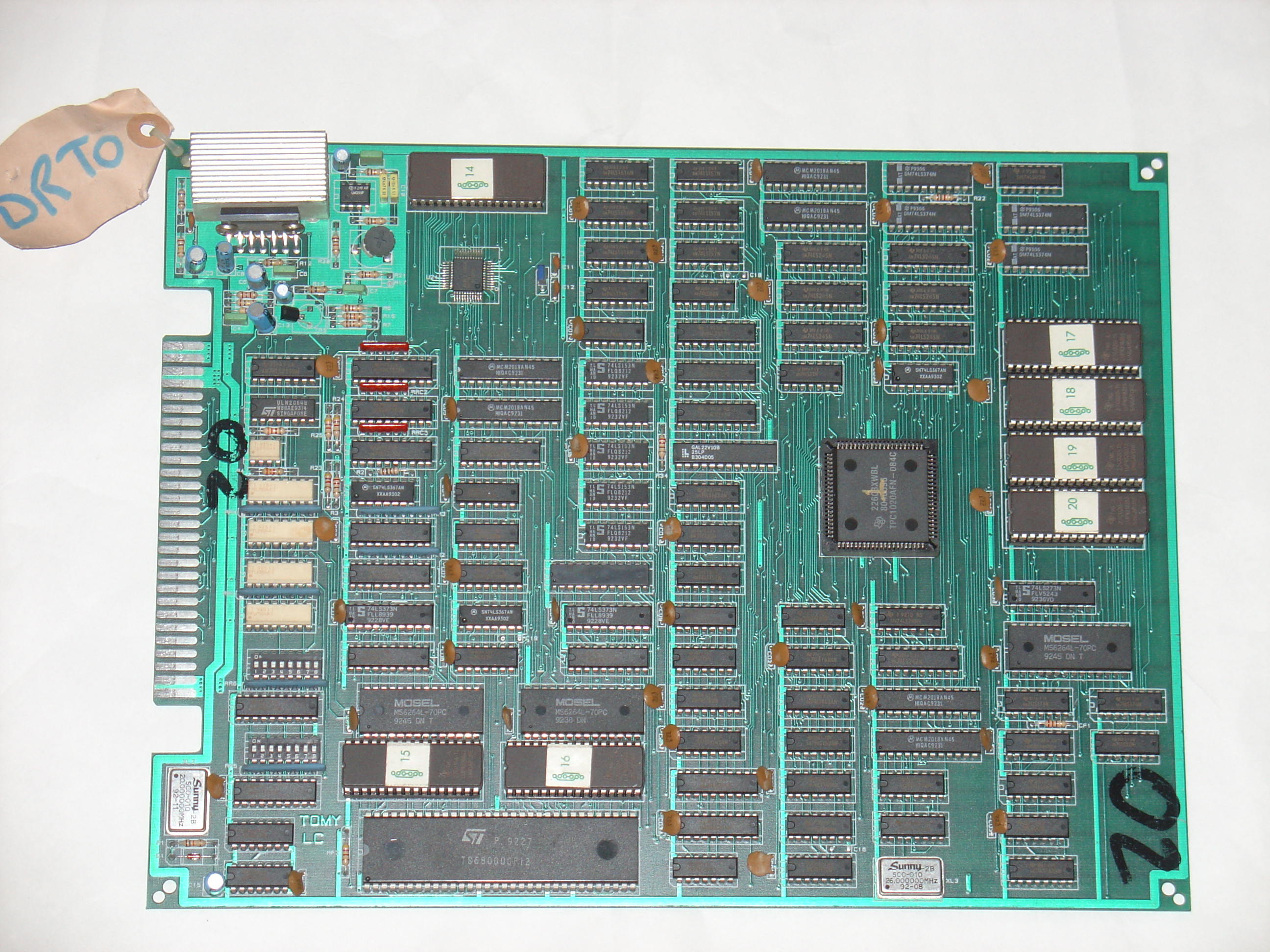

PCB component side
-

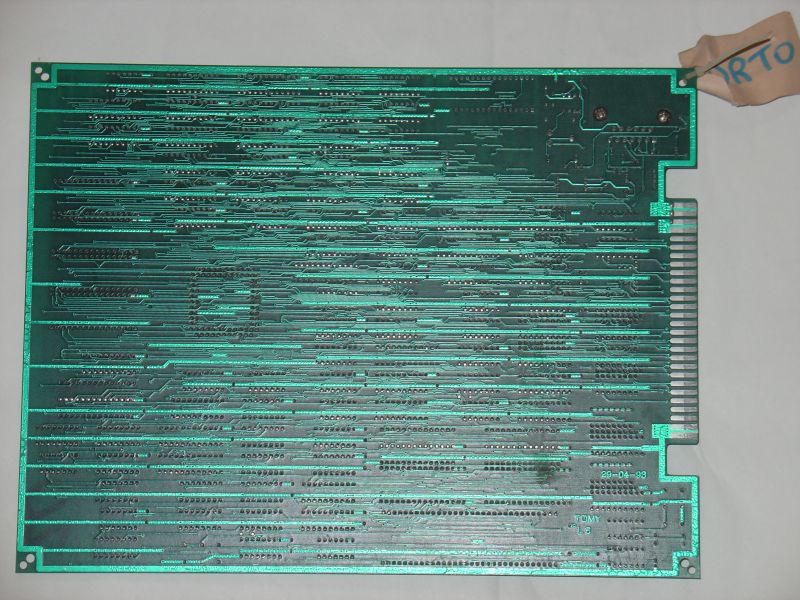

PCB solder side
-

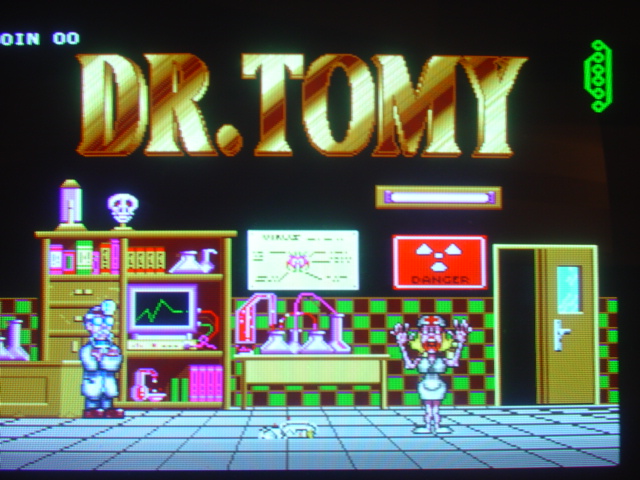

Title
-

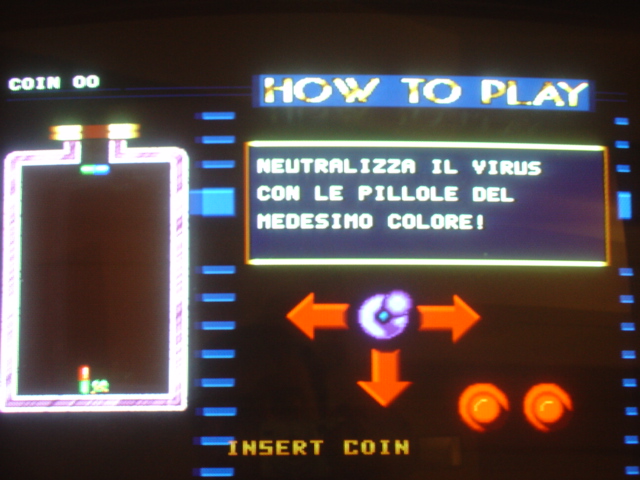

How to play
-

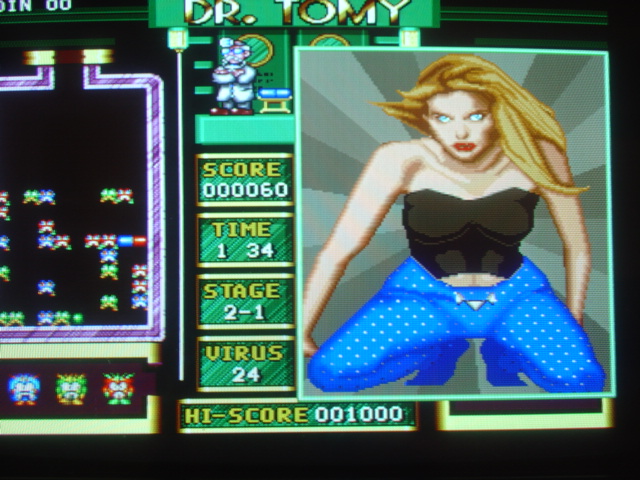

In game
-

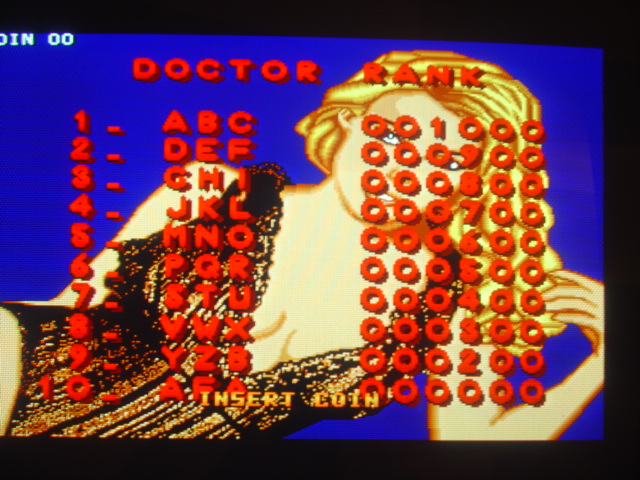

Hiscore
