Double Wings (set 1)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 23/07/2011 |
| emulator | MAME 0.84 |
| dev | David Haywood |
| name | dblewing on ProgettoEMMA dblewing on Arcade Database |
| description | Double Wings (set 1) |
| year | 1993 |
| manufacturer | Mitchell |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Data East custom L7A0717 | 2j | unknown chip (maybe 68000) | |
| 1x | Data East custom 250 | 2a | unknown chip | |
| 1x | Data East custom VC5259-0001 | 10a | unknown chip | |
| 1x | Data East custom 24220F008 | 7d | unknown chip | |
| 1x | TMPZ84C00AP-6 | 12h | 8-bit Microprocessor - sound | |
| 1x | M6295 | 14h | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | YM2151 | 12j | FM Operator Type-M (OPM) - sound | |
| 1x | YM3014 | 14j | D/A Converter (DAC) - sound | |
| 1x | C3403 | 16j | Quad Operational Amplifier - sound | |
| 1x | oscillator | 28.0000MHz | X1.9a | |
| 1x | oscillator | 32.2200MHz | X2.16f |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C2001 | 00,01 | dumped |
| 1x | TMS275C12 | 02 | dumped |
| 1x | TMS27C010A | 03 | dumped |
| 3x | 27800 | mbe-00,01,02 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | LH5168D-10L | 11h |
| 4x | MS6264L-70NC | 1d,4d,10d,11d |
| 6x | DT6116 | 5a,6a,7a,8a,4f,5f |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PAL16L8ACN | 1f,1h | read protected -> extracted with CmD's PALdumper |
| 1x | PAL16R8 | 11b | read protected -> extracted with CmD's PALdumper |
Others
Notes
Working
Troyaning is needed to break protection
Files
-

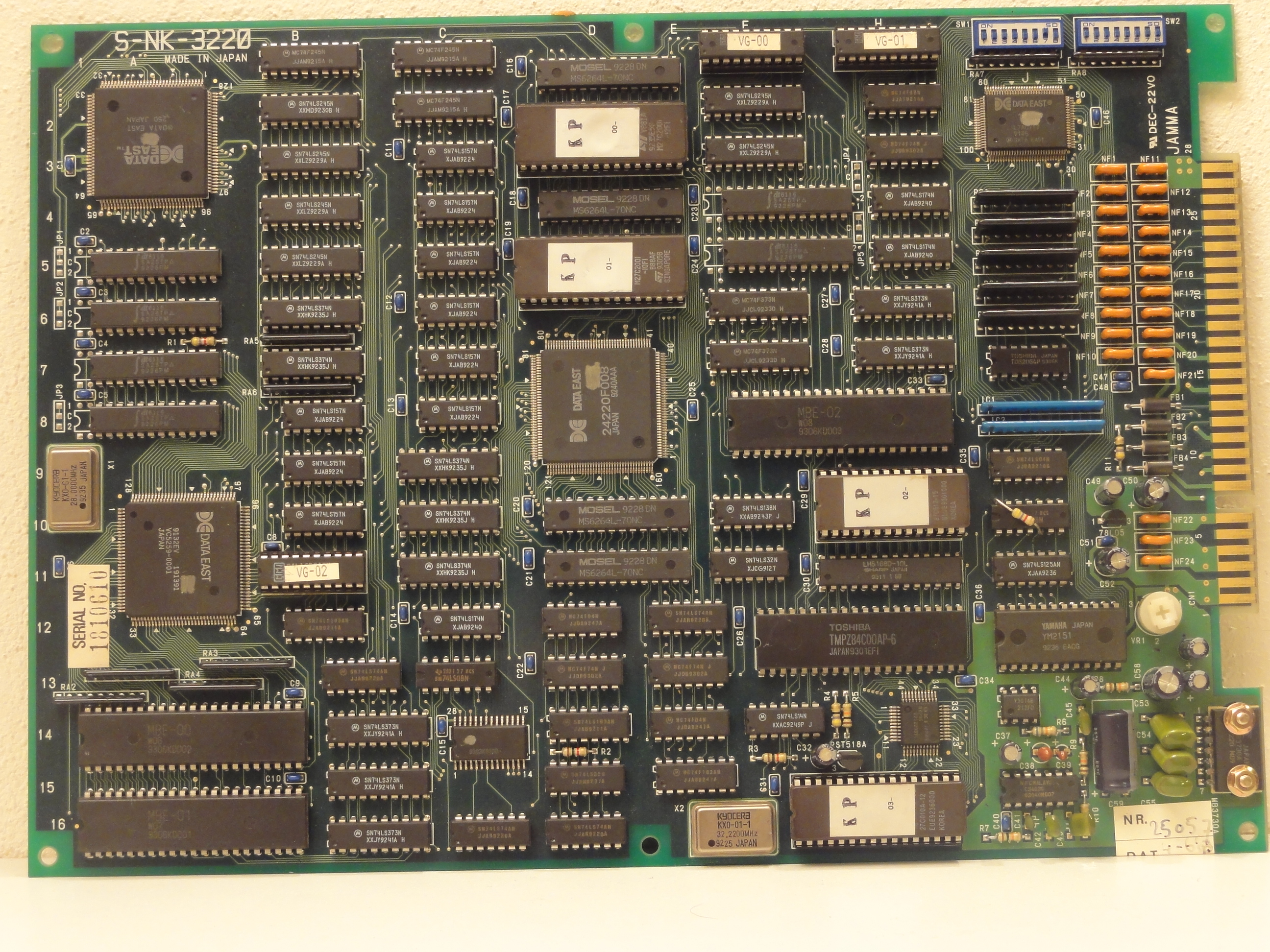

PCB component side
-

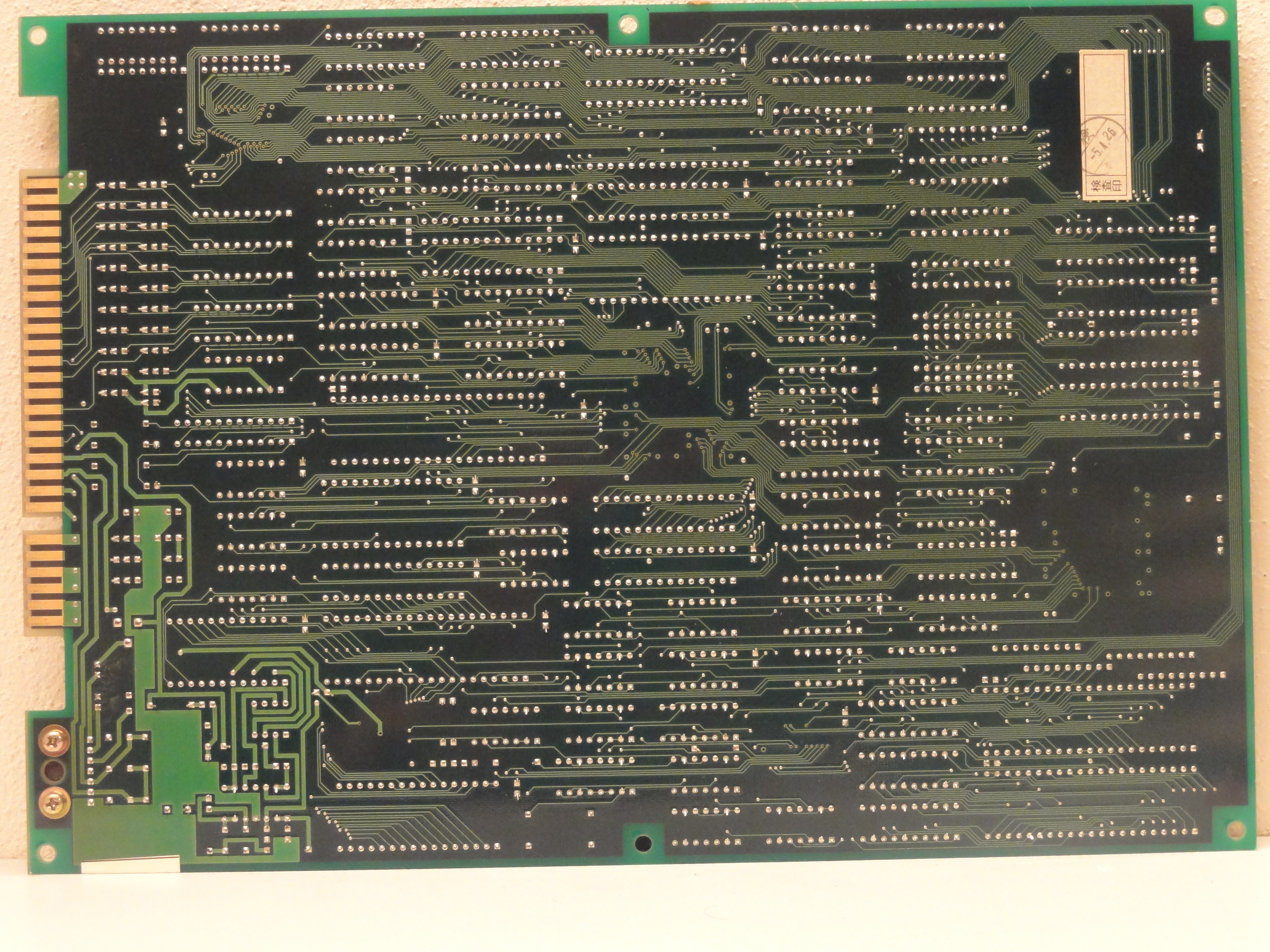

PCB solder side
