Double Dribble
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 20/02/2024 |
| emulator | MAME 0.35b11 |
| dev | Manuel Abadia, Tatsuyuki Satoh |
| name | ddribble on ProgettoEMMA ddribble on Arcade Database |
| description | Double Dribble |
| year | 1986 |
| manufacturer | Konami |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 3x | MC6809EP | MHz(@38) - MHz(@39) see specs for pin34,35 | a8, a12, a19 | 8-bit Microprocessor - main |
| 2x | Konami custom 005885 | e16, h16 | Video GFX - tilemap generator | |
| 1x | Konami custom 007327 | i1 | Video - RGB DAC + color pallet (RAM included on board) | |
| 1x | YM2203C | MHz(@38) - MHz(@39) | c6 | FM Operator Type-N (OPM) - sound |
| 1x | YM3014B | MHz(@5)dip8 MHz(@10)dip16 | c5 | D/A Converter (DAC) - sound |
| 1x | VLM5030 | MHz(@3) - MHz(@4) | e6 | Speech Syntesis IC - sound |
| 1x | uPC324 | - | d4 | Quad Operational Amplifier - sound |
| 1x | LA6358 | - | c4 | Dual Operational Amplifier - sound |
| 1x | LA4460N | - | a1 | Audio Power Amplifier - sound |
| 1x | Konami custom 007452 | c17 | Other - VRC&DMP Virtual ROM Controller & Divide/Multiply Processor | |
| 1x | Konami custom 005924 | c1 | Other - Coin counter driver | |
| 5x | Konami custom 005273 | cr1-cr5 | Other - Resistor array for player inputs controls | |
| 1x | oscillator | 18.432000MHz | g13 | |
| 1x | oscillator | 3.579545MHz | g12 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M5M27256 | a6,c12 | dumped |
| 1x | M5L27512 | c19 | dumped |
| 7x | TC531000 CE=L | MaskROM e7,e12,e13,i8,i11,i12,i13 | dumped |
| 1x | 63S141AN | i15 | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | D41464C-12 | g17,g18,i17,i18 |
| 1x | MB8416A-15L | c9 |
| 3x | MB8464-15L | c13,e19,h19 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PAL16L8A-2CN | 007552.c15, 007553.c11 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 4 legs connector (SVCN4P)
1x trimmer (volume)
2x 8 DIP switches banks (DIPSW1, DIPSW2)
1x 4 DIP switches bank (DIPSW3)
Notes
PCB is marked: "AICA-AM-1" and "GX690 PWB302125 KONAMI" on component side
PCB is marked: "AICA-AM-1" and "GX690 PWB302125 KONAMI" on slder side
PCB is labelled: "KONAMI SERIAL. NO 170436" and "M6100233A" on component side
Files
-

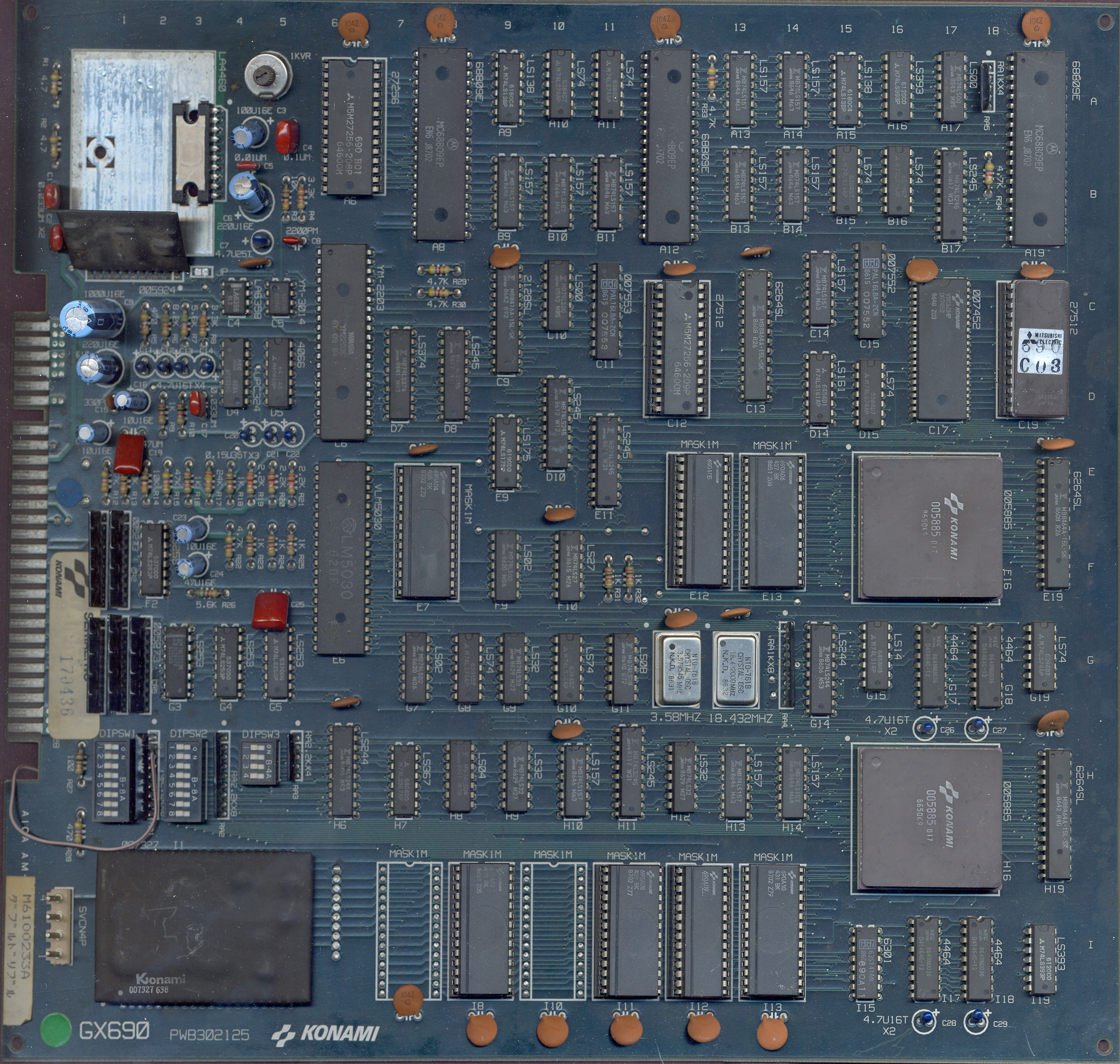

PCB component side
-

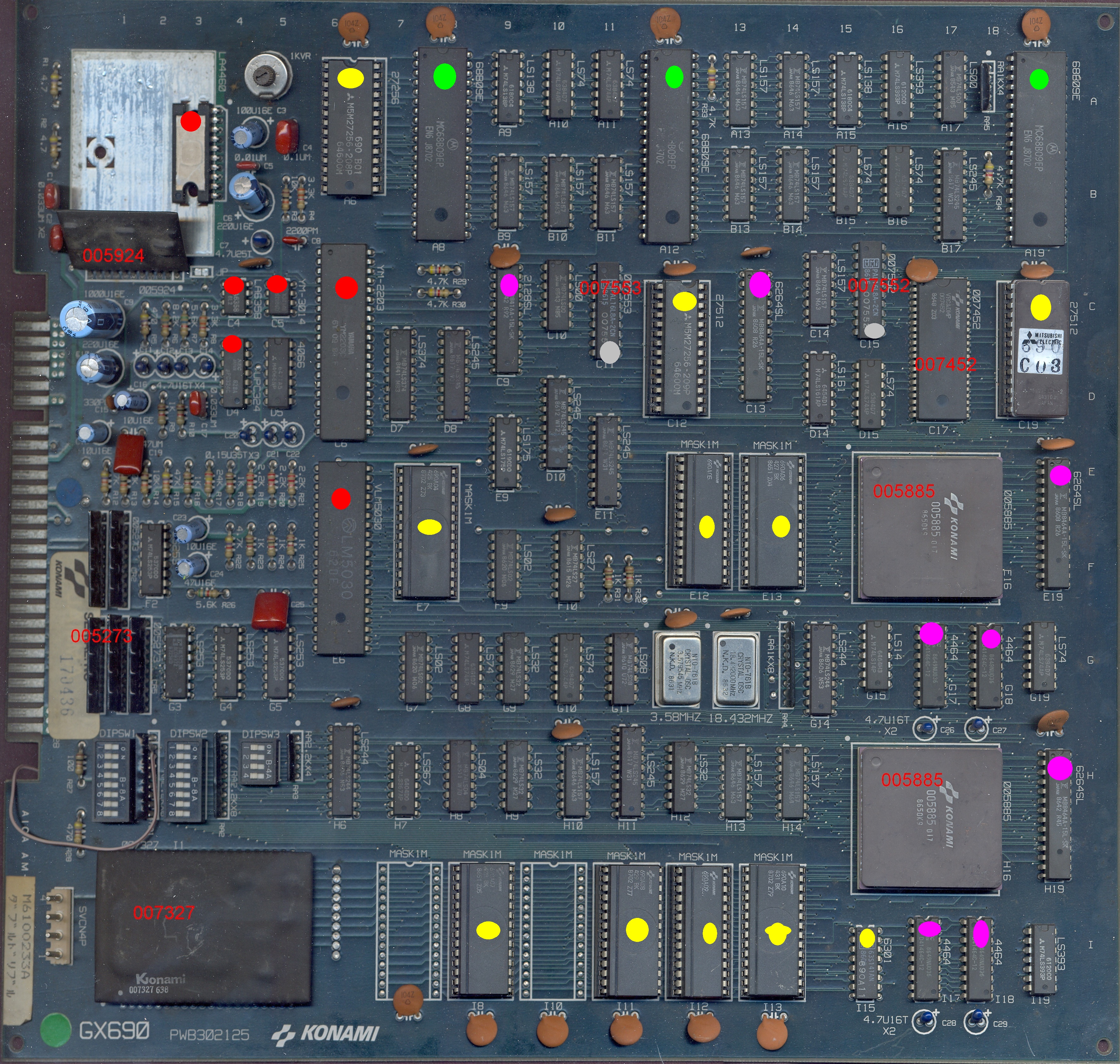

PCB component side notes
-

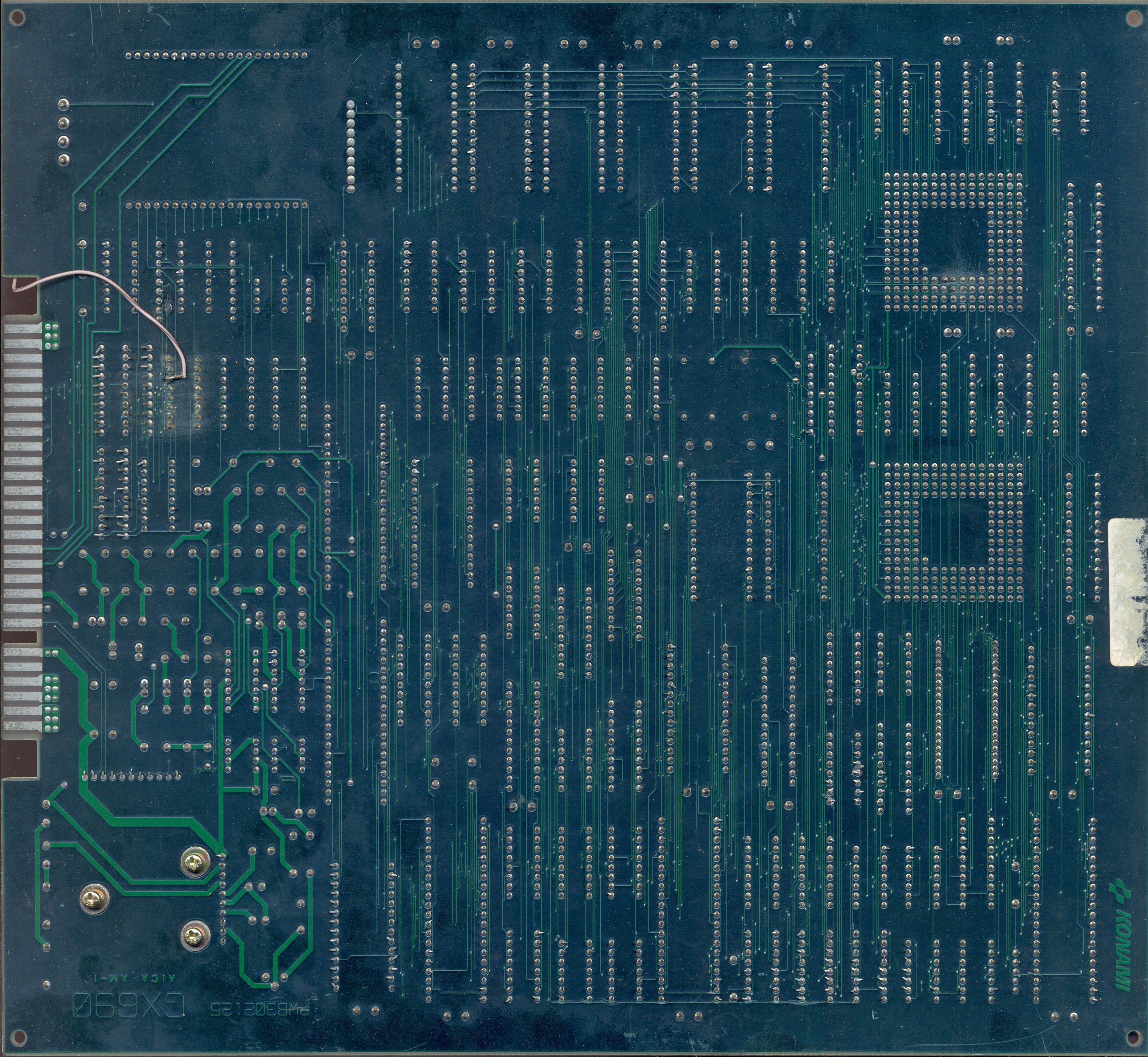

PCB solder side
