Devastators (ver. 2)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 04/08/2018 |
| emulator | MAME 0.201 |
| dev | Angelo Salese |
| name | devstors2 on ProgettoEMMA devstors2 on Arcade Database |
| description | Devastators (ver. 2) |
| year | 1988 |
| manufacturer | Konami |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Konami 510-47 007232 | C7 | D/A converter - sound | |
| 1x | NEC D780C-1 | F4 | 8-bit Microprocessor - sound | |
| 1x | HD63C09EP | K13 | 8-bit Microprocessor - main | |
| 1x | YM2151 | G9 | FM Operator Type-M (OPM) - sound | |
| 1x | YM3012 | F9 | D/A Converter (DAC) - sound | |
| 1x | uPC324C | E9 | Quad Operational Amplifier - sound | |
| 1x | MB3731 | A4 | Audio Amplifier - sound | |
| 2x | LM358 | B9,B10 | Dual Operational Amplifier - sound | |
| 6x | 005273 | CRA3,CRA6,CRA7,CRA8,CRA9,CRA10 | Inputs | |
| 1x | 007324 | L9 | 8x 150 ohm resistors array | |
| 2x | 007340 | RA20,RA21 | ||
| 2x | 007341 | RA22,RA23 | ||
| 1x | 051550 | A11 | Coin counter and reset | |
| 1x | 051733 | I11 | protection device? | |
| 1x | 051937 | K9 | Sprite Generator - palette, shadow, transparency (to be used in connection with 051960) | |
| 1x | 051960 | J9 | Sprite Generator - list and color code (to be used in connection with 051937) | |
| 1x | 051962 | K17 | Tilemap Generator (to be used in connection with 052109) | |
| 1x | 052109 | J17 | Tilemap Generator (replaces 051961)(to be used in connection with 051962) | |
| 3x | 052535 | 5-bit video DAC | ||
| 1x | oscillator | 3.579545MHz | H14 | |
| 1x | oscillator | 24.000000MHz | L15 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | MaskROM DIP40-600mil | D4,H4,K4 | dumped |
| 1x | 27256 | F7 | dumped |
| 5x | 27512 | F22,H22,J22,K11,K22 | dumped |
| 1x | MMI63S141N | K14 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MB8416A-10 | F5 |
| 3x | MCM2018N45 | C11,C14,I5 |
| 3x | MB8464A-10L | H17,I17,J9 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AMPAL18P8APC | I12 | read protected (Konami 052459) |
| 1x | PAL16L8ACN | I13 | read protected (Konami 052460) |
Others
1x 28x2 JAMMA edge connector
2x 8 DIP switches banks (DIPSW1,DIPSW2)
1x 4 DIP switches bank (DIPSW3)
1x trimmer (volume)
Notes
PCB is marked: "KONAMI", "MADE IN JAPAN" and "PWB351024A AI AM-1" on component side
update 20180828: complete description
Files
-

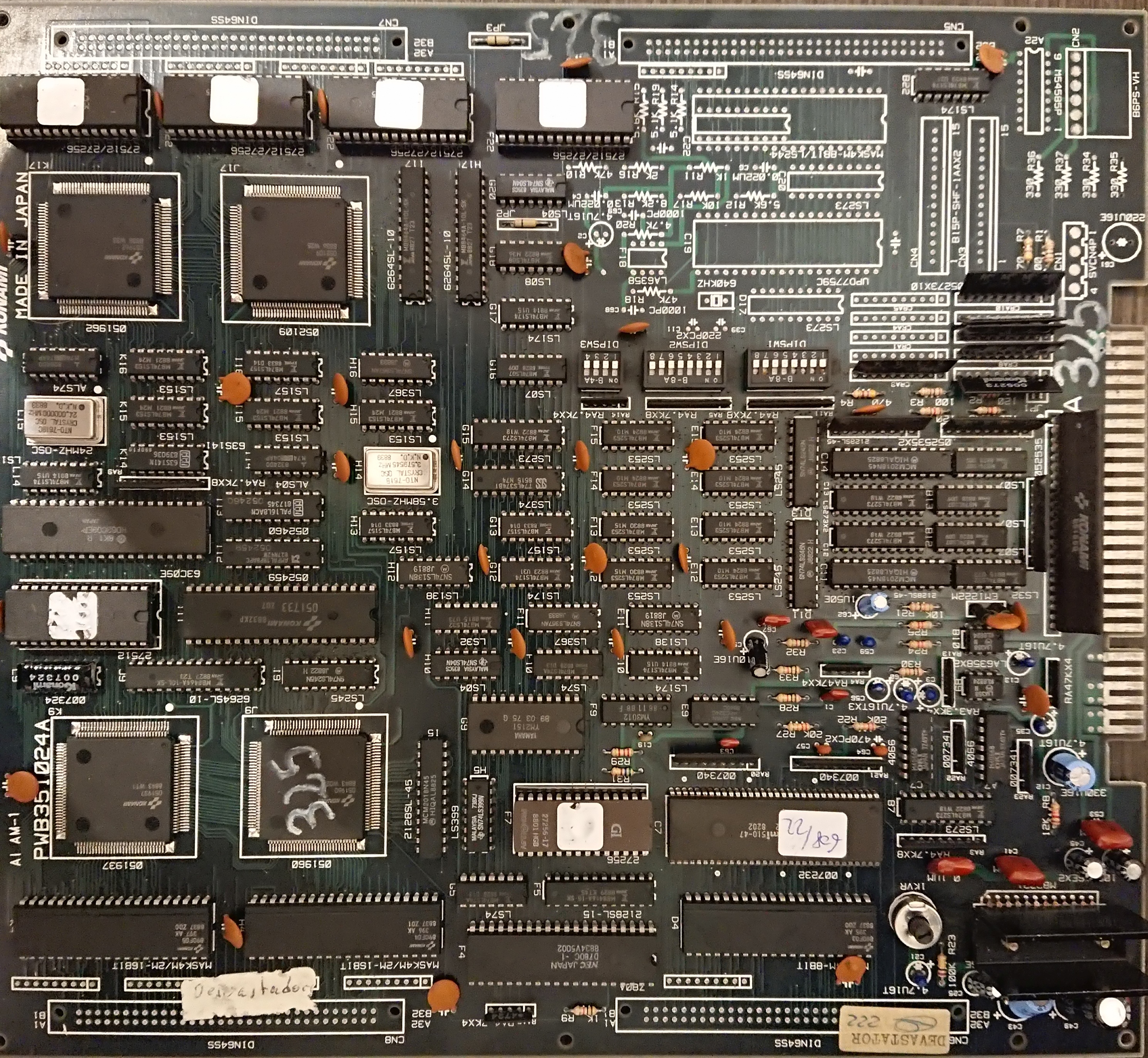

PCB component side
-

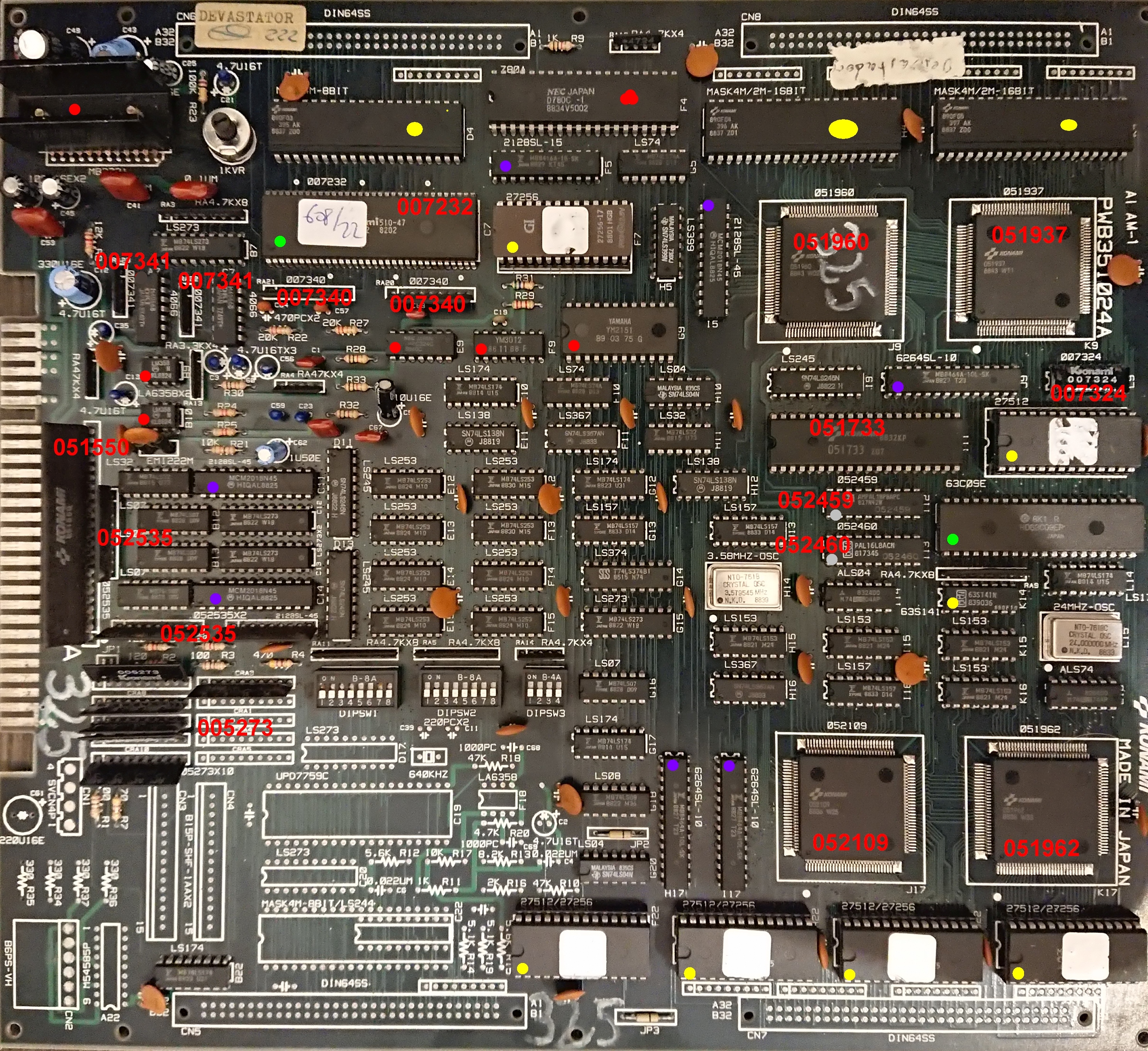

PCB component side notes
