Crystals Colours (Ver 1.02)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/03/2016 |
| emulator | MAME 0.173 |
| dev | Roberto Fresca |
| name | crystalc on ProgettoEMMA crystalc on Arcade Database |
| description | Crystals Colours (Ver 1.02) |
| year | 1998.05.02 |
| manufacturer | J.C.D. Srl |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02P-2 | u1 | 8-bit Microprocessor - main | |
| 1x | AD-65 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | LM358N | u29 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u30 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000000MHz | os1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27C256 | 1,2,3 | dumped |
| 1x | 27C020 | 4 | dumped |
| 1x | Am27S29PC | u17 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | U6264ADC-07LL | u11 |
| 1x | HT6116-70 | u3 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | XC9572-PQ100ASJ-15C | read protected |
Others
1x 28x2 JAMMA edge connector
1x 6 legs connector (J1)
1x 15 legs connector (AUX)
1x trimmer (volume)
1x 8x2 switches DIP (SW1)
1x battery 3.6V
Notes
Files
-

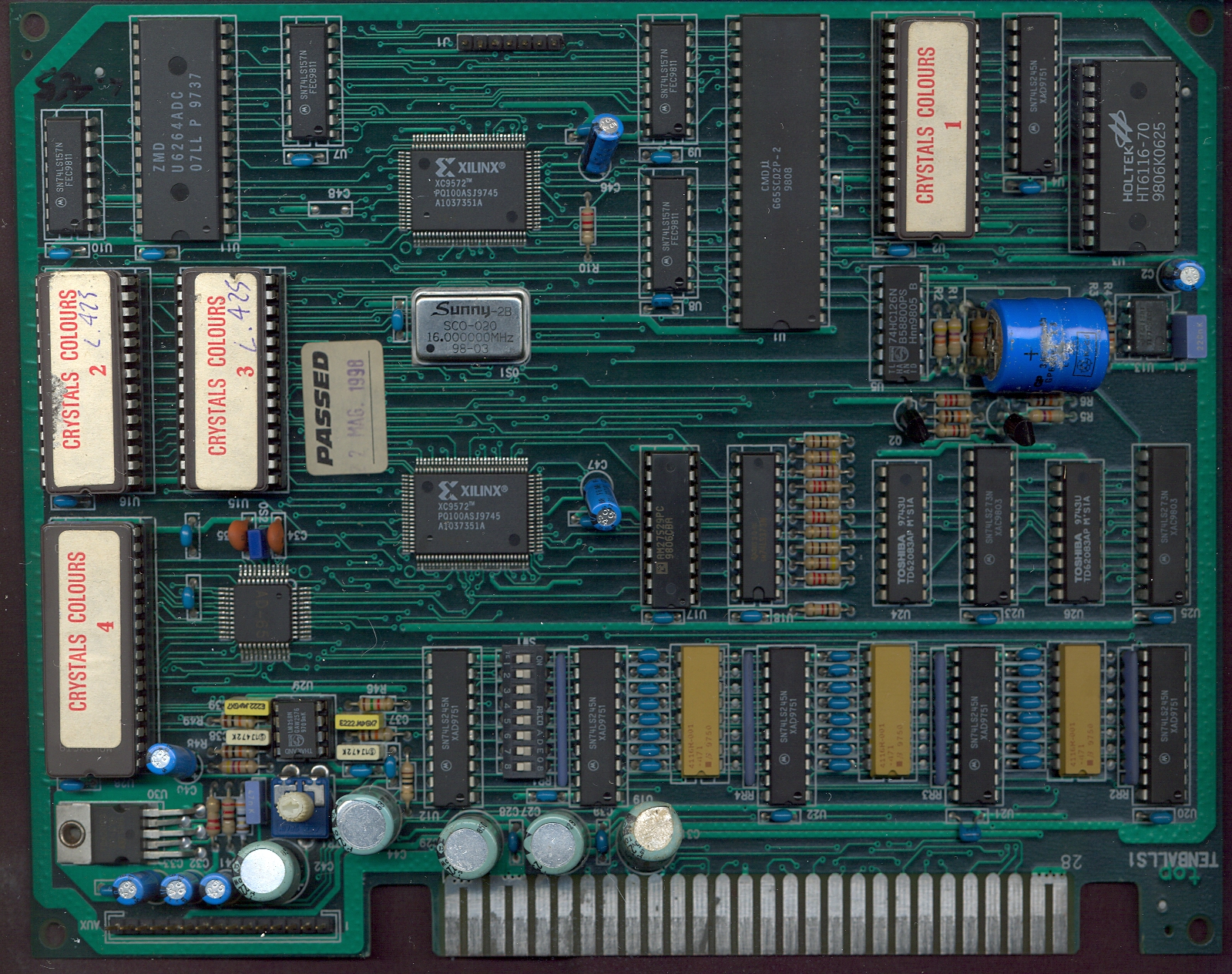

PCB component side
-

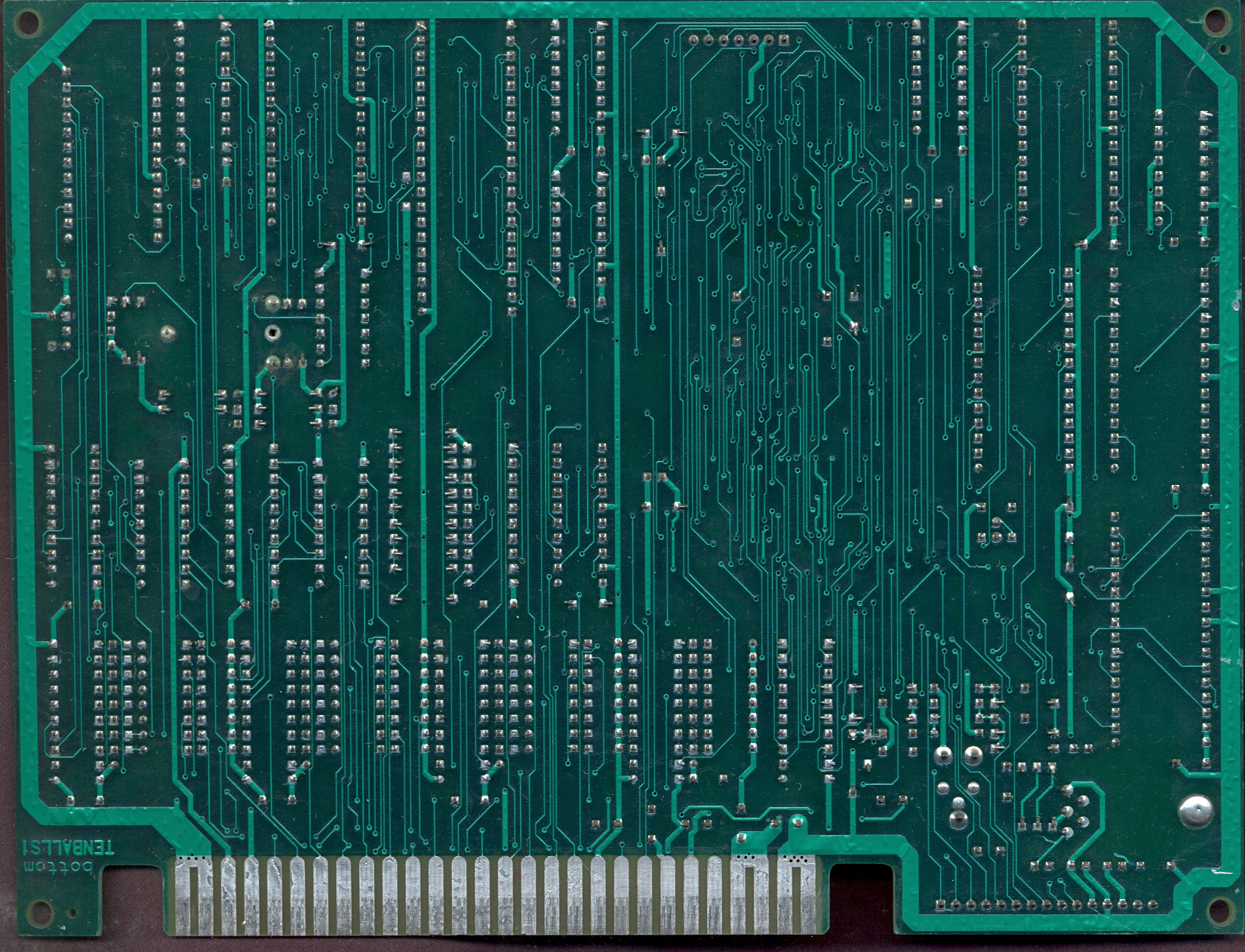

PCB solder side
-

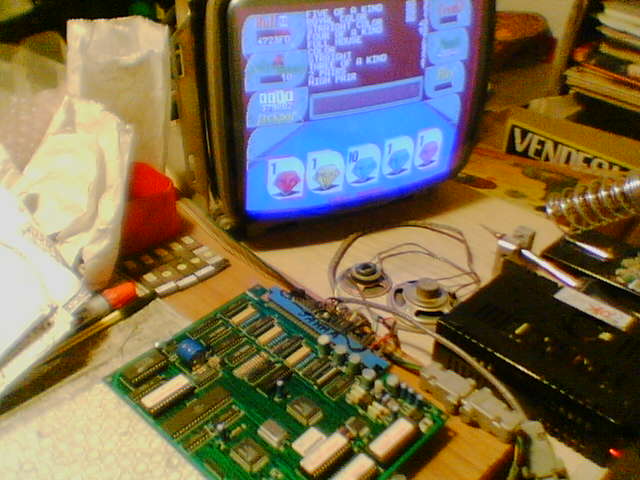

Ingame
