Croupier (Playmark Roulette v.09.04)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 20/11/2015 |
| emulator | MAME 0.099u2 |
| dev | David Haywood |
| name | croupiera on Arcade Database |
| description | Croupier (Playmark Roulette v.09.04) |
| year | 1993 |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | unknown MCU | u39 | ||
| 1x | MC68000FN12 | u24 | 16/32-bit Microprocessor - main | |
| 1x | M6295 | u34 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358D | u48 | Dual Operational Amplifier - sound | |
| 1x | oscillator | 28.000000MHz | XL2 | |
| 1x | oscillator | 24.00000MHz | XL1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | M27C1001 | 2.u16 - 3.u15 | dumped (main - interleaved) |
| 1x | M27C2001 | 1.u33 | dumped |
| 5x | M27C4001 | 4.u141 to 8.u145 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | HM3-65728BK-5 | u42 u73 u74 u75 u80 u81 u124 u125 |
| 4x | KM6264BL-7L | u2 u6 u36 u37 |
| 1x | DALLAS DS1220Y-150 | u17 Non Volatile SRAM (not dumped) |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TPC1020AFN-084 | u110 u137 | read protected |
| 4x | PALCE22V10-25PC | u1 u77 u111 u112 | read protected |
| 1x | PALCE16V8H-25 | u104 | read protected |
Others
1x 28x2 JAMMA edge connector
2x 6 legs connector
1x trimmer (volume)
Notes
Files
-

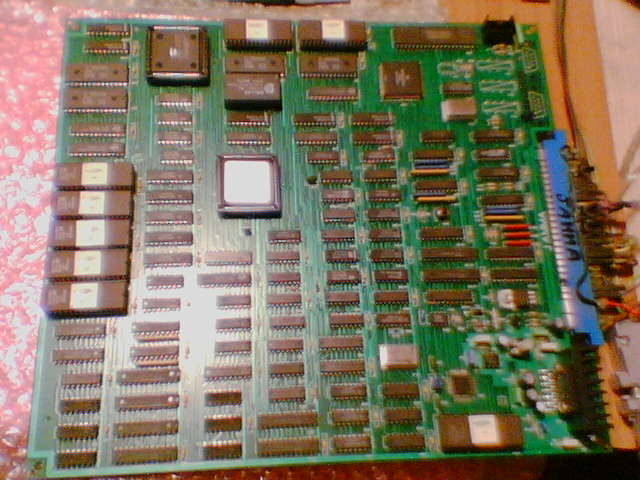

PCB component side 1
-

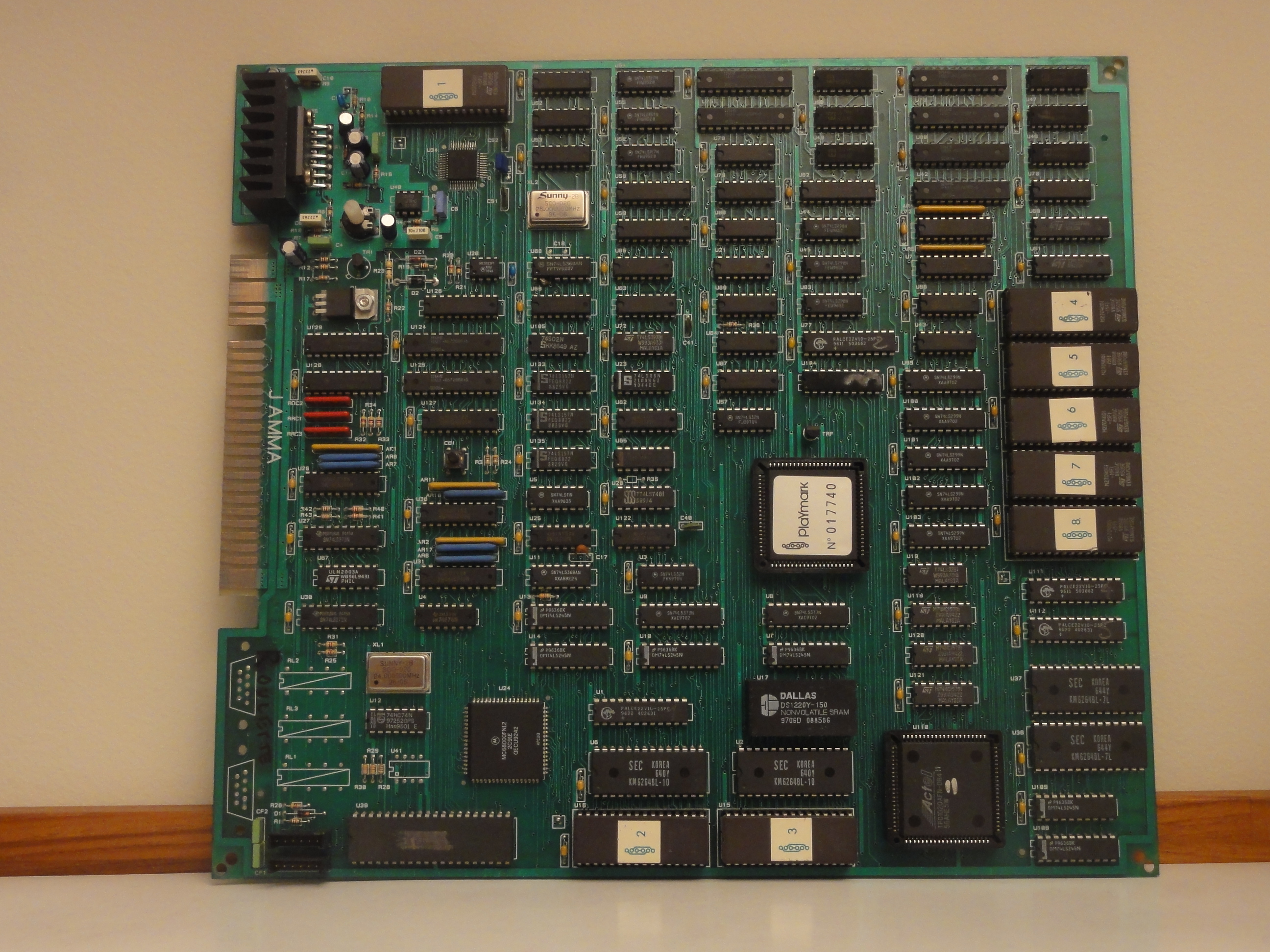

PCB component side 2
-

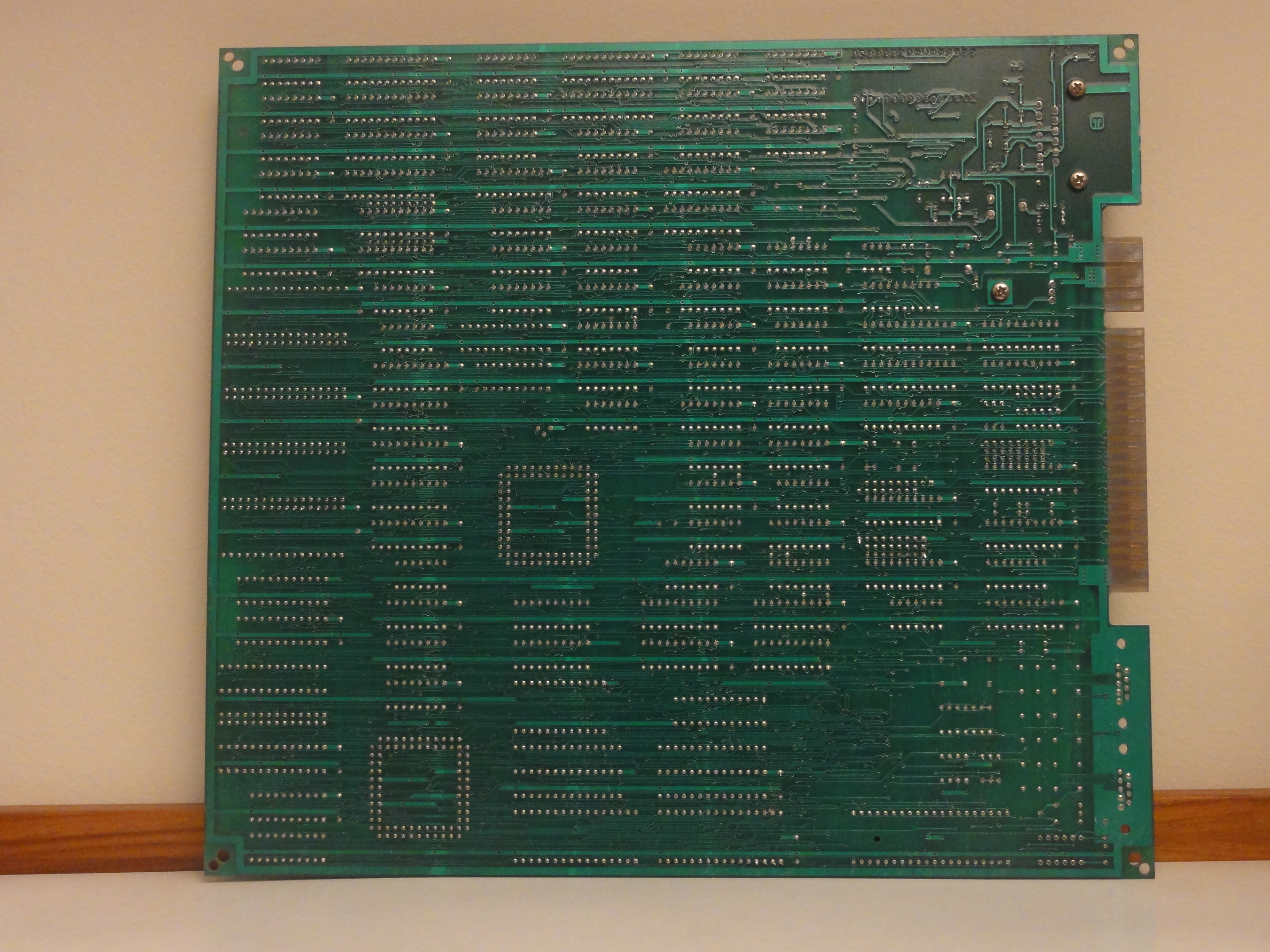

PCB solder side
-

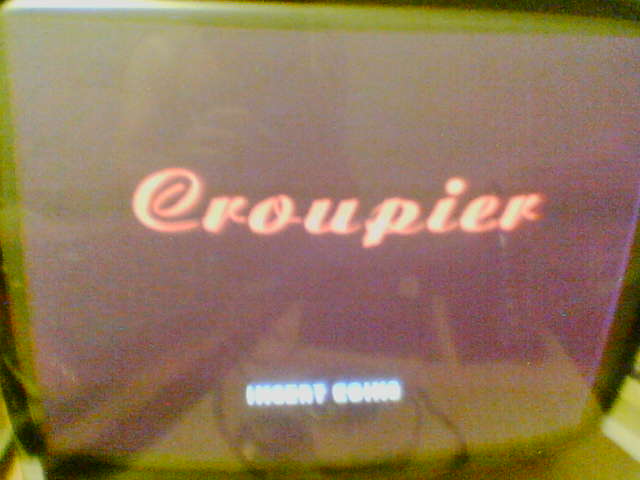

Title
-

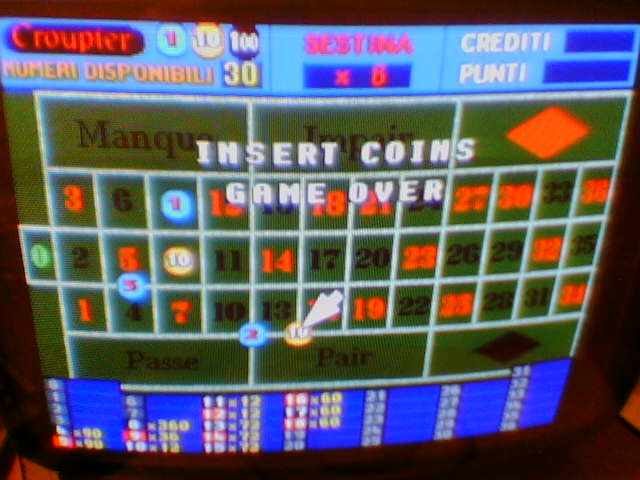

Attract mode
