Crazy Kong Part II -1
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 19/03/2006 |
| emulator | MisfitMAME 0.122.B |
| dev | Robert |
| name | ckonga2 on MiSFiTMAME |
| description | Crazy Kong Part II -1 |
| year | 1981 |
| manufacturer | Falcon |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | SGS Z8400AB1-Z80CPU | 1st PCB | 8-bit Microprocessor - main | |
| 1x | AY-3-8910 | 1st PCB | Programmable Sound Generator - sound | |
| 1x | LM3900N | 1st PCB | Quad Operational Amplifier - sound | |
| 1x | oscillator | unmarked | 1st PCB | |
| 1x | D780C-1 | 2nd PCB | 8-bit Microprocessor - main | |
| 1x | AY-3-8910 | 2nd PCB | Programmable Sound Generator - sound | |
| 1x | LM3900N | 2nd PCB | Quad Operational Amplifier - sound | |
| 1x | oscillator | 18.000 | 2nd PCB |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MCM2716C | 1st PCB 1,2 | dumped |
| 11x | MCM2732C | 1st PCB 3,4,6,7,8,9,10,11,12,13,14 | dumped |
| 1x | HN462532 | 1st PCB 5 | dumped |
| 3x | N82S123N | 1st PCB | dumped |
| 2x | 2716 | 2nd PCB 1,2 | dumped |
| 12x | AM2732DC | 2nd PCB 3-14 | dumped |
| 3x | 6331-1J | 2nd PCB | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MM2114N | 1st PCB 4a,4b |
| 2x | D2114 | 1st PCB 6f,6h |
| 1x | S2114 | 1st PCB 10j |
| 1x | 2114UCB | 1st PCB 10h |
| 3x | D2102 | 1st PCB 11t,11u,11v |
| 3x | F2102 | 1st PCB 12t,12u,12v |
| 2x | 5101-1 | 1st PCB 10a,10c |
| 1x | MK4802 | 1st PCB 5b |
| 6x | MM2114 | 2nd PCB 4a,4b,6f,6h,10h,10j |
| 6x | d2102 | 2nd PCB 11t,11u,11v,12t,12u,12v |
| 2x | AM9101ADC | 2nd PCB 10a,10c |
| 1x | MK4802 | 2nd PCB 5b |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
2x 18x2 edge connector
1x trimmer (volume)
1x 8 DIP switches bank
Notes
1st PCB is marked: "DK" on solder side
update 20060801: I just found a 2nd PCB for the same game
Files
-

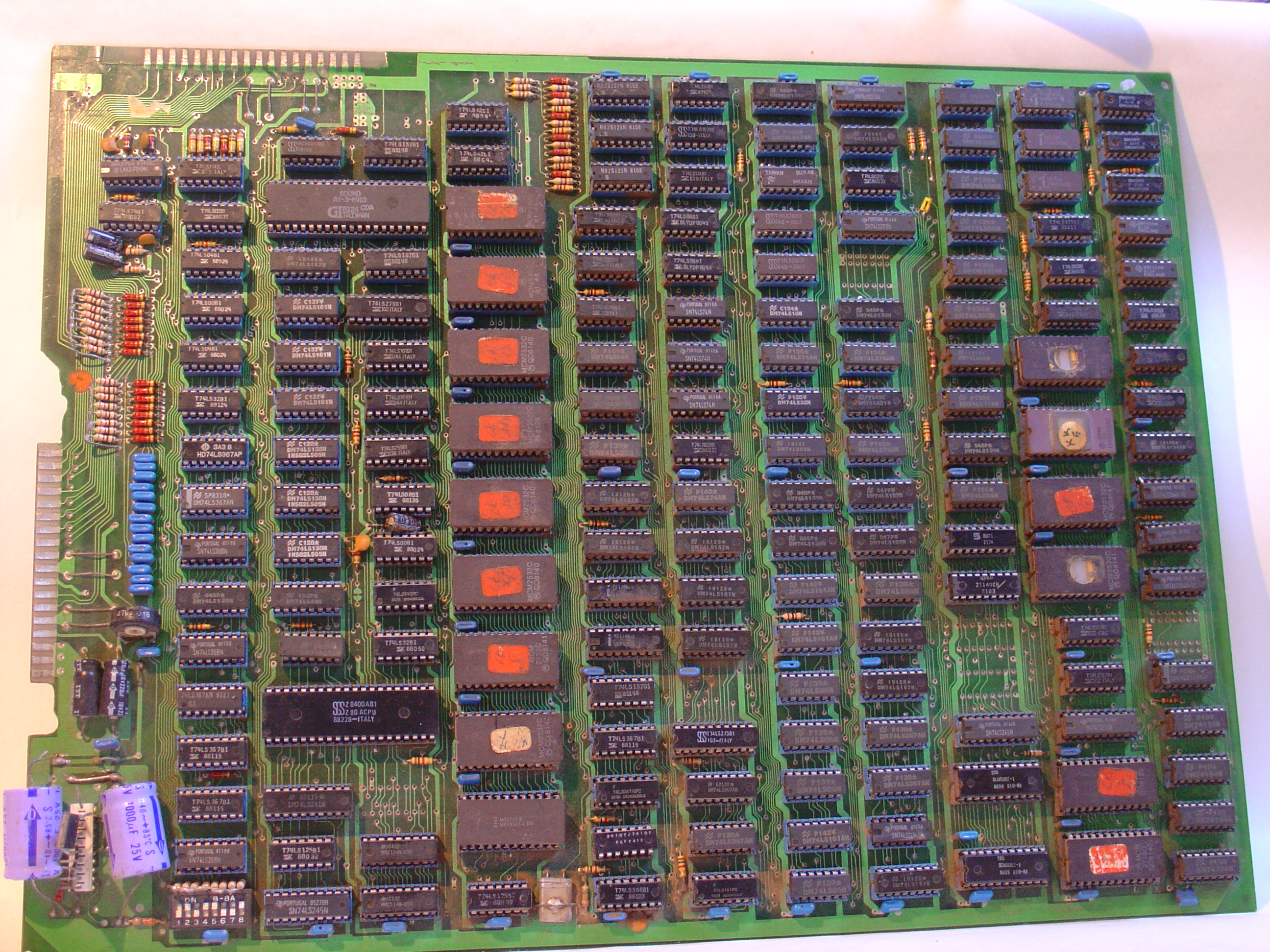

1st PCB component side
-

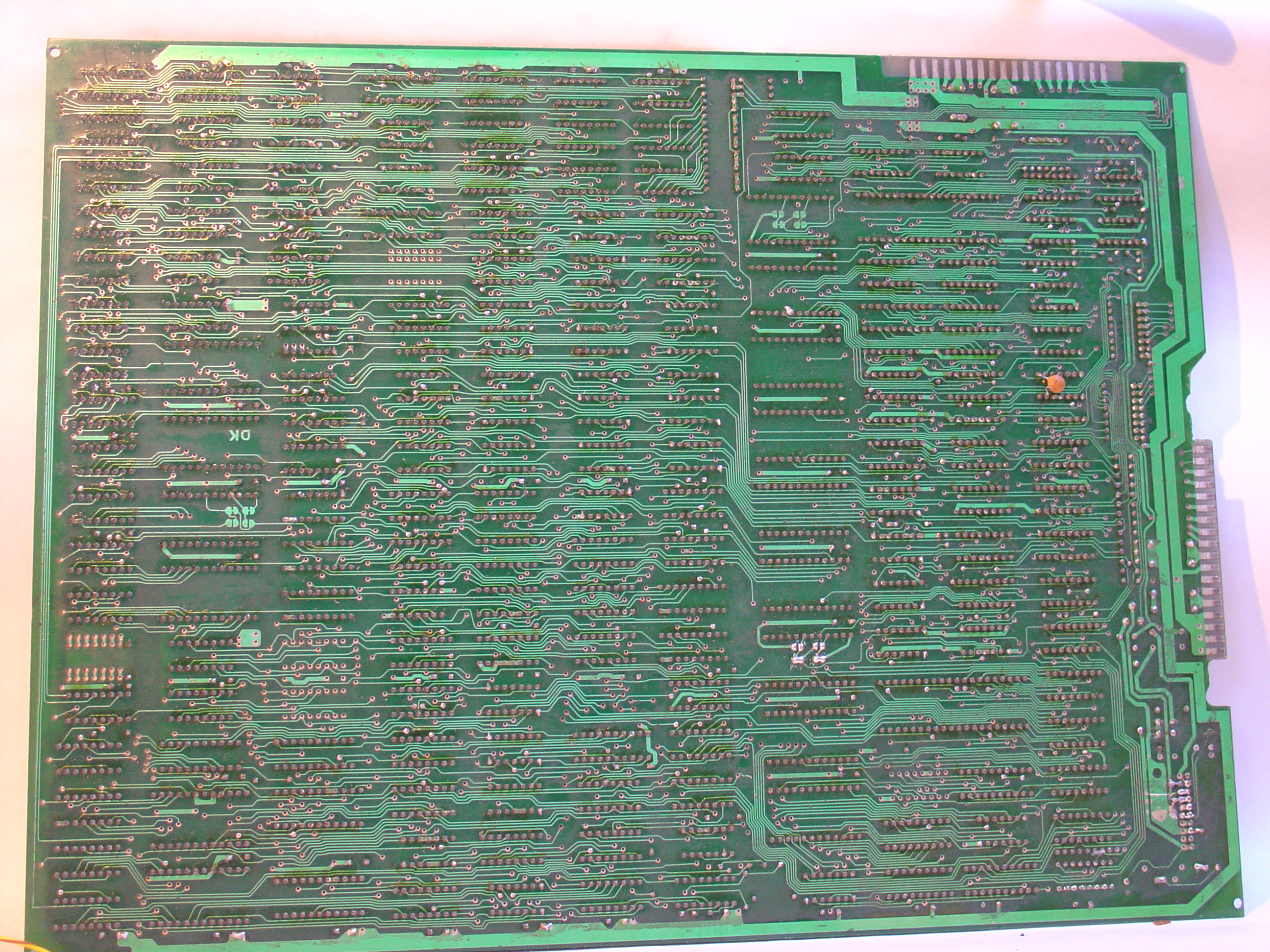

1st PCB solder side
-

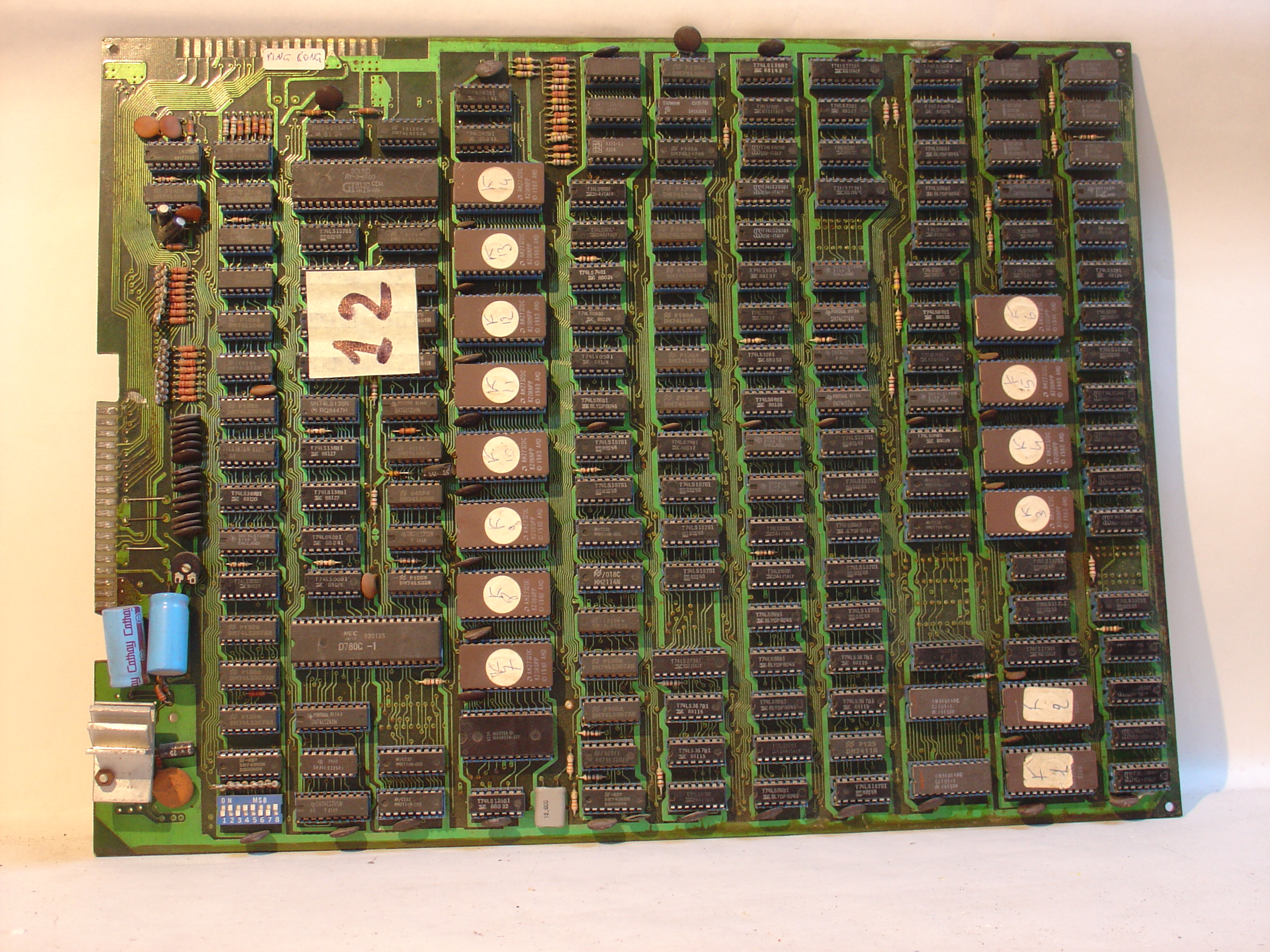

2nd PCB component side
-

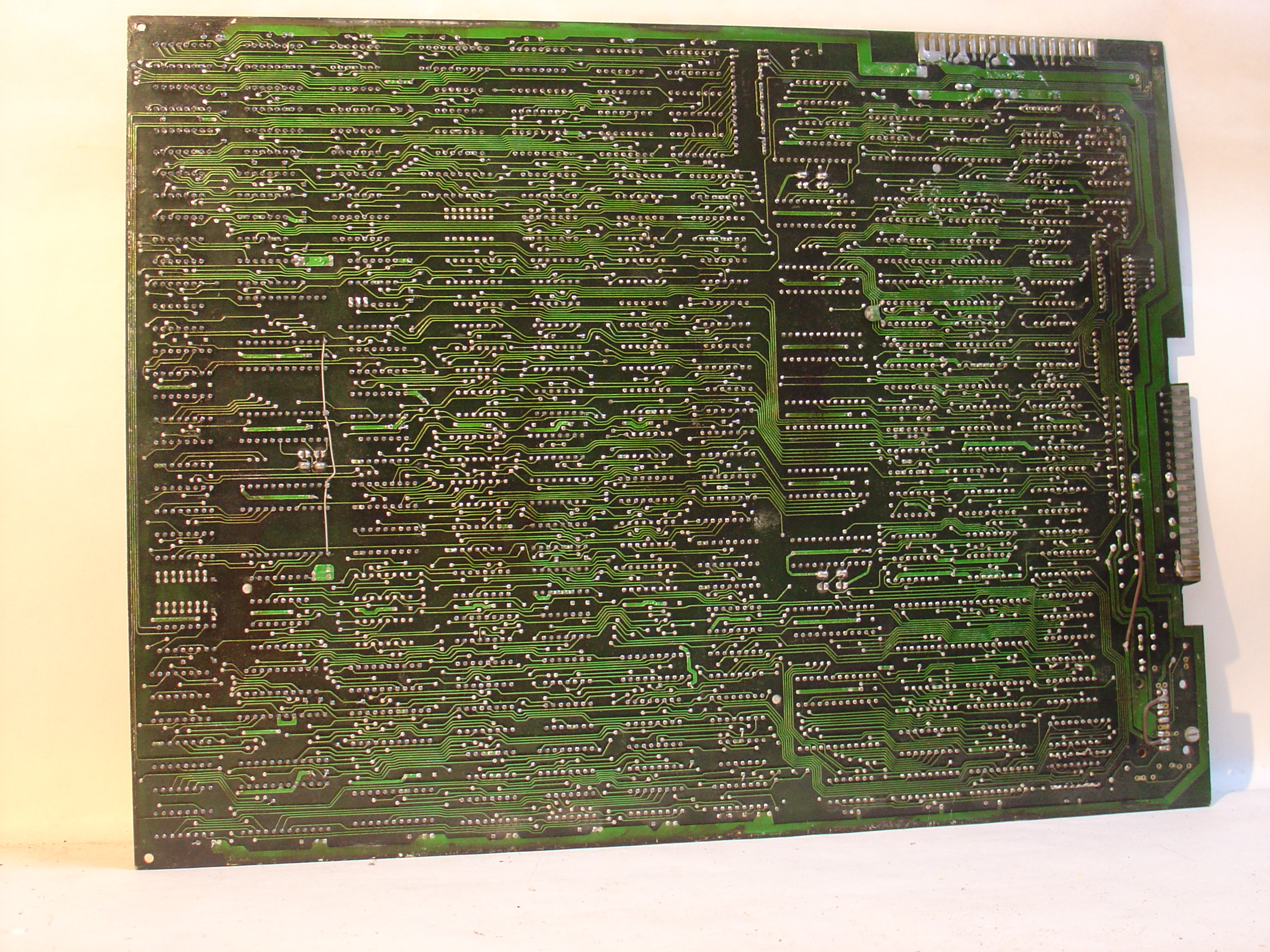

2nd PCB solder side
