Crazy Climber (Model Racing bootleg)
From Citylan
Jump to navigationJump to search
| dumper | Any, f205v |
| date | 10/05/2013 |
| emulator | MAME 0.148u5 |
| dev | Tafoid |
| name | ccbootmr on ProgettoEMMA ccbootmr on Arcade Database |
| description | Crazy Climber (Model Racing bootleg) |
| year | 1980 |
| manufacturer | Model Racing |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80CPUB1 | piggyback 6d | 8-bit Microprocessor - main | |
| 1x | AY-3-8910 | 6r main PCB | Programmable Sound Generator - sound | |
| 1x | MC3301P | 8p main PCB | Quad Operational Amplifier - sound | |
| 1x | oscillator | 18MHz | 0a ROMs PCB |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | TMS2716 | 6a,6c,6h,6k,6l,6n ROMs PCB | dumped |
| 7x | TMS2532 | 4c,4e,4f,4j,4k,4p,4r main PCB | dumped |
| 1x | TBP24S10N | piggyback 6d | dumped |
| 3x | PROM | 9c,9n,9p ROMs PCB | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | TMS2114L-20NL | 5a,5b main PCB |
| 2x | TMS2114L-20NL | 5h,5j ROMs PCB |
| 2x | TMS2114L-45NL | 1f,1h ROMs PCB |
| 6x | TMS2147H-7NL | 8j,8k,8l,8m,8n,8p ROMs PCB |
| 2x | Am9101 | 5a,5c ROMs PCB |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector (main PCB)
1x 28x2 thin edge connector (main PCB)
2x 50 pins flat cable connector from main board to ROMs board
1x trimmer (volume)(main PCB)
1x 8 DIP switches bank (main PCB)
Notes
main PCB is marked: "MEF00274" and "17-33"
ROMs PCB is marked: "MEF00273" and "17-32"
update 20170420: a second PCB was found. Added pics, confirmed dump, correct labels.
Files
-

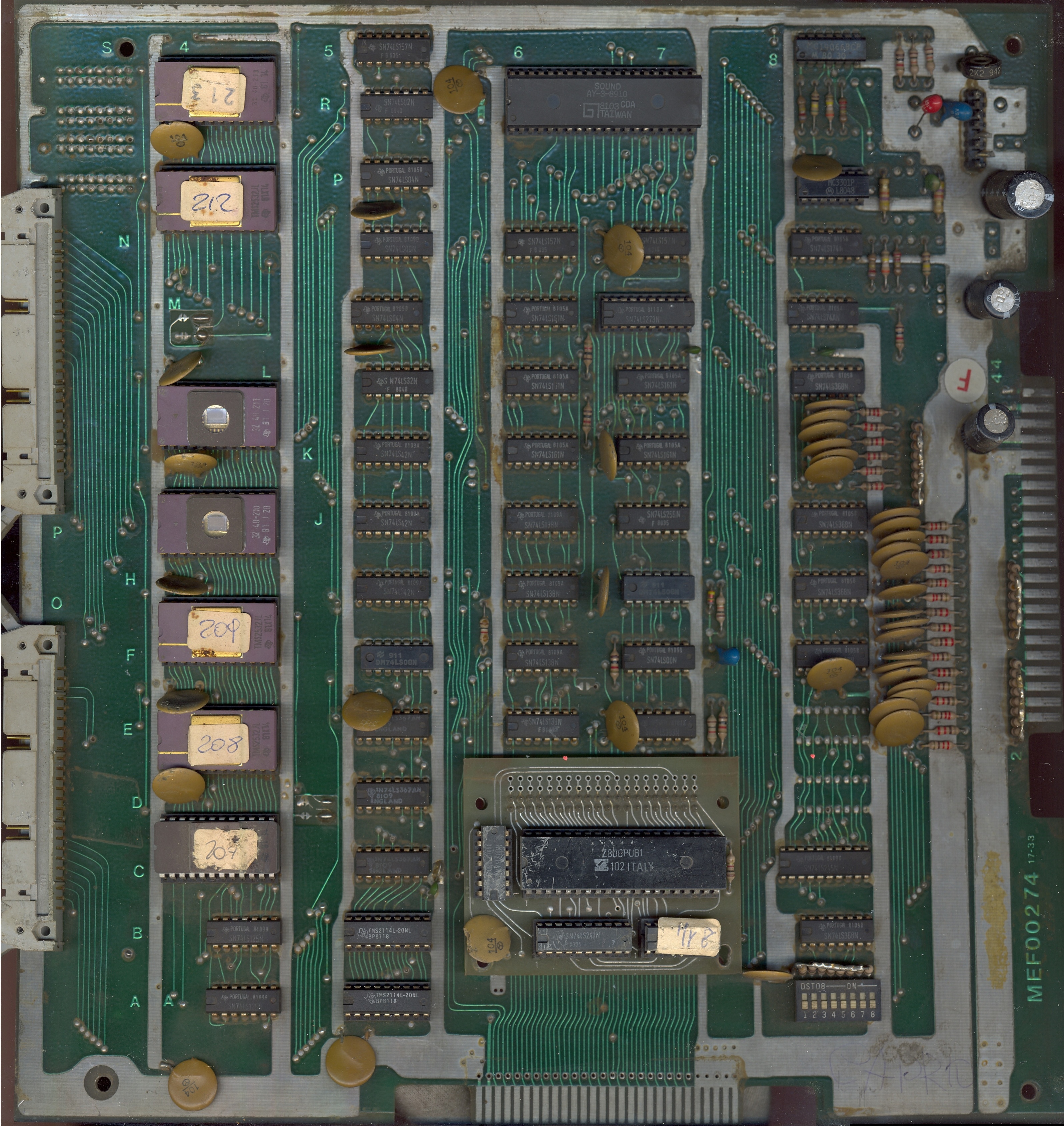

main PCB component side
-
main PCB solder side
-

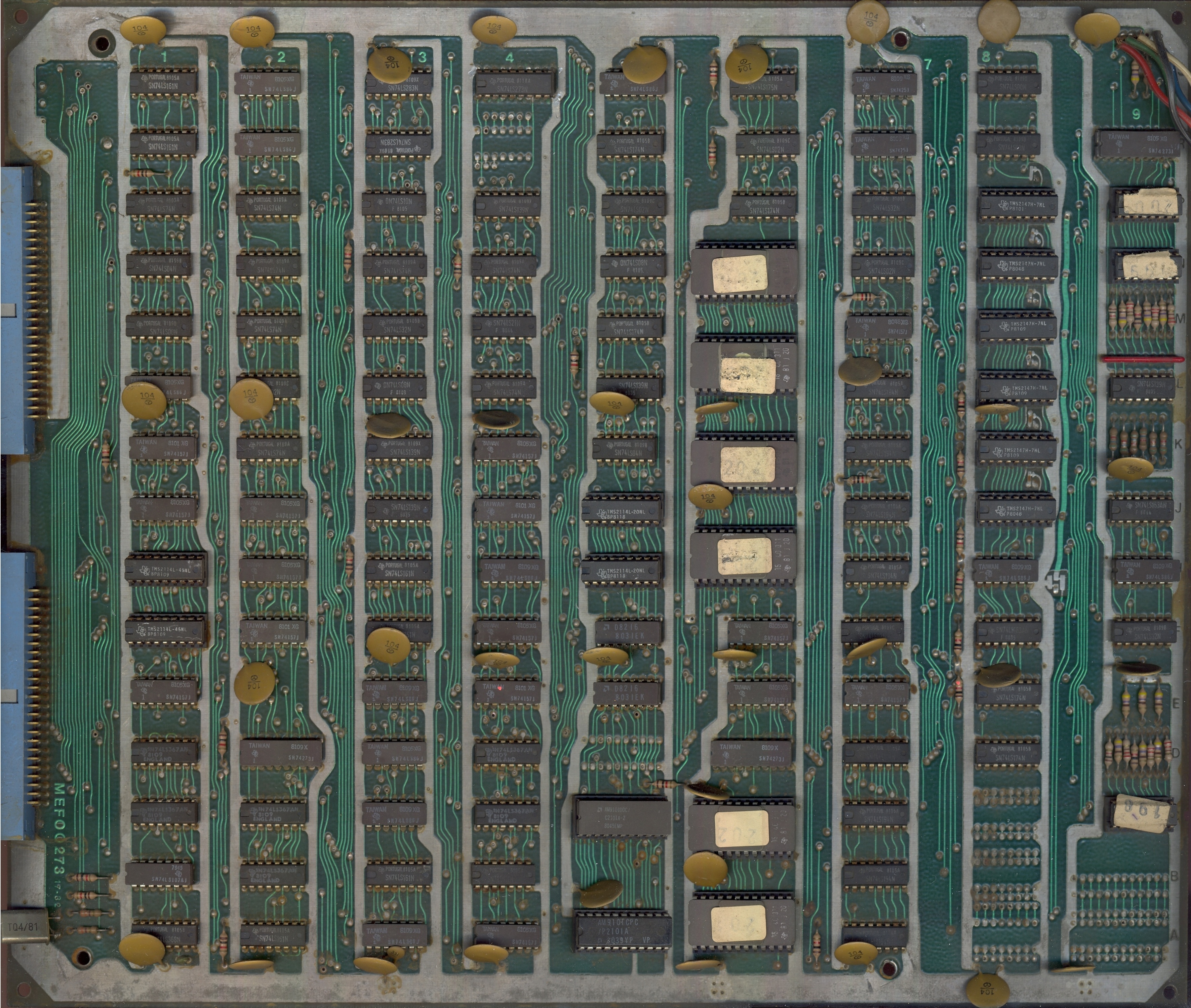

ROMs PCB component side
-

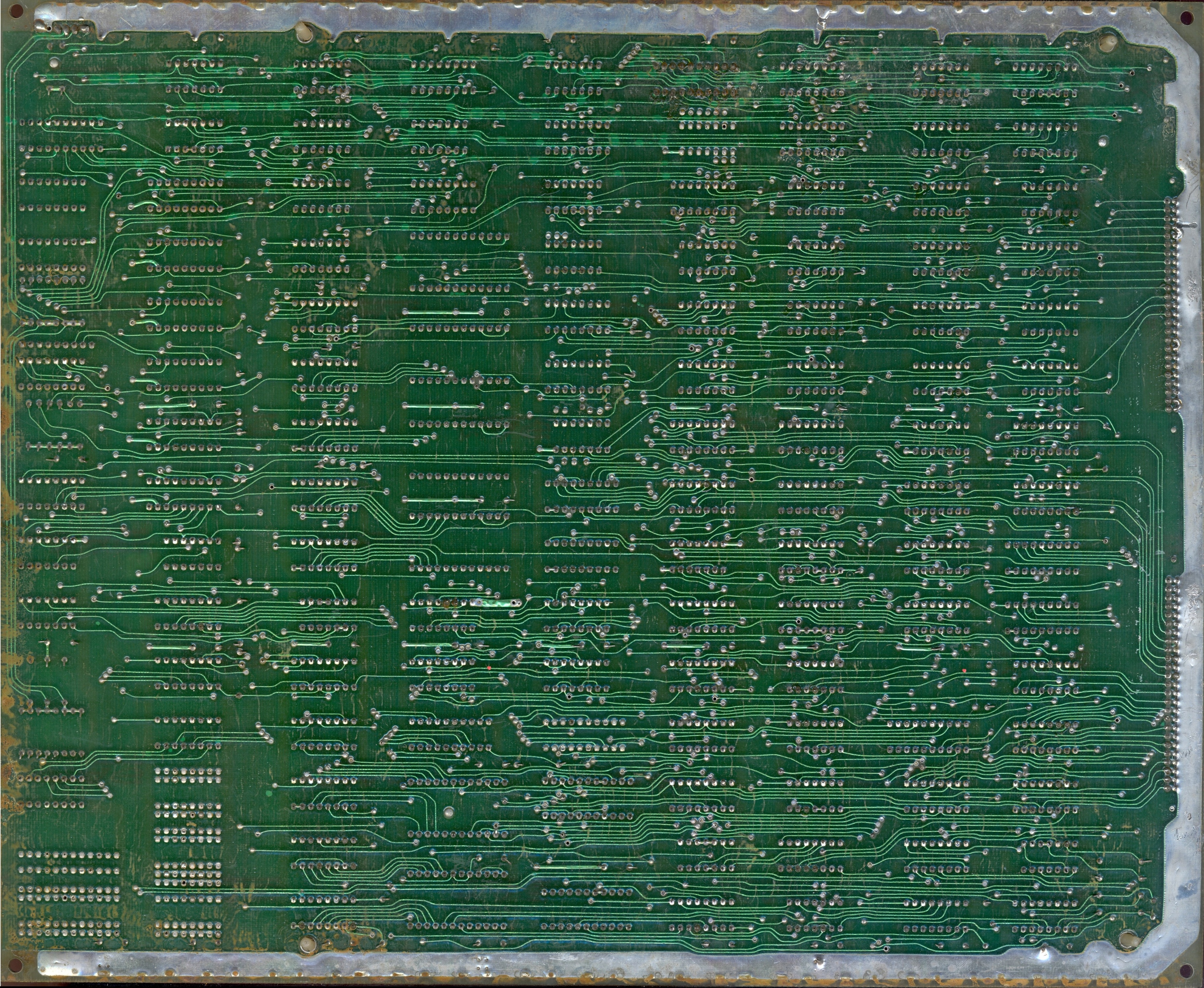

ROMs PCB solder side
