Club Kart Prize Version B (prototype)
From Citylan
Jump to navigationJump to search
| dumper | RTW, Zozo |
| date | 12/10/2022 |
| emulator | MAME 0.249 |
| dev | Metallic |
| name | clubkpzbp on ProgettoEMMA clubkpzbp on Arcade Database |
| description | Club Kart Prize Version B (prototype) |
| year | 2003.12.16 – 16:45:15 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | ic22 | dumped |
| 21x | DA28F640J5 | ic1s - ic21s | dumped |
| 1x | X76F100 | ic37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EPM7064 315-6206 | ic41 | read protected |
Others
Notes
It's a NAOMI 2 cart.
Cart type: 171-7885A
Cart N°: 840-0137C-P on PCB - 840-0129 on cart (recycled from previous game)
Protection IC: SEGA 315-5881 (no number)
Key: none
Files
-

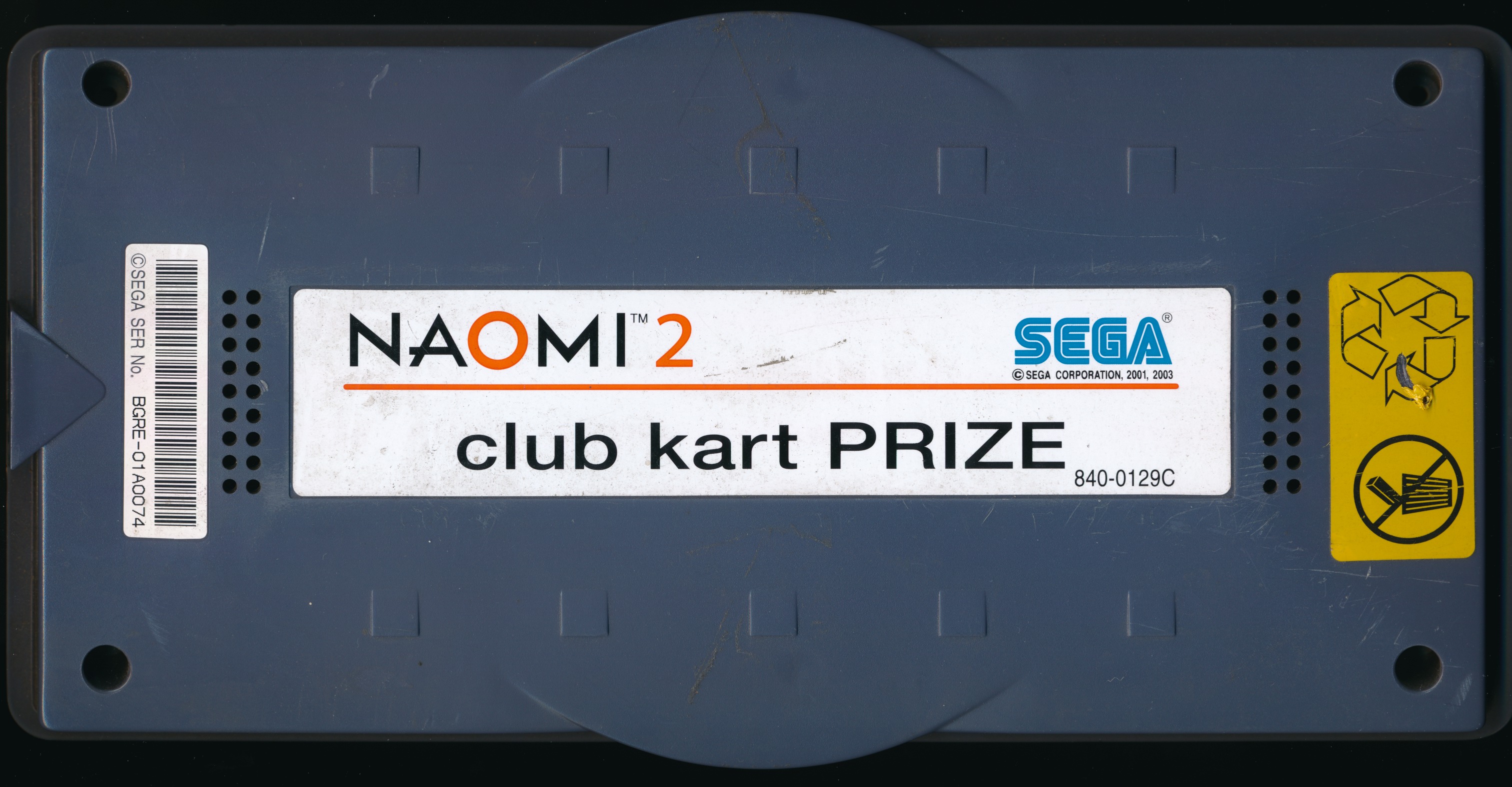

Cart
-

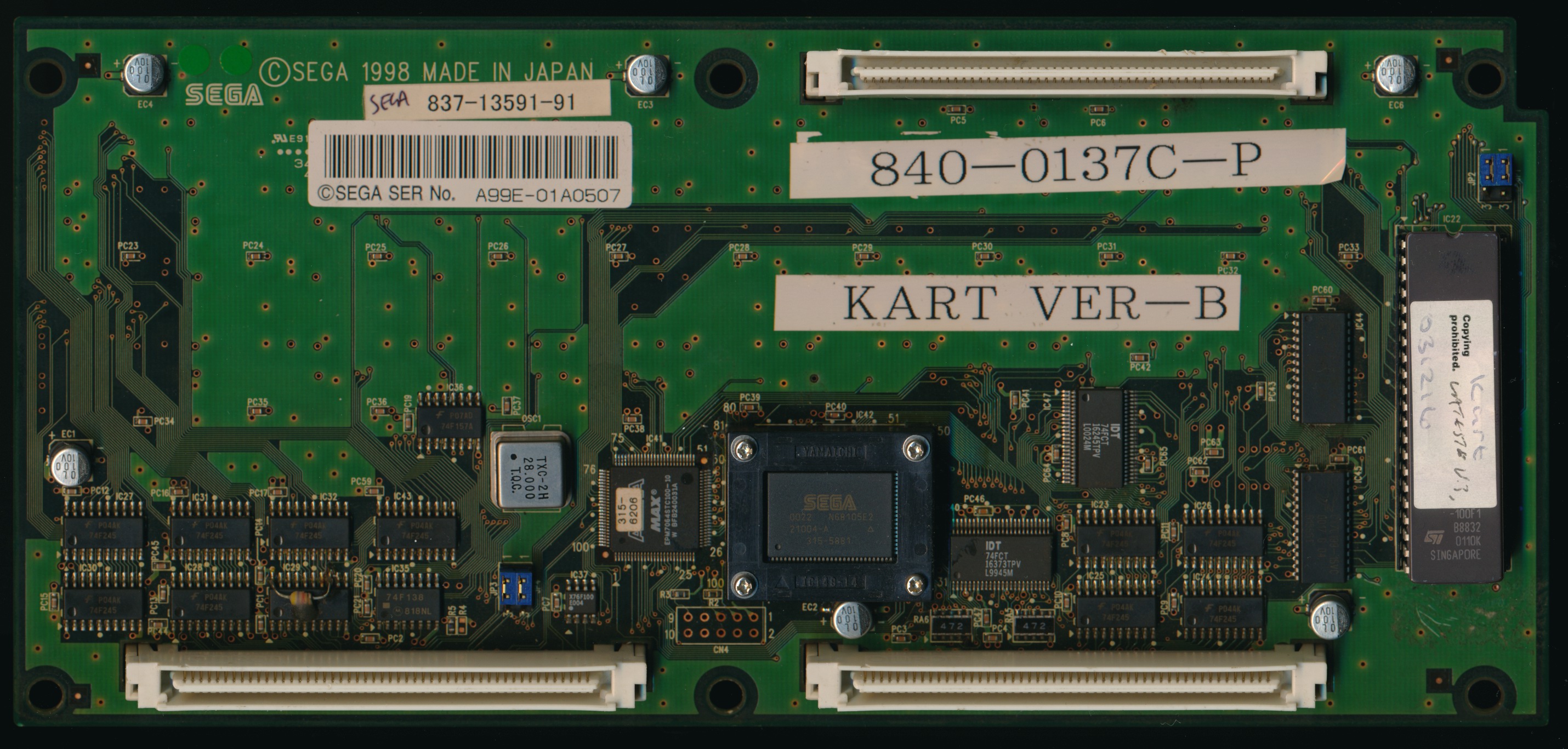

PCB component side
-

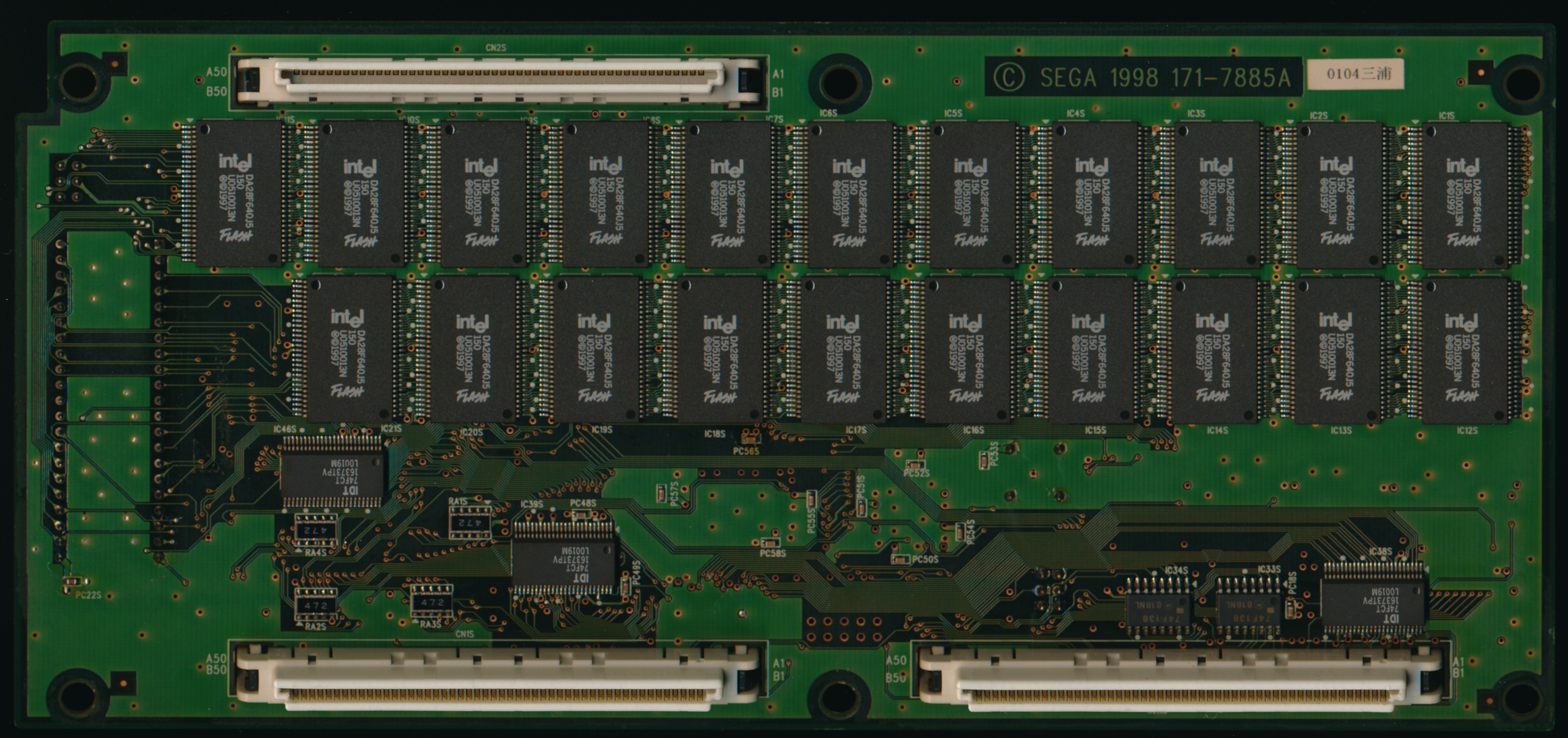

PCB solder side
-

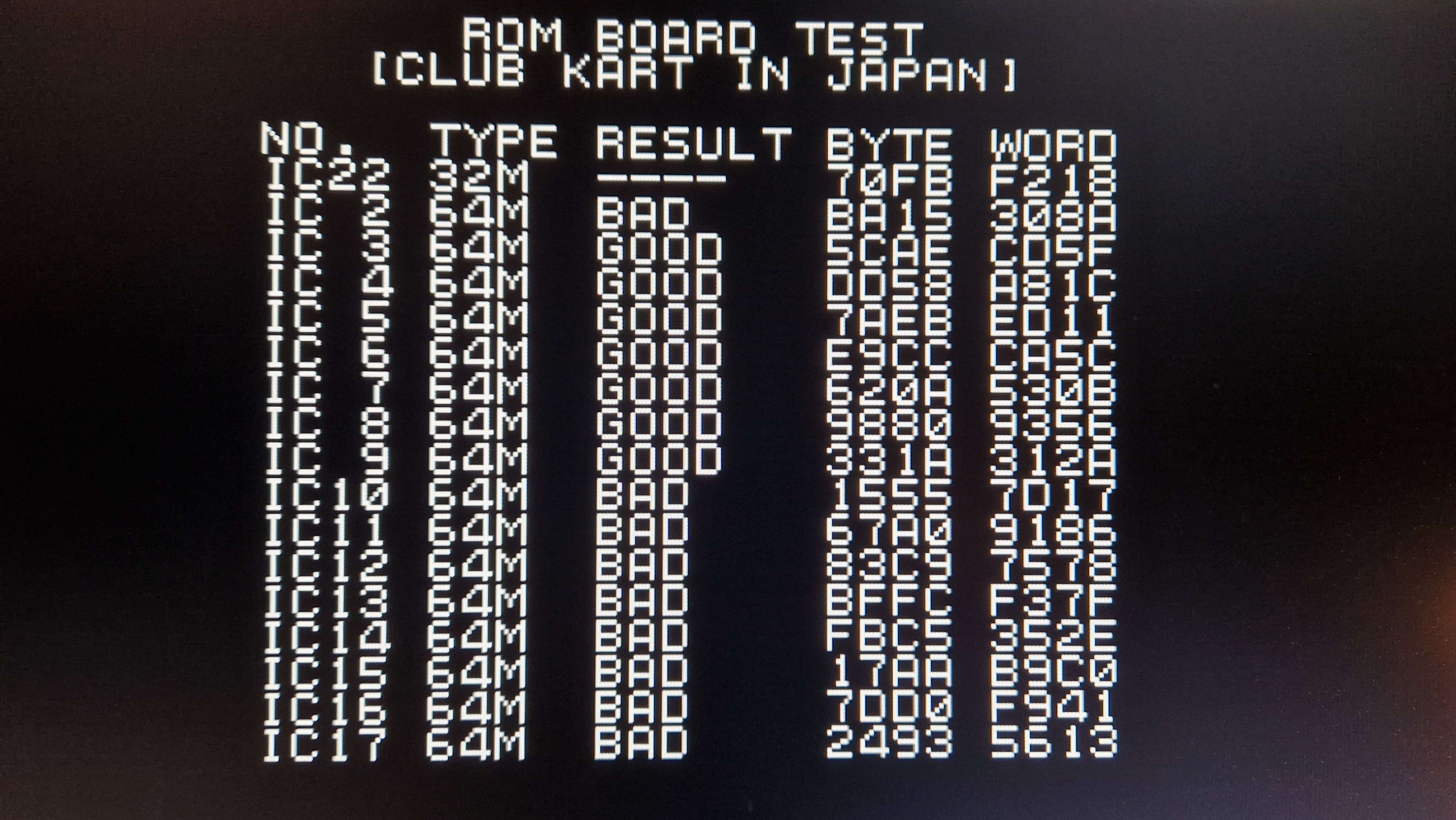

ROM board test
-
Readme
1759
