Club Kart Prize (Export, Japan, Rev A)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| dump date | 09/01/2014 |
| emulator | MAME 0.153 |
| dev | R. Belmont |
| name | clubkprz on Arcade Database |
| description | Club Kart Prize (Export, Japan, Rev A) |
| year | 2003.06.26 – 11:26:21 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 50MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | EPR-24082A.ic11 | dumped |
| 16x | MX23L641 | OPR-24066.ic17s,ic18,ic19s,ic20,ic21s,ic22,ic23s,ic24,ic25s,ic26,ic27s,ic28,ic29,ic30s,ic31,OPR-24081.ic32s | dumped |
| 1x | 25LC040 | ic13s | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | IDT71V256 | ic15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A54SX32A 317-0368-COM | ic1 | read protected |
Others
Notes
It's a NAOMI 2 cart.
Cart type: 171-7978B
Cart N°: 840-0129C
Key: 0x997681fe
Files
-

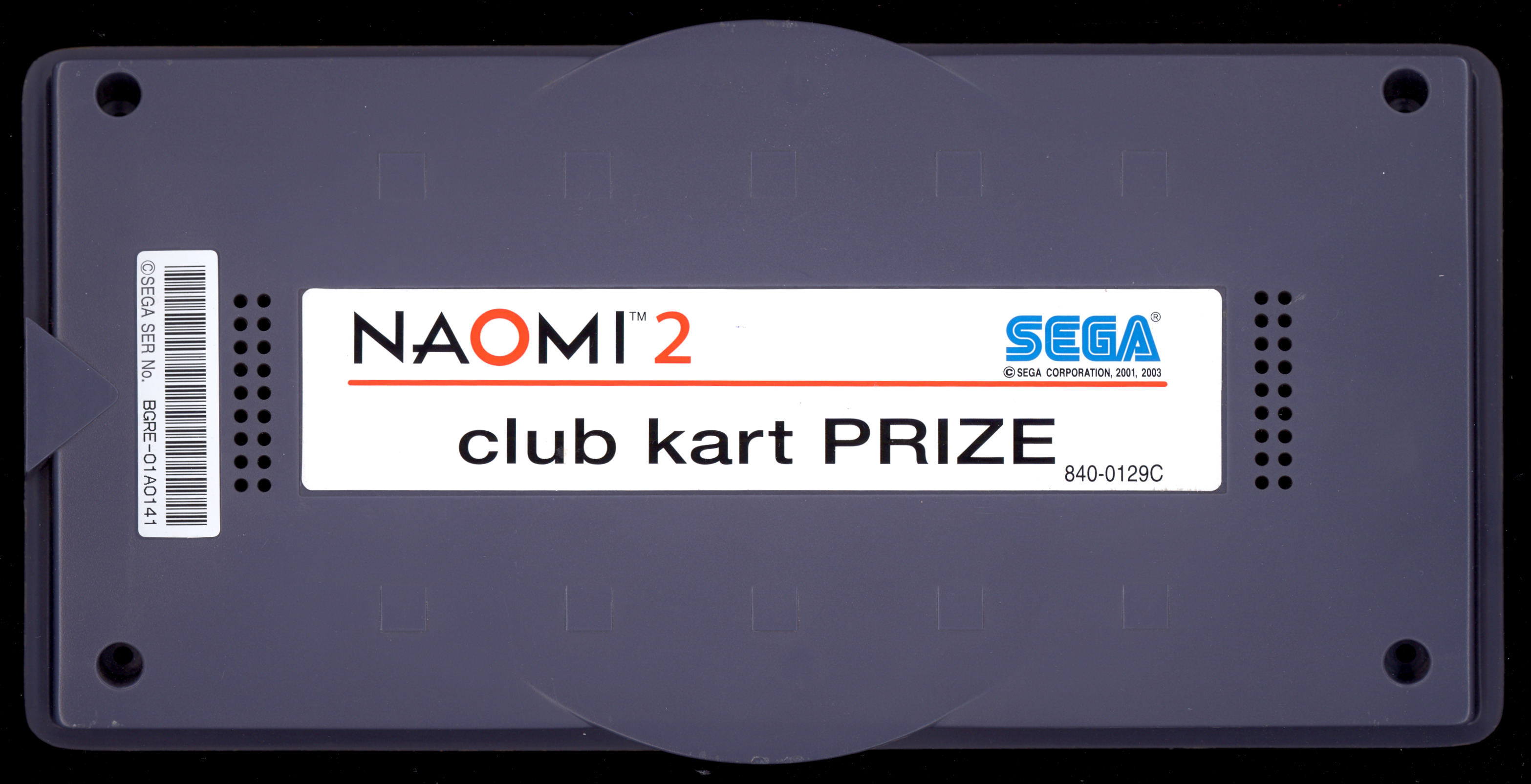

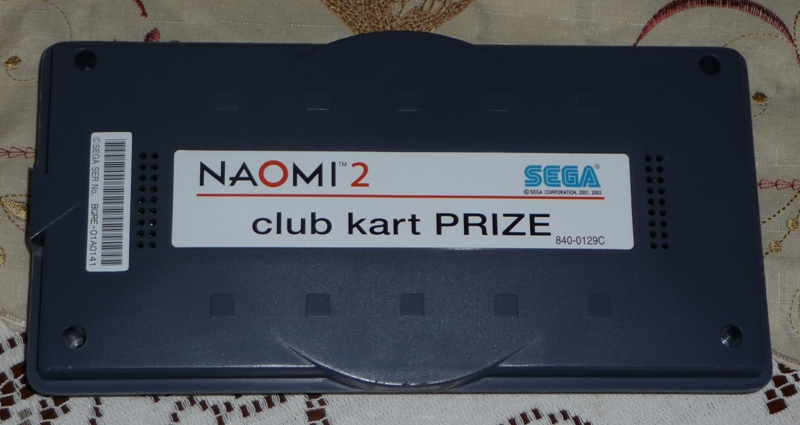

cart 1
-
cart 3
-

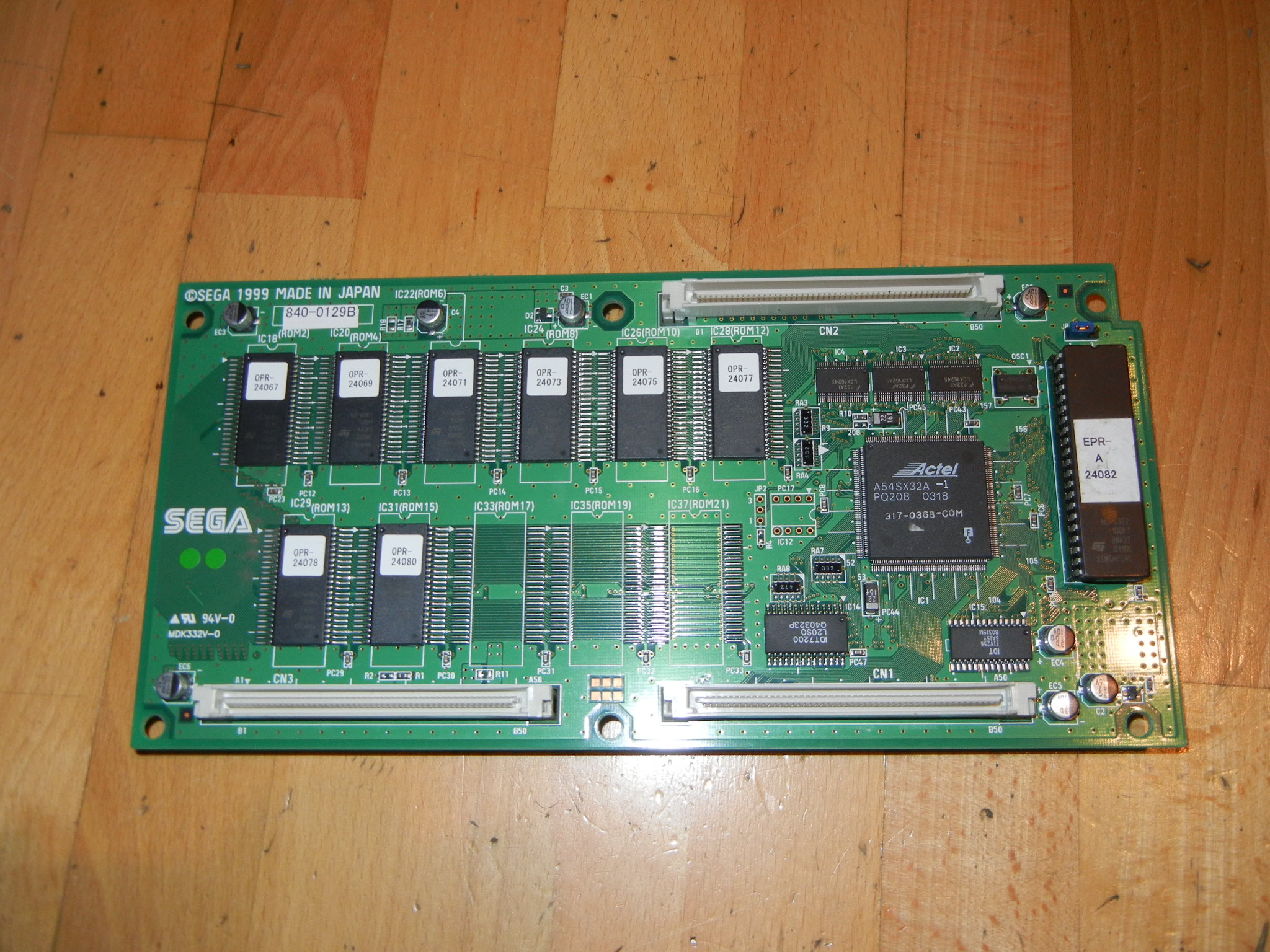

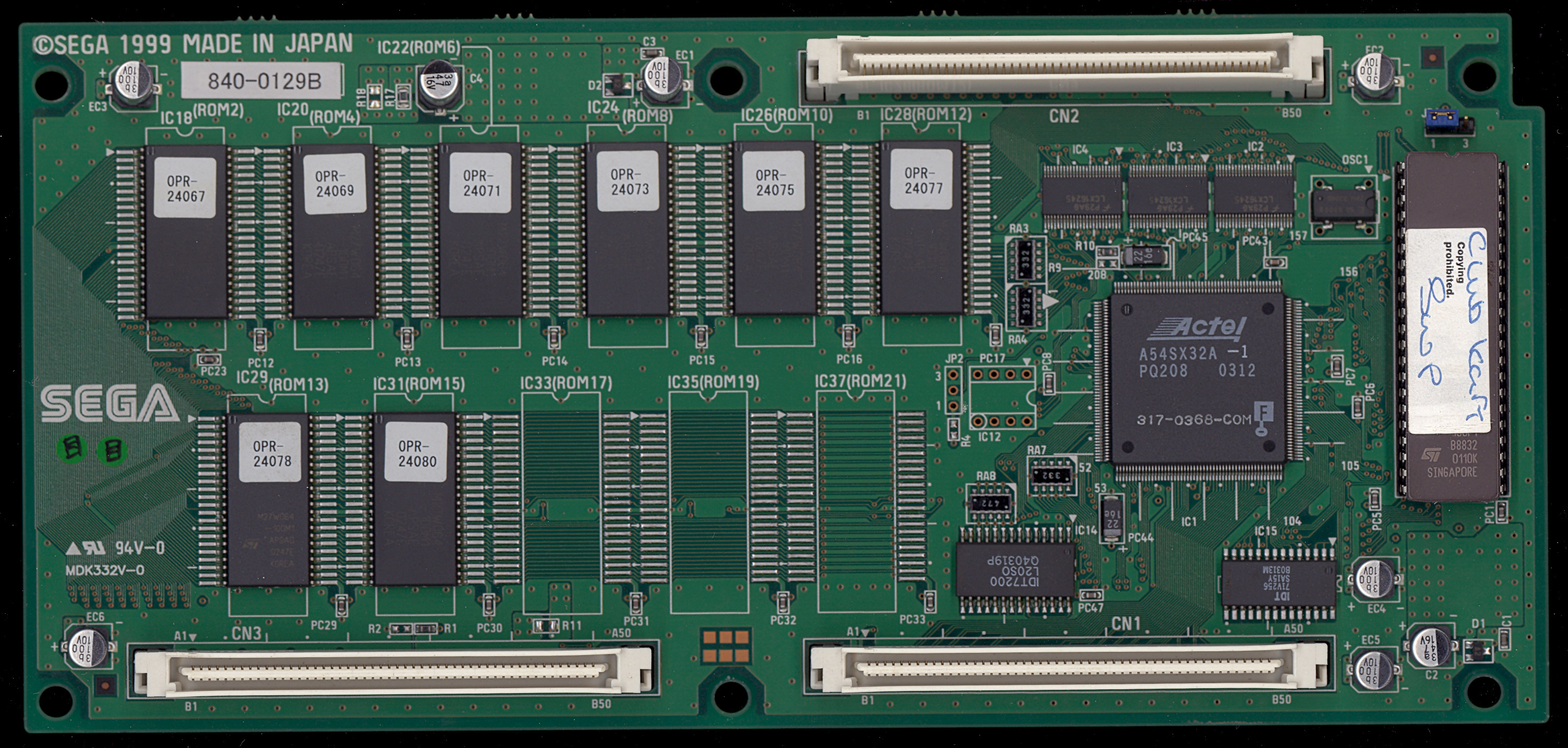

PCB component side 1
-
PCB component side 3
-

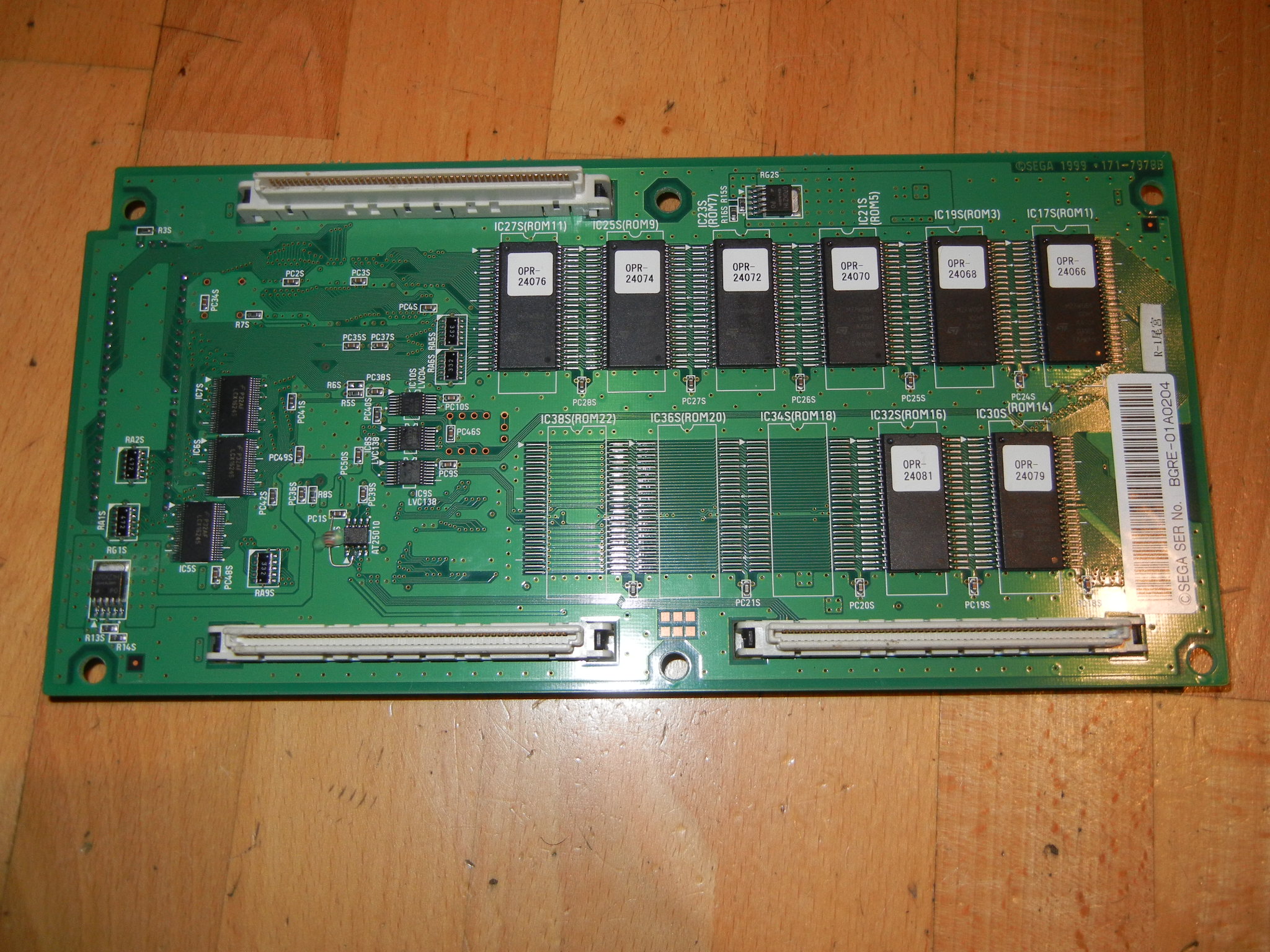

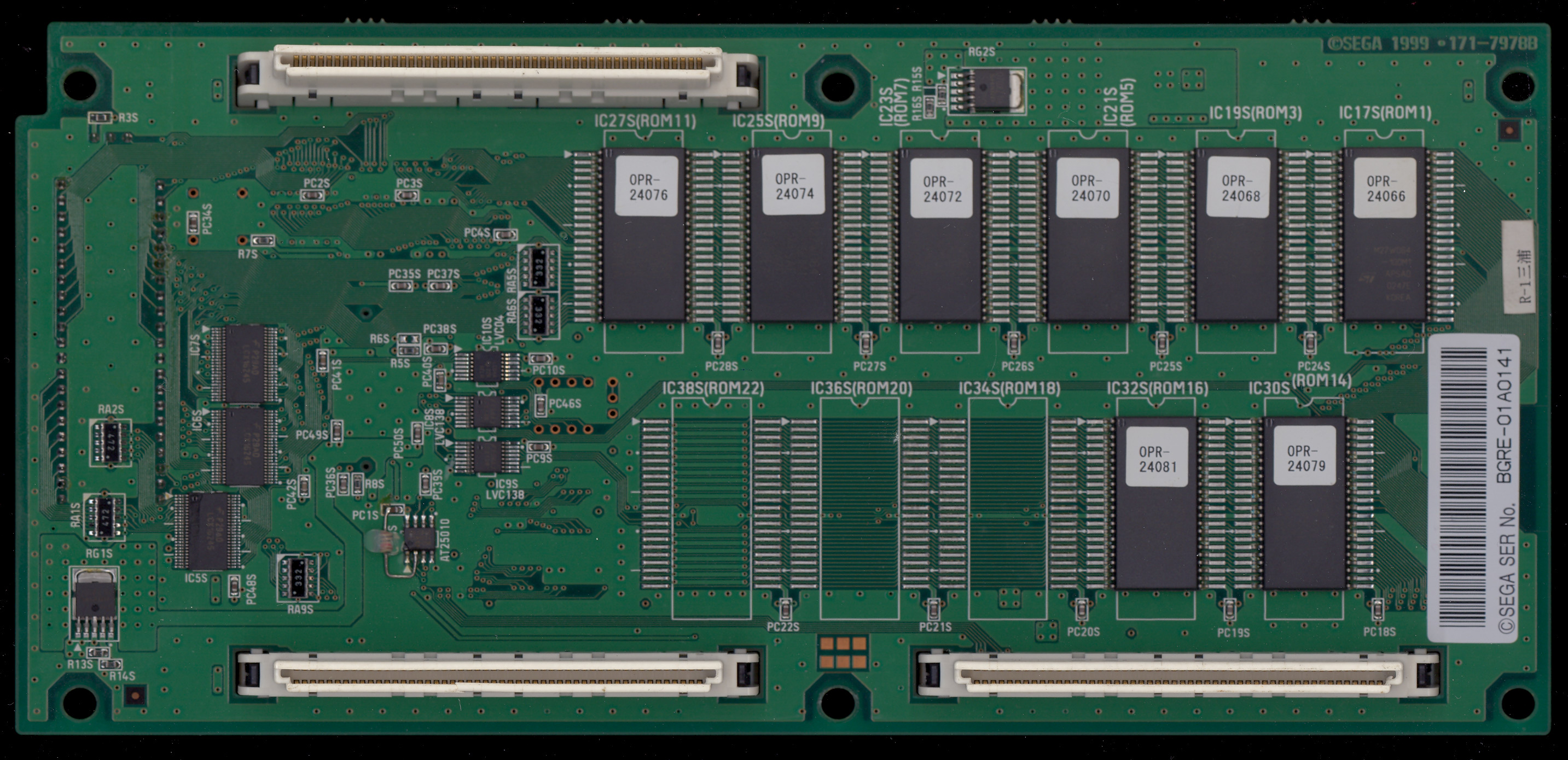

PCB solder side 1
-
PCB solder side 3
-

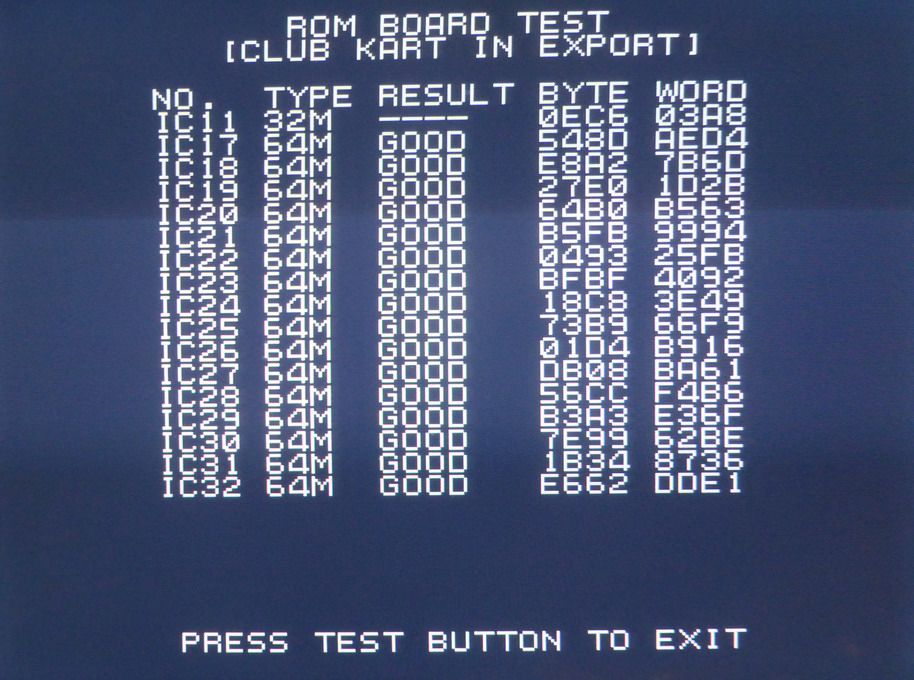

ROM BOARD TEST
-
readme
cart 2
PCB component side 2
PCB solder side 2
