Clash-Road (Data East license)
From Citylan
Jump to navigationJump to search
| dumper | Tirino 73 |
| date | 21/07/2010 |
| emulator | MAME 0.139u1 |
| dev | Angelo Salese |
| name | clshroadd on ProgettoEMMA clshroadd on Arcade Database |
| description | Clash-Road (Data East license) |
| year | 1986 |
| manufacturer | Data East |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80A | 8-bit Microprocessor - main | ||
| 1x | Z80A | 8-bit Microprocessor - sound | ||
| 1x | oscillator | 18.432 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27256 | crdeco-3 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Not working
Rest of eproms are identical of existing set.
Files
-

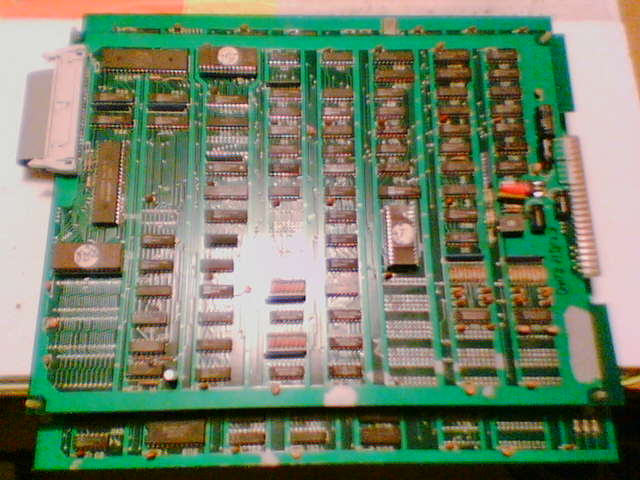

PCB component side
-
Read me
