Chinese Heroe (Taito)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 25/01/2007 |
| emulator | MAME 0.112u3 |
| dev | David Haywood |
| name | chinherot on Arcade Database |
| description | Chinese Heroe (Taito) |
| year | 1984 |
| manufacturer | Taiyo (Taito license) |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 2x | Z80A | u16 | 8-bit Microprocessor - main | |
| 1x | Z80A | u16 | 8-bit Microprocessor - sound | |
| 1x | AY-3-8910 | u16 | Programmable Sound Generator - sound | |
| 1x | oscillator | 18.432MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27128 | 1,2,4 | dumped - main |
| 1x | 2764 | 3 | dumped - main |
| 1x | 27128 | 5 | dumped - sound |
| 1x | 2764 | 6 | dumped - sound |
| 8x | 2764 | 11-18 | dumped - GFX |
| 12x | PROM | not dumped yet |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | unknown | one flat-pack and two smd |
Others
Notes
This romset comes from an original Taito licensed pcb.
Differences are:
Title screen integral (No final "E" removed in the sprite as Taiyo board),Taito copyright string, and controls simplified: 3 buttons use instead of 4 (power balls catch function removed. Press kick/jump without move joystick to get them) as shown in the instructions demo.
Files
-

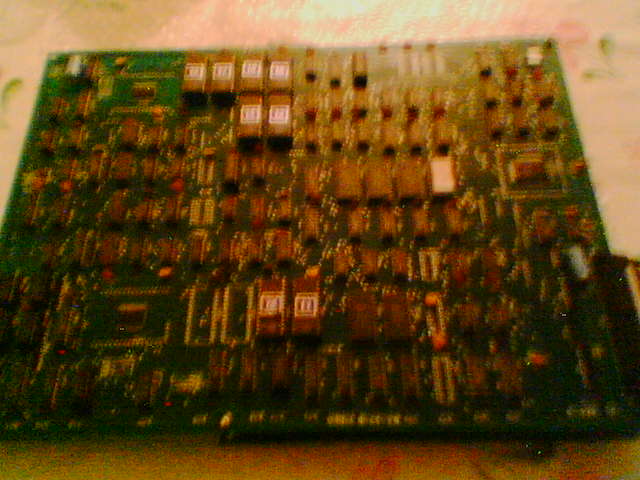

big PCB component side
-

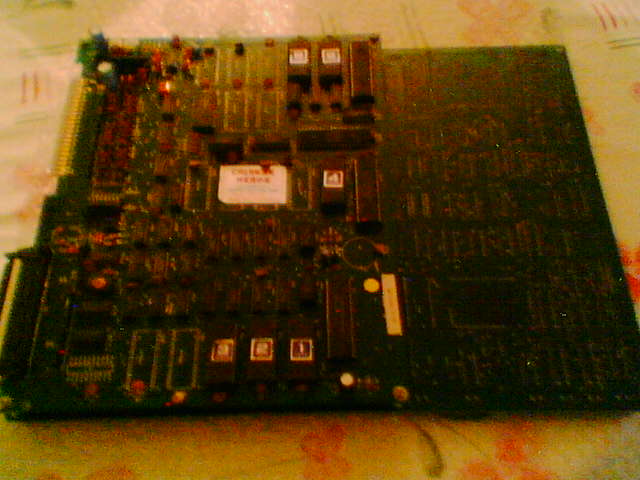

small PCB component side
-
