Cherry Master I (ver.1.01, set 8, V4-B-)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 10/01/2016 |
| emulator | MAME 0.171 |
| dev | Roberto Fresca |
| name | cmasterg on Arcade Database |
| description | Cherry Master I (ver.1.01, set 8, V4-B-) |
| year | 1991 |
| manufacturer | Dyna |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TMPZ84C00AP-6 | u80 | 8-bit Microprocessor - main | |
| 1x | D8255AC-5 | u36 | Programmable Peripheral Interface | |
| 1x | D71055C | u54 | Parallel Interface Unit | |
| 1x | YM2149F | u13 | Programmable Sound Generator - sound | |
| 1x | oscillator | 12.000MHz | Y1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | 2764 | 1,2,3,4 | dumped |
| 4x | 27256 | 5,6,7,9 | dumped |
| 1x | 27512 | 8 | dumped |
| 3x | N82S129AN | u46,u79,84 | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | LC3517AL-10 | u82 |
| 4x | D4016CX-15-10 | u22,u26,u28,u38 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | PALCE16V8H-25pc/4 | u51,u66,u73,u74 | read protected |
Others
1x 36x2 edge connector
1x 10x2 edge connector
1x pushbutton (SW6)
1x trimmer (volume)(VR1)
5x 8x2 switches DIP(SW1-SW5)
1x battery 5.5V(BT1)
Notes
Files
-

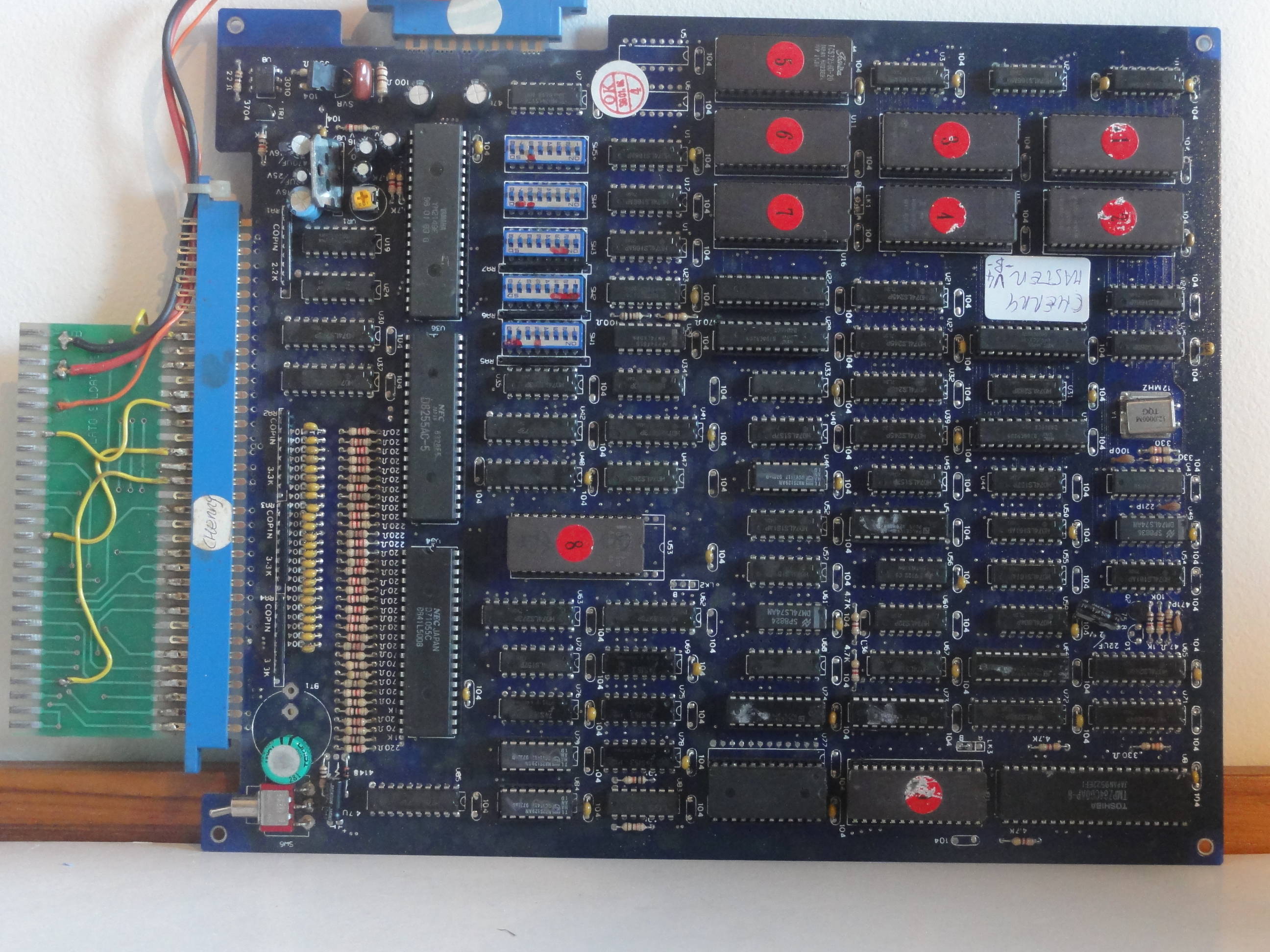

PCB component side
-

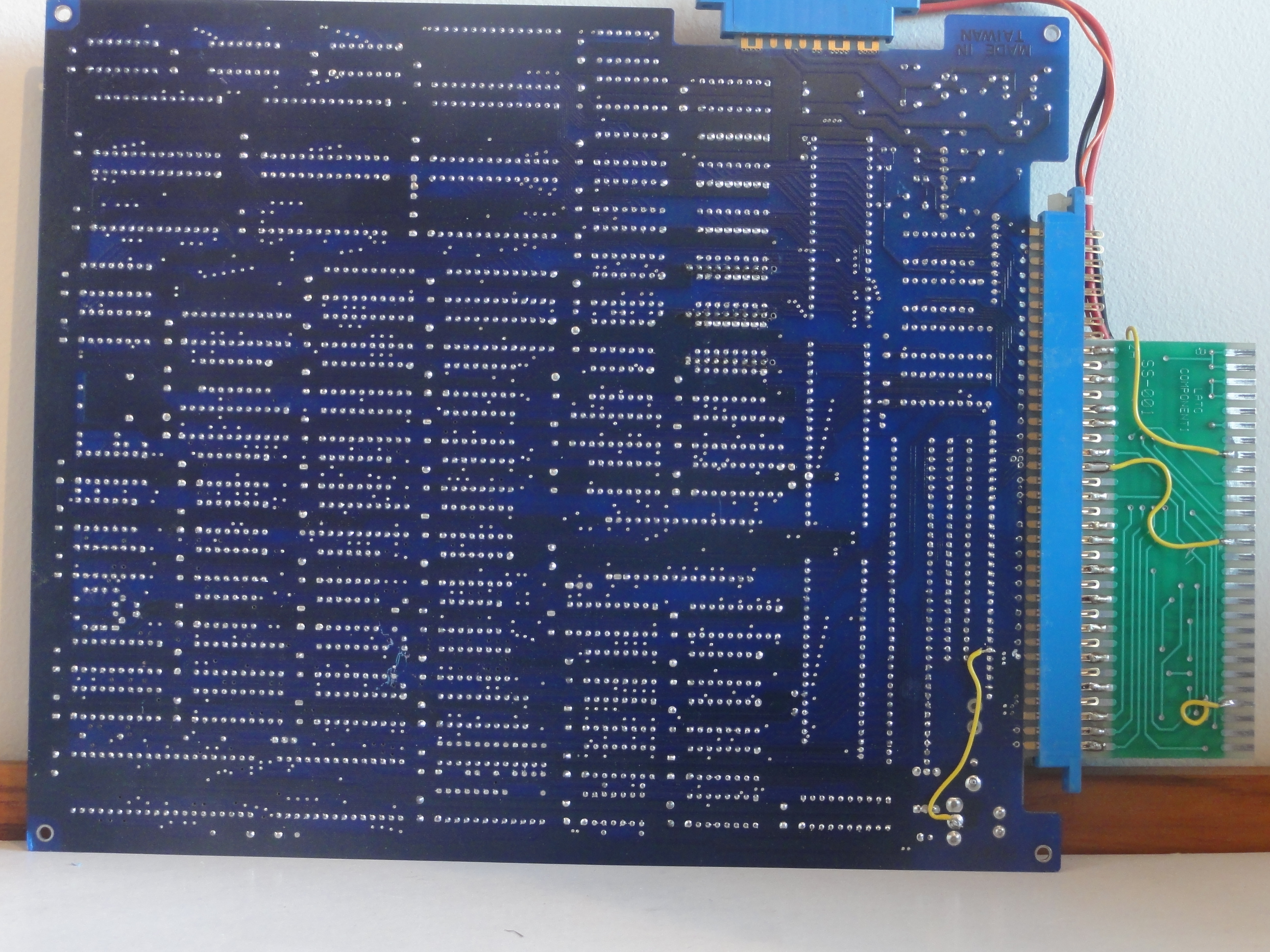

PCB solder side
-

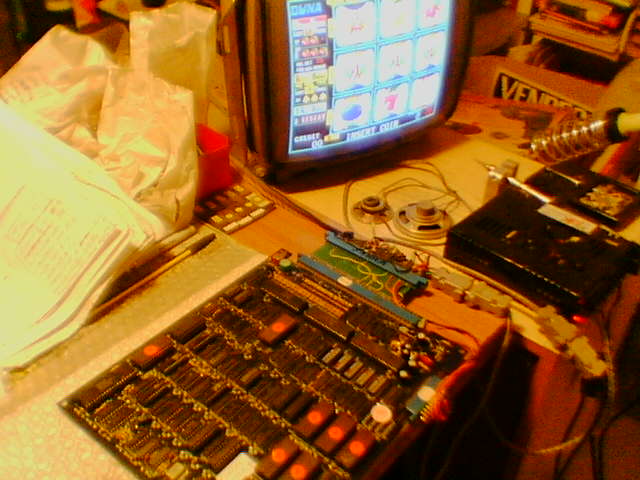

In game
