Chelnov - Atomic Runner (Japan, bootleg with I8031, set 2)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 28/02/2007 |
| emulator | MAME 0.155 |
| dev | David Haywood |
| name | chelnovjbla on Arcade Database |
| description | Chelnov - Atomic Runner (Japan, bootleg with I8031, set 2) |
| year | 1988 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 6502 | 8-bit Microprocessor - sound | ||
| 1x | 68000 | 16/32-bit Microprocessor - main | ||
| 1x | MAB8031AH | 8-bit Microcontroller - main (internal ROM dumped) | ||
| 1x | YM2203 | FM Operator Type-N (OPM) - sound | ||
| 1x | YM3812 | FM Operator Type-L II (OPL II) - sound | ||
| 1x | oscillator | 20.000MHz | ||
| 1x | oscillator | 12.000MHz | ||
| 1x | oscillator | 8.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 8x | 27256 | 2-9 | GFX - dumped |
| 2x | 27256 | 12,15 | main - dumped |
| 4x | 27512 | 11,13,14,16 | main - dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
This romset comes from a bootleg pcb.It's japanese version hacked,main difference are: Notice at startup and cycling removed (black screen for 5 sec.),copyright string modified to show only the production year (1988).
Files
-

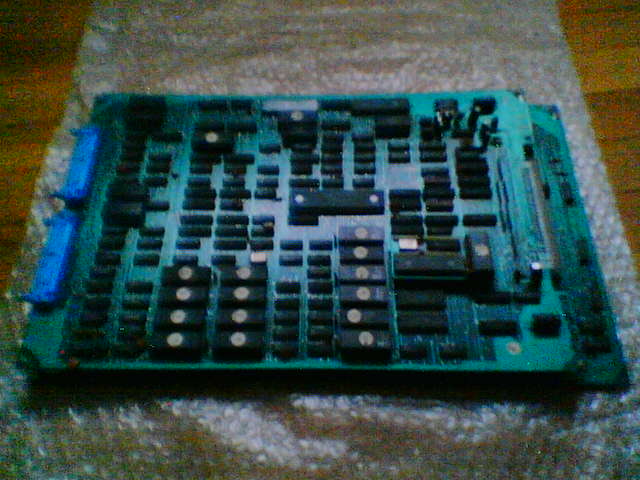

PCB component side
-
Read me
