Champion Number (v0.74)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 01/03/2010 |
| emulator | MAME 0.136u4 |
| dev | f205v, David Haywood, Angelo Salese |
| name | chmpnum on Arcade Database |
| description | Champion Number (v0.74) |
| year | 1999.10.11 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8018006VSC | 8-bit Microprocessor - main | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 16.000 | xt1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AM27C040 | 1 | dumped |
| 2x | M27C4001 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | TMM206464P | |
| 1x | KM6264AL | |
| 1x | ADV476KP50 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC9572-PC84ASJ | read protected | |
| 1x | XC9536-PC44AEM | read protected |
Others
1x 28x2 edge connector
1x trimmer (volume)
1x battery (missing)
Notes
Broken
Files
-

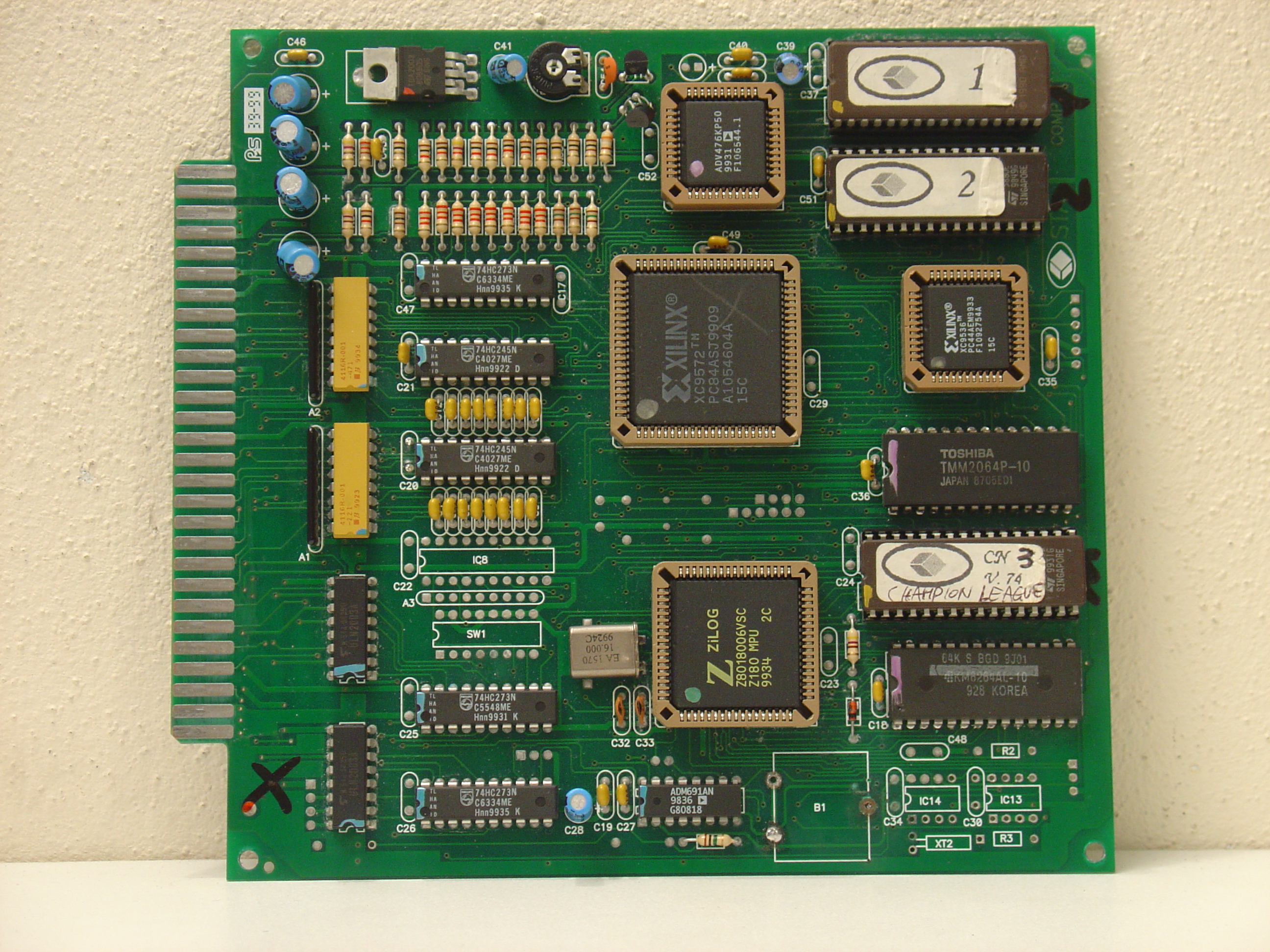

PCB component side
-

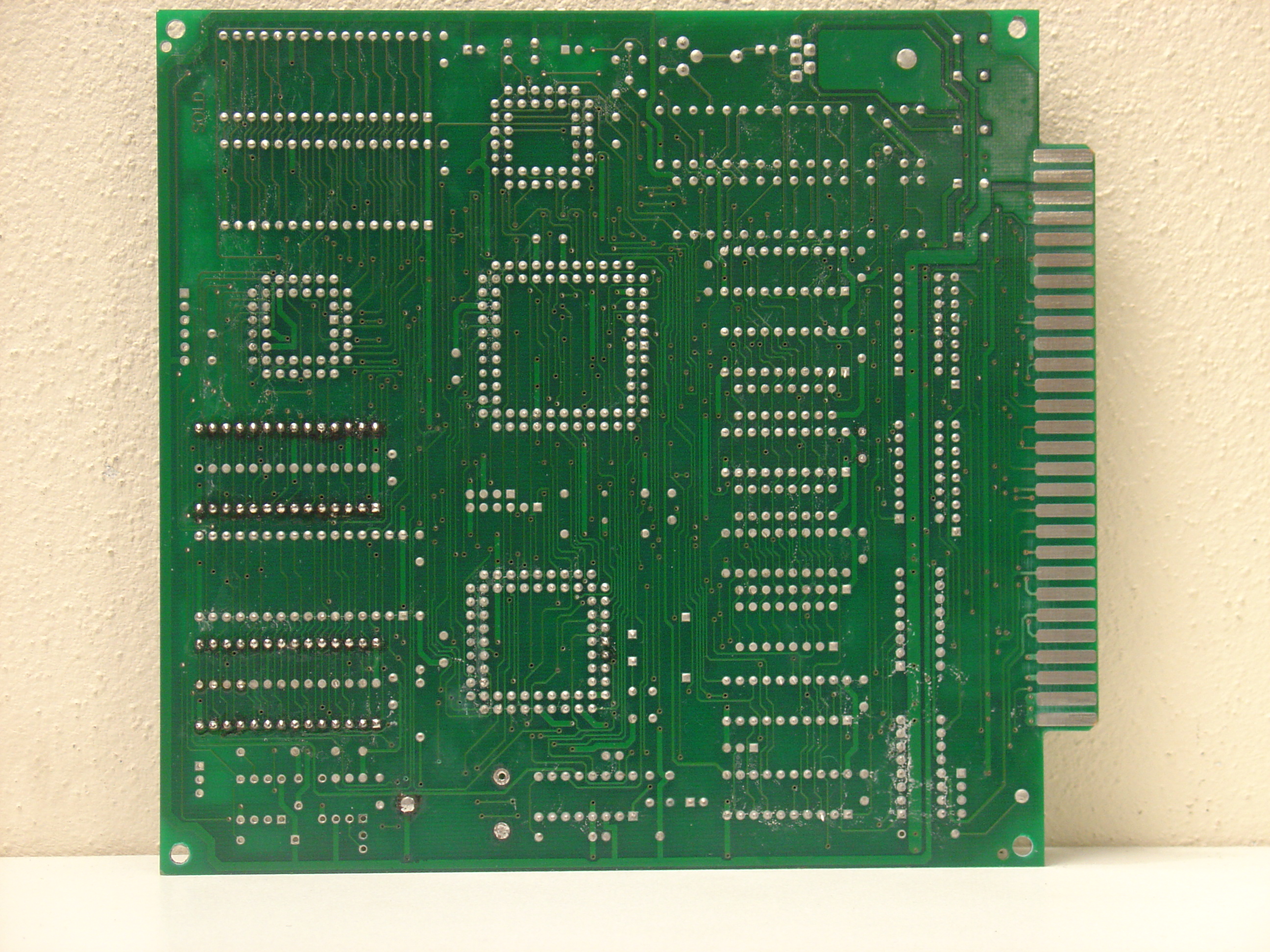

PCB solder side
