Champion Number (V0.67)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 11/04/2016 |
| emulator | MAME 0.173 |
| dev | Roberto fresca |
| name | chmpnuma on Arcade Database |
| description | Champion Number (V0.67) |
| year | 1999 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8018006VSC | 8-bit Microprocessor - main | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 16.000 | xt1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C4001 | 3 | dumped |
| 2x | TMS27C040 | 1,2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | ZMDU6264ADC-07LL | |
| 1x | ADV476KP50 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC9572-PC84AKJ | read protected | |
| 1x | XC9536-PC44ASJ | read protected |
Others
1x 28x2 edge connector
1x trimmer (volume)
1x battery (3,6V)
Notes
Files
-

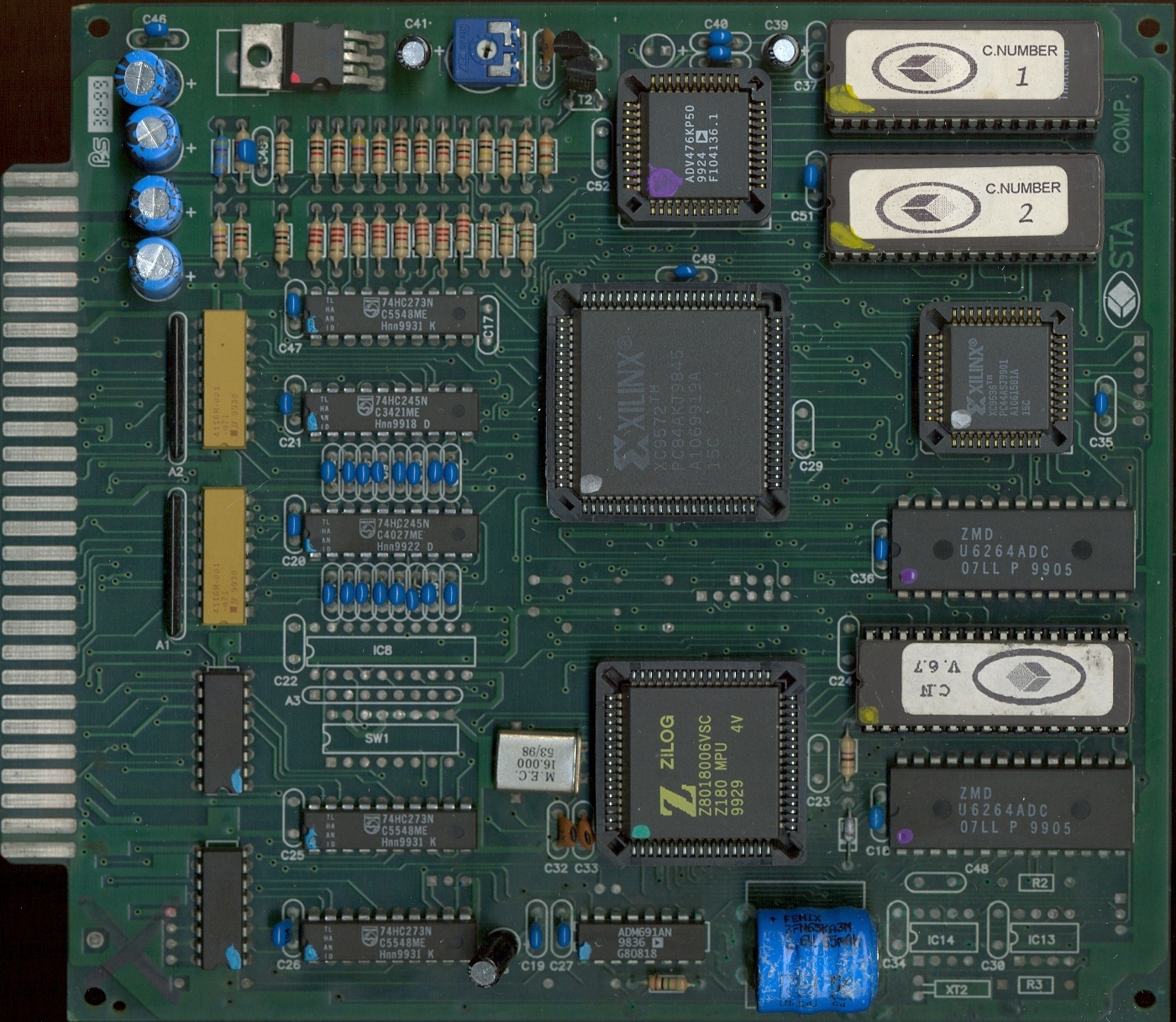

PCB component side
-

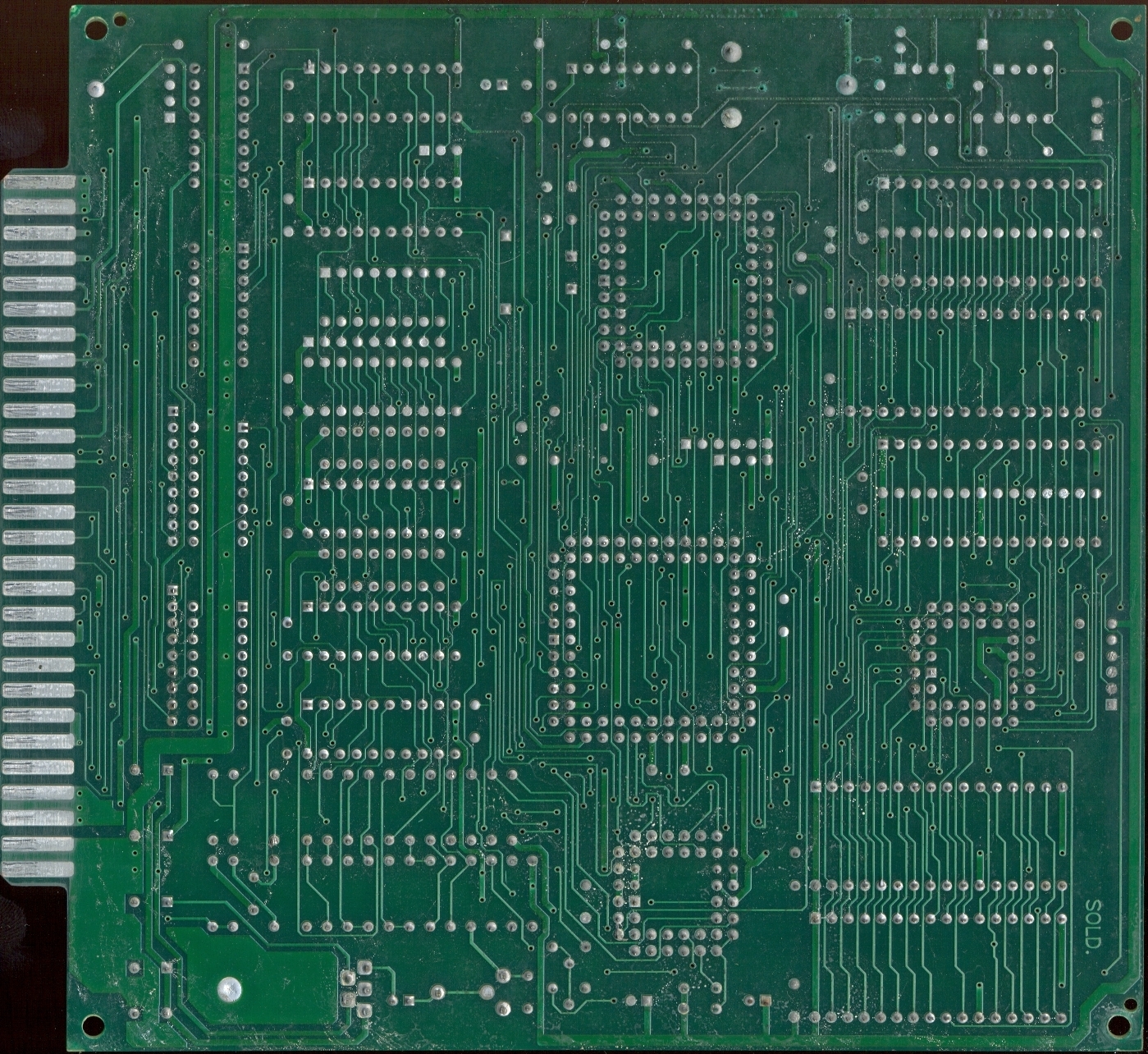

PCB solder side
