Catherine Wheel
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 03/09/2005 |
| emulator | MAME 0.201 |
| dev | Ryan Holtz, MooglyGuy |
| name | cwheel on ProgettoEMMA cwheel on Arcade Database |
| description | Catherine Wheel |
| year | |
| manufacturer | Gamebar |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | ST62T28C6 | u4 | 8-bit MCU - main - dumped | |
| 3x | MM5450N | u1,u2,u3 | LED Display Driver - main | |
| 1x | oscillator | 8.000MHz | x1 |
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 14 legs side connector
60x red LEDs in a circle
5x 7 segments 1 digit LEDs
1x ULN2003A (Darlington Transistor Arrays)
Notes
Files
-

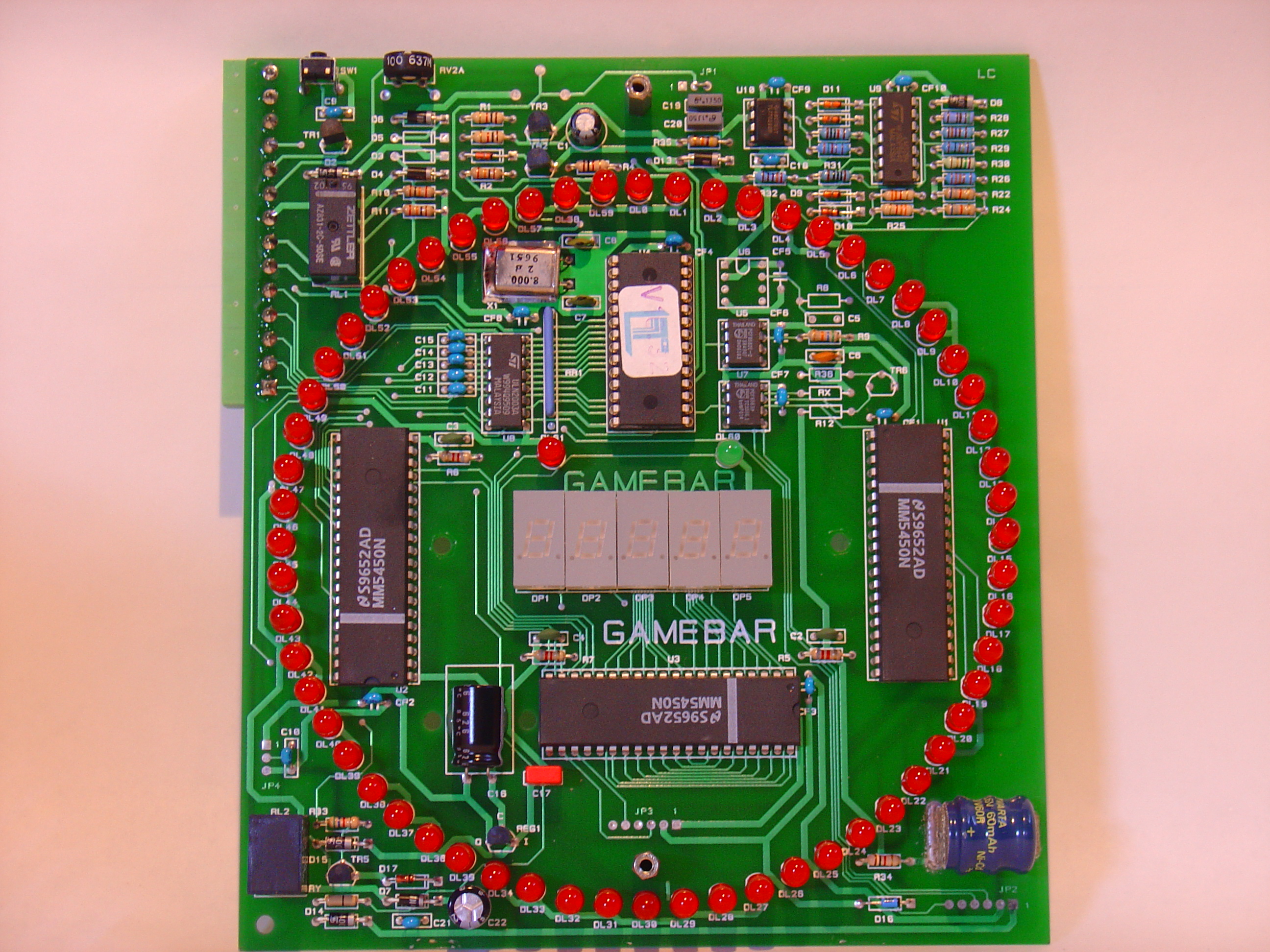

PCB component side
-

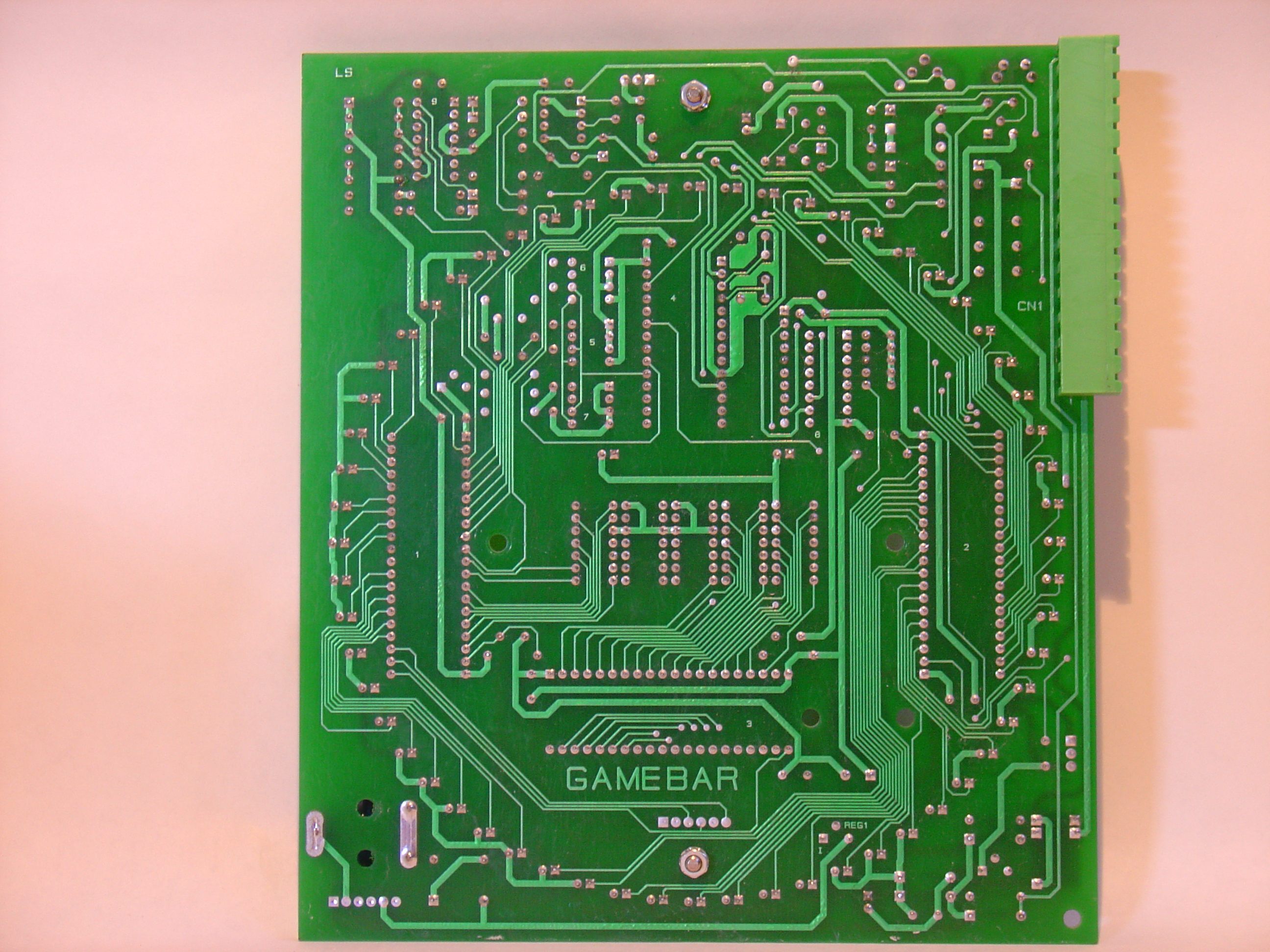

PCB solder side
-
Bezel low res
-
Bezel
226
