| dumper | f205v, Corrado Tomaselli, Gnoppi |
| date | 08/09/2005 |
| emulator | MAME 0.125u4 |
| dev | Roberto Fresca |
| name | cmagica on Arcade Database |
| description | Carta Magica (Ver 1.8) |
| year | 200x |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3337 | u13 | 32-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | D7759 | ADPCM Speech Synthesizer LSIs - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 14.31818MHz | x1 | |
| 1x | oscillator | 16.000 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 27C4000 | 1,2,3 | dumped |
| 1x | M27C1001 | SND | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | SRAM 128k x 8 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI1032E-70LJ | u11,u12 | not dumped |
Others
1x 28x2 edge connector
1x 7x2 legs ISP connector
1x RS232 connector
2x trimmer (RV1,RV2)
2x 8x2 switches DIP
2x jumper
1x red LED
1x battery 3.6V
Notes
Files
-

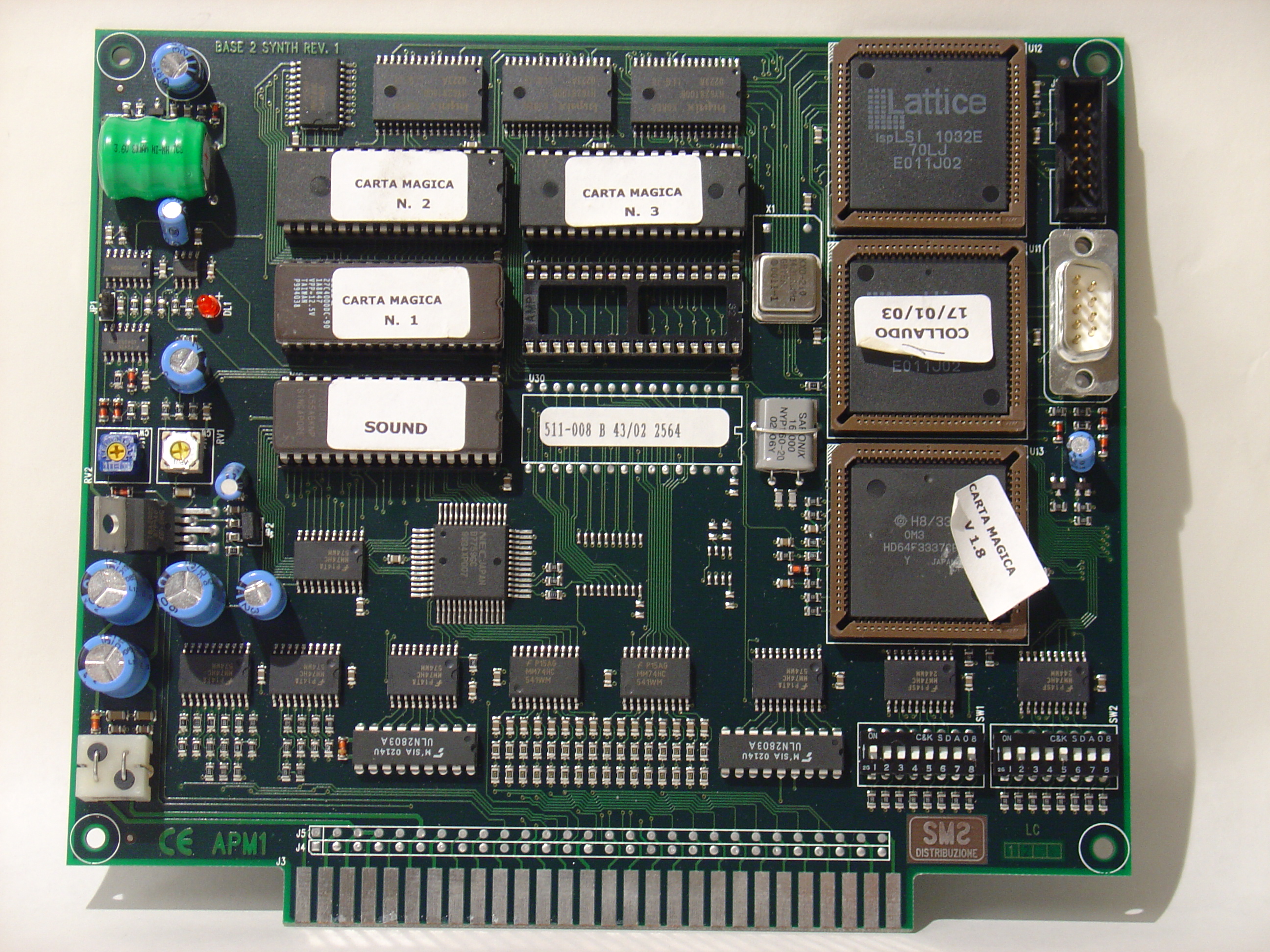

PCB component side
-

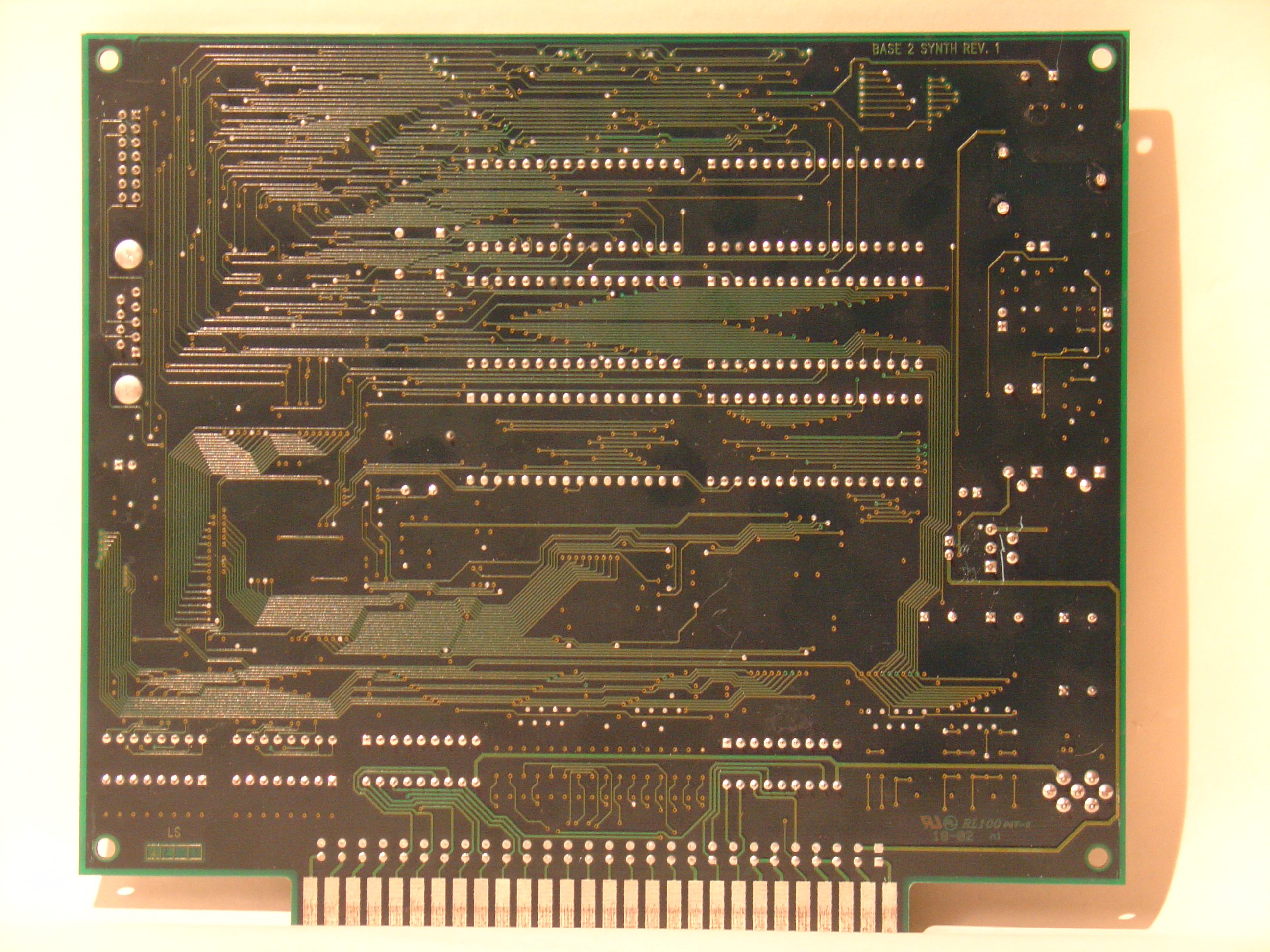

PCB solder side
-

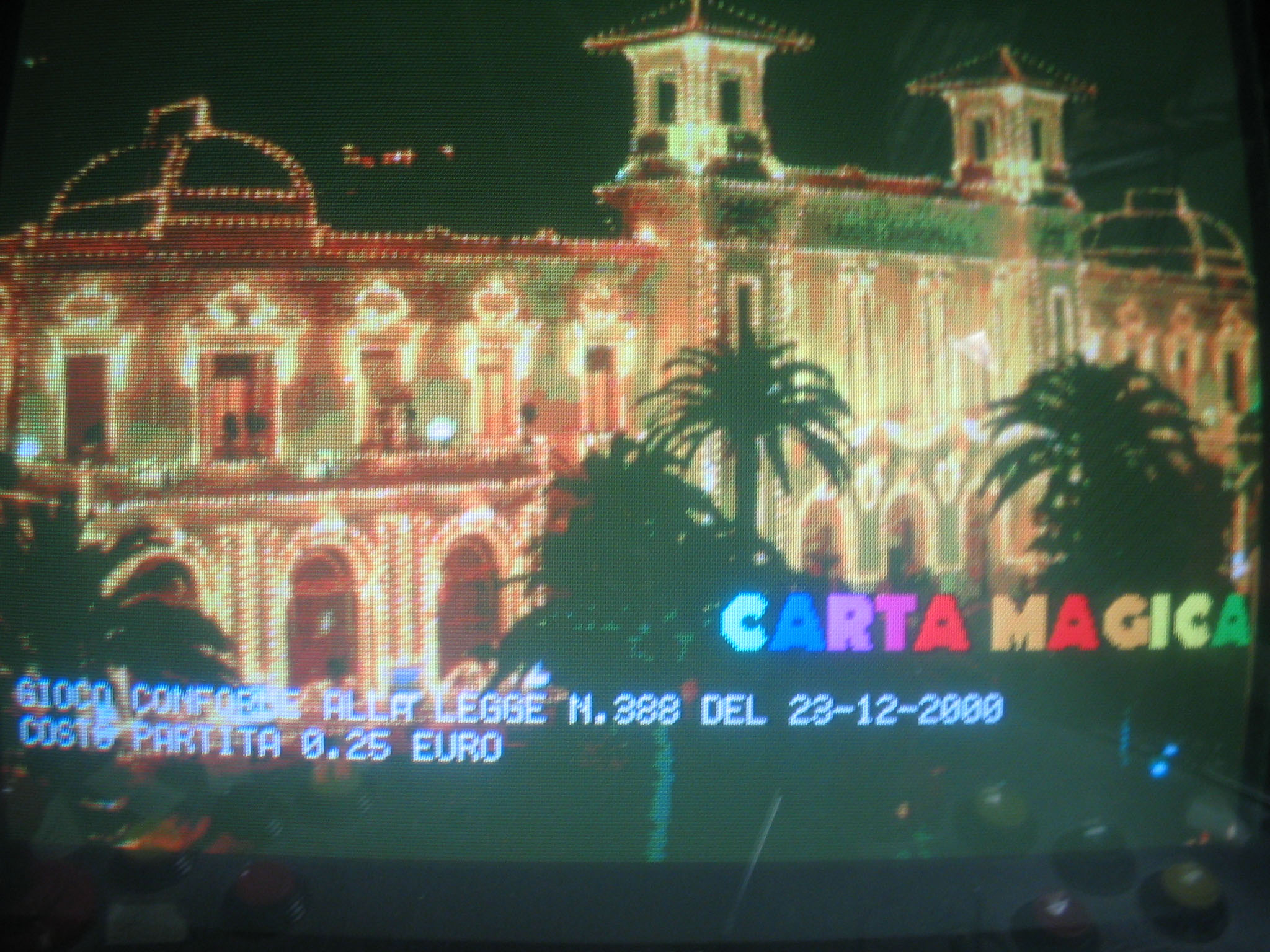

Title
-

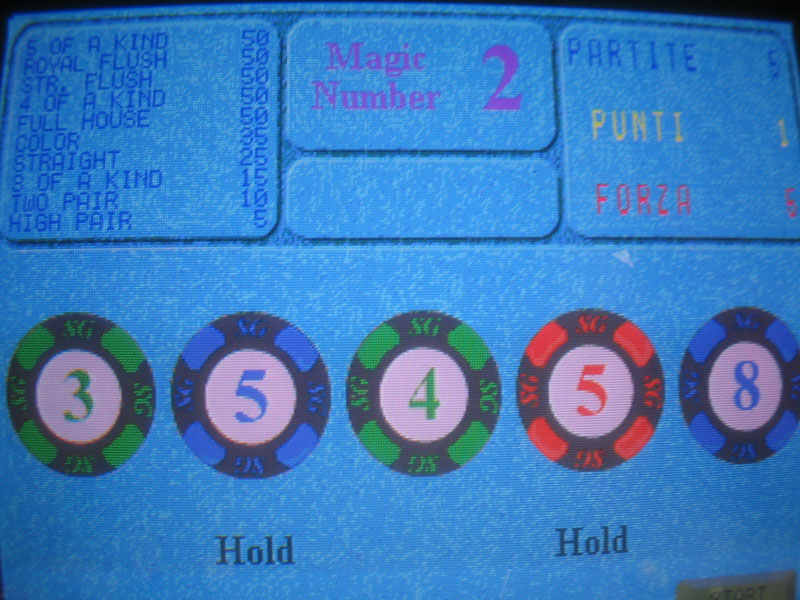

In game 1
-

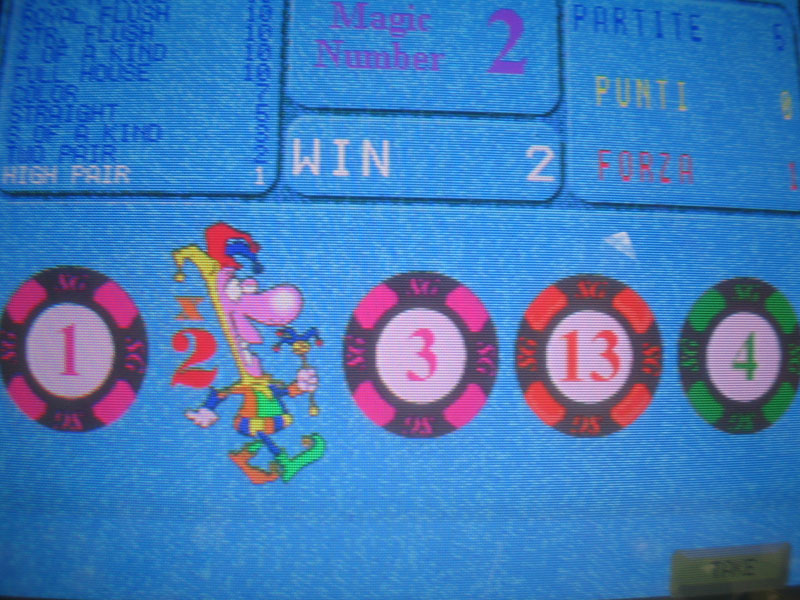

In game 2
