Capitani Coraggiosi (Ver 1.3)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/04/2008 |
| emulator | MAME 0.125u4 |
| dev | David Haywood |
| name | capcor on Arcade Database |
| description | Capitani Coraggiosi (Ver 1.3) |
| year | 2001.02 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64F3048F16 | ic1 | 16-bit Single-Chip Microcomputer - main (not dumped) | |
| 1x | U6295 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | close to main |
| 1x | orange resonator ZTB1000J | X1 | close to sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C2001 | 1 | dumped |
| 2x | M27C4001 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MB84256-10LL | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | read protected |
Others
1x 28x2 edge connector
1x 12 legs connector
1x 50 pins flat cable connector
1x trimmer (P1 VOLUME)
1x trimmer (P2 SPARK)
1x 12x2 switches DIP
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "H83048 bottom" on solder side
PCB is labeled: "Capitani Coraggiosi Vers. 1.3" and "PASSED 02/2001" on component side
update 20180930: This is the same game as PCB 676, the difference was due to a BAD DUMP. The 2 have now been unified.
Files
-

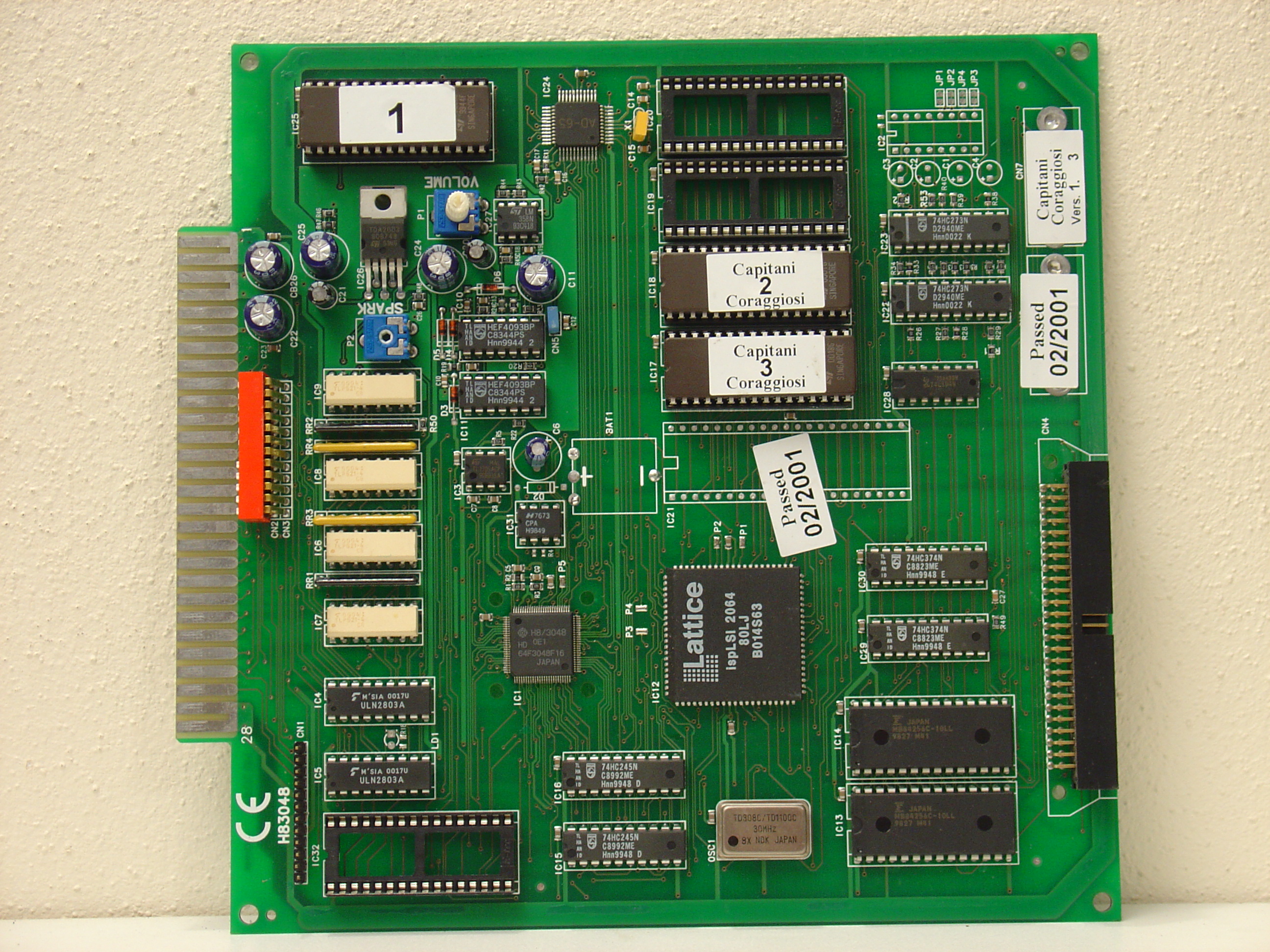

PCB component side
-

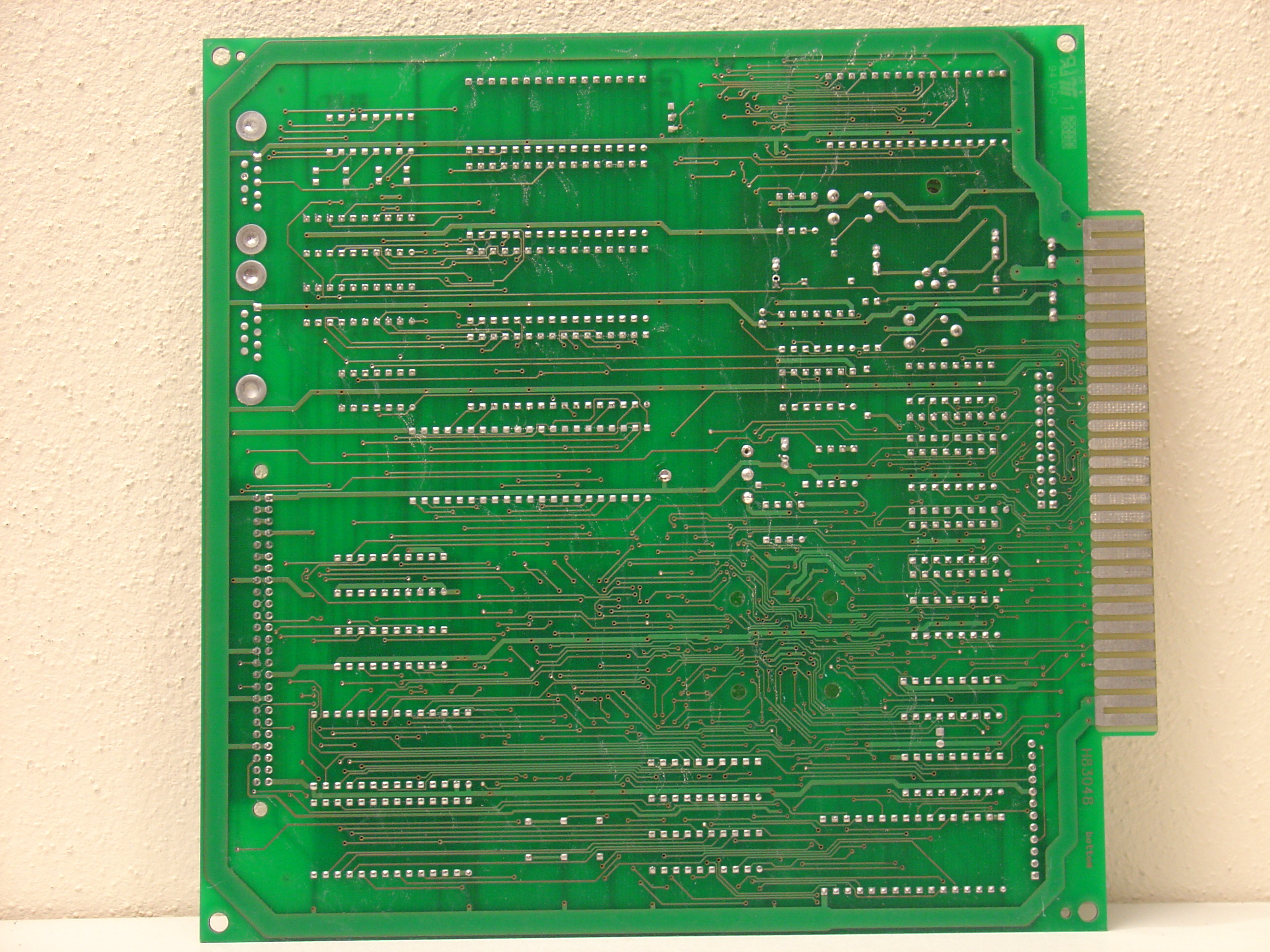

PCB solder side
-

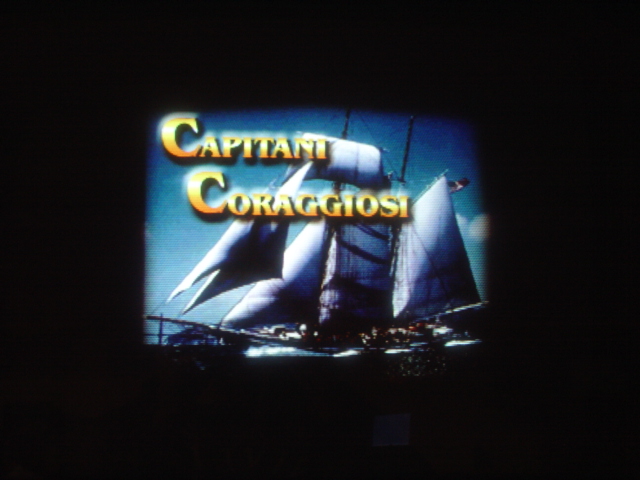

Title
-

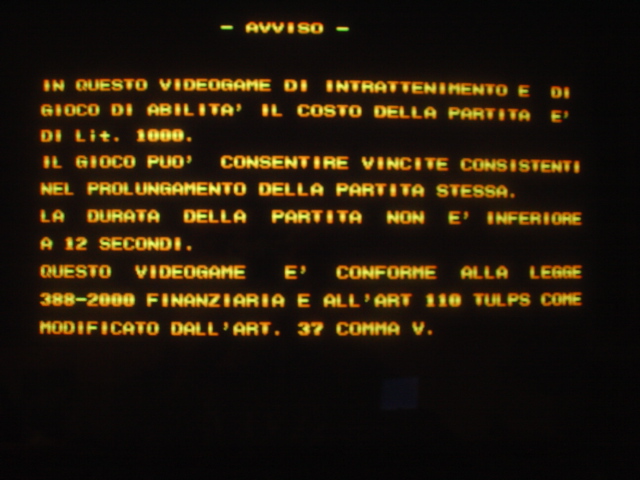

Disclaimer 1
-

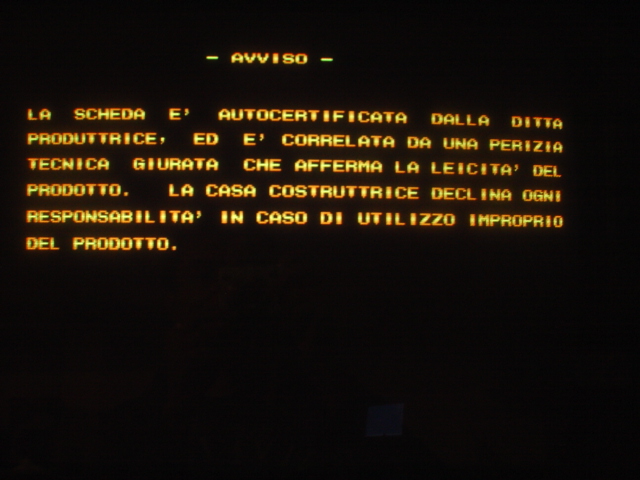

Disclaimer 2
-

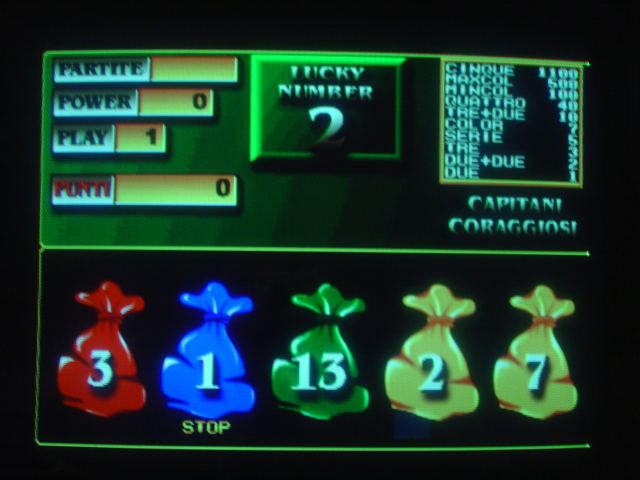

In game 1
-

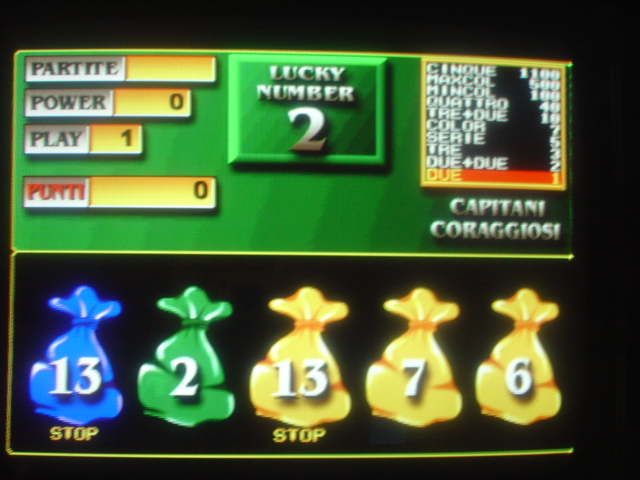

In game 2
-

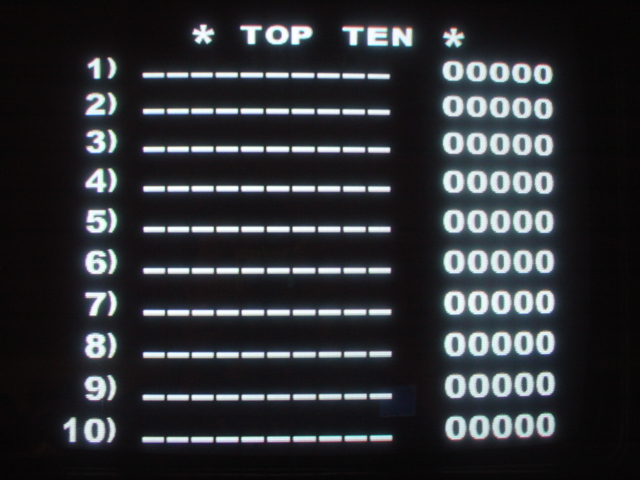

Hiscore
