Capitan Uncino (Nazionale Elettronica, Ver 1.2)
From Citylan
Jump to navigationJump to search
| dumper | Quaglia |
| date | 13/04/2008 |
| emulator | MAME 0.125u4 |
| dev | David Haywood |
| name | capunc on ProgettoEMMA capunc on Arcade Database |
| description | Capitan Uncino (Nazionale Elettronica, Ver 1.2) |
| year | 2000.04.12 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD64F3048F16 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | AD-65 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | |
| 1x | blu resonator 1000J | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C2001 | 1 | dumped |
| 2x | M27C4001 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HY62256BLP-70 | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (CN1)
1x 12 DIP switches bank (CN2,CN3)
1x 50 pins flat cable connector (CN4)
1x trimmer (P1 VOLUME)
1x trimmer (P2 SPARK)
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "ET5" and "H83048 bottom" on solder side
PCB is labeled: "Capitan Uncino Vers. 1.3" and " PASSED 12/04/00" on component side
PCB is labeled Ver 1.3, while EPROMs are labeled Ver 1.2
Files
-

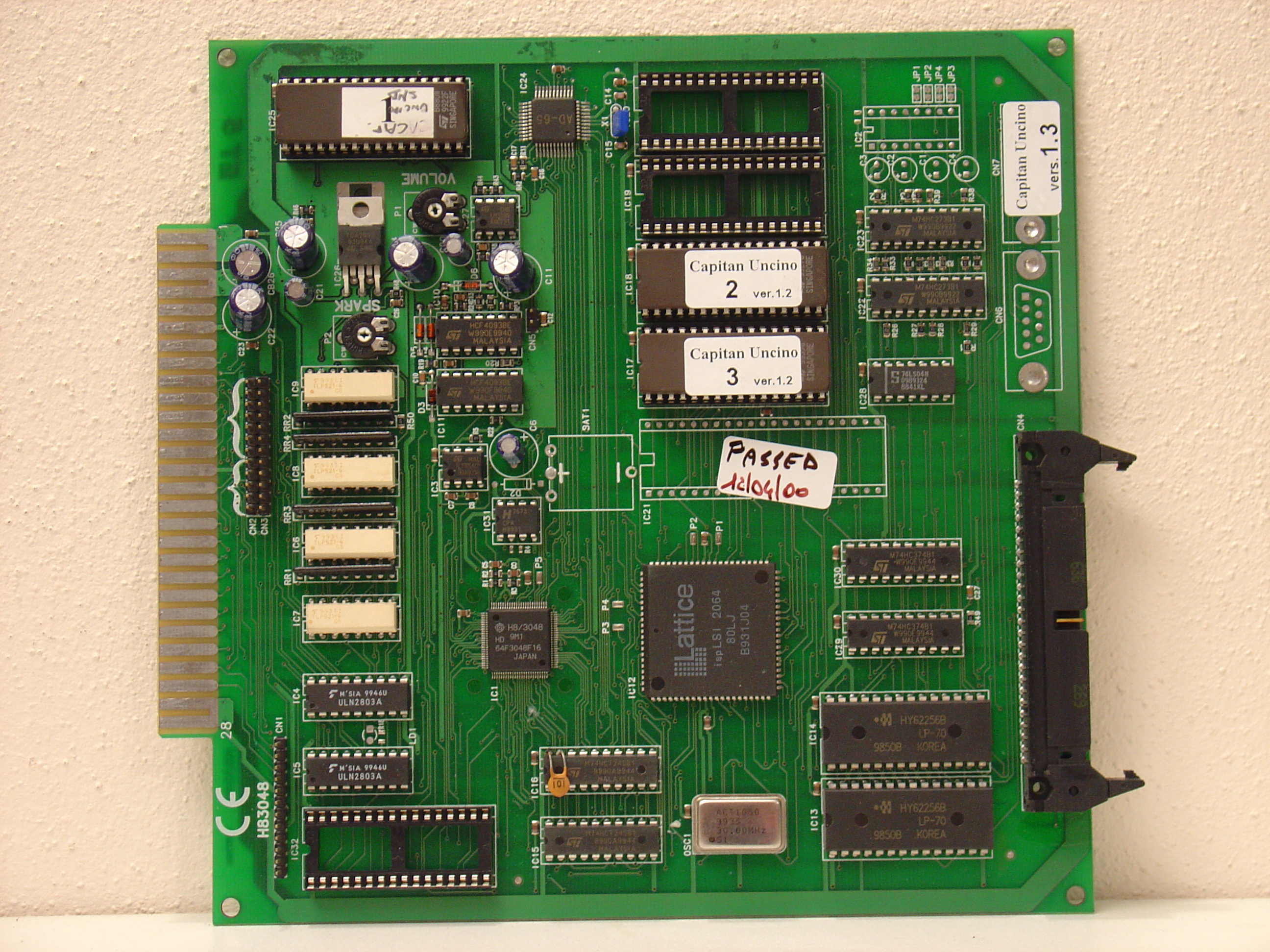

PCB component side
-

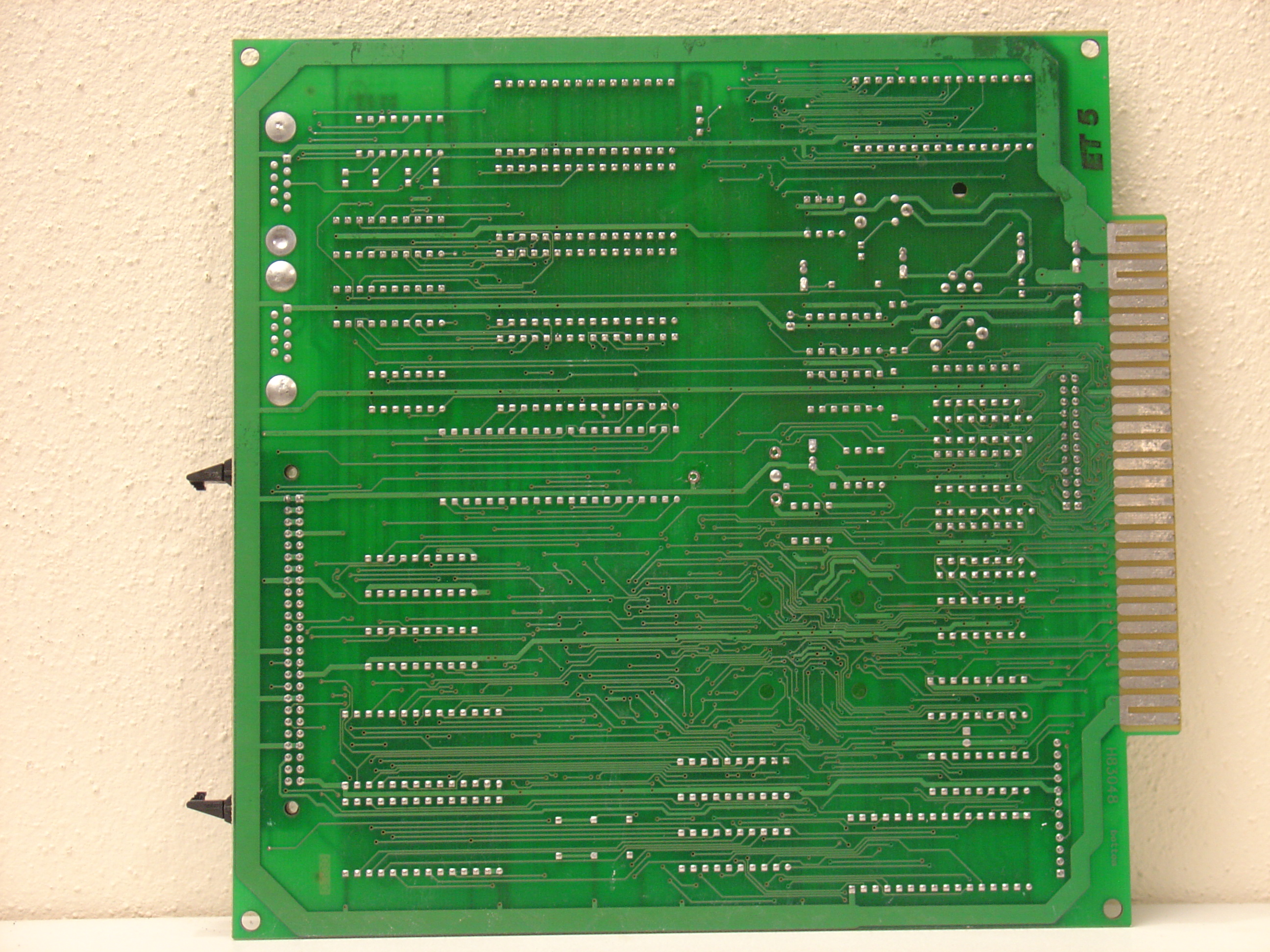

PCB solder side
-

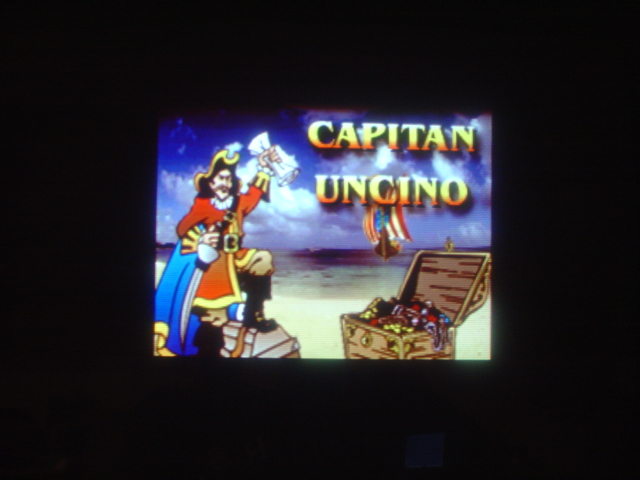

Title
-

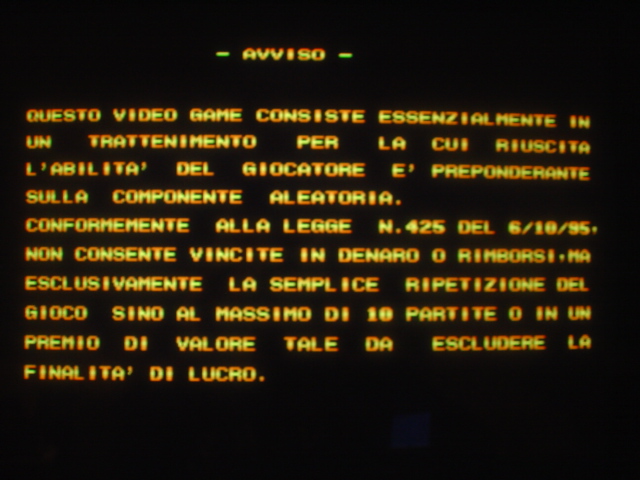

Disclaimer
-

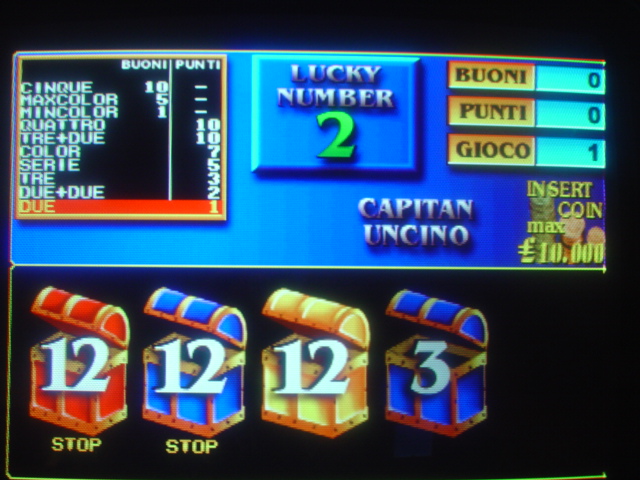

In game 1
-

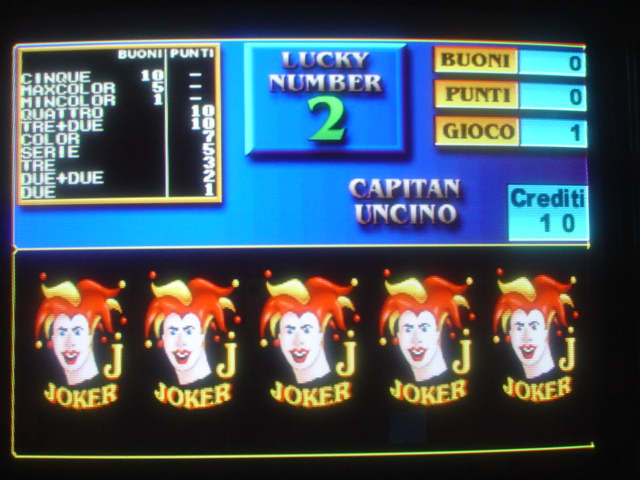

In game 2
