Capcom Vs. SNK: Millennium Fight 2000
From Citylan
Jump to navigationJump to search
| dumper | Smitdogg - Porchy |
| date | 30/03/2013 |
| emulator | MAME 0.148u3 |
| dev | Porchy - The Dumping Union |
| name | capsnkb on ProgettoEMMA capsnkb on Arcade Database |
| description | Capcom Vs. SNK: Millennium Fight 2000 |
| year | 2000.08.02 – 21:42:57 |
| manufacturer | Capcom - SNK |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C322 | 23511.ic22 | dumped |
| 7x | MaskROM 128Mb TSOP48 | MPR-23504.ic1-23510.ic7 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319 | ic27 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8132B
Cart N°: 840-0011C
Protection IC: SEGA 315-5881 (317-5059-COM)
Key: 0x0000000
Date on screen: 000802
Files
-

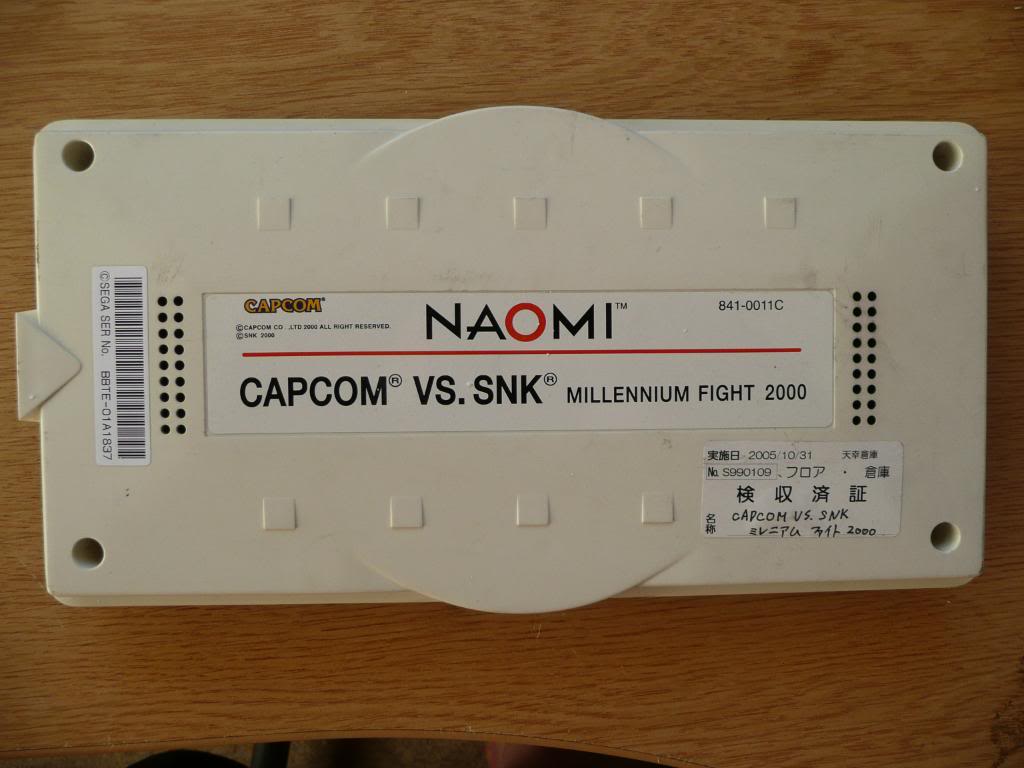

Cart
-

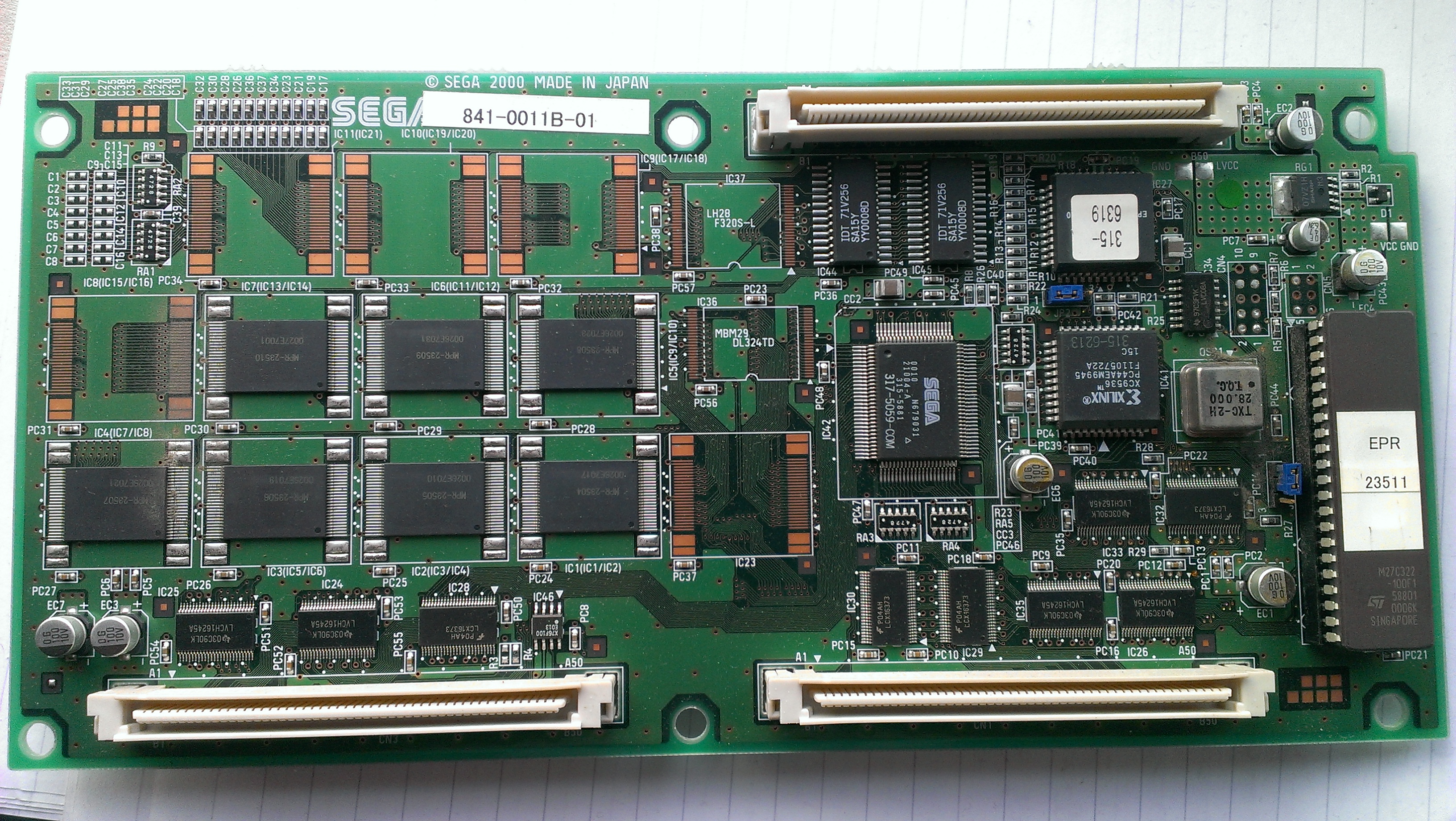

PCB component side
-

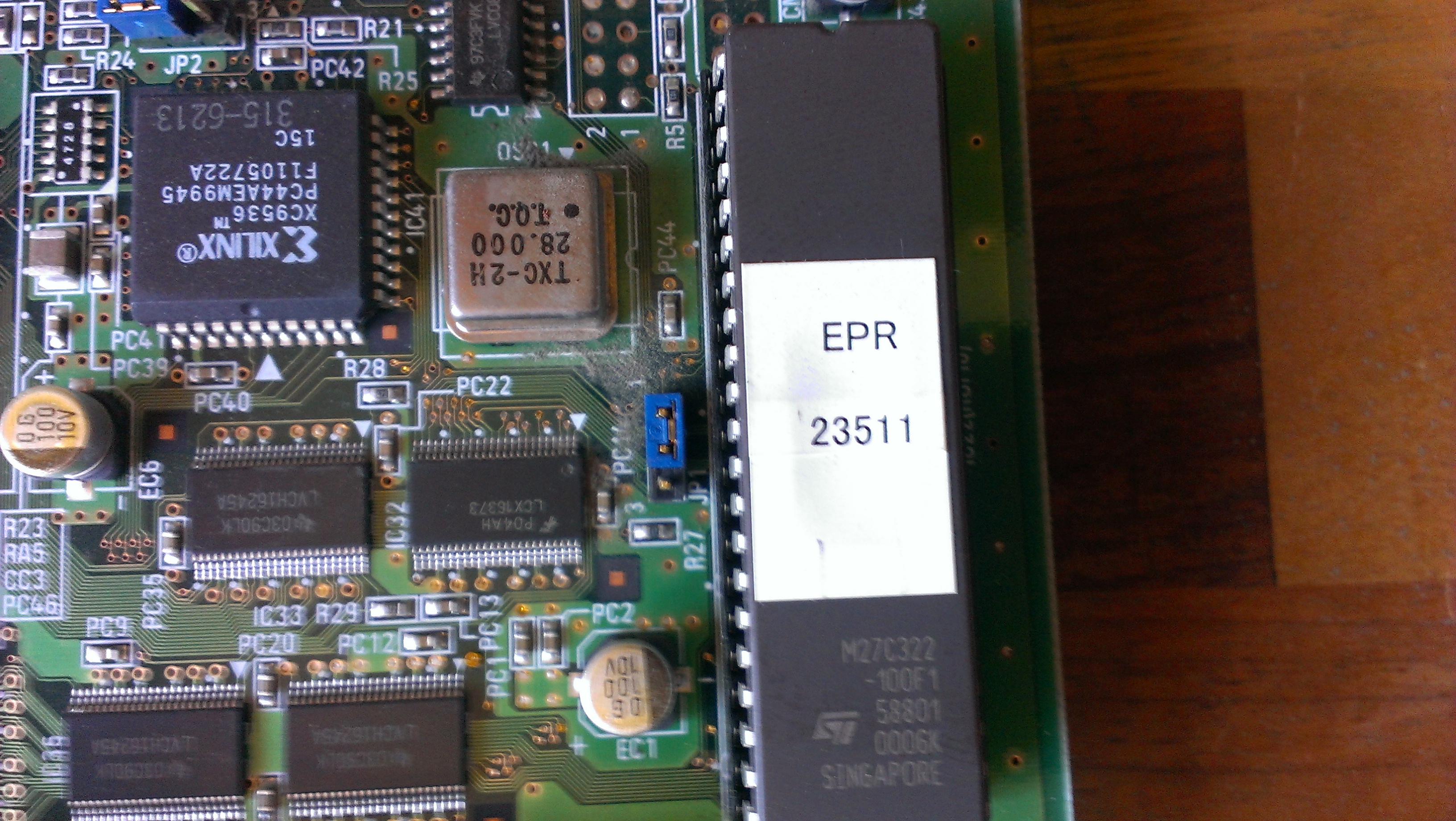

PCB component side detail 1
-

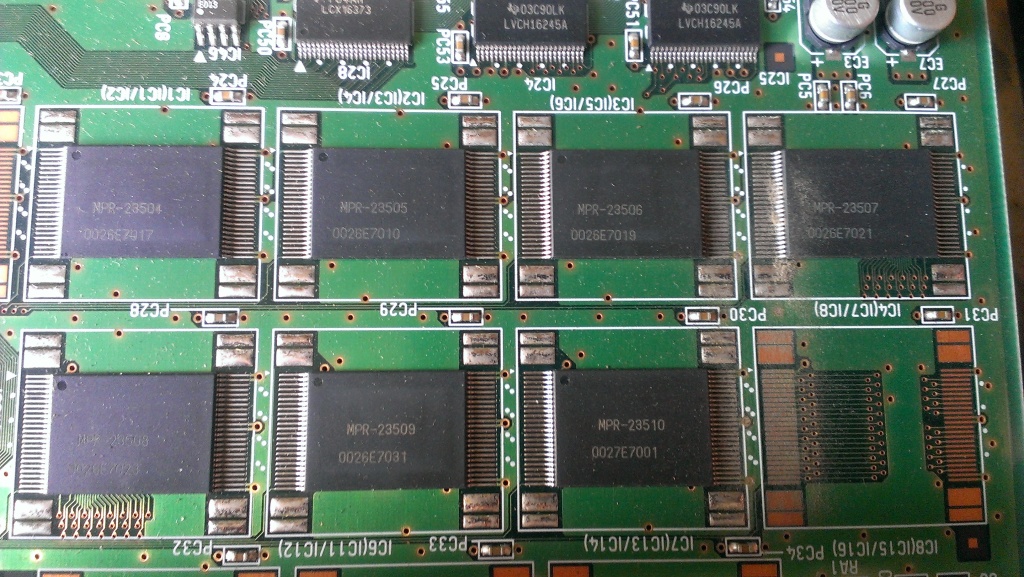

PCB component side detail 2
-

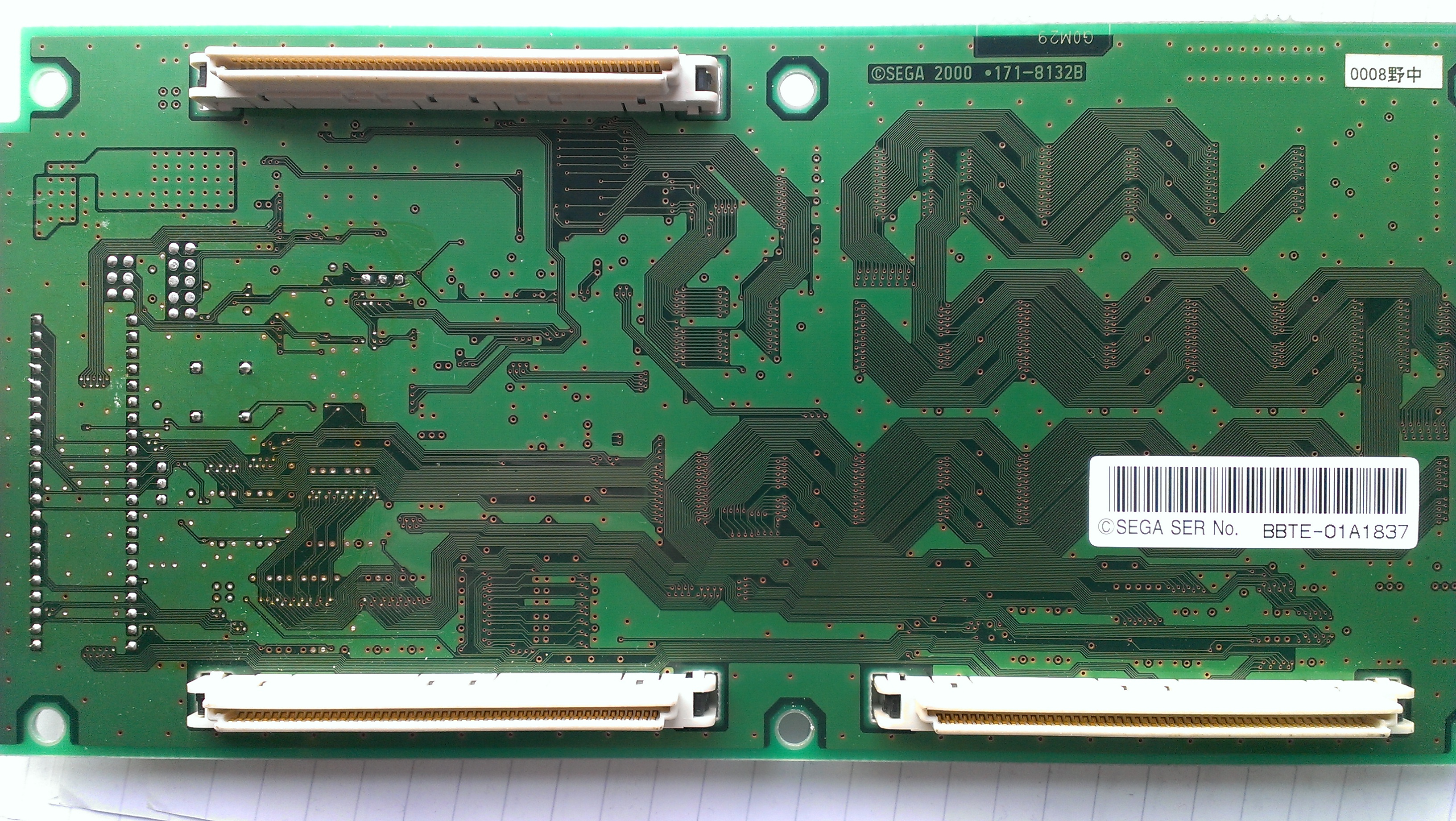

PCB solder side
-

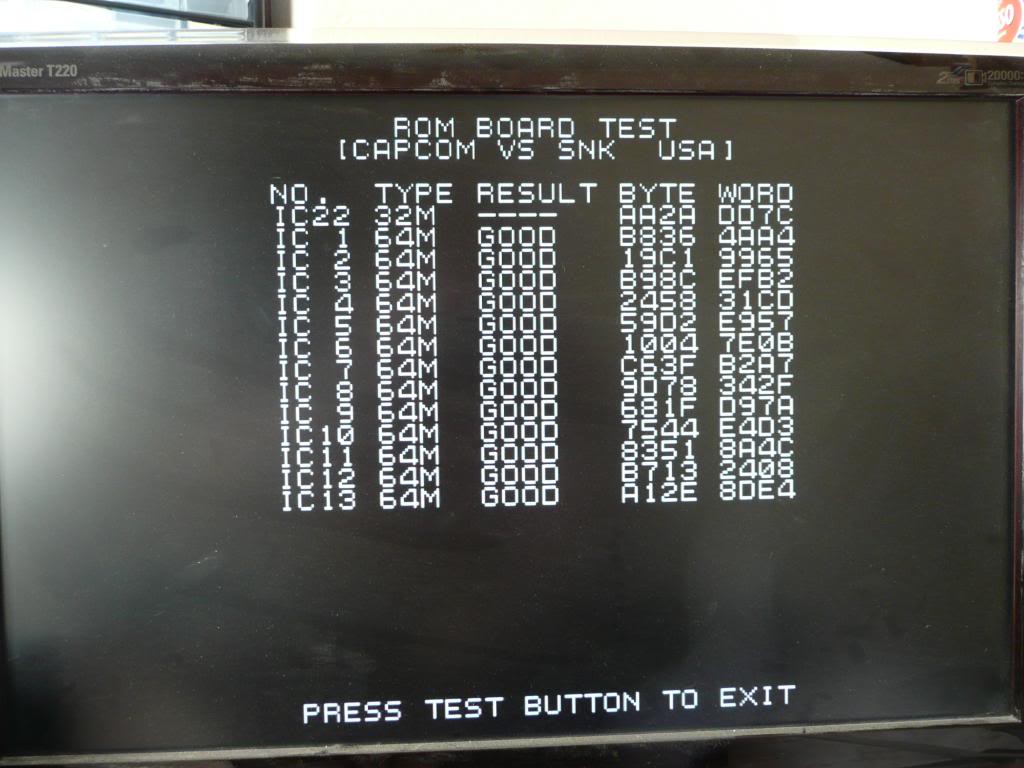

ROM BOARD TEST
-

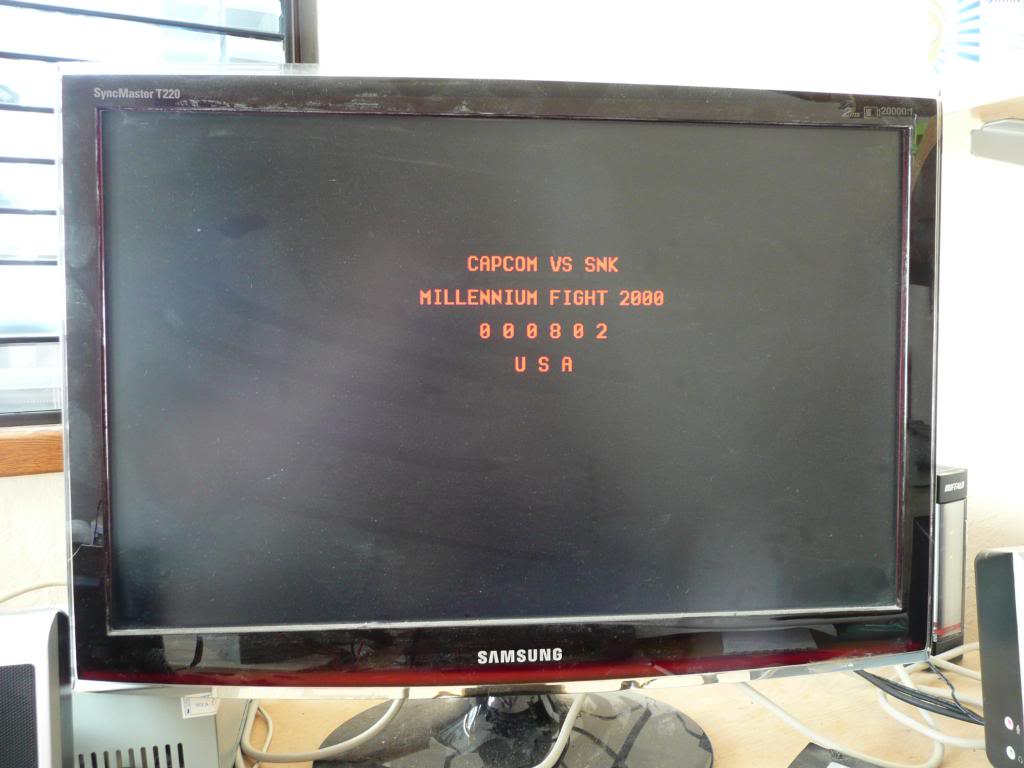

Title
