Cadillacs and Dinosaurs (bootleg with PIC16C57, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 19/02/2008 |
| emulator | MAME 0.125u9 |
| dev | David Haywood |
| name | dinopic on ProgettoEMMA dinopic on Arcade Database |
| description | Cadillacs and Dinosaurs (bootleg with PIC16C57, set 1) |
| year | 1993 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C57XT/P | 8bit CMOS Microcontroller (internal ROM dumped) | ||
| 1x | TS68000CP10 | 16/32-bit Microprocessor - main | ||
| 1x | AD-65 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | oscillator | 30.000MHz | close to sound | |
| 1x | oscillator | 24.000MHz | close to main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|

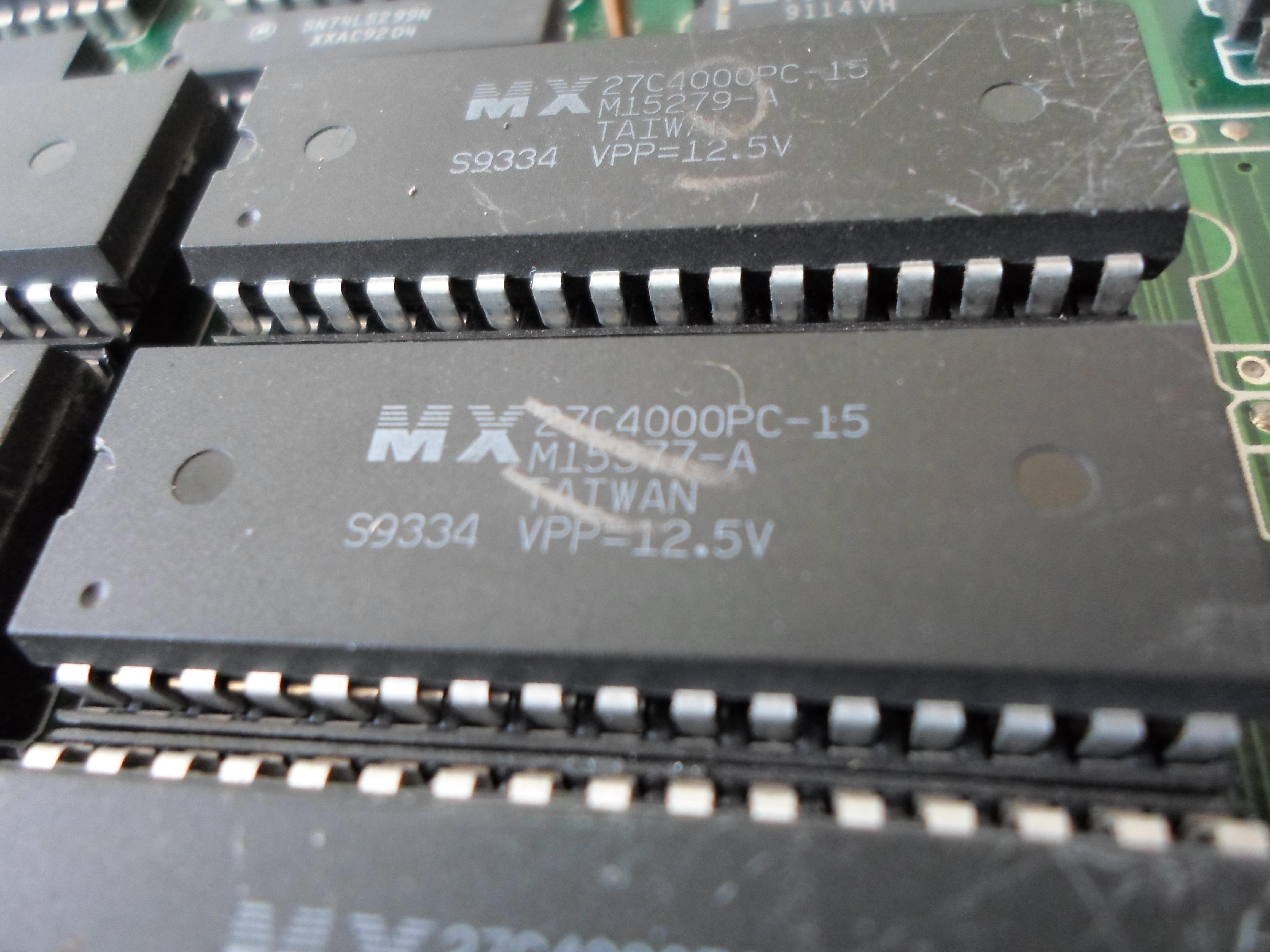

| 13x | 27C4000 | dumped | |
| 1x | 93C46 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | HY62256ALP-10 | |
| 8x | T6116S45L |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | A1020B | read protected | |
| 3x | GAL20V8A-25LP | dumped | |
| 2x | PALCE16V8H | dumped | |
| 1x | PALCE16V8H | broken |
Others
1x 28x2 JAMMA edge connector
1x 10 legs connector (JP1)
1x trimmer (volume)

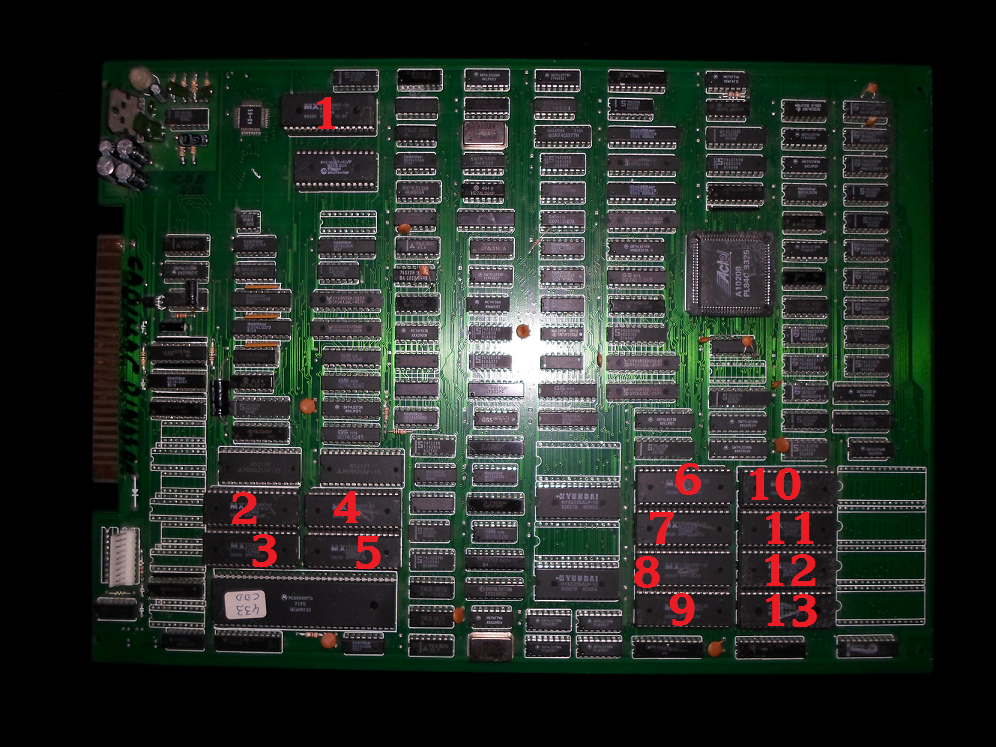

Notes
Files
-

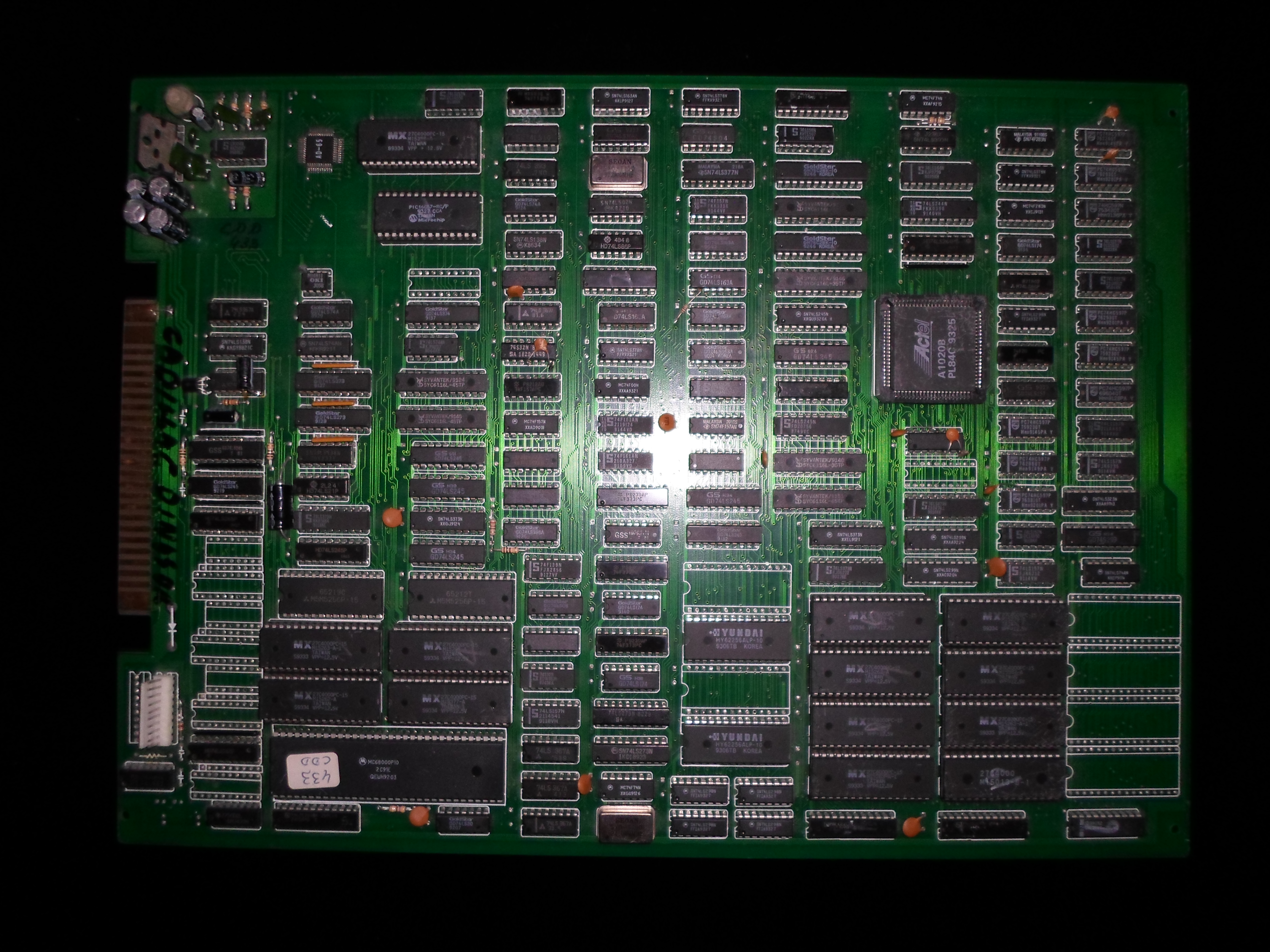

PCB component side
-
PCB solder side
