Cabal joystick version bootleg set 3 (italian hack) alternate sound hardware 2
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 23/10/2011 |
| emulator | |
| dev |
| name | 988 |
| description | Cabal joystick version bootleg set 3 (italian hack) alternate sound hardware 2 |
| year | 1991 |
| manufacturer | Italia Giochi |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000P10 | 16/32-bit Microprocessor - main | ||
| 1x | Z80A | 8-bit Microprocessor - main | ||
| 2x | 5205 | 420KHz | ADPCM Speech Syntesis IC - sound | |
| 1x | YM2203 | FM Operator Type-N (OPM) - sound | ||
| 2x | Y3014 | D/A Converter (DAC) - sound | ||
| 1x | oscillator | 20MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27256 | 4,5 | dumped |
| 3x | 27512 | 1,2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | CXK5864CP | u24 |
| 2x | T6116S45L | u37 u38 |
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
This romset comes form a bootleg pcb.
Game differences are: copyright string modified to "Italia Giochi 1991 Italia Gioochi".
It was been a case of "recycled " pcb.
Files
-

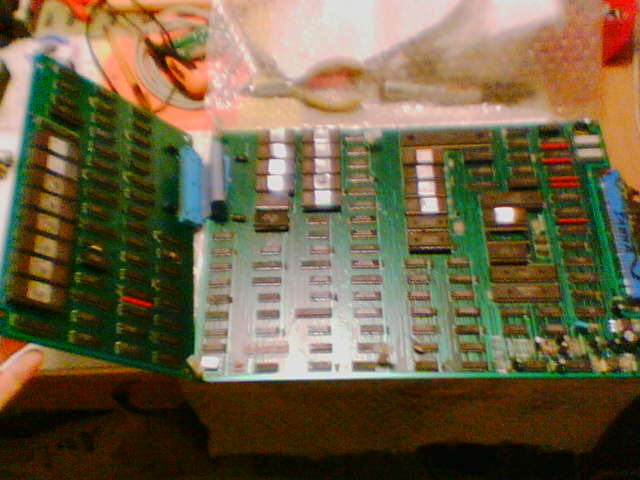

PCB component side 1
-

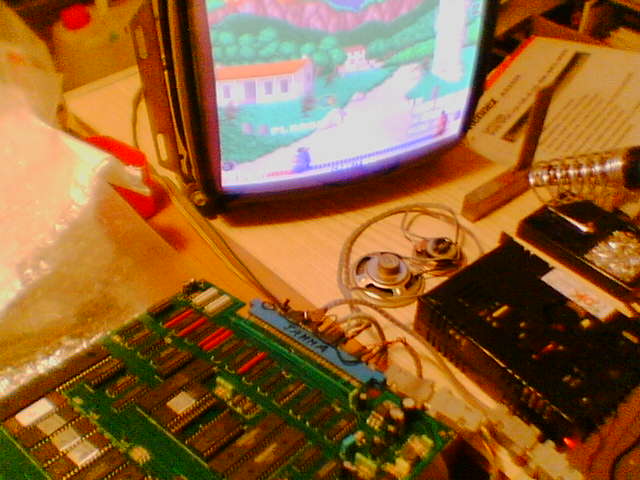

PCB component side 2
-

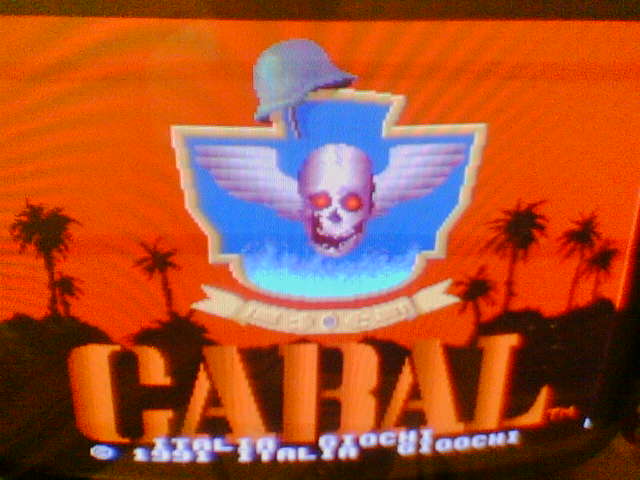

Title
-

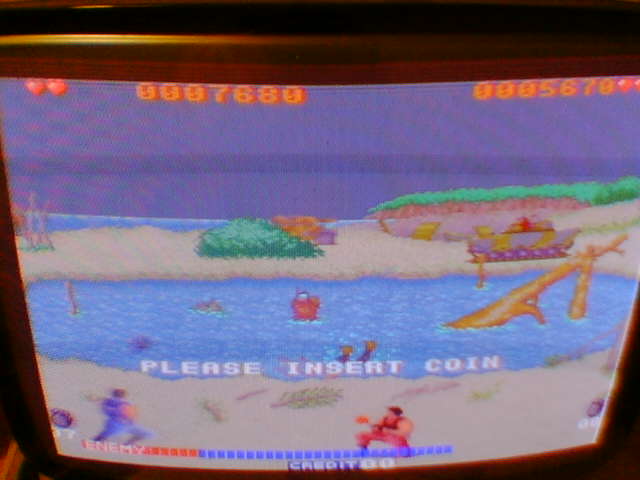

Intro
-
