Bowling Road (Ver 1.4, ND2001 hardware)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 14/10/2018 |
| emulator | MAME 0.203 |
| dev | Osso |
| name | bowlroad14n on ProgettoEMMA bowlroad14n on Arcade Database |
| description | Bowling Road (Ver 1.4, ND2001 hardware) |
| year | 2001.11 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3048 HD64F3048F16 | ic17 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | M6295 | ic15 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic13 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic8 | Audio Amplifier - sound | |
| 1x | oscillator | 30.0MHz | osc1 | |
| 1x | blu resonator 1000J | x1 | ||
| 1x | oscillator K0SoF | x2 (close to DS1302) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27C1001 | 1 | dumped |
| 2x | M27C4001 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CY62256LL-70SNC | ic25,ic26 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic24 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (CN2)
1x trimmer (P1 VOLUME)
1x trimmer (P2 SPARK)
1x battery 3.6V (BAT1)
Notes
PCB is marked: "CE ND2001" on component side
PCB is marked: "ND2001 Rev. 1.0" and "bottom" on solder side
PCB is labeled: "Bowling Road Ver. 1.4" and "Non Rimuovere PASSED 11/2001 Garanzia 6 MESI" on component side
Files
-

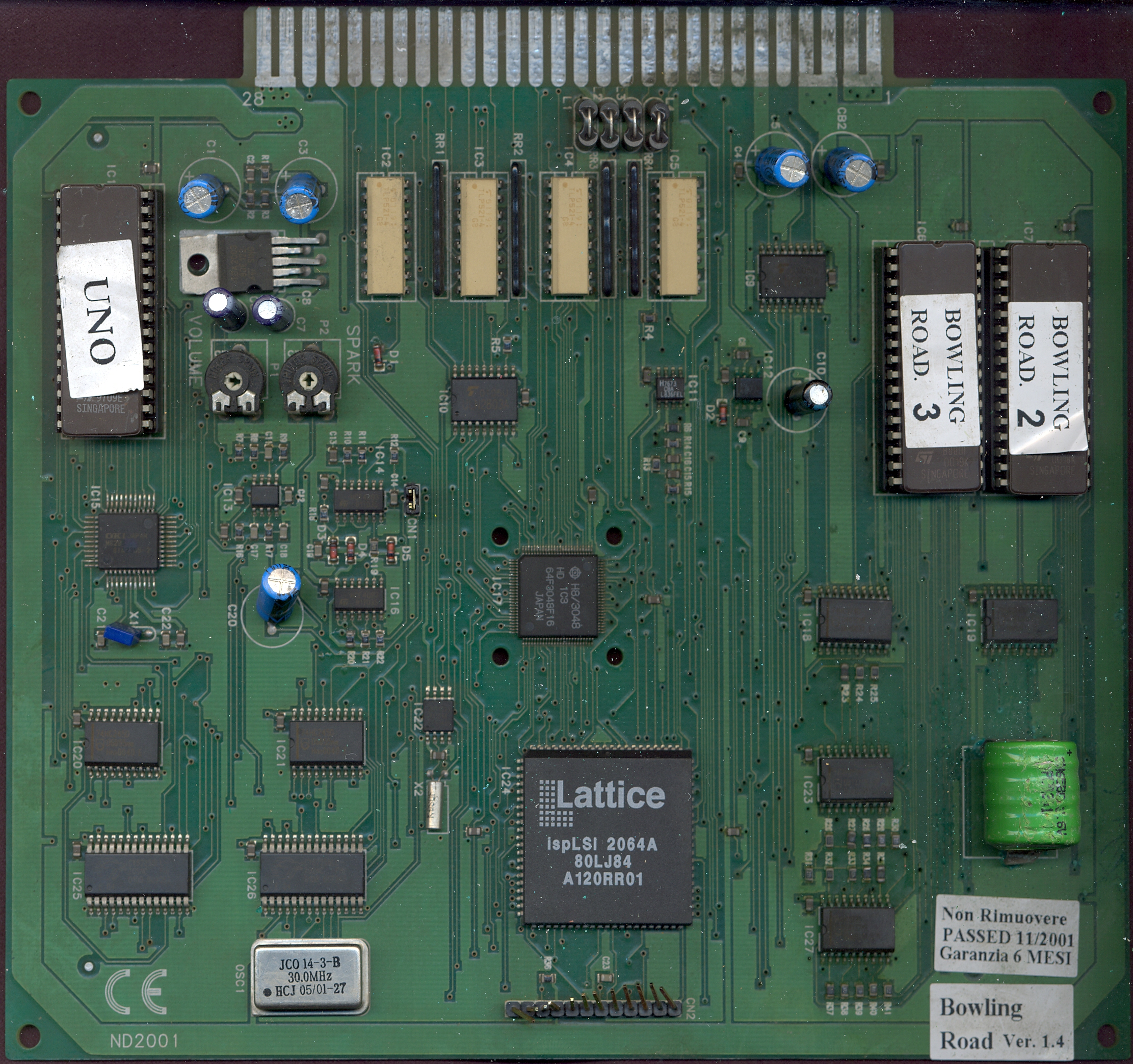

PCB component side
-

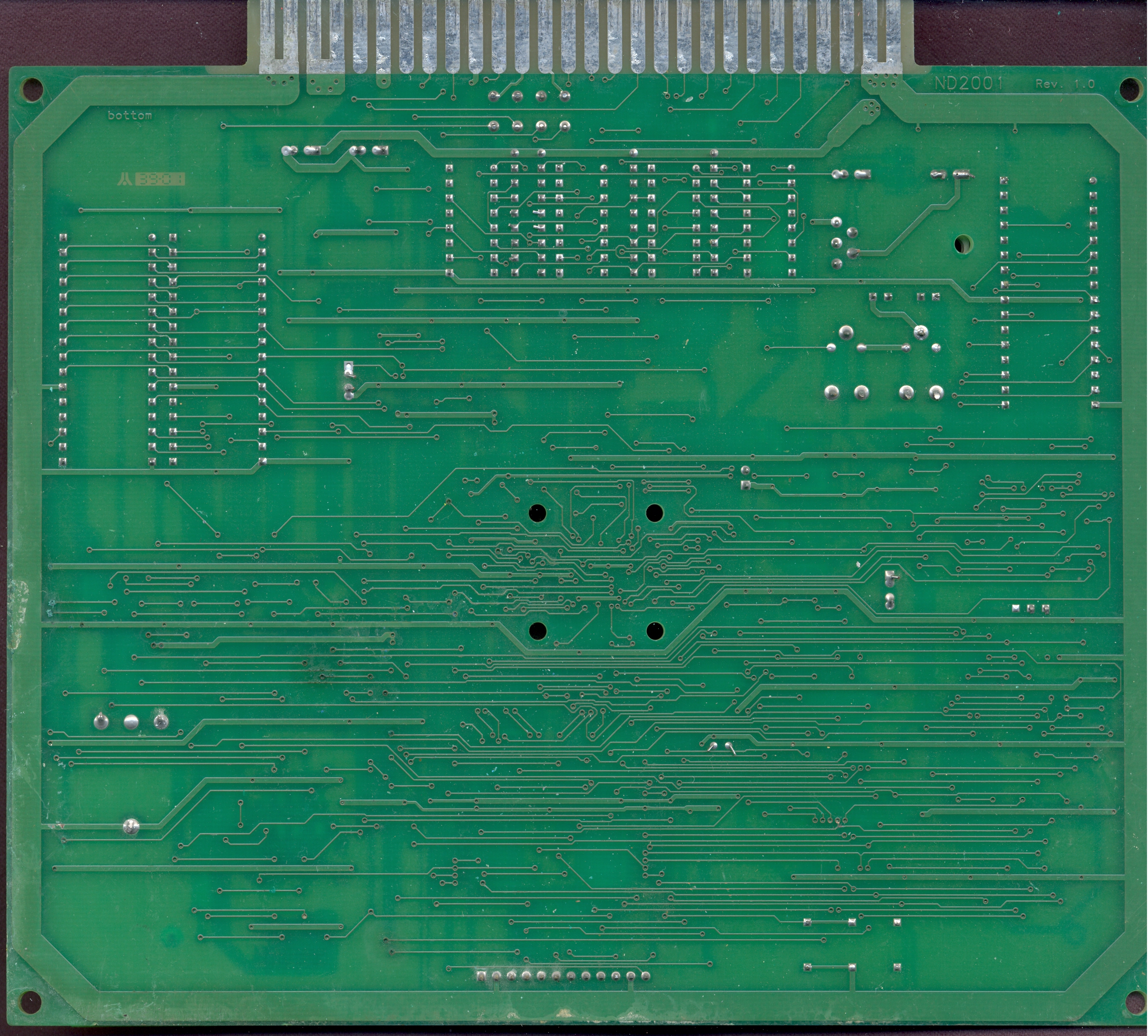

PCB solder side
