Book Theatre (Ver 1.2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 25/03/2010 |
| emulator | MAME 0.138u1 |
| dev | f205v |
| name | bookthr on ProgettoEMMA bookthr on Arcade Database |
| description | Book Theatre (ver 1.2) |
| year | 200x |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3048 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | AD-65 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | |
| 1x | red resonator | ZTB1000J | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | W27C020 | 1 | dumped |
| 2x | M27C4001 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MB8464C-10L | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | not dumped |
Others
1x 28x2 edge connector
1x 50 pins flat cable connector (CN4)
1x 12 legs connector (CN1)
2x trimmer (volume,spark)
1x 12x2 switches DIP
1x battery 3V
Notes

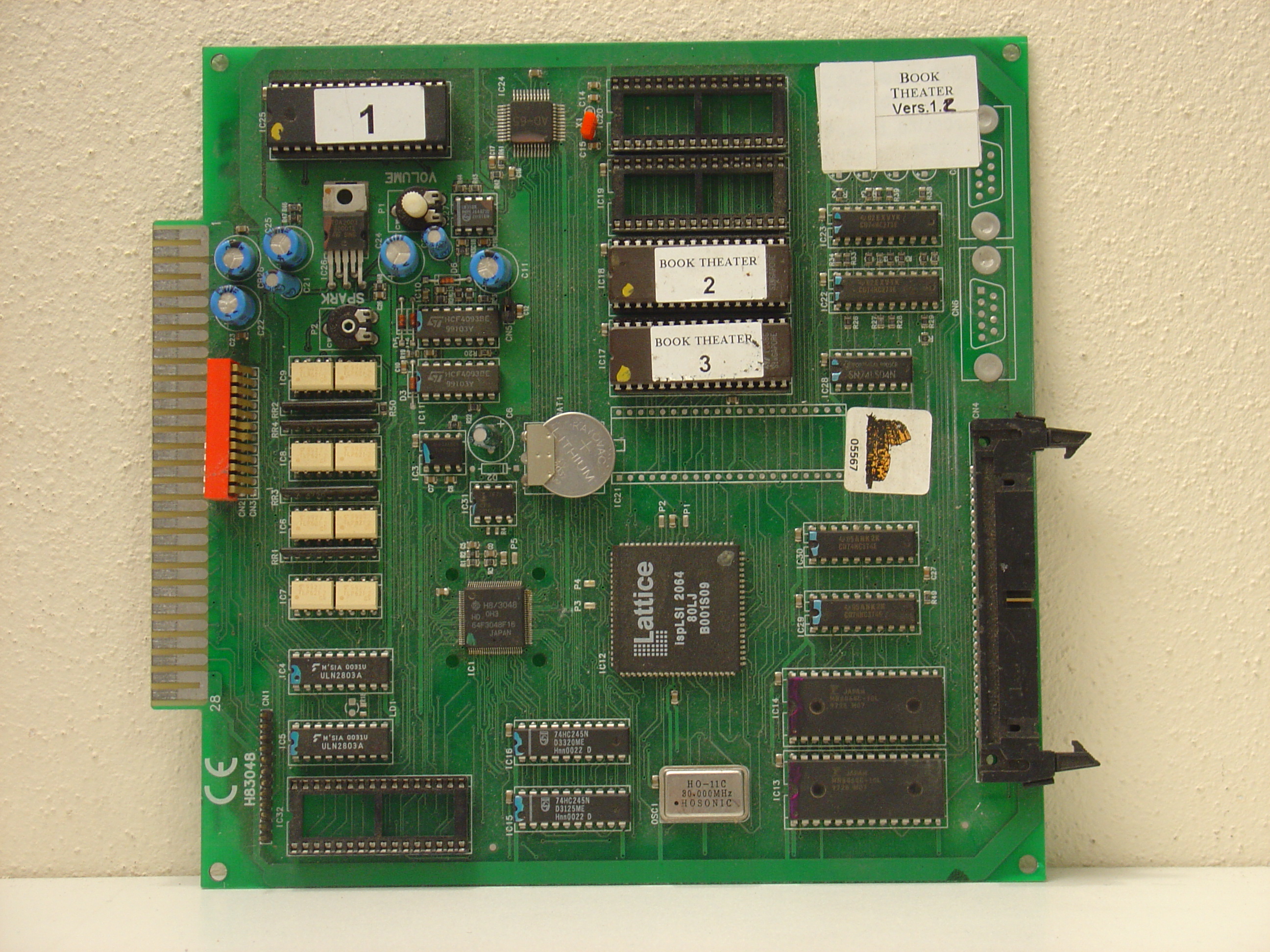

PCB is marked: "CE H83048" on component side

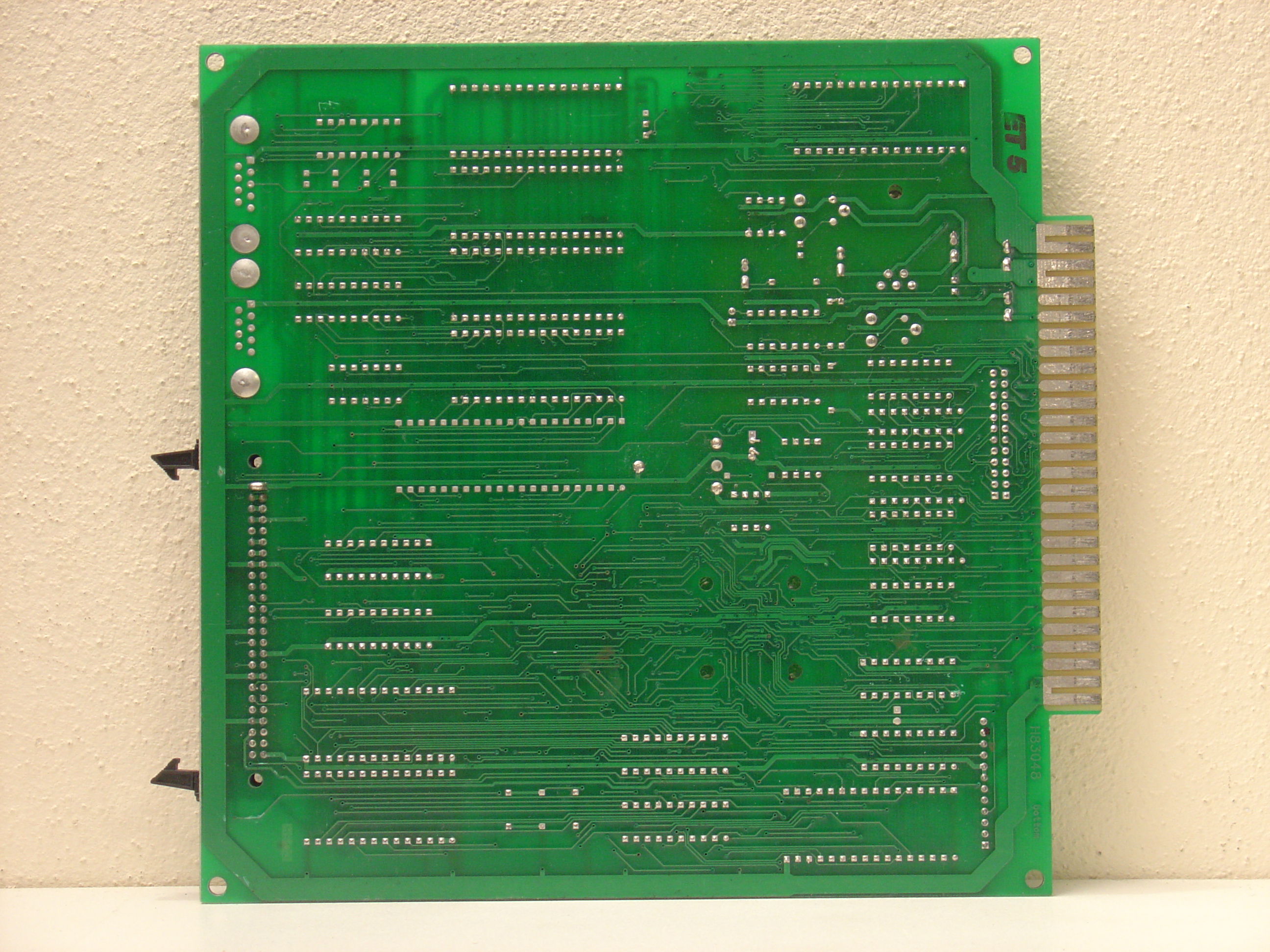

PCB is marked: "H83048 bottom" on solder side
PCB is labeled: "BOOK THEATER Vers. 1.2" on component side
Files
-
PCB component side
-
PCB solder side
-

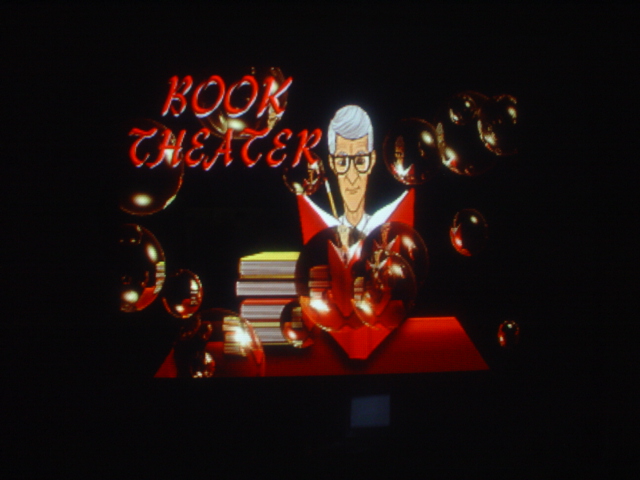

Title
-

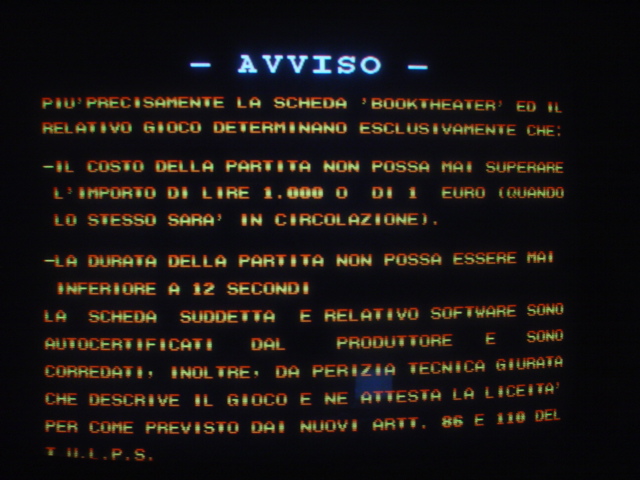

Disclaimer 1
-

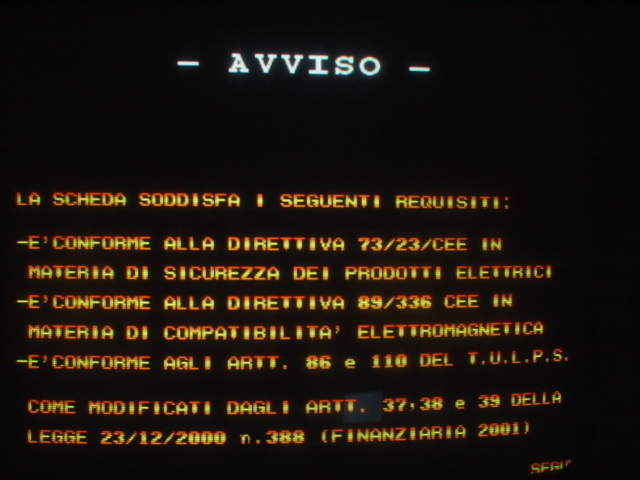

Disclaimer 2
-

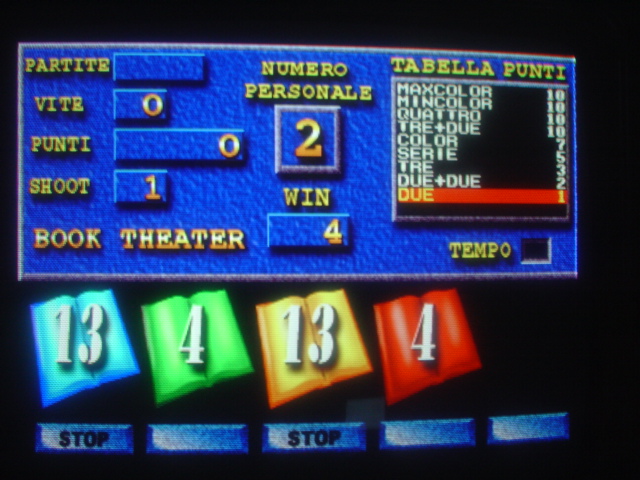

Intro 1
-
Intro 2
-

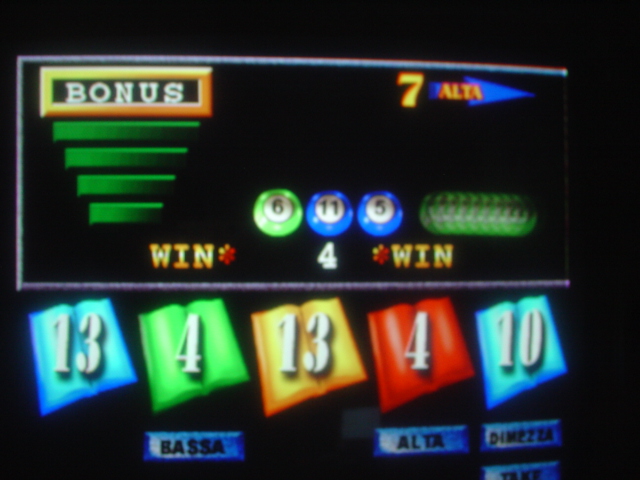

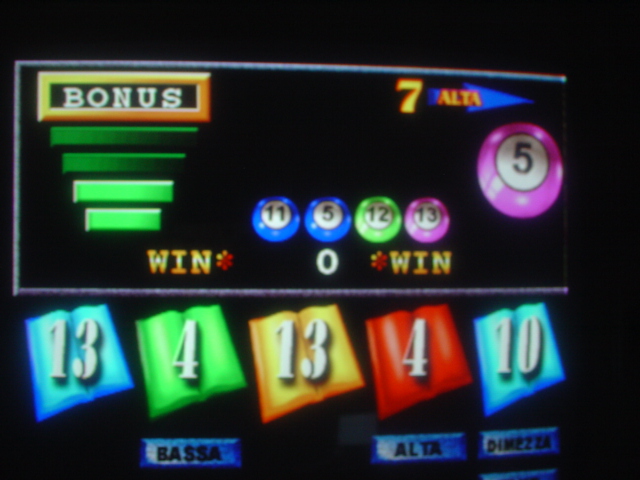

Intro 3
-

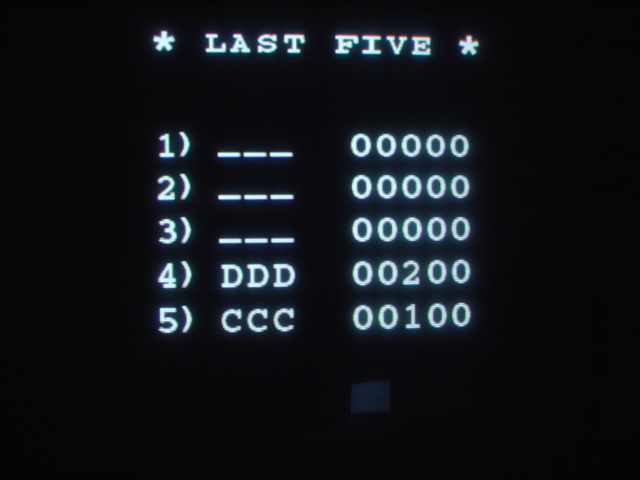

Hi scores
-

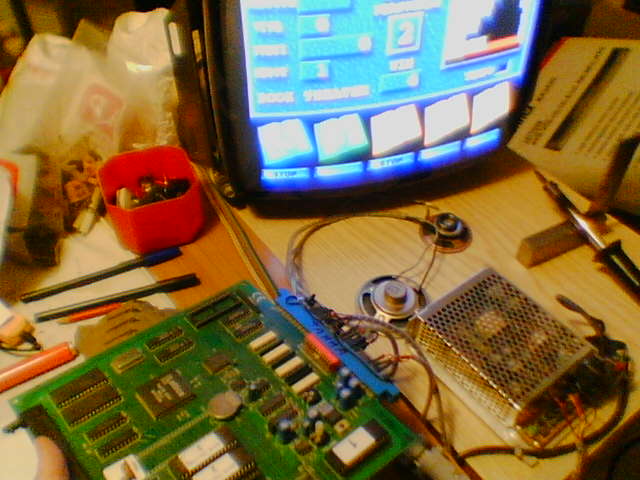

In game 1
-

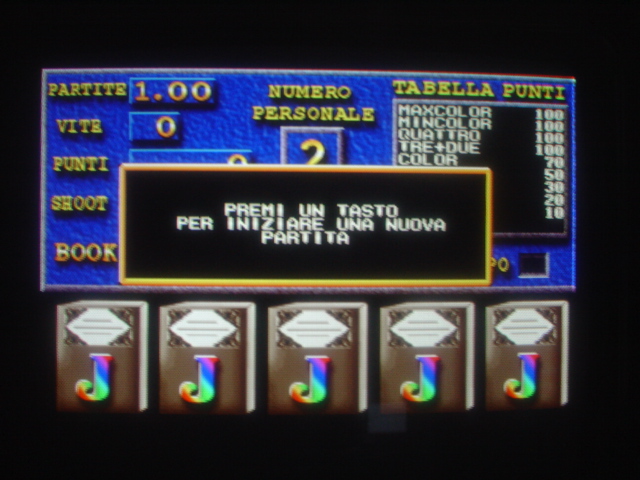

In game 2
