| dumper | Tirino73 |
| date | 23/08/2011 |
| emulator | MAME 0.143u4 |
| dev | Tirino73 |
| name | biomtoya on ProgettoEMMA biomtoya on Arcade Database |
| description | Biomechanical Toy (ver. 1.0.1884, checksum 3f316c70) |
| year | 1995 |
| manufacturer | Gaelco / Zeus |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000P12 | 15c | 16/32-bit Microprocessor - main | |
| 1x | OKI6295 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | ||
| 1x | oscillator | 24.000MHz | ||
| 1x | oscillator | 26.000MHz | ||
| 1x | oscillator | 1.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27040 | 16d,18d | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | TMS TPC1020BFN-084C | 8f,12f | read protected |
Others
1x JAMMA connector
1x trimmer (volume)
Notes
This romset comes from an original pcb.
In-game differences are:none.
Files
-

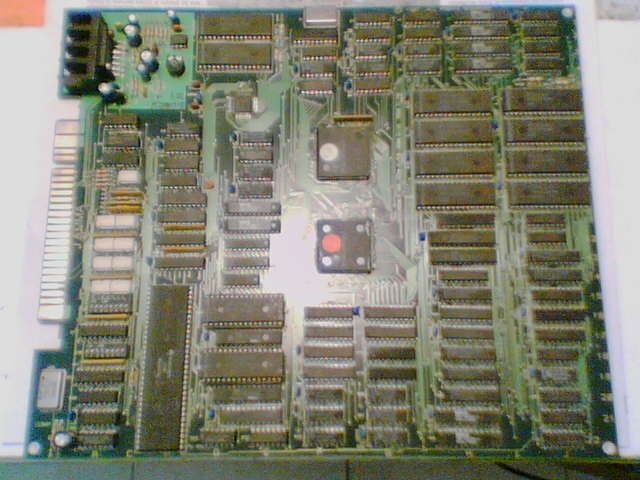

PCB component side
-

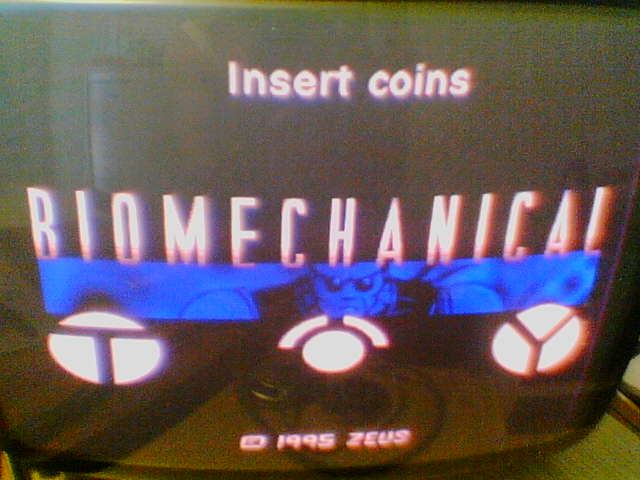

Title
-

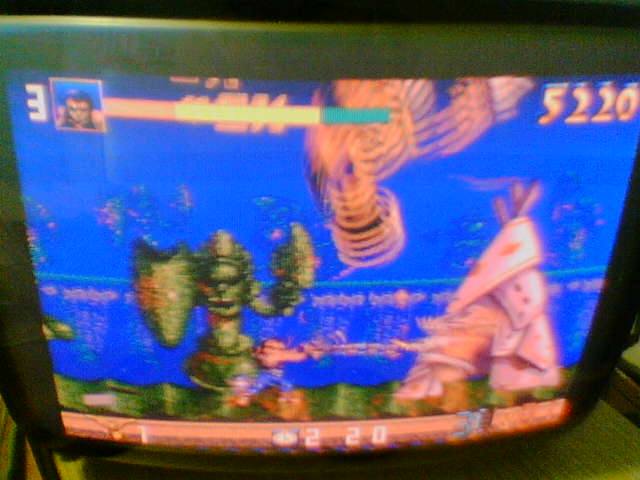

In game 1
-

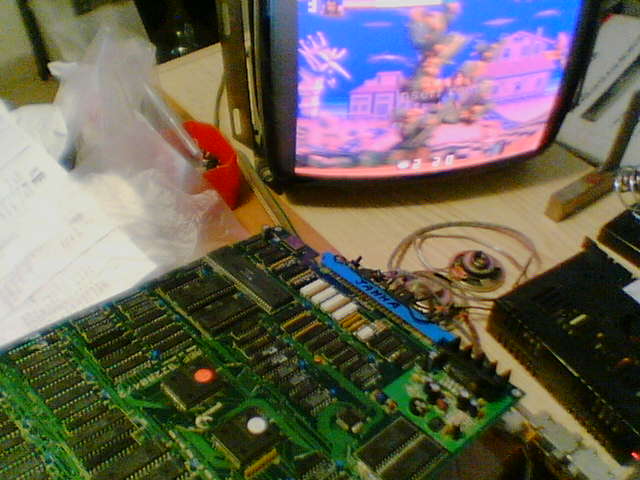

In game 2
-
