Battle Bubble (v2.00)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 05/04/2006 |
| emulator | MAME 0.105u1 |
| dev | Corrado Tomaselli, Brian Troha |
| name | batlbubl on ProgettoEMMA batlbubl on Arcade Database |
| description | Battle Bubble (v2.00) |
| year | 1999 |
| manufacturer | Banpresto (Limenko license) |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TMP68HC000P-10 | u15 | 16/32-bit Microprocessor - main | |
| 1x | YMF268-F | u33 | FM Operator Type-L 4 + wave Table Synthesizer (OPL4) - sound | |
| 1x | Imagetek I4220-071-9607WK003 | u16 | video | |
| 1x | uPC1242H | - | sou1 | Audio Amplifier - sound |
| 1x | oscillator | 12.000MHz | osc1 | |
| 1x | oscillator | 26.800MHz | osc2 | |
| 1x | oscillator | 33.8688 | x1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27C240 | 1,2 main | dumped |
| 1x | 27C4001 | 3 sound | dumped |
| 4x | MX29F1610ML | 4,5,6,7 gfx | dumped |
| 1x | MX29F1610ML | 8 sound | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HM6264LP-70 | u43 |
| 2x | UM61256FK-15 | u5,u6 |
| 2x | LH52B2560-10LL | u1,u3 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | xc-9536-PC44AEM9937 | u14 | read protected |
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8 DIP switches banks
Notes
PCB is marked: "LIMENKO(R)", "REV:LM2D-Y SEL:00-200-004", "MADE IN KOREA" and "Top Layer Internal Plane 1" on component side
PCB is marked: "Bottom Layer" on solder side
update 20231118: better description
Files
-

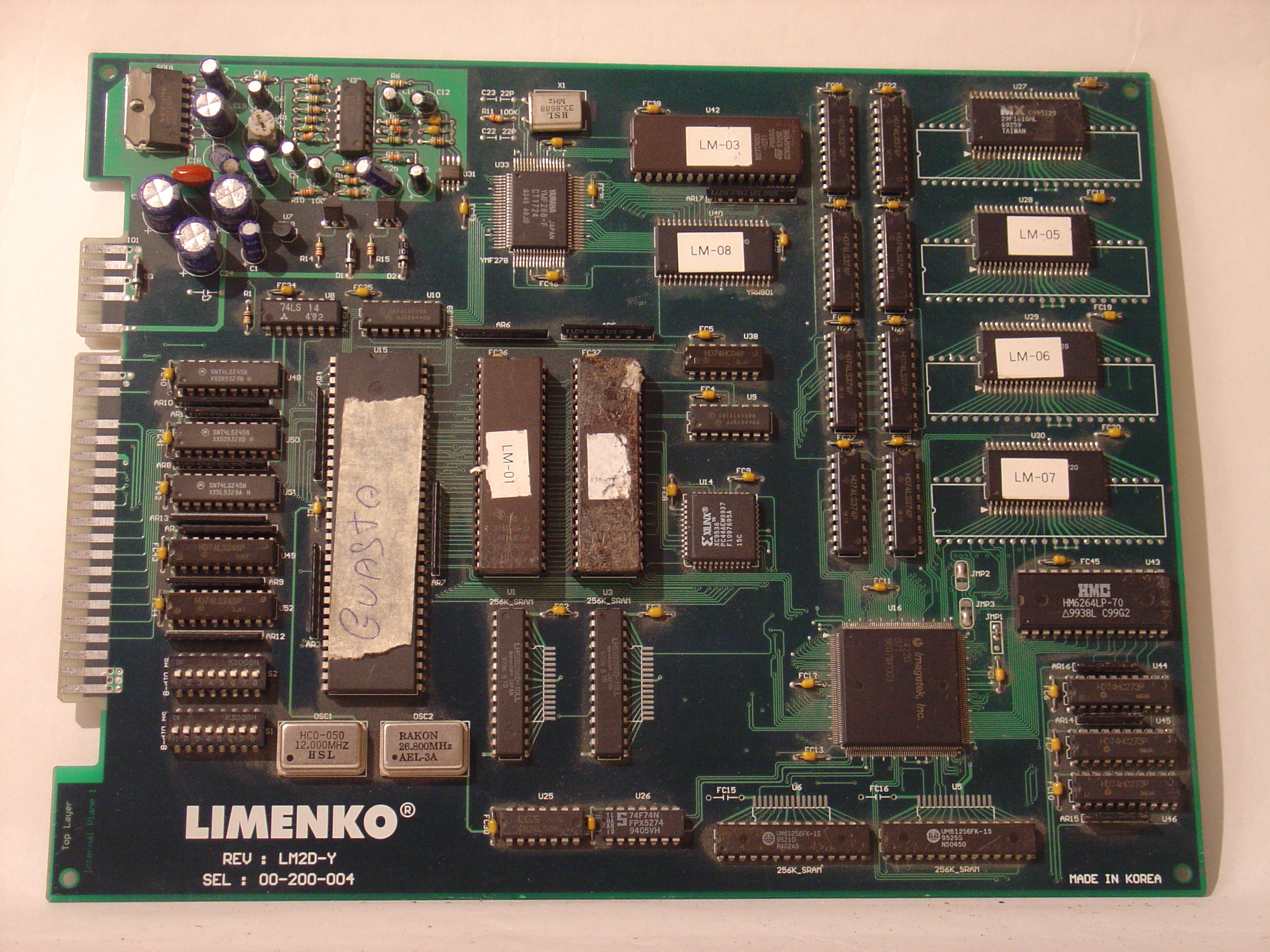

PCB component side
-

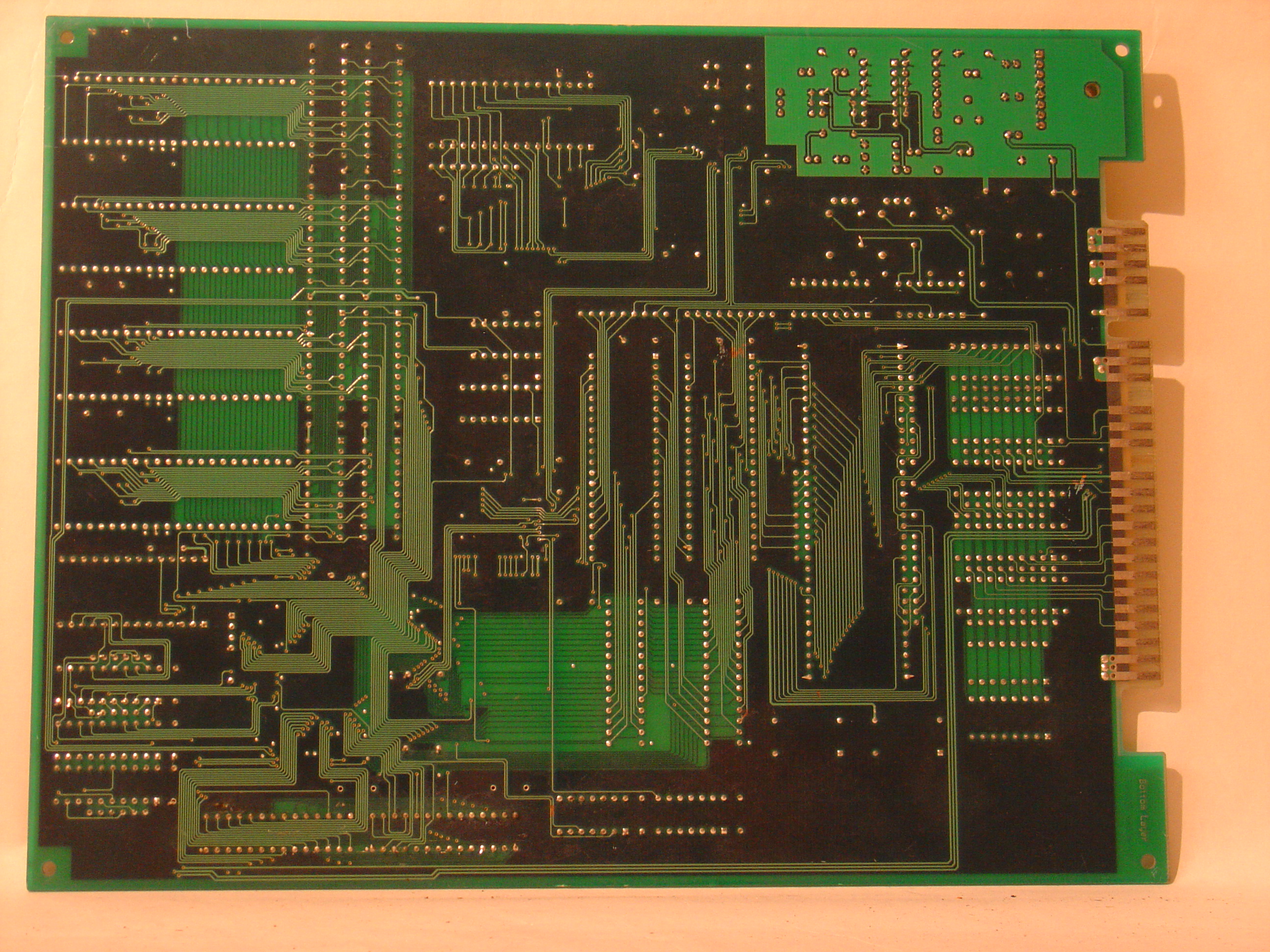

PCB solder side
