Bad Lands (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 08/03/2008 |
| emulator | MAME 0.124u1 |
| dev | David Haywood |
| name | badlandsb on ProgettoEMMA badlandsb on Arcade Database |
| description | Bad Lands (bootleg) |
| year | 1989 |
| manufacturer | Playmark |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 68000 | 16/32-bit Microprocessor - main | ||
| 1x | Z80 | 8-bit Microprocessor - sound | ||
| 1x | YM3012 | D/A Converter (DAC) - sound | ||
| 1x | YM2151 | FM Operator Type-M (OPM) - sound | ||
| 1x | oscillator | 20.000MHz | ||
| 1x | oscillator | 28.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | 27512 | 21,22,27,28 | dumped (main) |
| 1x | 27512 | 26 | dumped (sound) |
| 12x | 27512 | 29-40 | dumped (gfx), 36 is bad.dump |
| 1x | 28C16 | not dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
This romset comes from a bootleg pcb produced by Playmark.
This pcb was been modified to use as control standard joysticks instead of steering wheels.
Game differences are: Copyright string removed.
Files
-

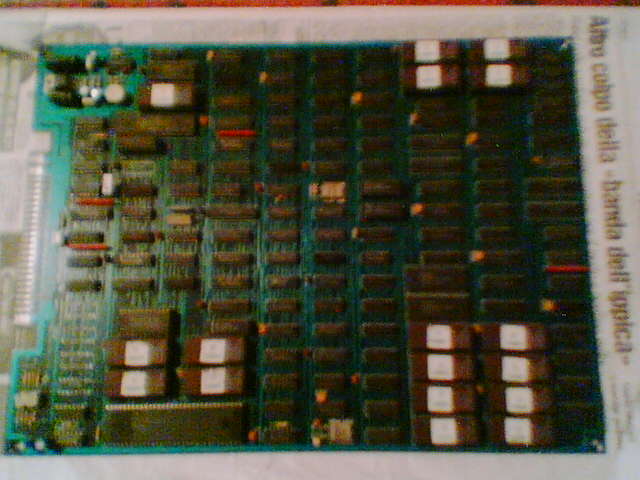

PCB component side
-
Readme
