B.Rap Boys (World)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 29/06/2007 |
| emulator | MAME 0.116u4 |
| dev | Brian Troha |
| name | brapboys on Arcade Database |
| description | B.Rap Boys (World) |
| year | 1992 |
| manufacturer | Kaneko |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TMP68HC000N-12 | u60 | 16/32-bit Microprocessor - main | |
| 2x | OKIM6295 | u31,u32 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | custom Kaneko CALC3-508 | u34 | ||
| 1x | custom Kaneko 23160-509 VIEW2-CHIP | u52 | ||
| 1x | custom Kaneko 9152EV-175111 | u71 | ||
| 1x | custom Kaneko MUX2-CHIP | u53 | ||
| 1x | custom Kaneko 9203T | u38 | ||
| 1x | oscillator | 12.0000MHz | X1 | |
| 1x | oscillator | 16.0000MHz | X2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | TMS27C010A | u33,u61,u62 | dumped |
| 1x | TMS27C020 | u80 | dumped |
| 2x | 27040 | u43,u79 | not dumped |
| 1x | TMS27C040 | u101 | dumped |
| 6x | 27080 | u44,u45,u76,u77,u78,u100 | not dumped |
| 4x | 27800 | u65,u66,u67,u68 | not dumped |
| 1x | 93C46N | u46 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | CAT71C256L-85 | u3,u4 |
| 2x | MCM60256AP10 | u63,u64 |
| 2x | LC3664ASLL-12 | u69,u70 |
| 2x | LH5116D-10 | u39,u40 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 10x | AMI18CV8PC-25 | u26,u29,u35,u36,u50,u72,u73,u74,u87,u88 | read protected |
| 1x | GAL22V10-25LP | u42 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 10x2 edge connector
1x 6 legs connector (con100)
1x 10 legs connector (con101)
1x trimmer (volume)
1x 8x2 switches DIP
Notes
update 2011-10-23:
Working
PCB supplied by Hammad
markings: Z01DK-002
Files
-

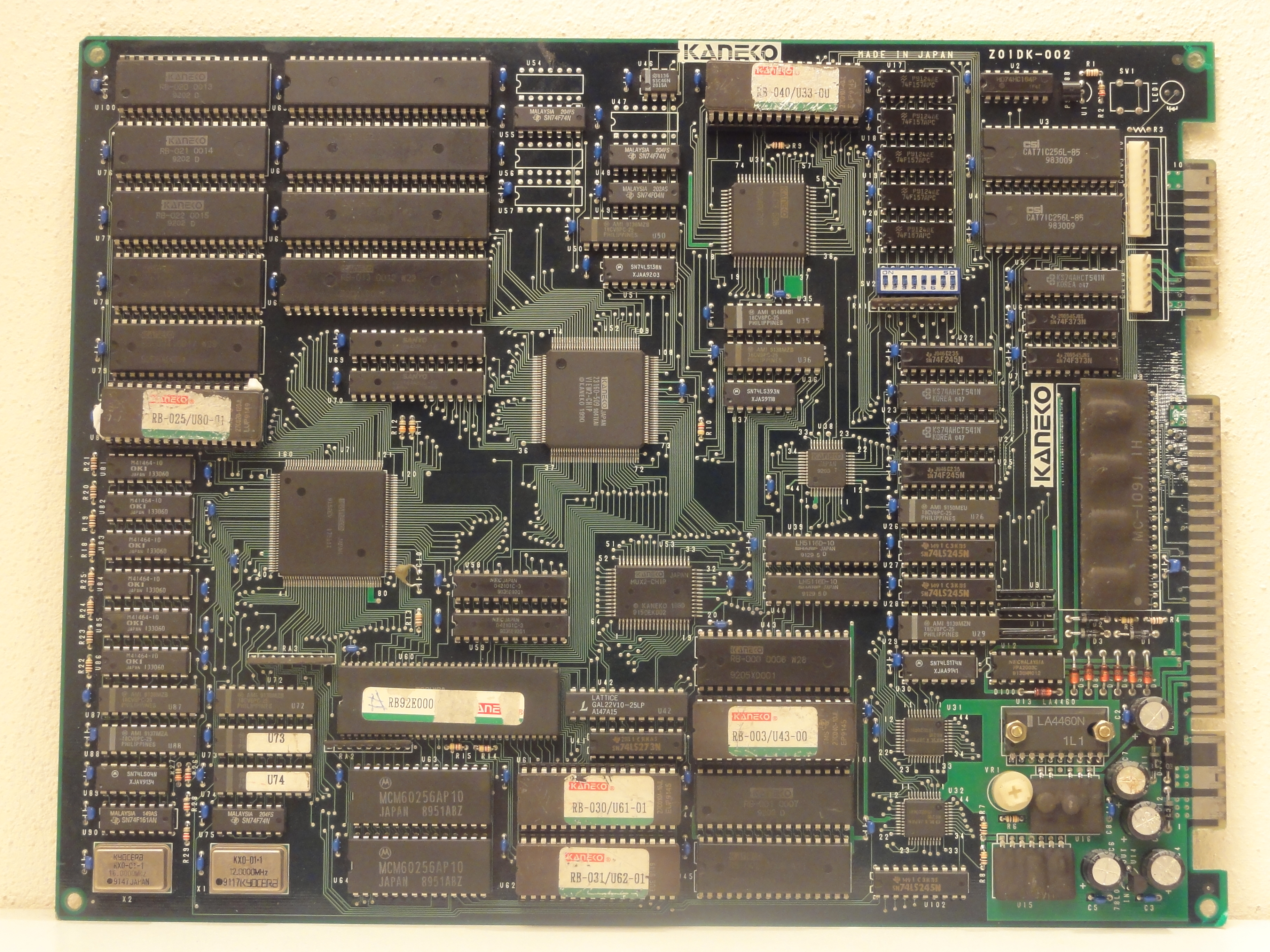

PCB component side 1
-

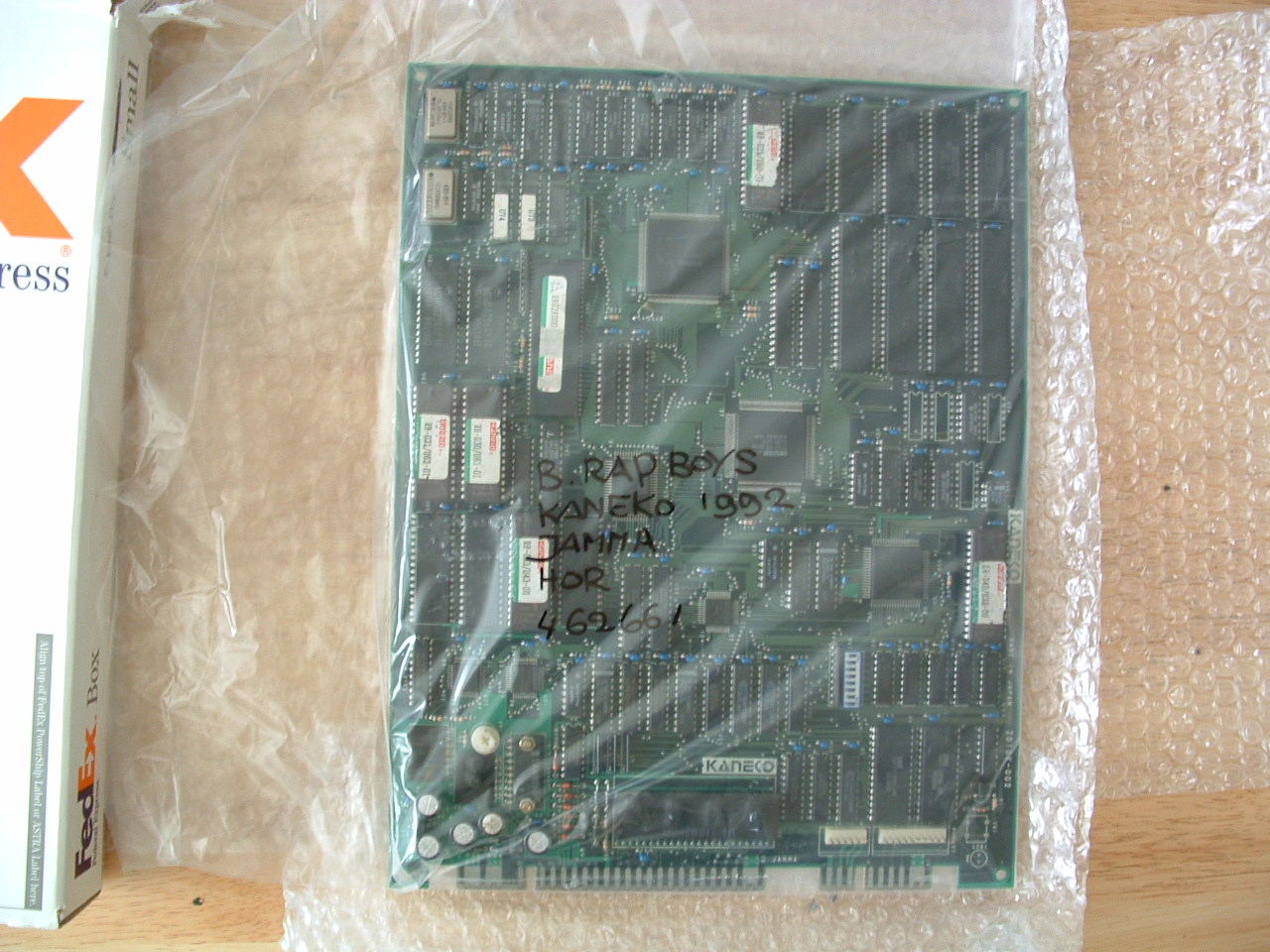

PCB component side 2
-

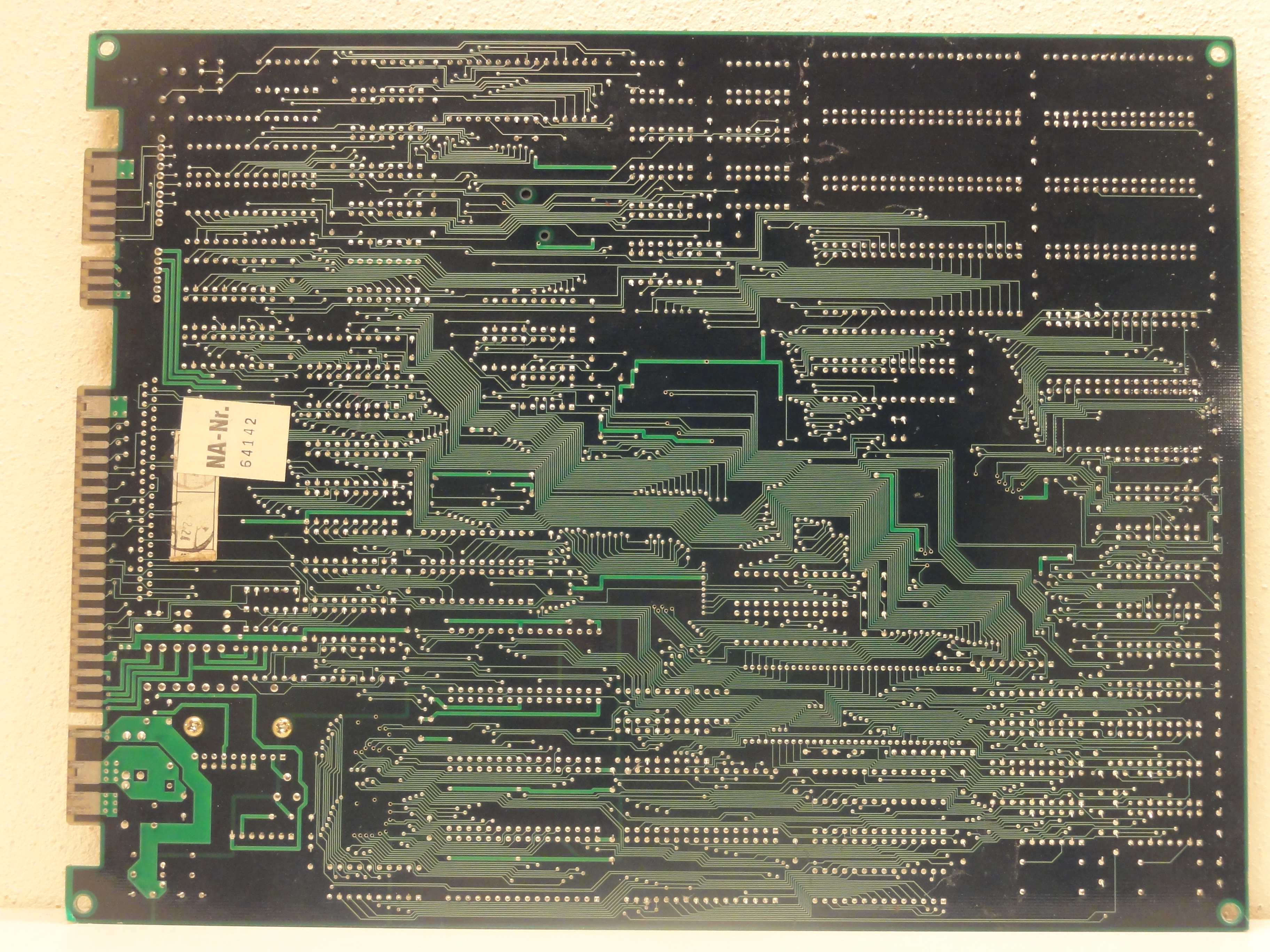

PCB solder side
