Arkanoid (bootleg with MCU, harder)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 29/09/2005 |
| emulator | MAME 0.108u4 |
| dev | Steph |
| name | ark1ball on ProgettoEMMA ark1ball on Arcade Database |
| description | Arkanoid (bootleg with MCU, harder) |
| year | 1986 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z8400BPS-Z80B-CPU | 7a | 8-bit Microprocessor - main | |
| 2x | MC68705P3S | 6i | 8-bit Microcomputer Unit - main (internal ROM not dumped) | |
| 1x | AY-3-8910A | 7n | Programmable Sound Generator - sound | |
| 1x | uPC1182H | - | 7r | Audio Amplifier - sound |
| 1x | oscillator | 12.000MHz | 1g |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | TMM27256 | 3a,3d,3f,7d | dumped |
| 1x | TMS27256JL | 7f | dumped |
| 3x | N82S131N | 6l,6m,6n | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | TMM2016BP-10 | 3j,3l,7h |
| 1x | TMM2018D-45 | 3s |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x 8 legs connector
1x trimmer (volume)(VR.7s)
1x 8 DIP switches bank (DIP-SW.7o)
Notes
It's a bootleg of "Arkanoid (Japan)", with notice screen eliminated (it only shows a black screen with a red WAIT) and a fix (no dips selection) 1 ball x game and NO starting level selection
main PCB is marked: "7-30/1" on component side
sub PCB is marked: "7-30/A" on component side
update 20210314: better description, better pics, confirmed dump for EPROMs, dumped PROMs
Files
-

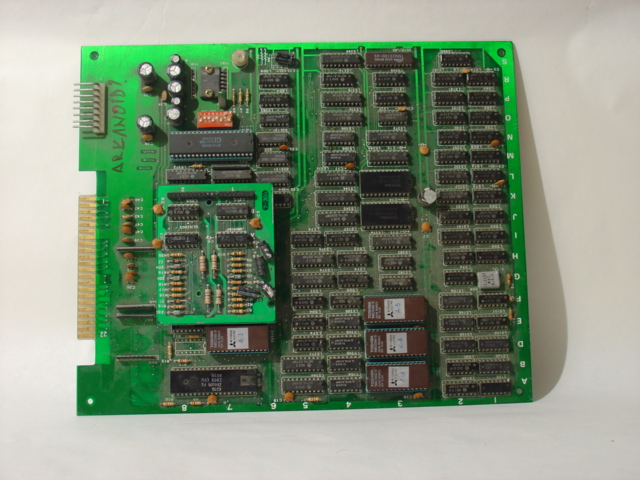

assembled PCBs
-

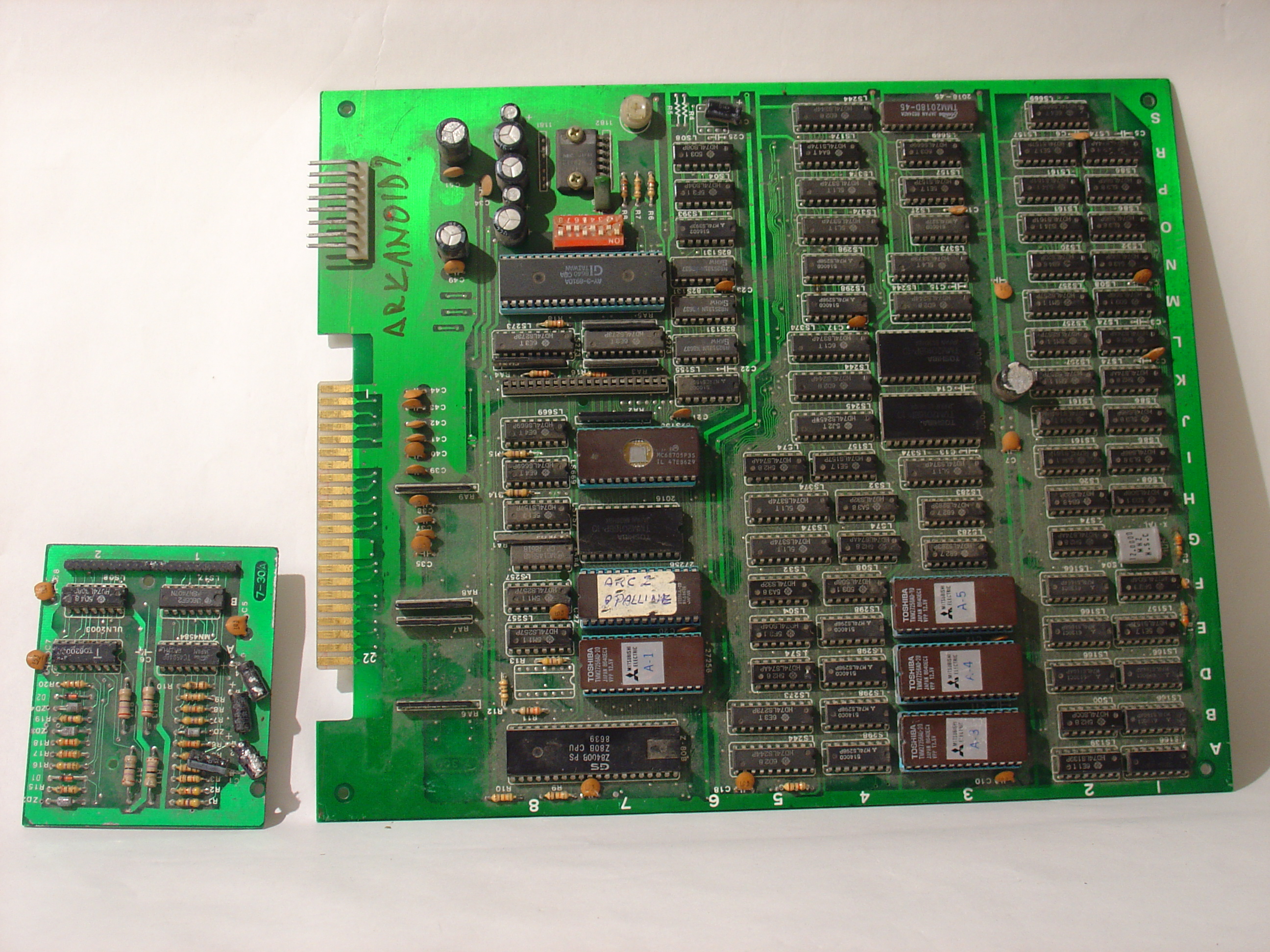

PCBs component side
-

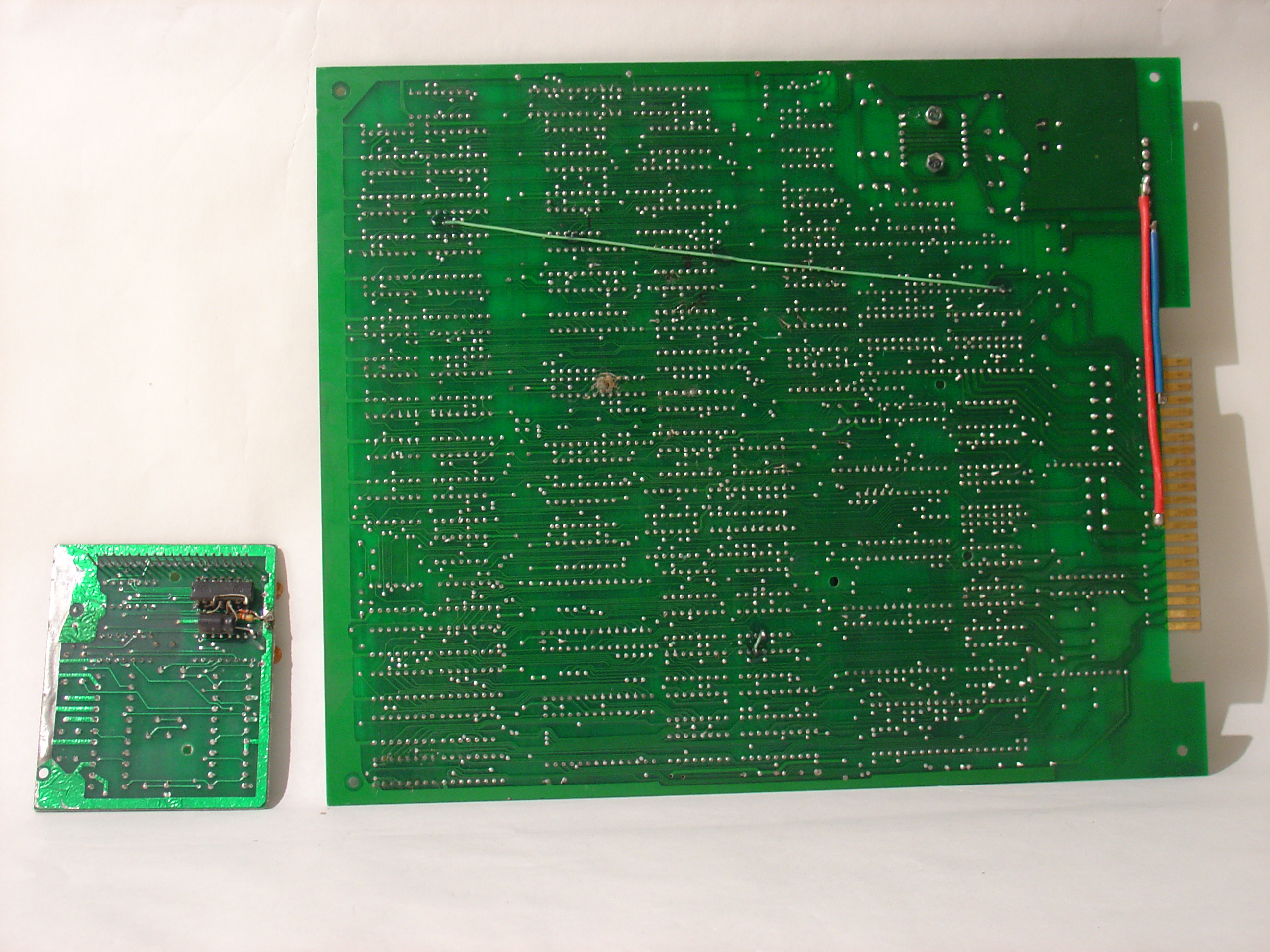

PCBs solder side
-

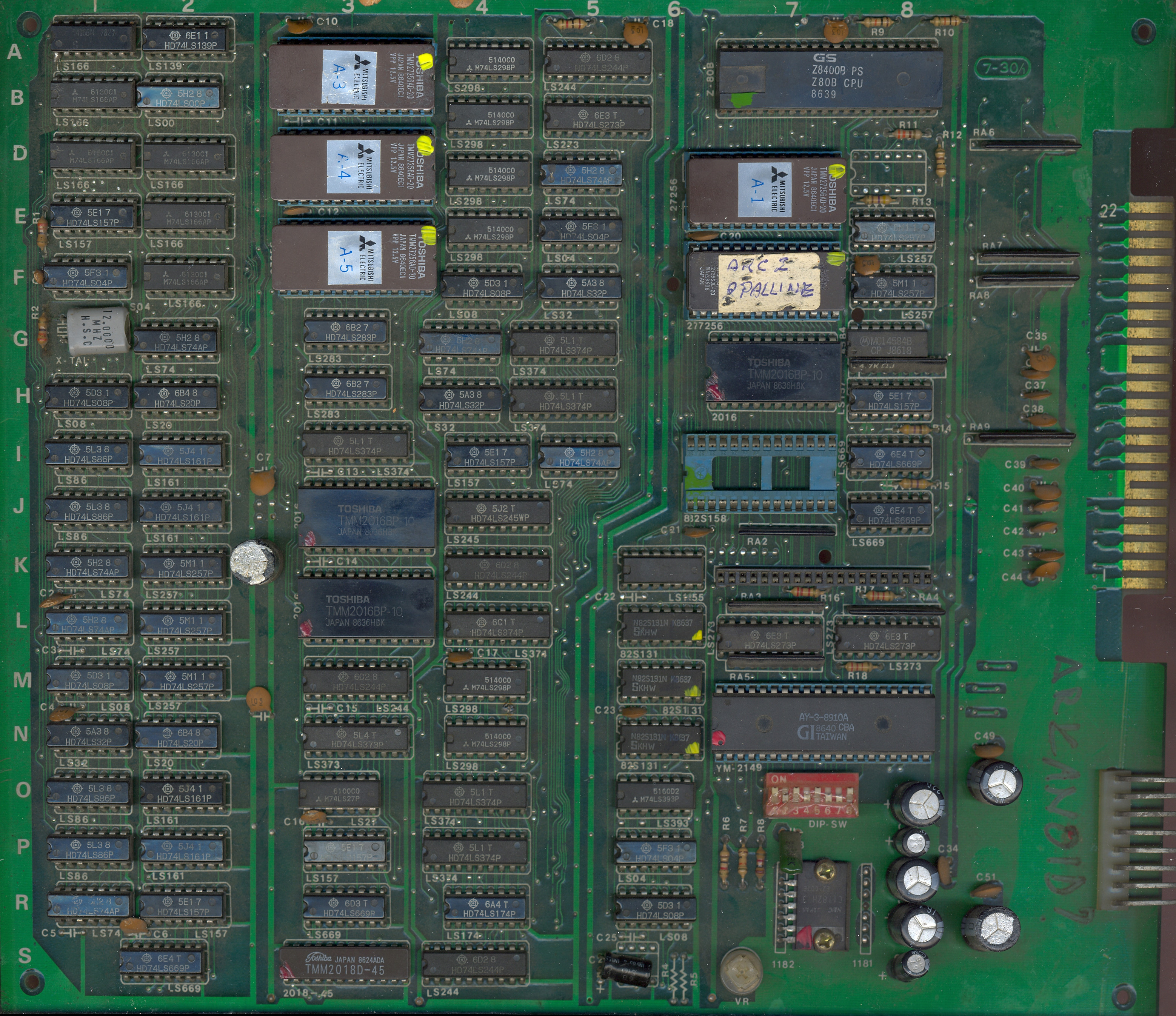

main PCB component side
-

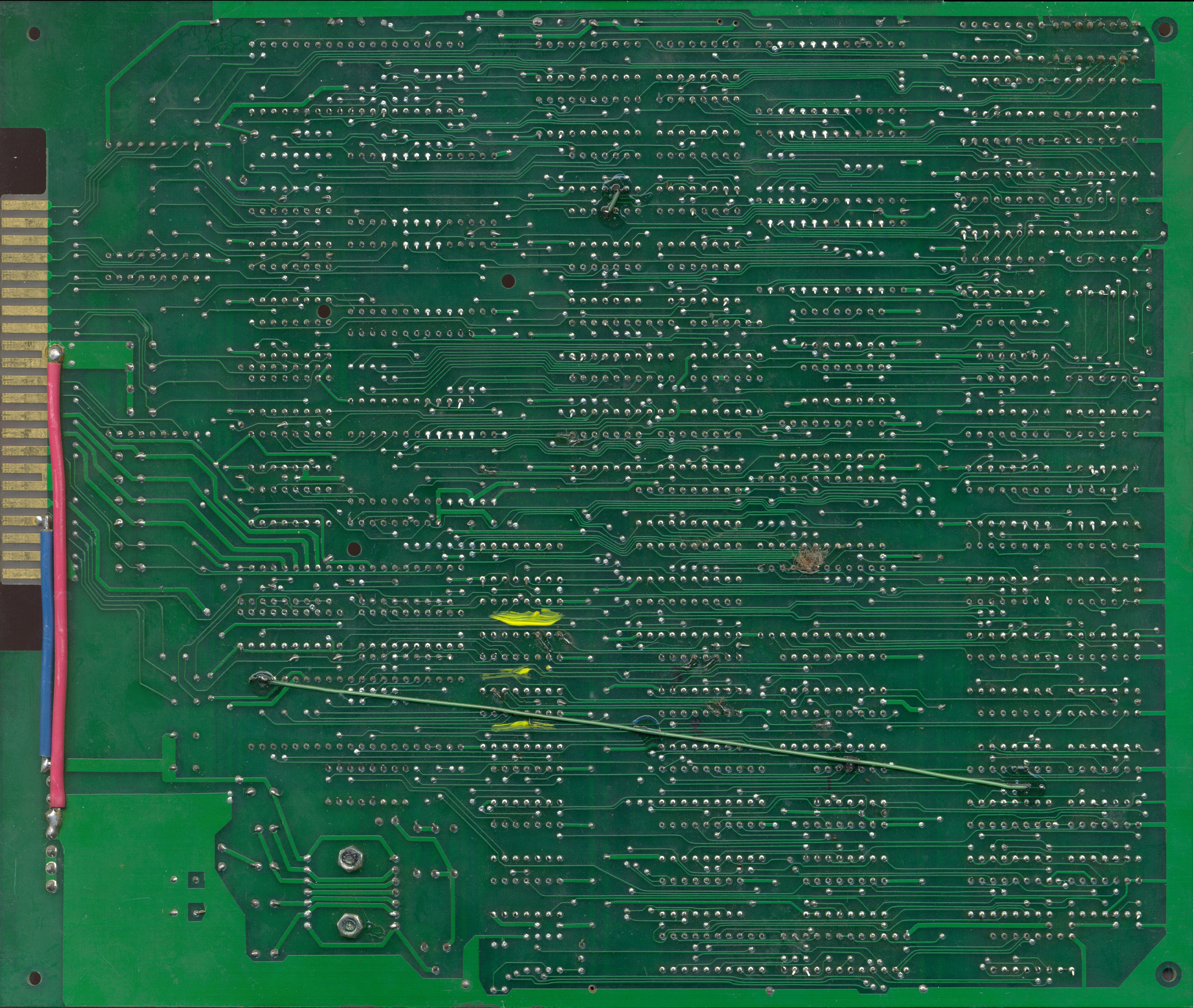

main PCB solder side
-

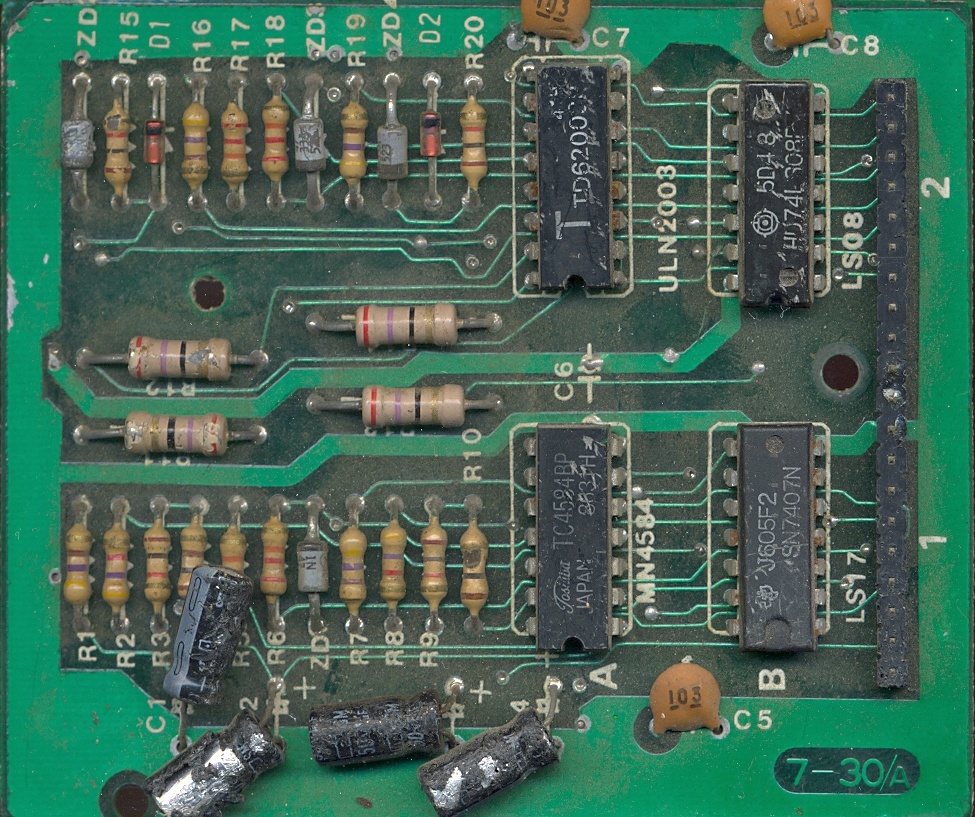

sub PCB component side
-

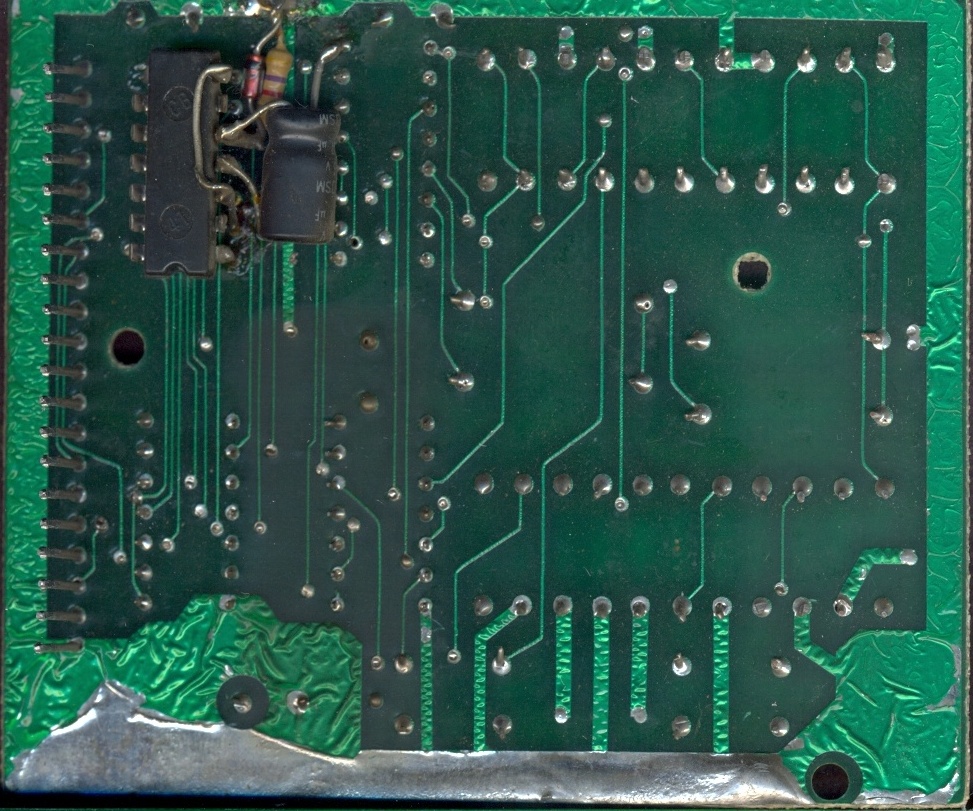

sub PCB solder side
