Arkanoid (bootleg on Block hardware, set 1, potentiometer)
From Citylan
Jump to navigationJump to search
| dumper | Tirino73 |
| date | 07/11/2015 |
| emulator | |
| dev |
| name | 1332 |
| description | Arkanoid (bootleg on Block hardware, set 1, potentiometer) |
| year | 1986 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Note 1: code was been modified for use of potentiometric control instead of the spinner used by other original and bootleg sets. The pot that must be used is a 5k Variable Resitor as specified in the schematics of Atari Breakout manual.
Controls tested by using of an Atari 2600 paddle controller with internal original 1M VR replaced by the 5k VR specified above.
Note 2: by testing DIP switches I've found that SW1 OFF=table,ON=upright cab and SW2 OFF=1C-1C,ON=1C-2C like DSW of Japanese set. So DSW definition reported in the driver for SW1 and SW2 of this set (arkgcbl) is wrong.
Files
-

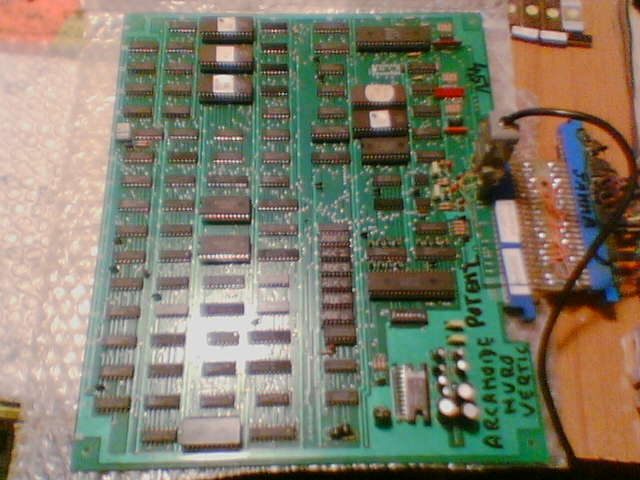

PCB component side
-

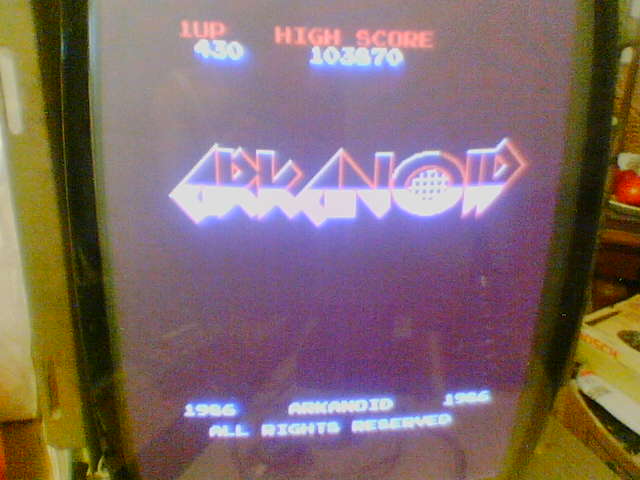

Title
-

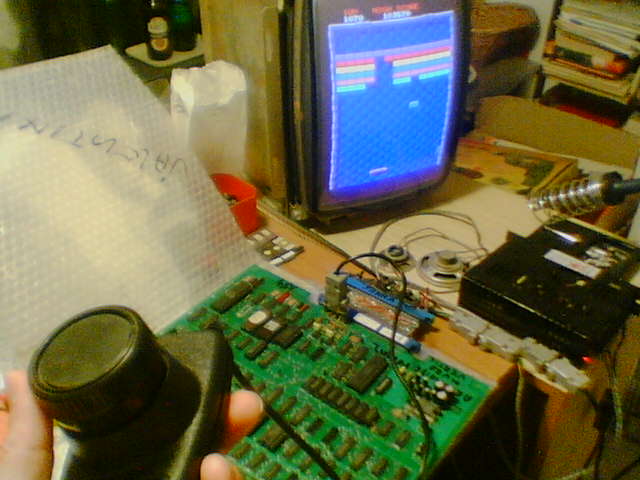

In game 1
-

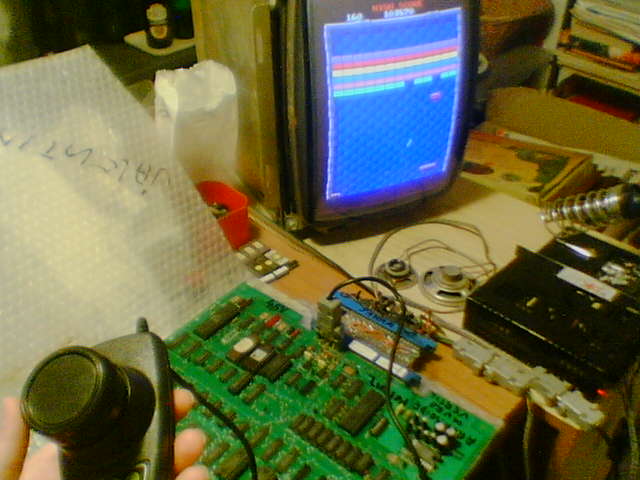

In game 2
-

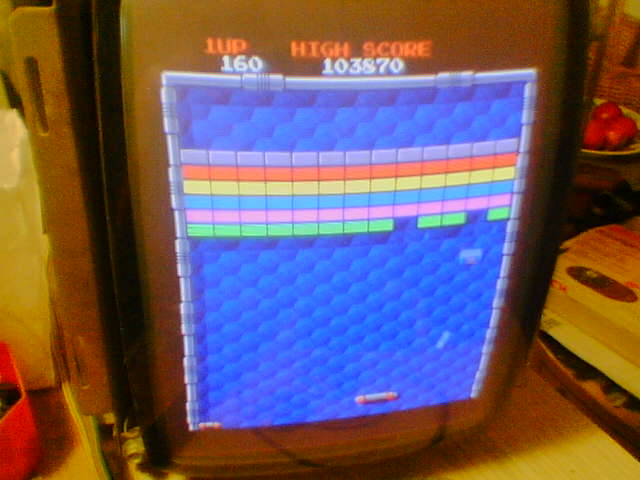

In game 3
-
Read me
-
ROMs
1332
