Arkanoid (bootleg on Block hardware, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 19/03/2006 |
| emulator | MAME 0.128u6 |
| dev | Robiza |
| name | arkgcbl on Arcade Database |
| description | Arkanoid (bootleg on Block hardware, set 1) |
| year | 1986.09.06 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MK3880N-4-Z80CPU | 6b | 8-bit Microprocessor - main | |
| 1x | AY-3-8910A | 6l | Programmable Sound Generator - sound | |
| 1x | oscillator | 12.000MHz | 1f | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | TNS27256JL | 3a,3c,3d,6e,6f | dumped |
| 5x | N82S129N | 5jk,5k,5kl,5l,5mn | dumped |
| 1x | MMI63S141 | 5m | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 4x | D4016C-2 | 3i,3k,3q,6g |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | AMPAL16R8PC | 5f | dumped |
Others
1x 28x2 edge connector
1x trimmer (volume)
1x 8x2 switches DIP
Notes
PCB marked 06.09.86
Files
-

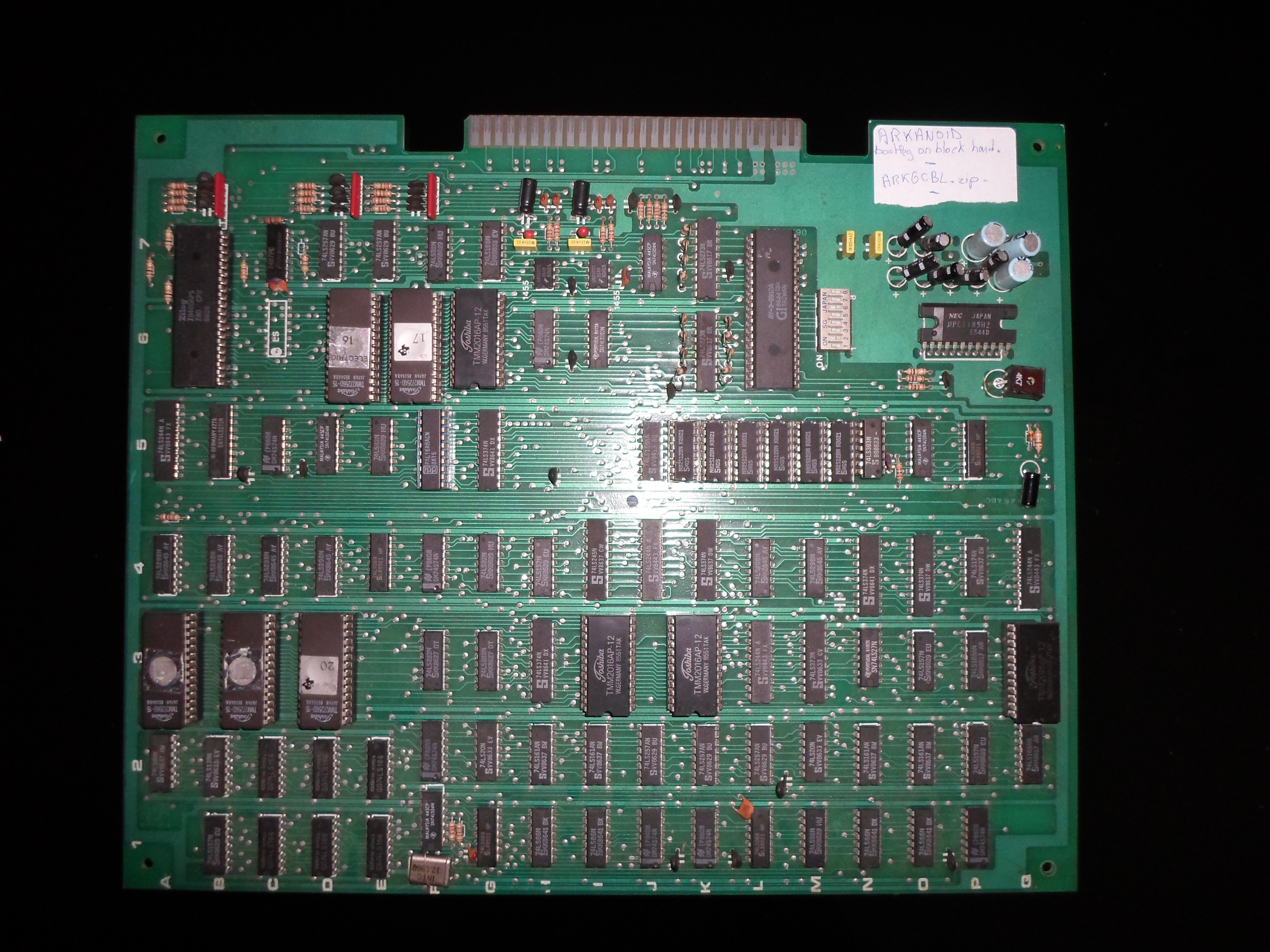

PCB component side 2
-
PCB solder side
