Arizona 10 (v1.1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 03/11/2018 |
| emulator | MAME 0.204 |
| dev | Osso |
| name | arizna10 on ProgettoEMMA arizna10 on Arcade Database |
| description | Arizona 10 (v1.1) |
| year | 1995 |
| manufacturer | Ri.Bi |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | TMPZ84C00AP-6 | u1 | 8-bit Microprocessor - main | |
| 1x | KC89C72 | u11 | Programmable Sound Generator - sound | |
| 1x | PIC16F84-04/P | on small piggyback at u6 | 8bit CMOS Microcontroller (internal ROM not dumped) | |
| 1x | TDA2003 | u16 | Audio Amplifier - sound | |
| 1x | oscillator | 6.000MHz | oz1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | NM27C256 | 2 | dumped |
| 1x | M27C512 | 1 | dumped |
| 1x | AM27S29APC | u48 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MB8416A-15L | u39,u40 |
| 1x | LC3517B-15 | u7 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | PALCE16V8H-25-PC/4 | u8,u41 | read protected |
| 1x | GAL22V10D-25LP | on small piggyback at u6 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 10 legs connector (CN1)
1x trimmer (volume)(P1)
1x 8 DIP switches bank (DIP)
1x battery 3.6V (BAT1)
Notes
PCB is marked: "029 lc" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "029 ls" and "PKR 92" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labeled: "8/98rb013" on component side
Files
-

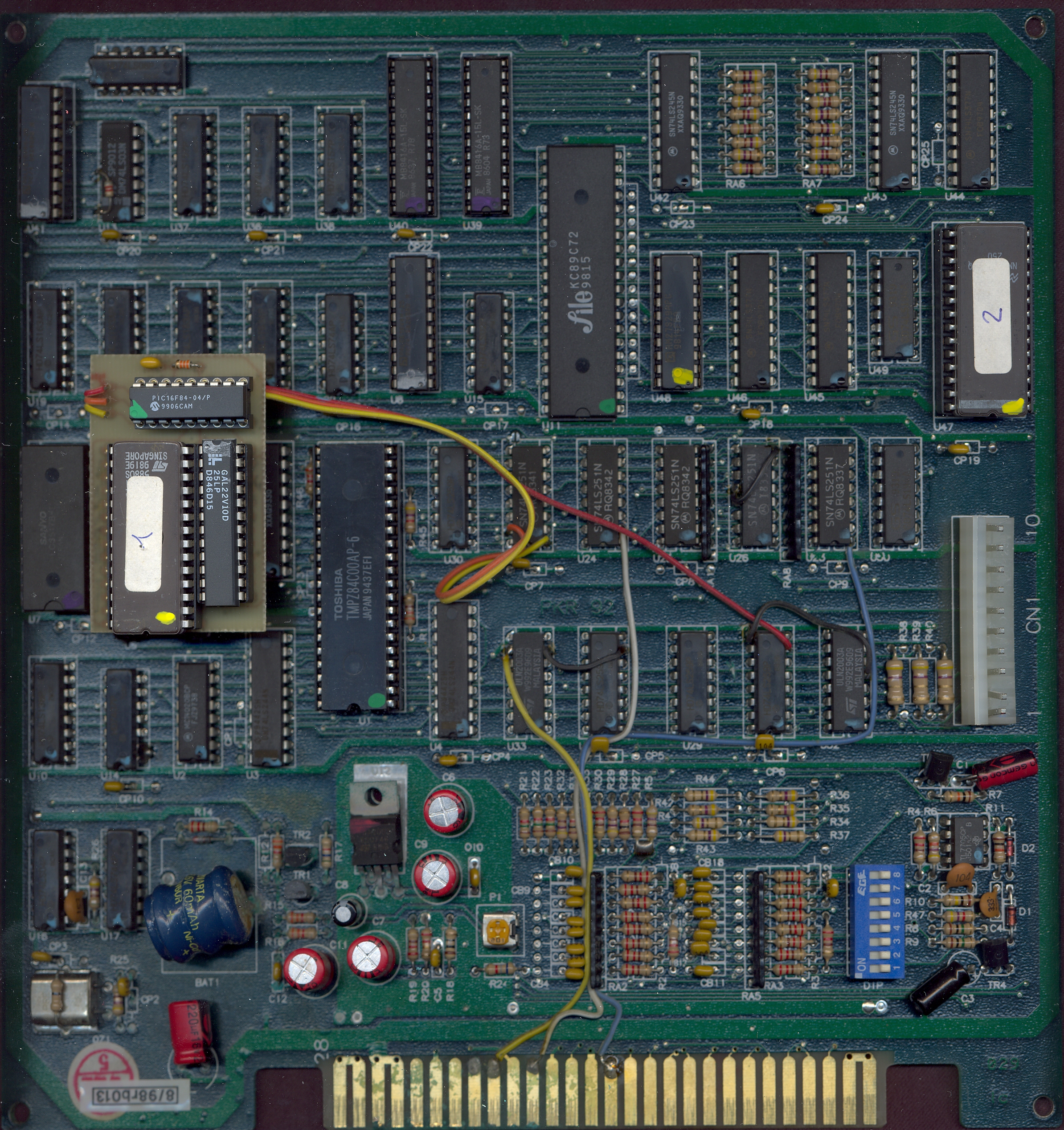

PCB component side
-

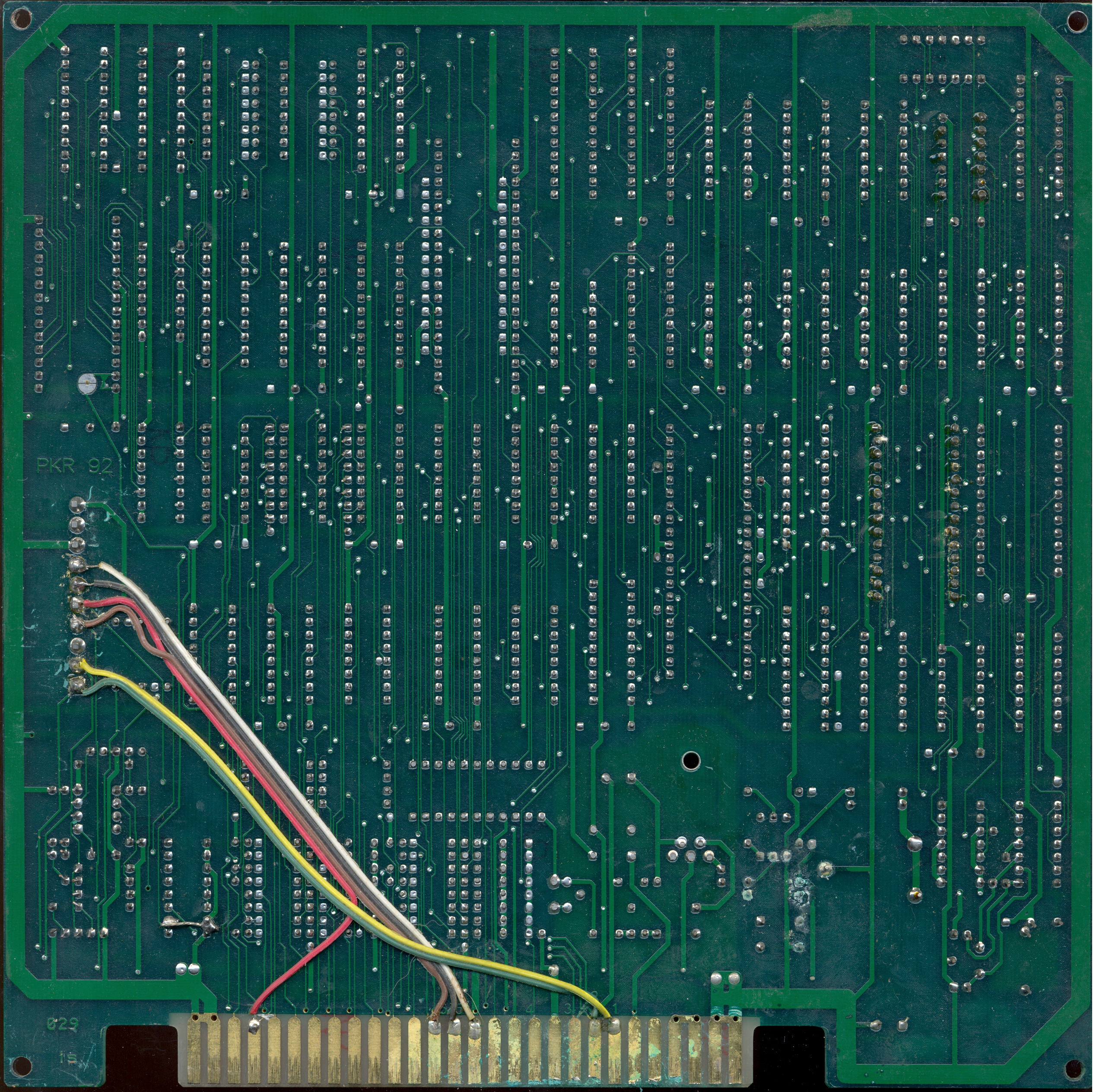

PCB solder side
