Apple 10 (Ver 1.21)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 18/04/2008 |
| emulator | MAME 0.124u4 |
| dev | Roberto Fresca |
| name | apple10 on Arcade Database |
| description | Apple 10 (Ver 1.21) |
| year | 1998 |
| manufacturer | Sandii' |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | G65SC02P-2 | u16 | 8-bit Microprocessor - main | |
| 1x | AD-65 | u19 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | u17 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u16 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | AM27C256 | 1,2,3,5 | dumped |
| 1x | W27E02 | 4 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | GM76C88AL-15 | U1,U24 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MACH231-15-JC/1-18JI/1 (LCC84) | U14,U26 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 15 legs connector (J2)
1x trimmer (volume)
1x 8 DIP switches bank (SWDIP1)
1x battery 3.6V (BAT1)
Notes
PCB is marked: "SNOOKER 10", "SANDII'" and "top" on component side
PCB is marked: "SANDII'" and "bottom" on solder side
Files
-

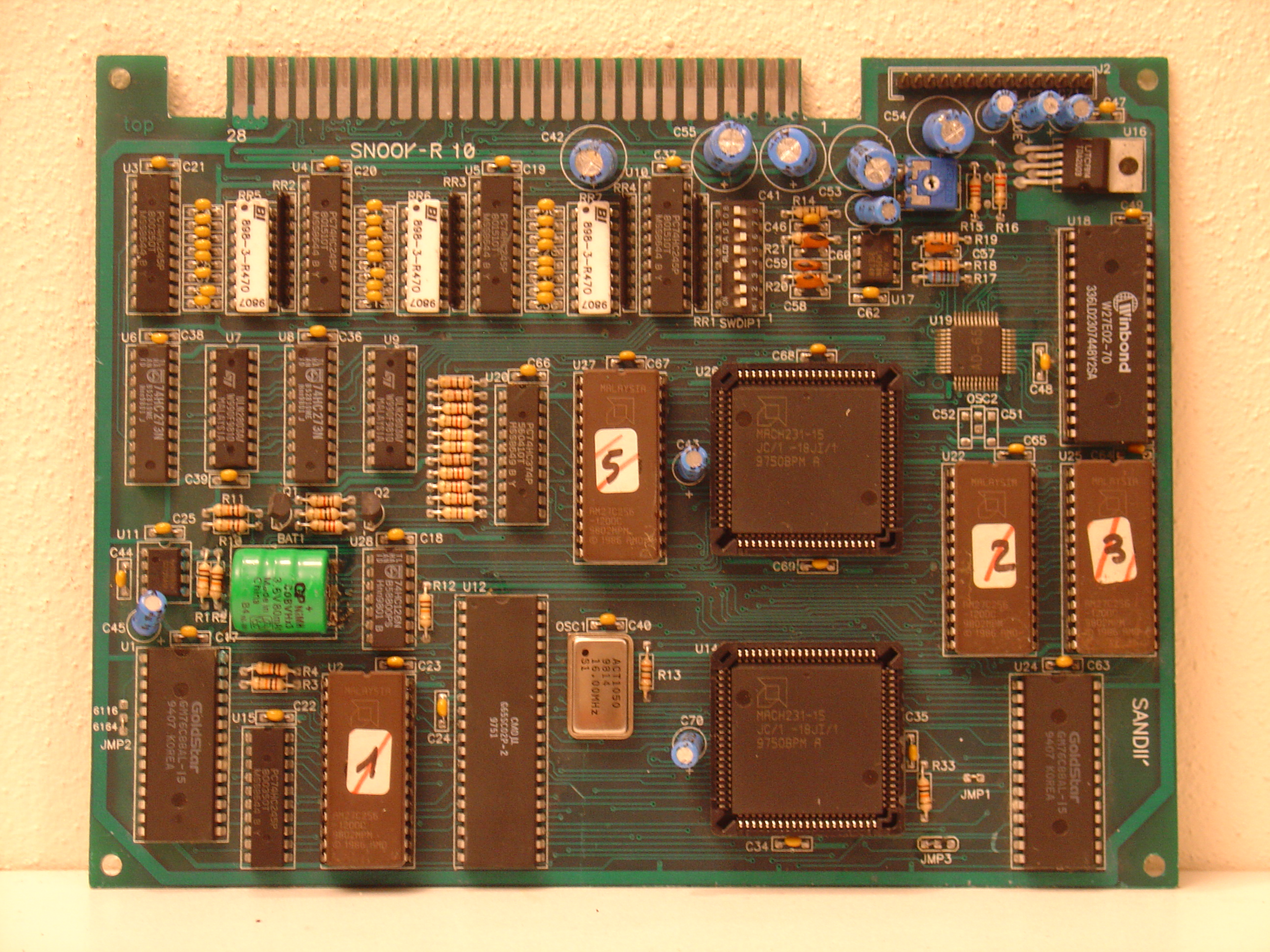

1st PCB component side
-

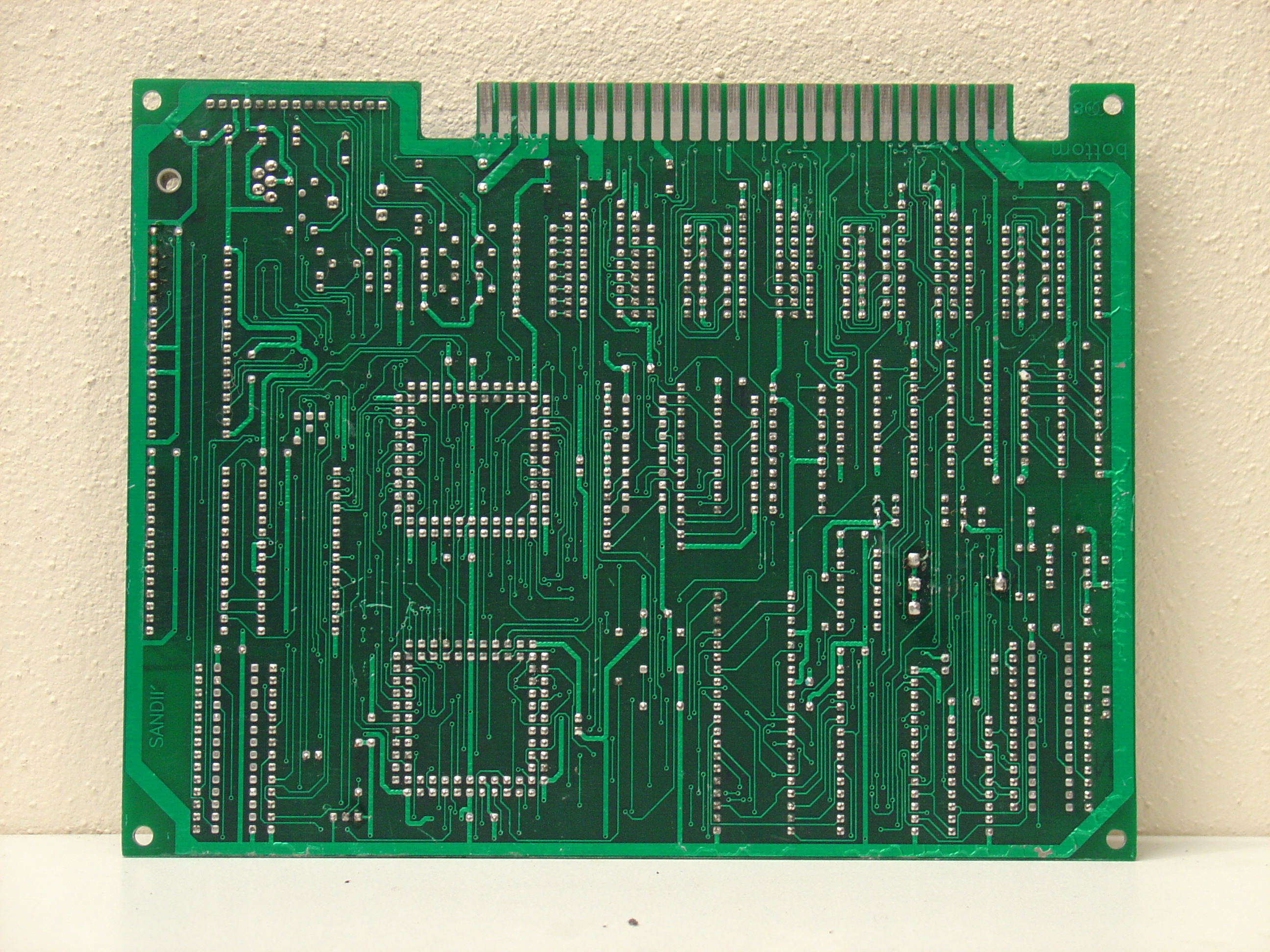

1st PCB solder side
-

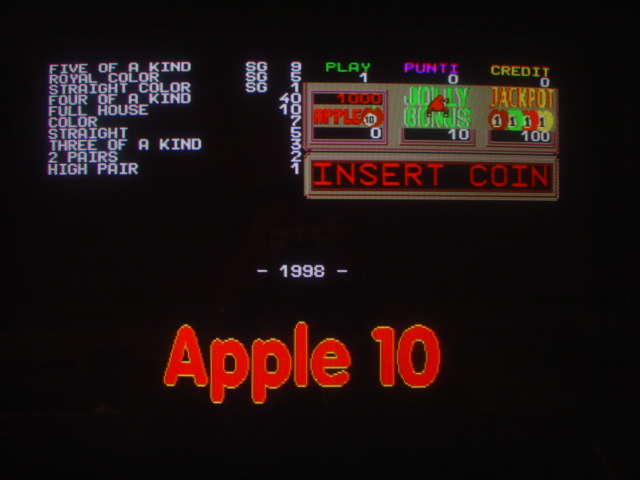

Title
-

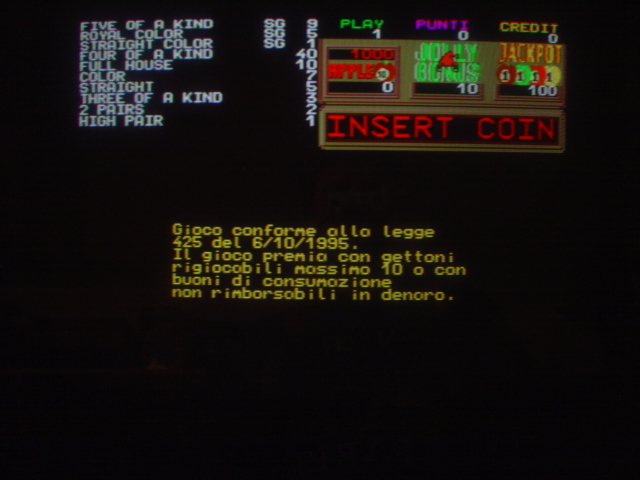

Disclaimer
-

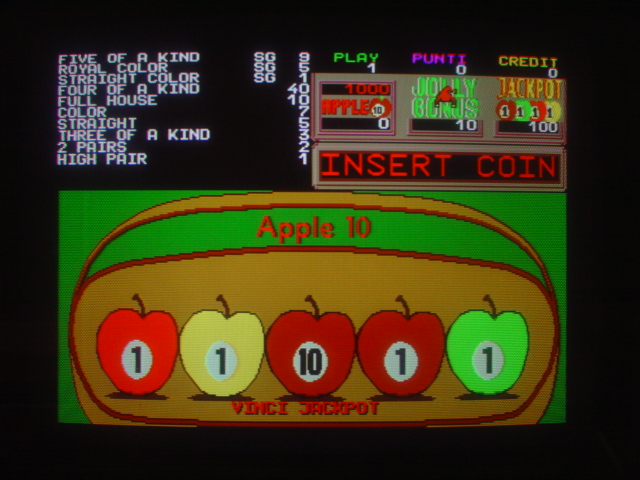

In game 1
-

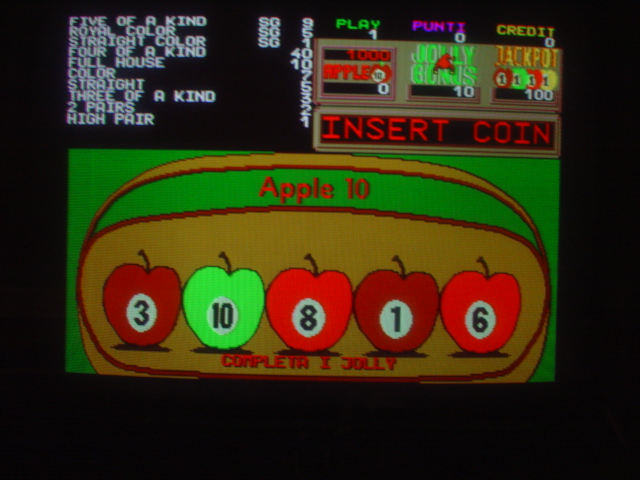

In game 2
-

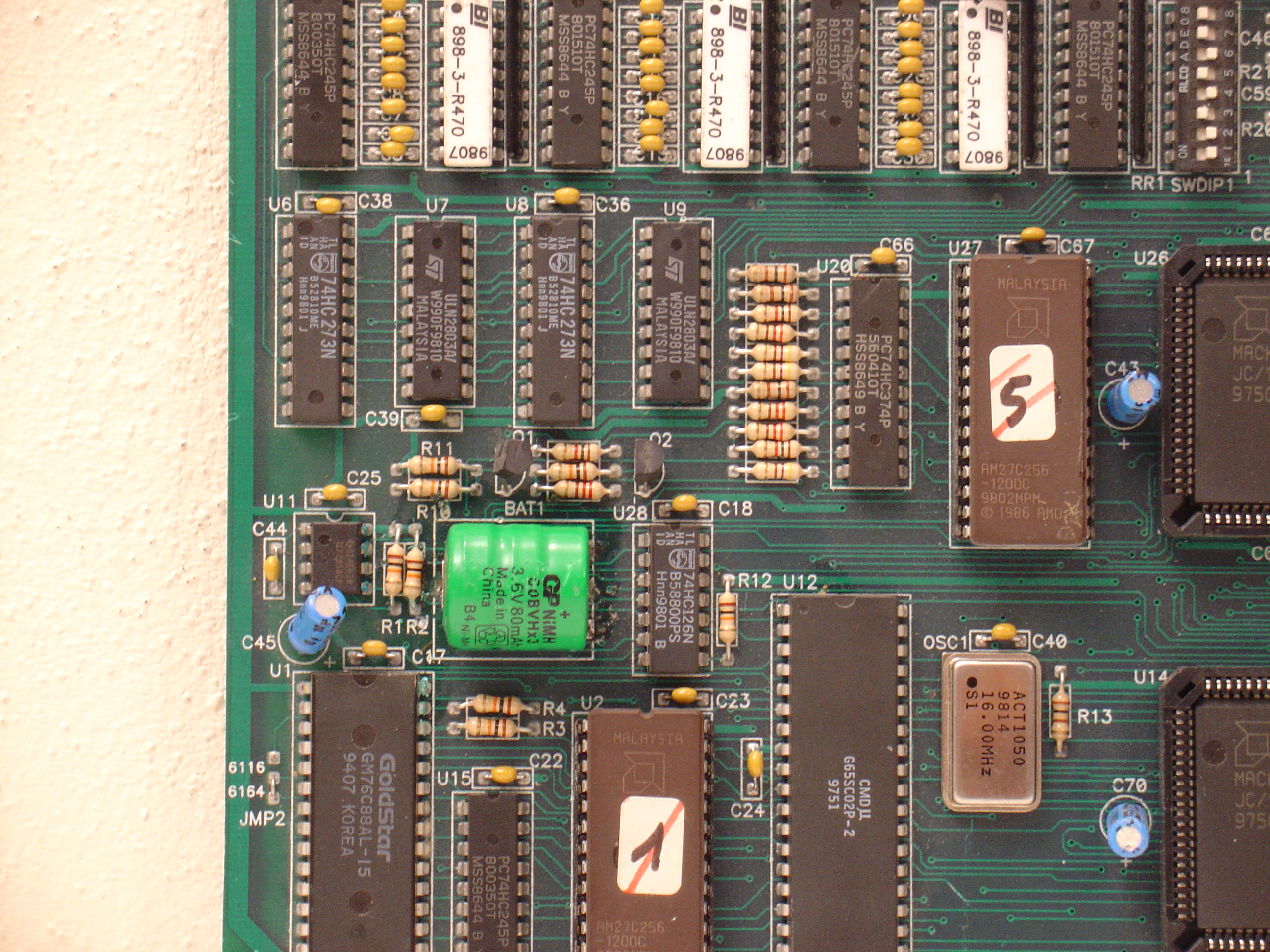

Resistors detail 1
-

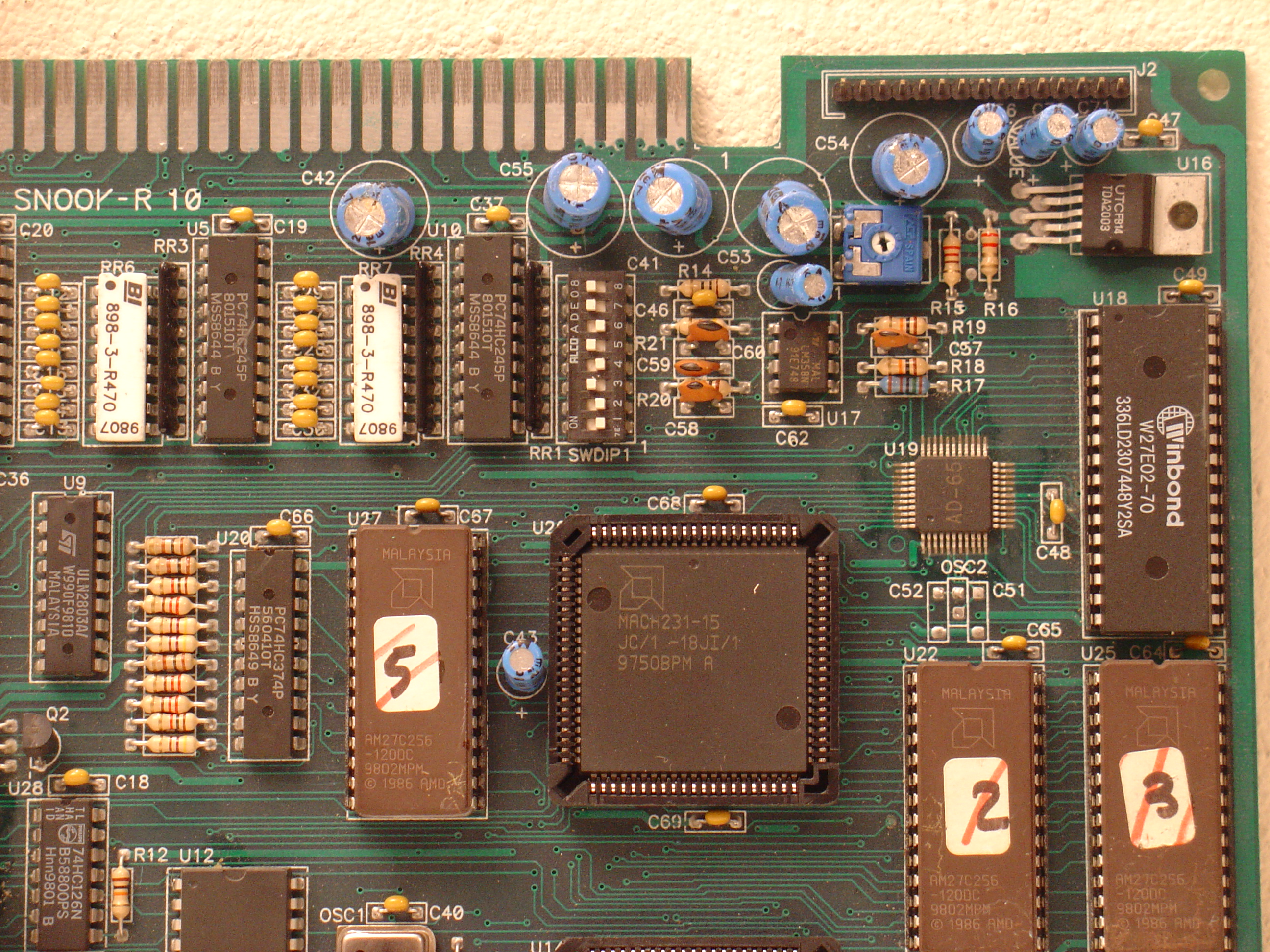

Resistors detail 2
