Alpine Racer (Japan, AR1 Ver.C)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 08/05/2021 |
| emulator | MAME 0.232 |
| dev | Brian A. Troha, Osso |
| name | alpinerjc on ProgettoEMMA alpinerjc on Arcade Database |
| description | Alpine Racer (Japan, AR1 Ver.C) |
| year | 1994 |
| manufacturer | Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | E28F016SA (x16) | ROM1,ROM2 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 80 pins connector from main PCB to ROMs PCB
Notes
PCB is marked: "NAMCO", "hi-pric P53B", "SYSTEM SUPER22 MPM(F16) PCB 8646962500" and "Made in Japan"
PCB is labelled: "A0297" and "AR1 VER. C" on solder side
Files
-

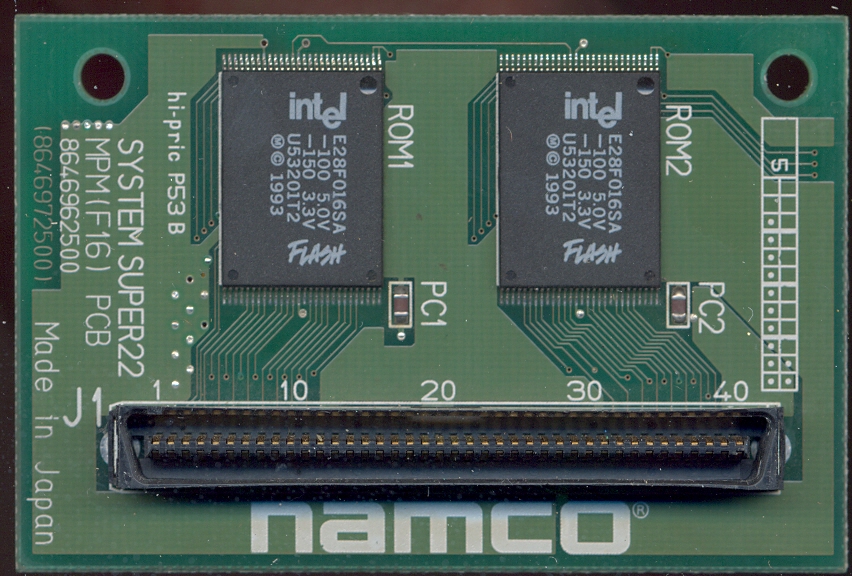

PCB component side
-

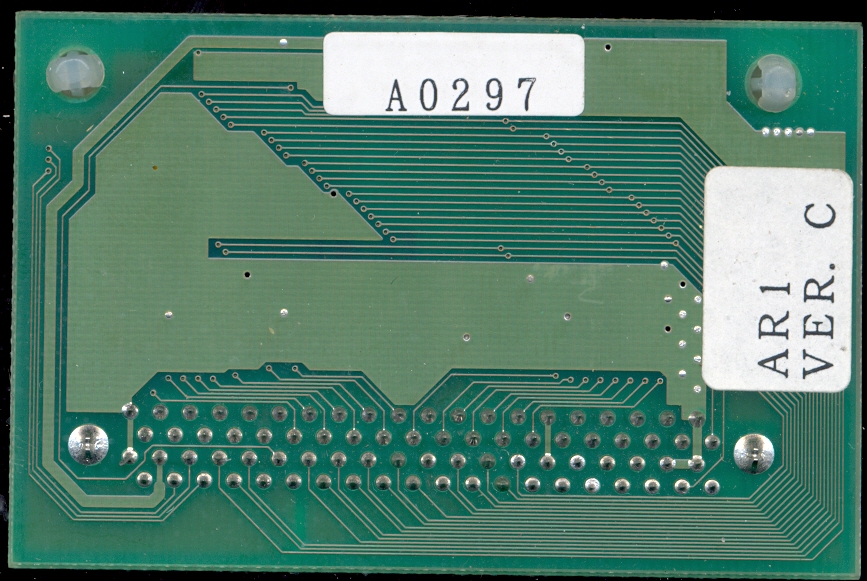

PCB solder side
