Akatsuki Blitzkampf Ausf. Achse (Japan)
From Citylan
Jump to navigationJump to search
| dumper | Rtw |
| date | 10/05/2011 |
| emulator | MAME 0.143u1 |
| dev | The Dumping Union |
| name | ausfache on ProgettoEMMA ausfache on Arcade Database |
| description | Akatsuki Blitzkampf Ausf. Achse (Japan) |
| year | 2008.02.29 |
| manufacturer | Subtle Style |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | PIC16C621A | 317-5130-JPN.ic3 | EPROM-Based 8-Bit CMOS Microcontroller |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XCF01SVG | ic4 | not dumped |
| 4x | S29GL512N10T | ic8-ic11 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC3S50 | ic2 | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: 171-8346C
Cart N°: 841-0058C
EPR.ic7: not present
IC2# is labeled "VER.2" - IC4# is marked "5A" - IC#10 & IC#11 are empty
Files
-

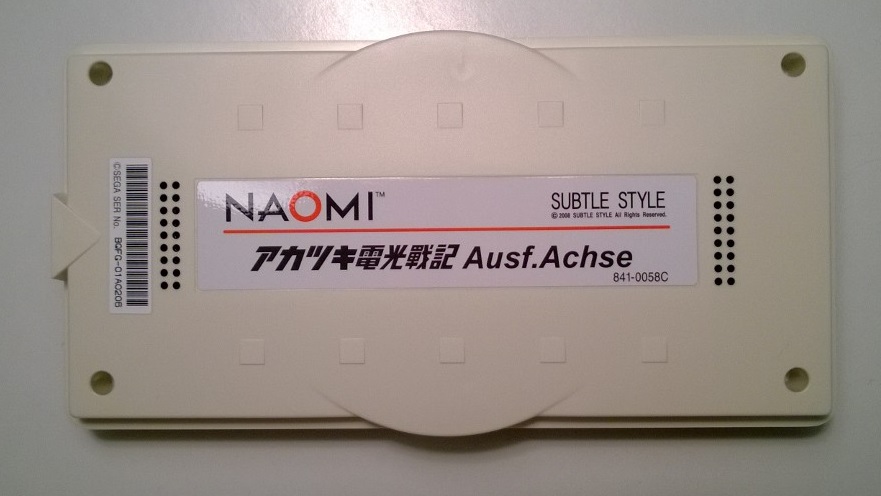

Cart 1
-

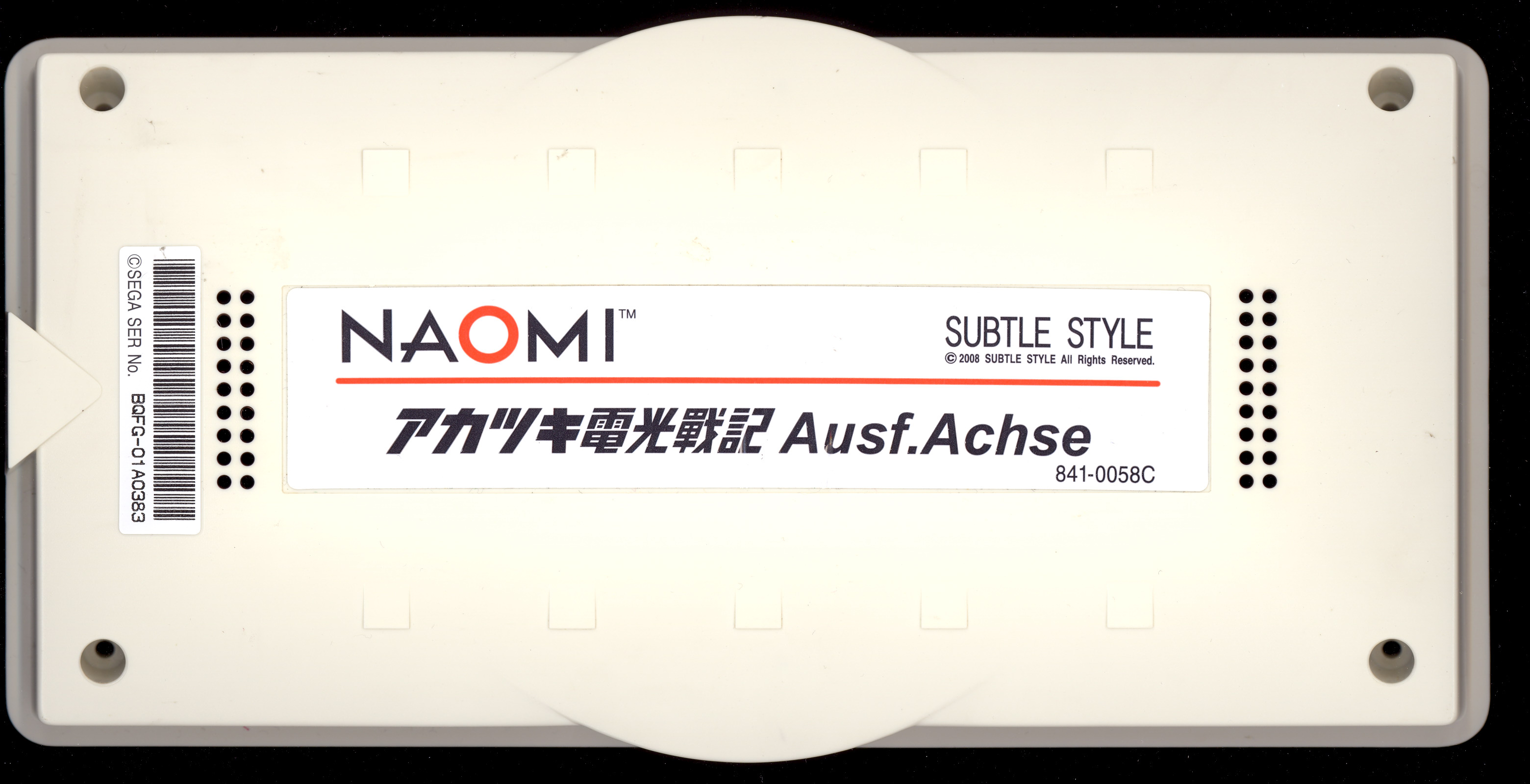

Cart 2
-
package
-

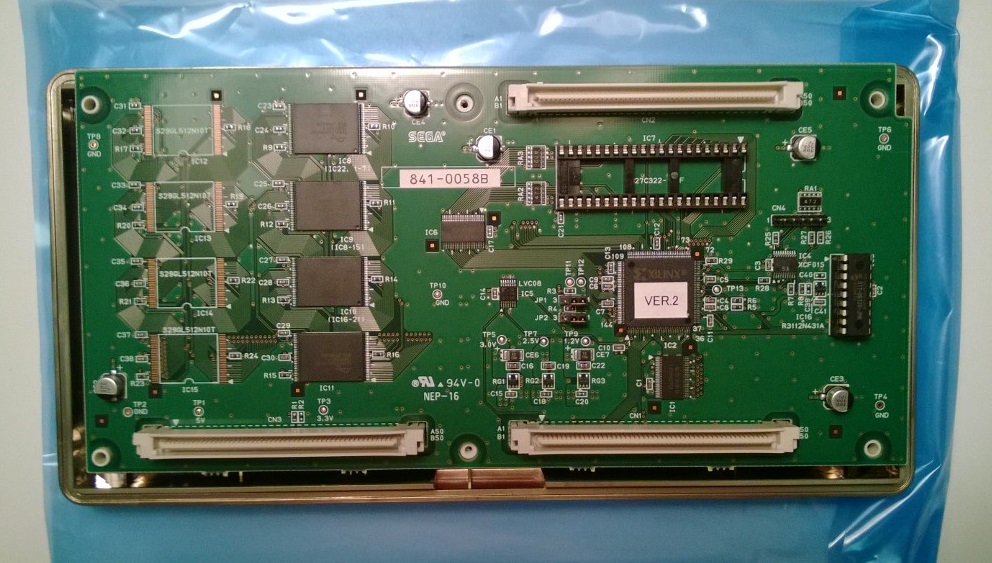

PCB component side 1
-
PCB component side 2
-

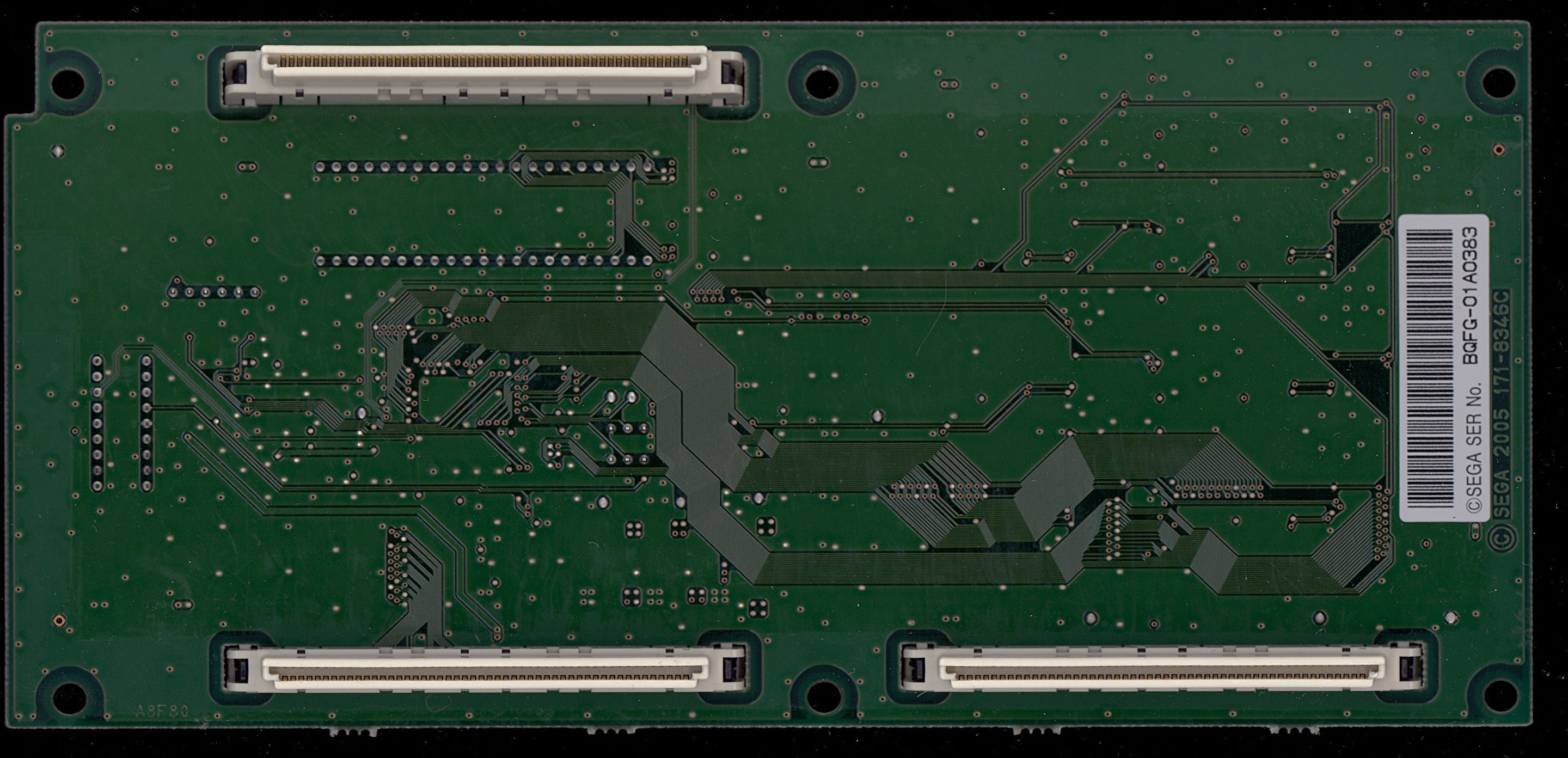

PCB solder side
-

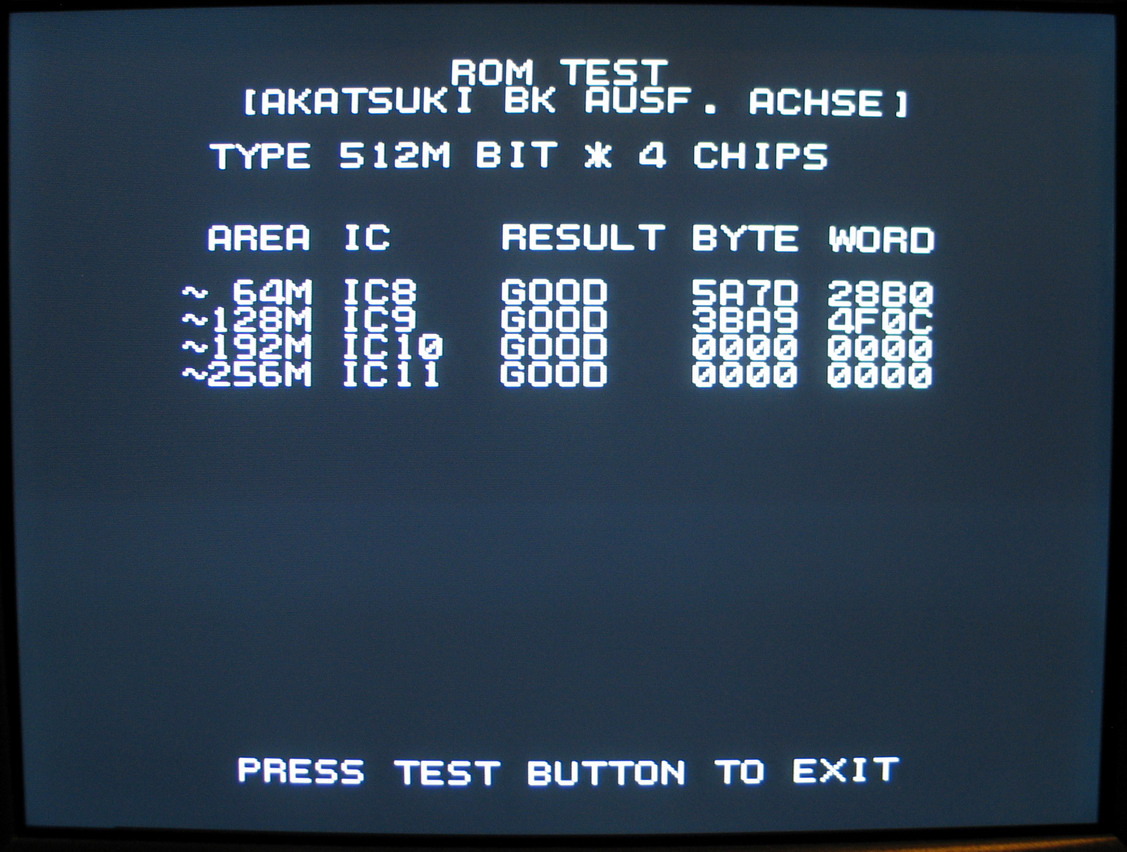

ROM BOARD TEST
-
