Advisor (Italian bootleg of Space Fury)
| dumper | IZ8DWF |
| date | 09/05/2024 |
| emulator | MAME 0.237 |
| dev | Matteo Legittimo, Andy Welburn, Osso |
| name | spacfurybl on Arcade Database |
| description | Advisor (Italian bootleg of Space Fury) |
| year | 1981 |
| manufacturer | Rumiano |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z0840004PSC-Z80CPU | 1023-u22 | 8-bit Microprocessor - main | |
| 1x | Z0840016PEC-Z80CPU | 1047-u20 | 8-bit Microprocessor - sound | |
| 1x | TMC0280FNL | 1047-17 | Voice Synthesis - sound | |
| 1x | LM380N | - | 1047-u12 | Audio Amplifier - sound |
| 1x | oscillator | 15.45848MHz | 1039- |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MCM2708C | 1039-u39 | dumped |
| 1x | AM2708DC | 1047-u16 | dumped |
| 1x | D2716 | 1023-u25 | dumped |
| 1x | D2716 | 1024-u17 | dumped |
| 4x | 2732 | 1024-u1,u2,u3,u4 | dumped |
| 2x | TMS2732A | 1047-u3,u4 | dumped - different from MAME |
| 1x | N82S123N | 1023-u15 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MM2114N-3 | 1023-u26 |
| 2x | TNS2114L-45NL | 1023-u27,u29 |
| 1x | MCM2114P45 | 1023-u28 |
| 4x | MM2114N-055 | 1038-u24,u25,u26,u27 |
| 4x | MBM2114A-15L | 1038-u28,u29,u30,u31 |
| 1x | F6810P | 1047-u15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
6x 43x2 edge connector (one on each board)
1x 4 legs connector (1037)
1x 6 legs connector (1047)
2x 8 legs connector (1023)
1x trimmer (1023)
2x trimmer (1047)
1x 8 DIP switches bank (1023-SW2)
1x 8 jumpers bank (1023-SW1)
Notes
1023 PCB is marked: "1023-B" on component side
1024 PCB is marked: "1024-B" on component side
1037 PCB is marked: "1037-B" on component side
1038 PCB is marked: "1038-B" on component side
1039 PCB is marked: "1039-B" on component side
1047 PCB is marked: "1047-B" on component side
2 sound EPROMs are different from what's currently in MAME.
advsp_u3.u3 [1/2] pcb6.3 IDENTICAL advsp_u4.u4 [1/2] pcb6.2 IDENTICAL
the second half is full of data.
update 20240516: the 2 different EPROMs are now included in MAME
Files
-

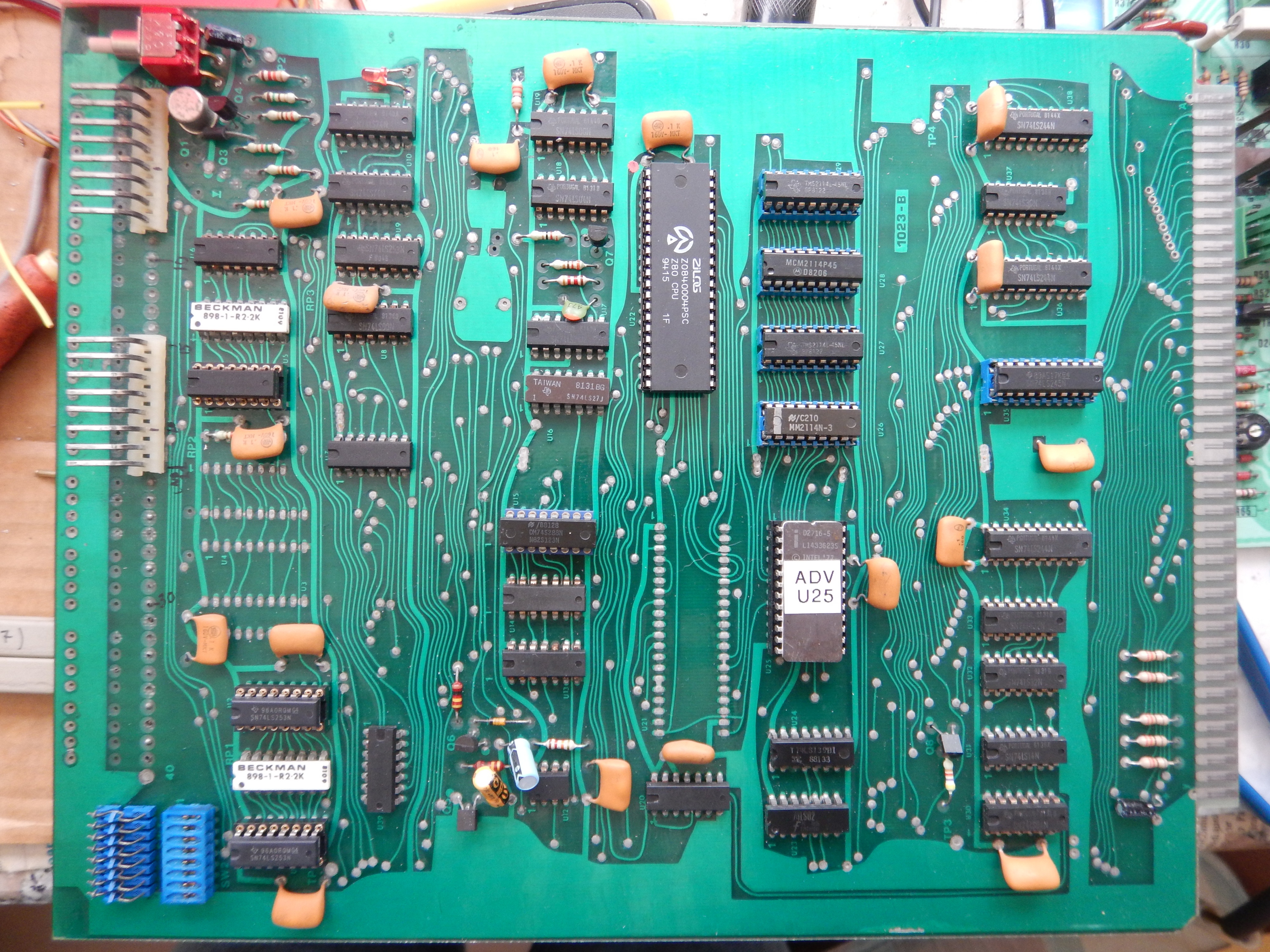

PCB 1023-B component side
-

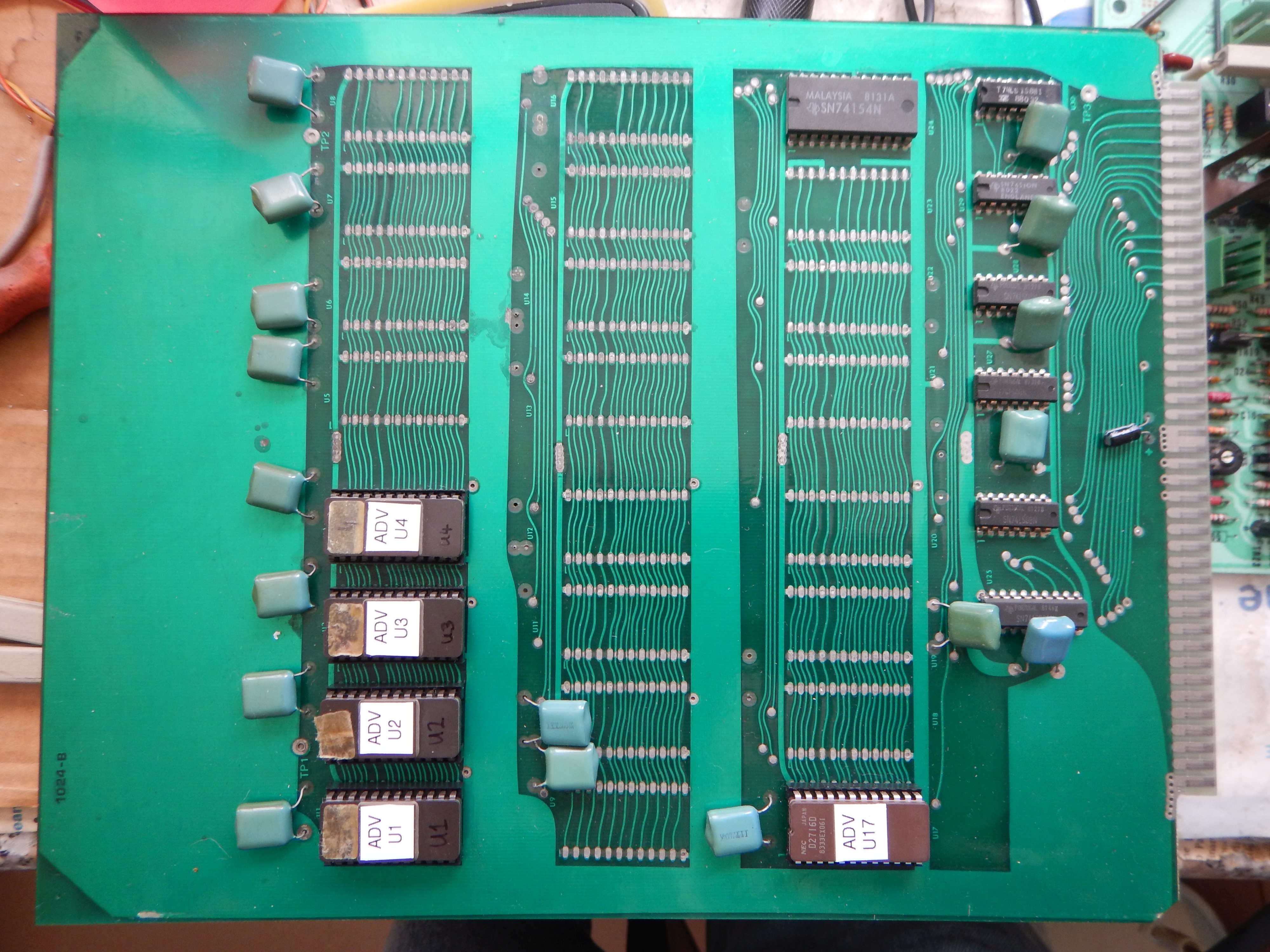

PCB 1024-B component side
-

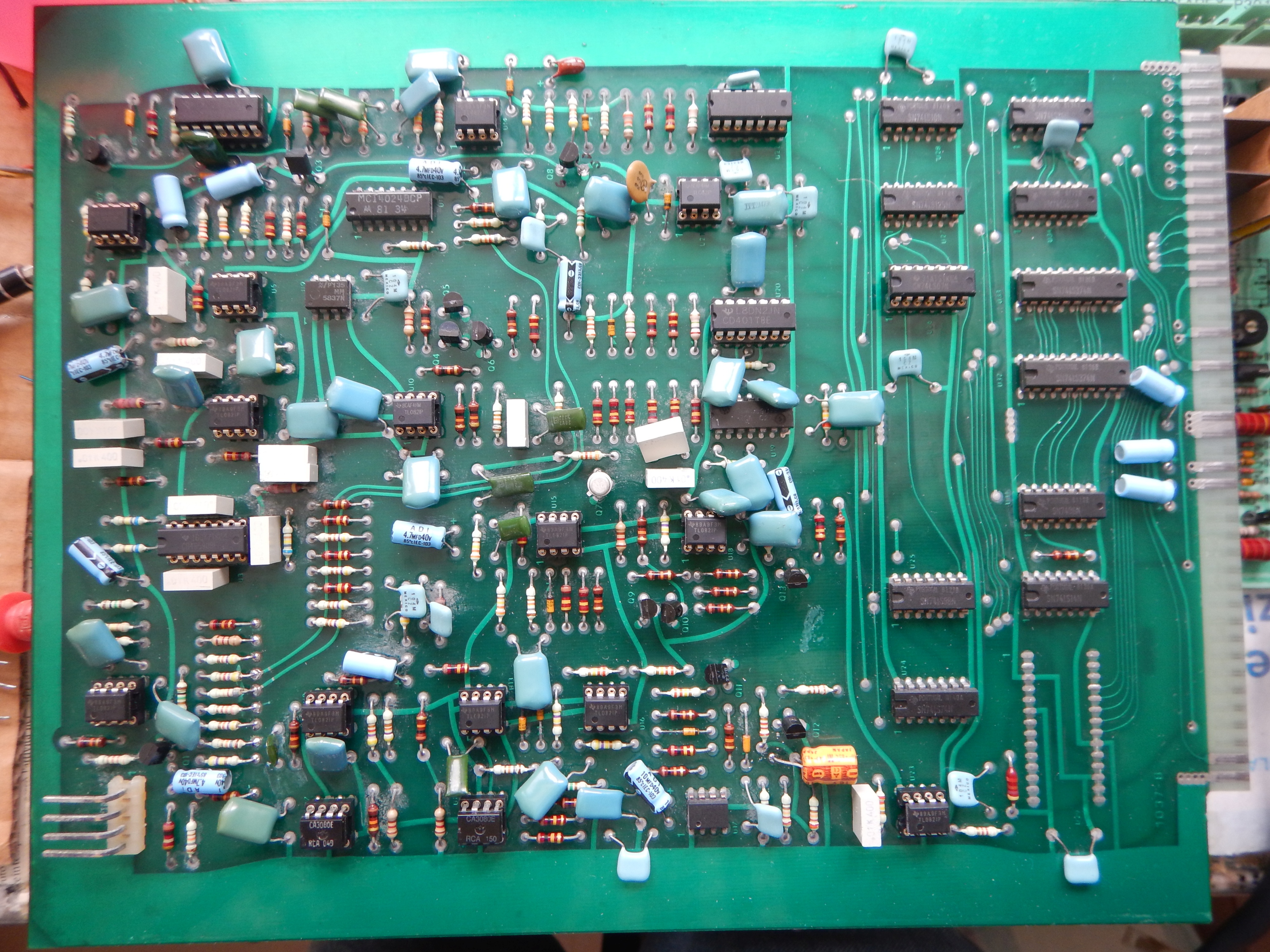

PCB 1037-B component side
-

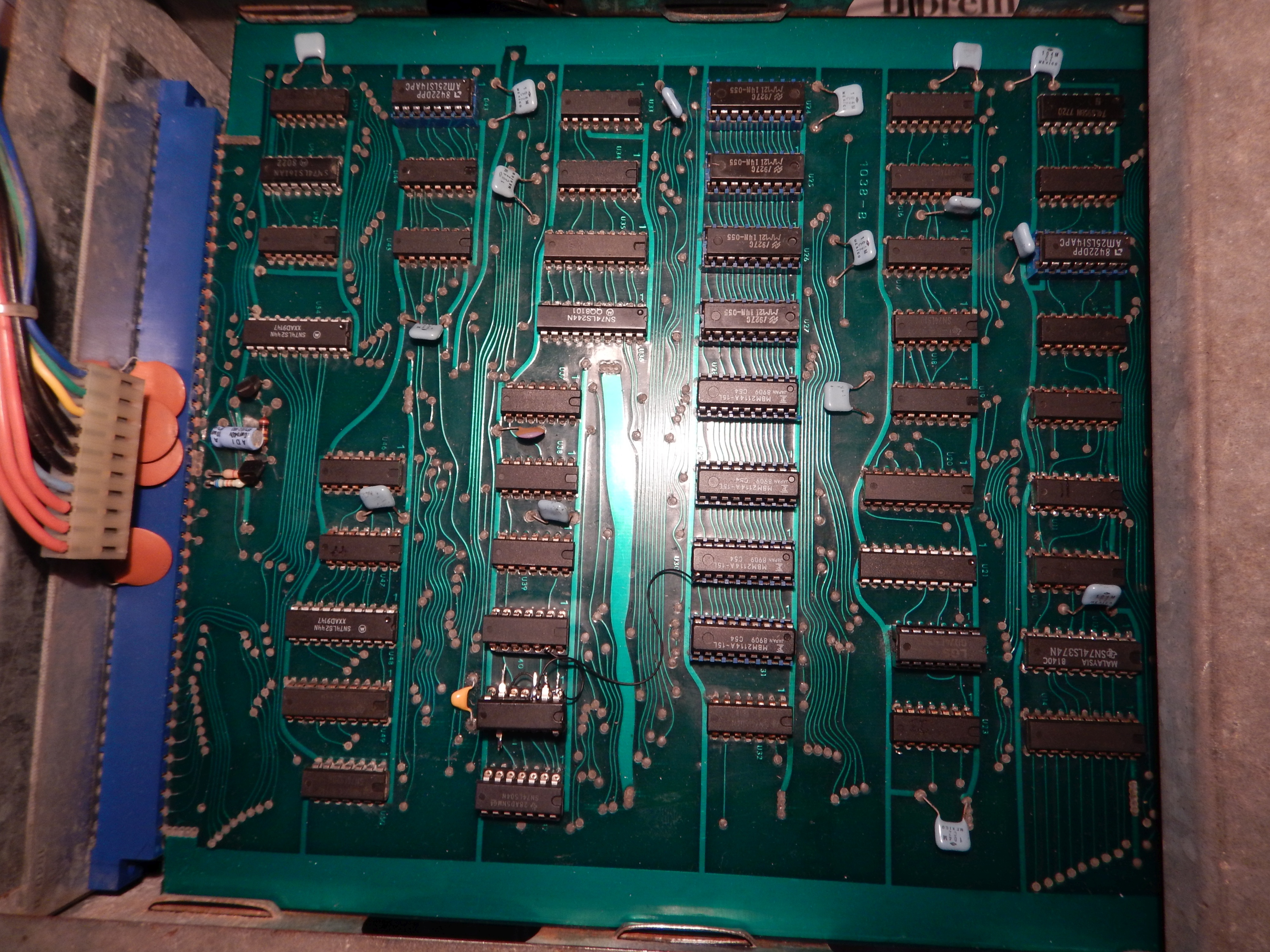

PCB 1038-B component side
-

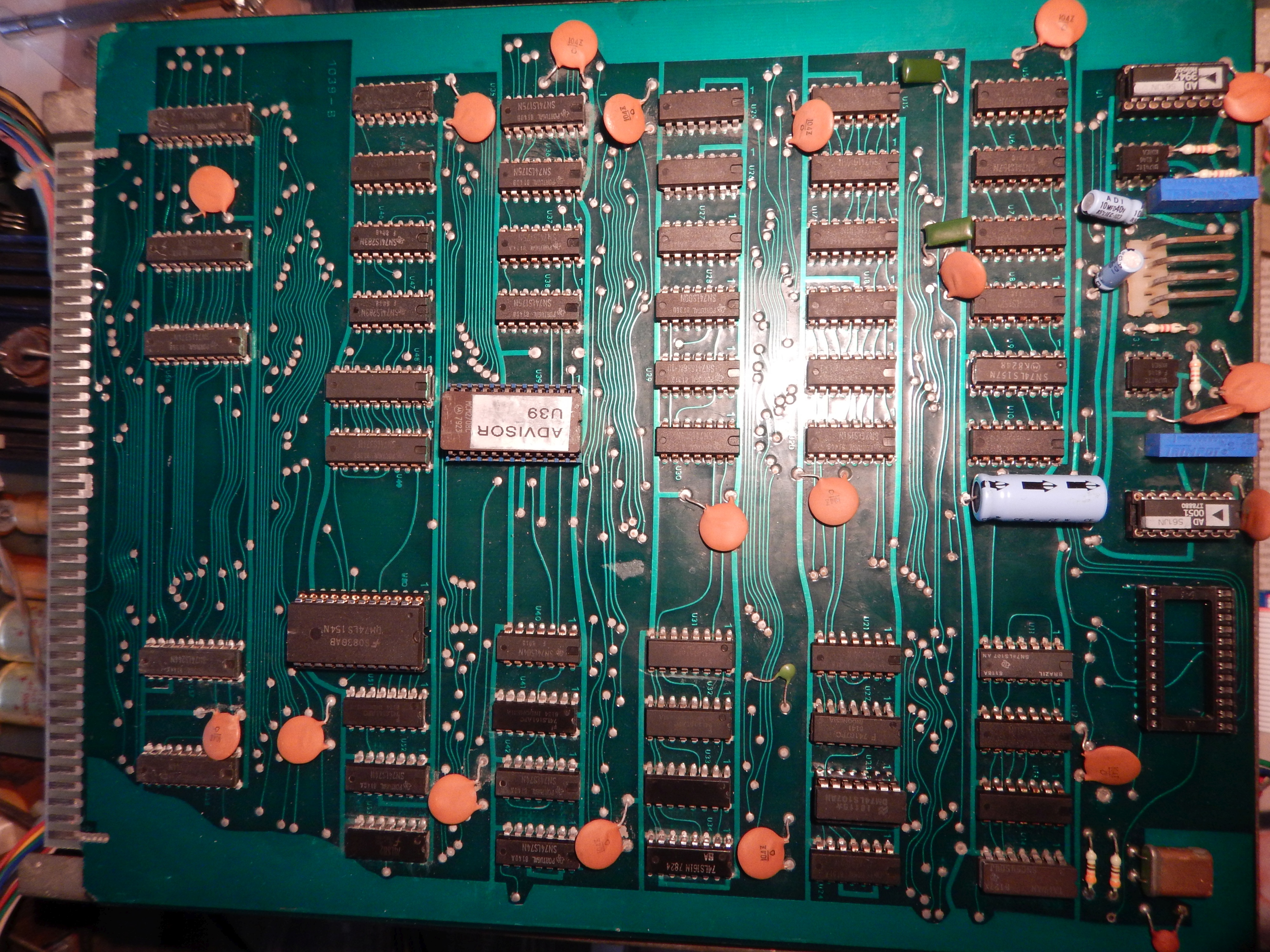

PCB 1039-B component side
-

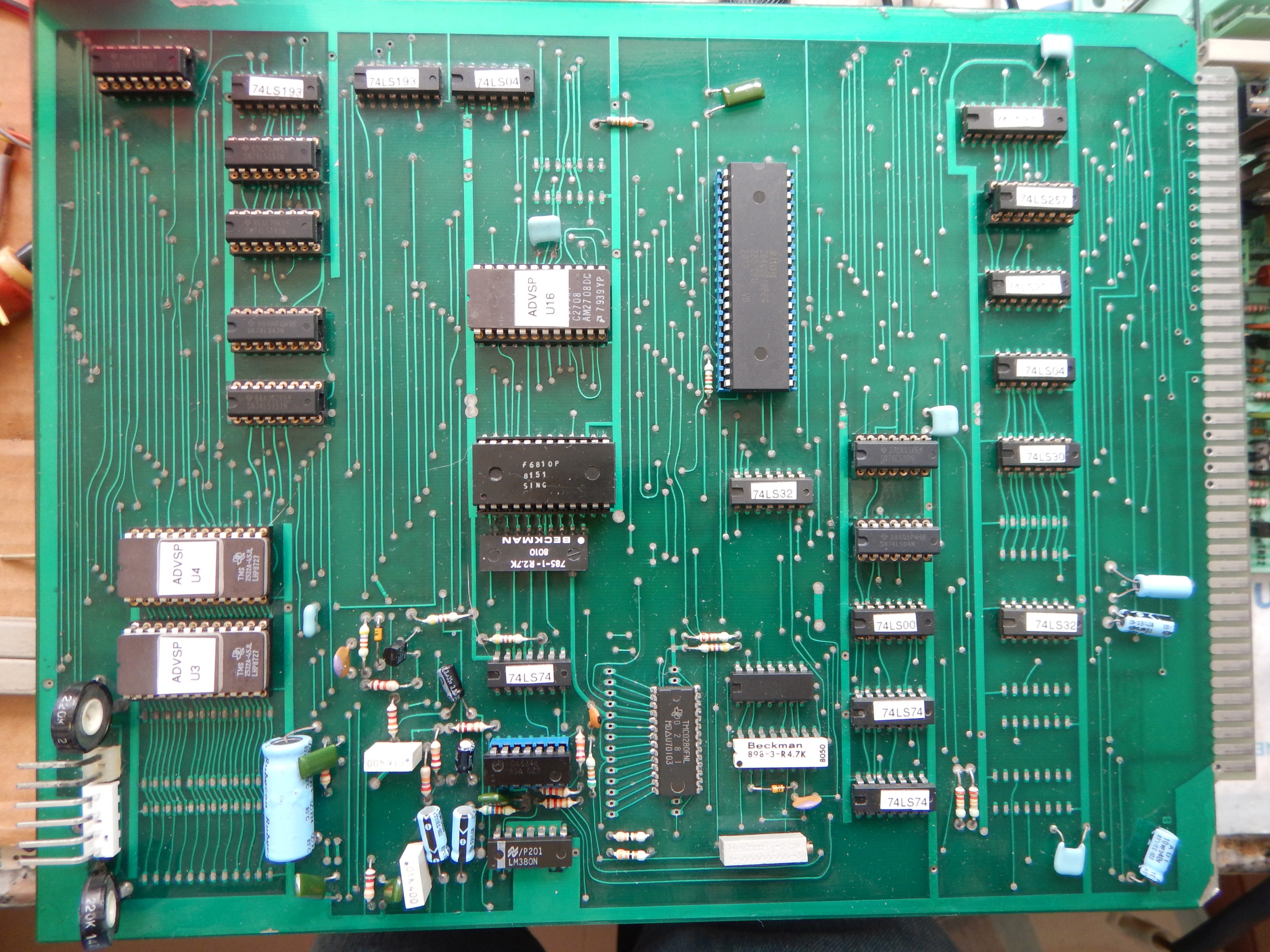

PCB 1047-B component side
-
