Abacus (Ver 1.0)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 09/05/2010 |
| emulator | MAME 0.138u1 |
| dev | f205v |
| name | abacus on Arcade Database |
| description | Abacus (Ver 1.0) |
| year | 2001.08.24 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3048 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | AD-65 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.000MHz | osc1 | |
| 1x | blu resonator | 1000J | x1 | |
| 1x | oscillator | KDS0D | x2 (close to DS1302) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | W27C020 | 1 | dumped |
| 2x | M27C4001 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | LST62832I-70LL-10L | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | not dumped |
Others
1x 28x2 edge connector
1x 50 pins flat cable connector (CN4)
1x 12 legs connector (CN1)
2x trimmer (volume,spark)
1x 12x2 switches DIP
1x battery 3.6V
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "bottom" and "H83048 Rev. 1.1" on solder side
PCB is labeled: "ABACUS Vers. 1.0" and "FR 24.08.01" on component side
Files
-

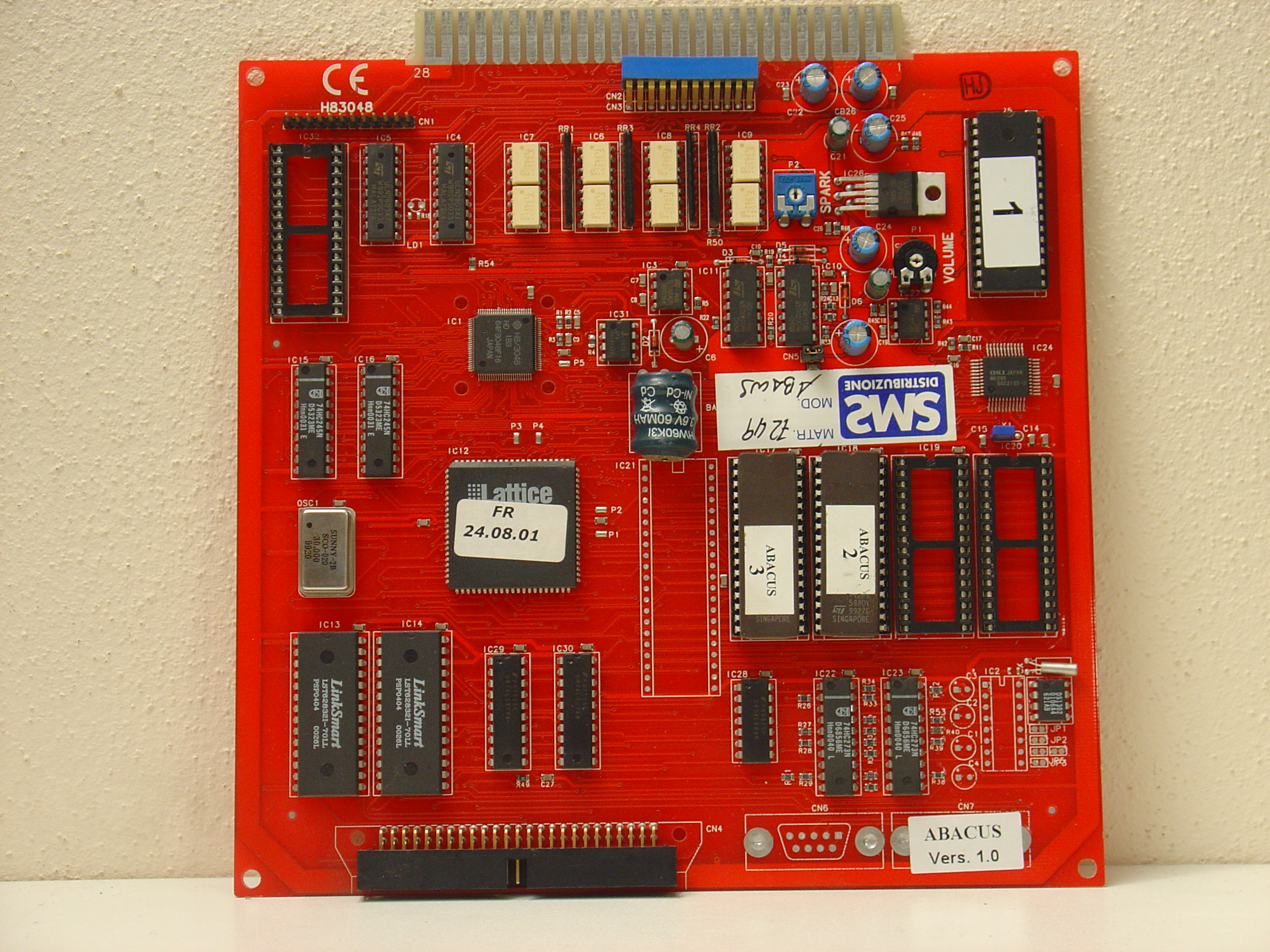

PCB component side 1
-

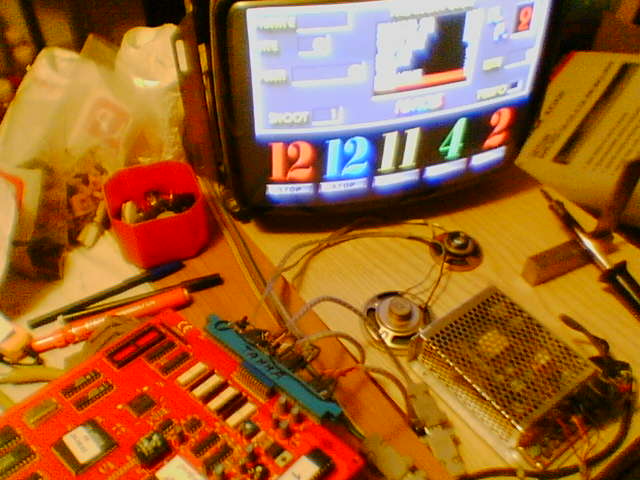

PCB component side 2
-

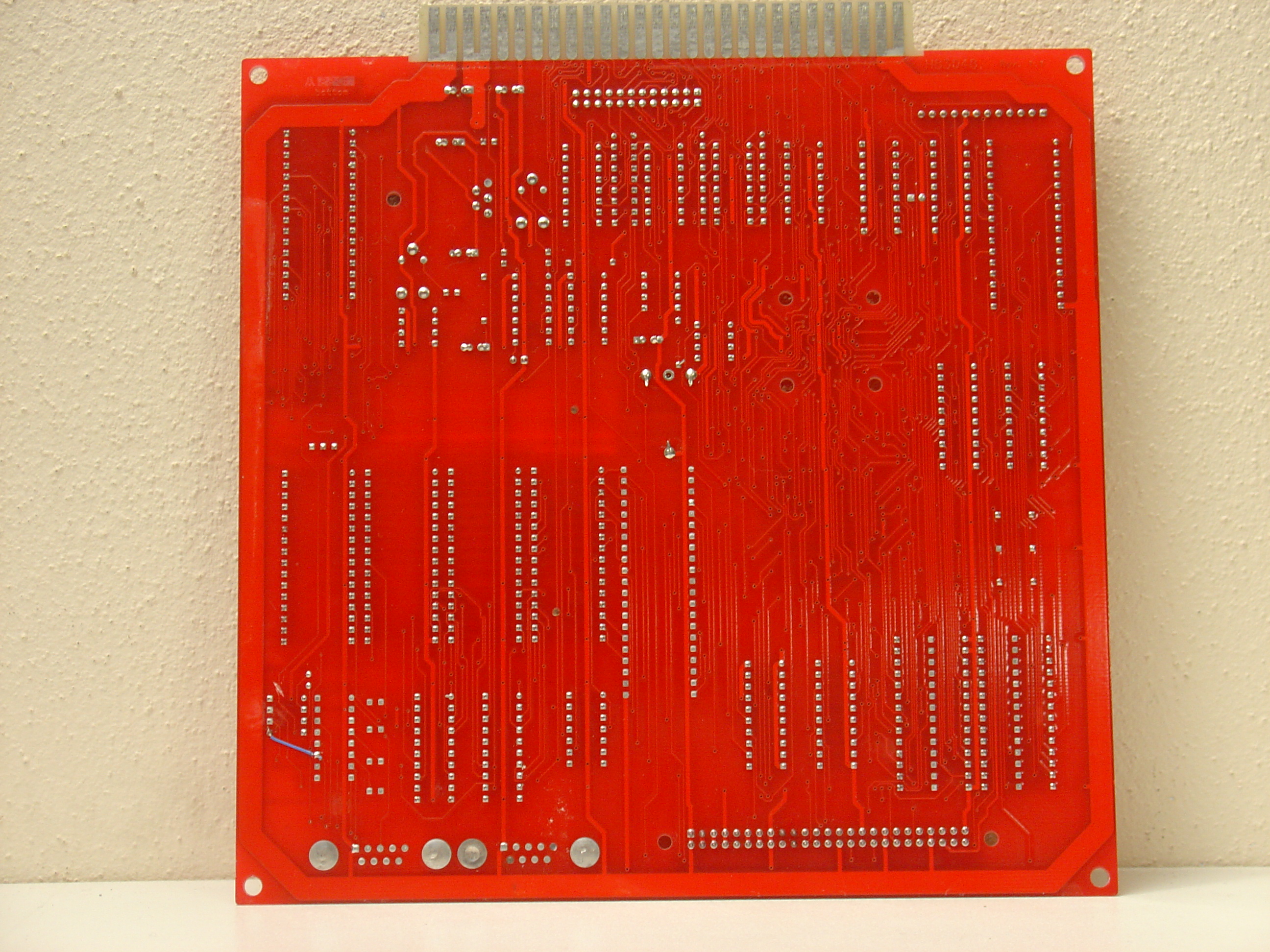

PCB solder side
-

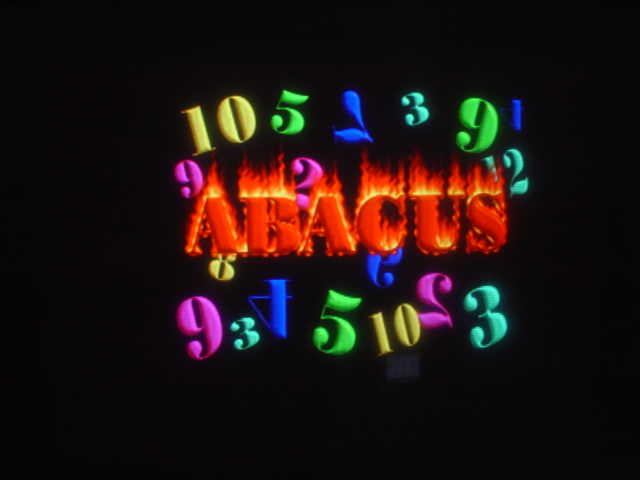

Title
-

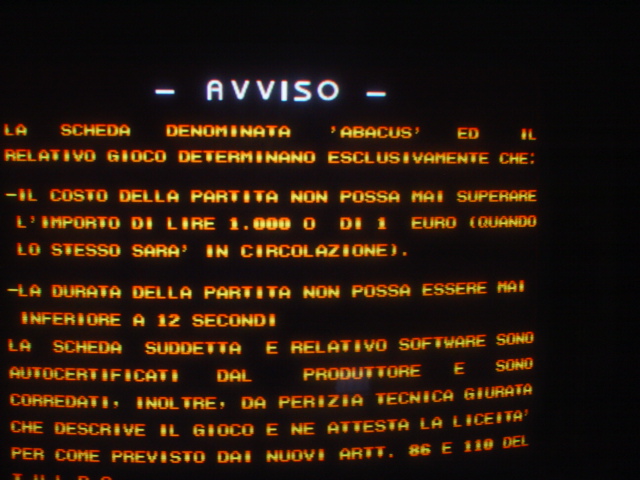

Disclaimer
-

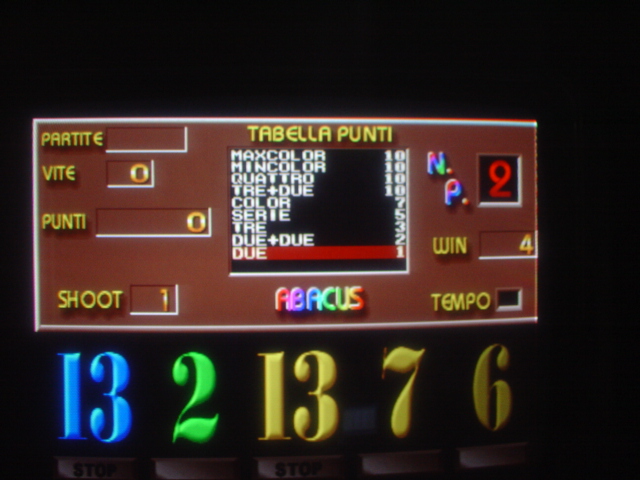

Intro 1
-

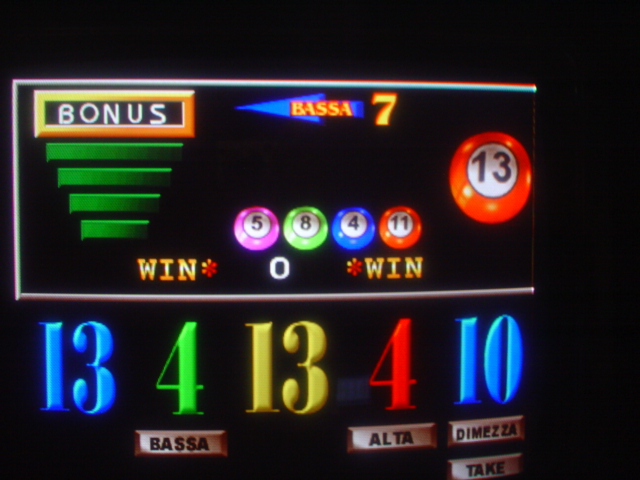

Intro 2
-

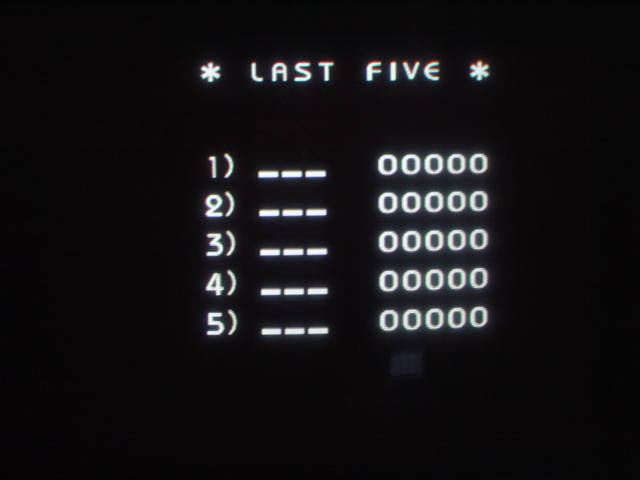

Hi scores
-

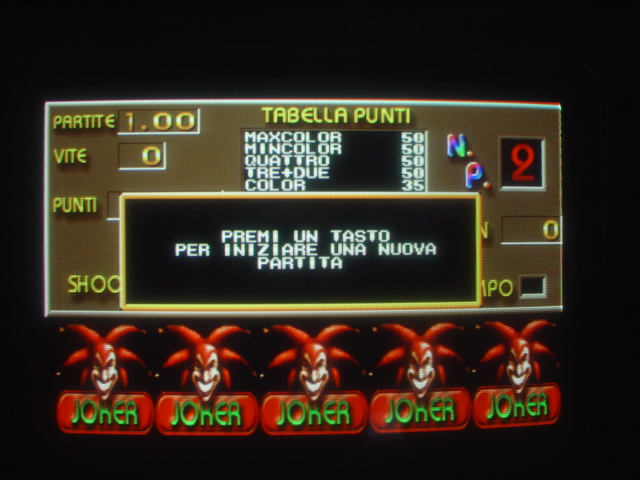

In game
